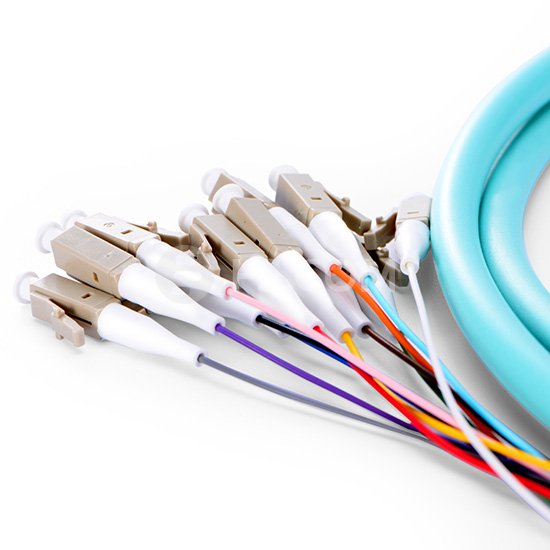

1M 12 Fibers LC/UPC 10G 50/125 OM3 Multi-Mode Bunch Fiber Optic Pigtail - 0.9mm PVC Jacket
1M 12 Fibers LC/UPC 10G 50/125 OM3 Multi-Mode Bunch Fiber Optic Pigtail
Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The bunch fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.
| Connector A | LC | Connector B | Unterminated |
| Fiber Category | 50/125μm OM3 Multimode | Jacket Color | Aqua |
| Cable Diameter | 0.9mm | Jacket Material | LSZH |
| Total Length | 1M | Breakout Length | 0.3M |
| Fiber Count | 12 | Polish | UPC |
| Wavelength | 850nm and 1310nm | Durability | >1000 Times |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
Key Features and Applications
