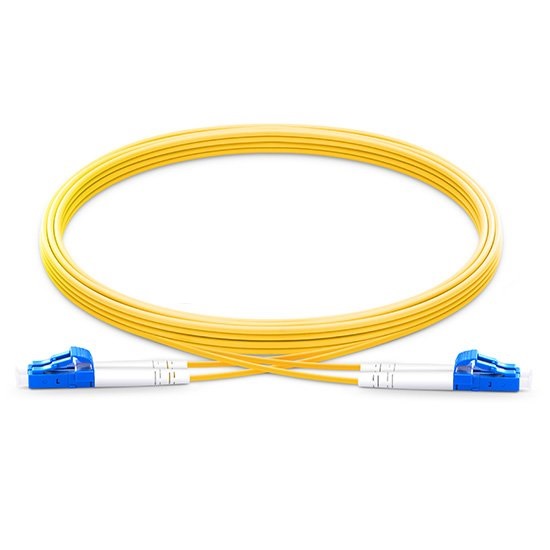

1M LC PC to LC PC Duplex 3.0mm LSZH 9/125 Singlemode Patch cord
1M LC PC to LC PC Duplex 3.0mm LSZH 9/125 Singlemode Patch cord
We provide the broadest choices of Simplex/Duplex including high-grade FC, SC, ST, LC, MTRJ, E2000 and MU with Ultra-polished (UPC), Angle-Polished (APC) connectors or other polish requirement. Our daily output is 11500 pieces. We keep sufficient storage of the most common types of patch cords for instantly delivery. With this service, you no longer suffer from long term waiting.
|
Item |
Single mode UPC |
Single mode APC |
Multimode |
|
Insertion Loss |
≤ 0.2dB (typical) 0.3dB(Max) |
≤ 0.2dB (typical) 0.3dB(Max) |
≤ 0.2dB (typical) 0.3dB(Max) |
|
Return Loss |
≥50 dB |
≥60 dB |
≥25 dB |
|
Durability |
Min 500 mate times |
||
|
Operating Temperature |
-40℃ to+85℃ |
||
|
Cord length |
Customized |
||
|
Optical fiber |
1-12 fiber |
||
Application:
Building interconnections (campus LAN)
Trucking lines direct to telecommunications closet
Fiber patch panels within communications closets
Links between electronic equipment and fiber panels
Ordering Information
|
X |
Mode |
S:Singlemode M:Multimode |
|
X |
Cable Name |
WX: Single-or Duplex Cable XL: Multimode Bundled Cable |
|
X |
Fiber Type |
1: G652 2: G655 3: 50/125 4: 62.5/125 5：G657A 6:OS1 |
|
-X |
Connector Type |
FC / SC / LC / ST / MU / MT-RJ/E2000 |
|
X |
End Surface Type |
PC / SPC / UPC / APC |
|
-X |
Fiber cores |
01:1cores 02:2cores 04:4cores 06:6cores 08:8cores 12:12cores |
|
X |
Cable Length* |
01:1m 03:3m 05:5m 10:10m |
|
X |
Pigtail/patch cord |
A: Pigtail B: Patch cord |
|
X |
Cable Outer Diameter |
1: Ф0.9 2: Ф2.0 3: Ф3.0 |
