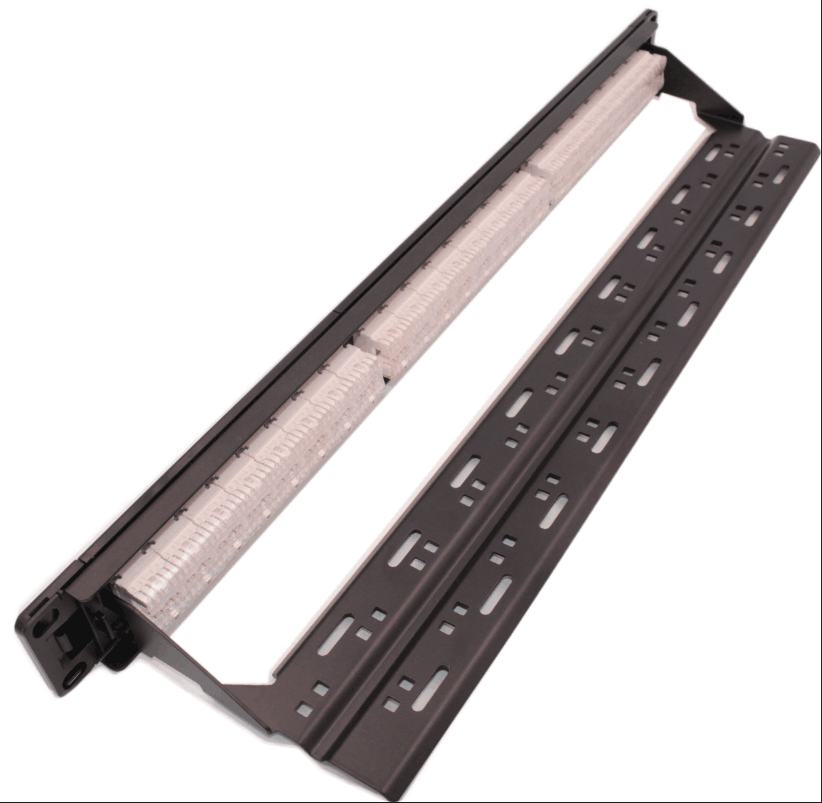

1U 24 ports UTP CAT5E Patch Panel (model 1U24C6)

 1U 24 ports UTP CAT5E Patch Panel (model 1U24C6)

19 inches 24 ports Modular Patch Panel is one important part of the cabling system. It is using the category 5 unshielded twisted-pair cable (CAT5E UTP) to distribute cables in the equipment room or the distribution room of the wire cabling to realize connection of the trunk network or terminal devices., and through Block 110 wire termination by horizontal or vertical wiring of the back RJ45 module and the front RJ45 jack workspace terminal connected to the network switching equipment. It meets TIA/EIA 568, ISO/IEC 11801 and YD/T 926.

 Features

• Plastic panel + steel plate overall structure

• Provide reasonable & clearly cable management

• Make the system more stable after construction

• Perfect clear identity systems

• Support T568A and T568B two kinds of wire ways

• Standard 19 "installation

• Easy installation, maintenance and expansion



Technical Specification

•  Lilies,hosphor bronze wire, nickel plated 30U overall gold layer

• IDC Terminal, Phosphor bronze, card access 22-26AWG

• The number of mating plug and socket ≥750 times

• The number of wire termination ≥200 times

• Mounting plate: 1mm cold rolled steel, electrostatic powder coating surface treatment

• IDC: PC UL94V-0

• Back cover: flame retardant polycarbonate

• JACK head: flame retardant PBT

• Storage temperature: -40 ℃ ~ 70 ℃

• Installation temperature: -10 ℃ ~ 60 ℃

• Working temperature: -10 ℃ ~ 60 ℃
