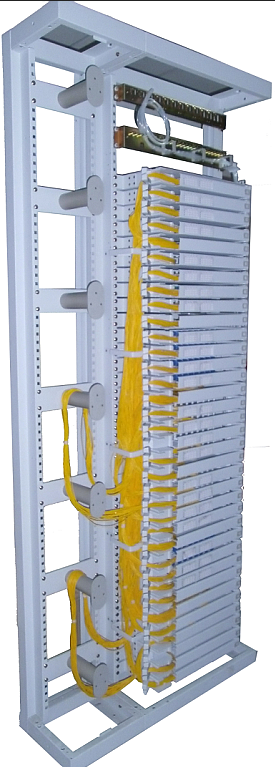

21'' ETSI Rack

 21'' ETSI Open Rack

 Features

• Compliance with ETSI rack-mount 21 inch and compatible with 19 inch.

• Cable Clamp Rails Height-adjustable for cable sheath & strength member clamping, with cable routing at the sides of the rack

• 21’ installation rail front and rear adjustable range for 150mm.

• The base thickness 2.0mm，post rail thickness 1.5mm.

• Maximum loading capacity 200Kg

• Surface finish to be painting color RAL7032

• The rack is disassemble one but shipped we propose in fully constructed.

• Whole front operation as lead-in, striping and dispatching for optical cables.

• Management of patch cord can choose fiber storage box or frame according to actual needs.

• Modular design, convenience for install.

• Structure of the frame is open type.

• Protective connector for striping ribbon fiber make sure the protection of bare fiber ,the fixation and grounding of optical cable more completely .

• Can install optical splitter module and attenuator and some value-added module.

• The cable can be lead in top or bottom as required.

• Top side has dustproof device, Bottom side has removable plate.

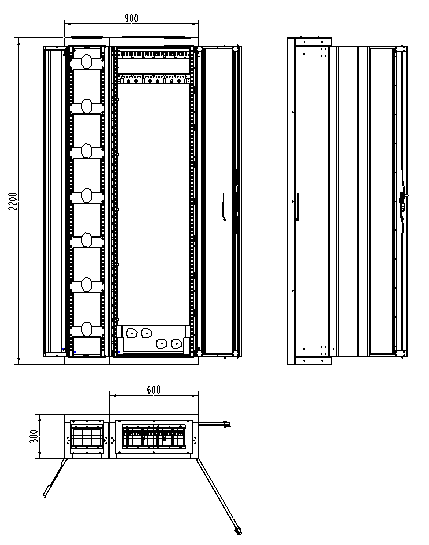

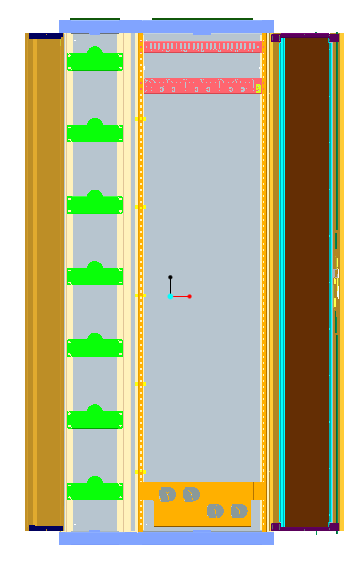

 Dimensions

Technical Specifications

• Operation temperature:         -5°C ~ +40°C

• Storage temperature:      -25°C ~ +55°C

• Relative humidity:                ≤ 85% (+30°C)

• Atmospheric pressure:   70 kPa ~ 106 kPa
