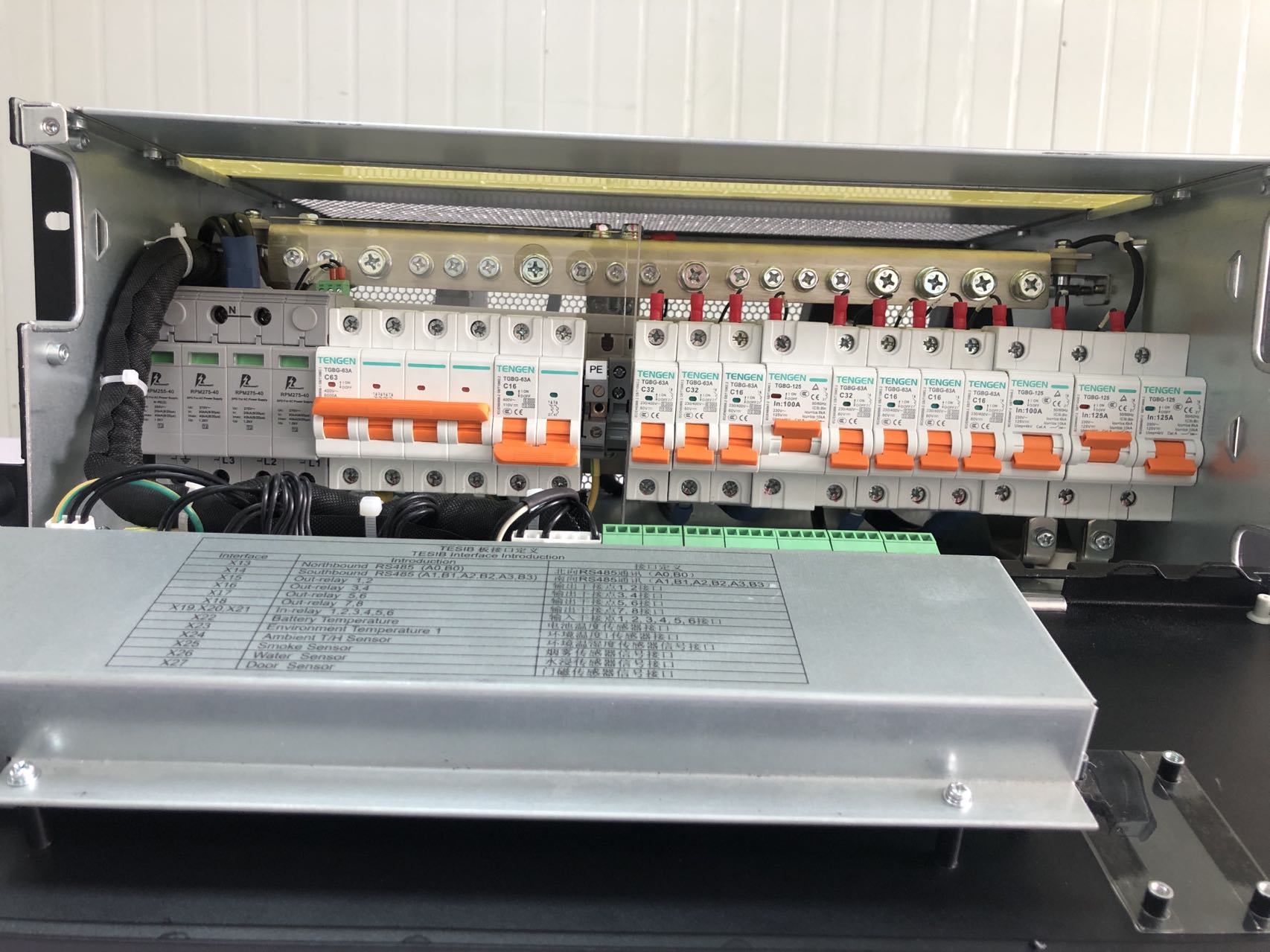

48V 9U 24kW Compact System

HHY48400-H9A3

19’’Rack Mount 9U 24KW DC Power Core

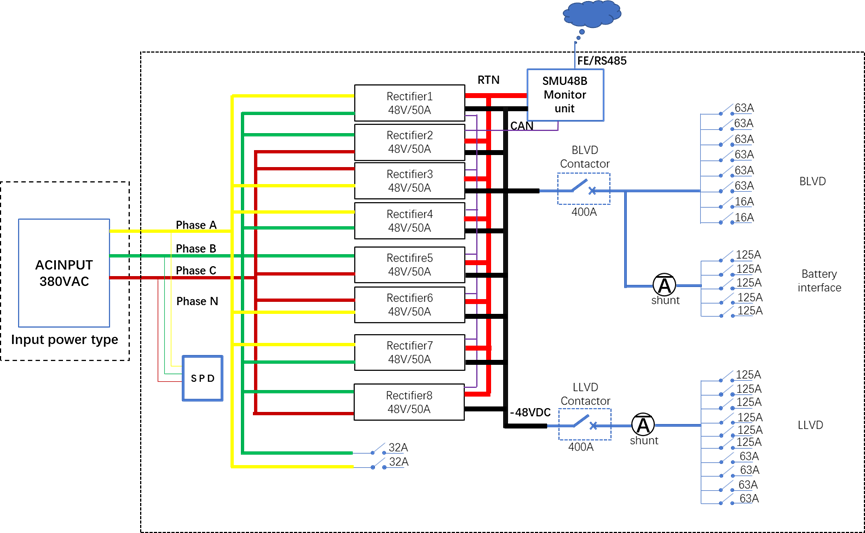

Principle block diagram of power cabinet system

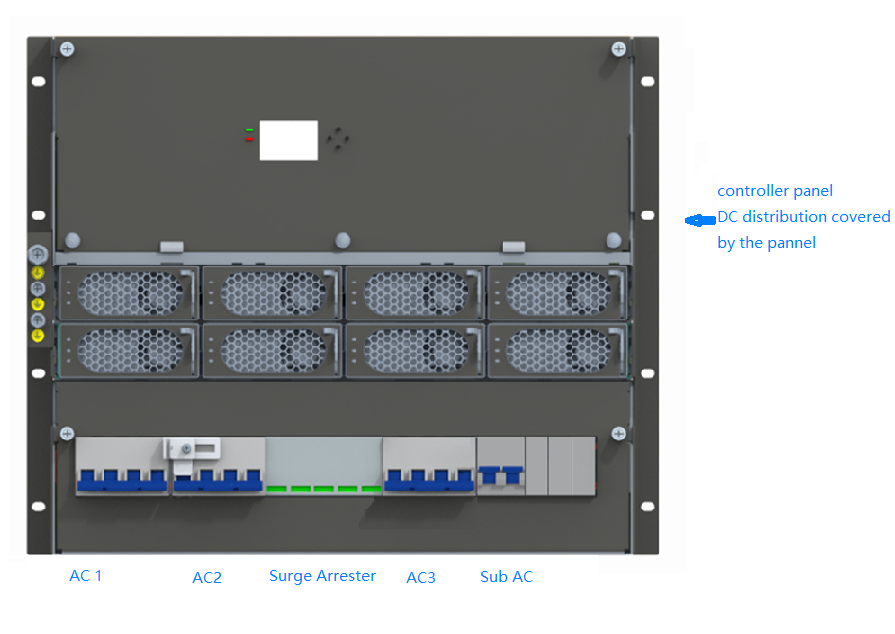

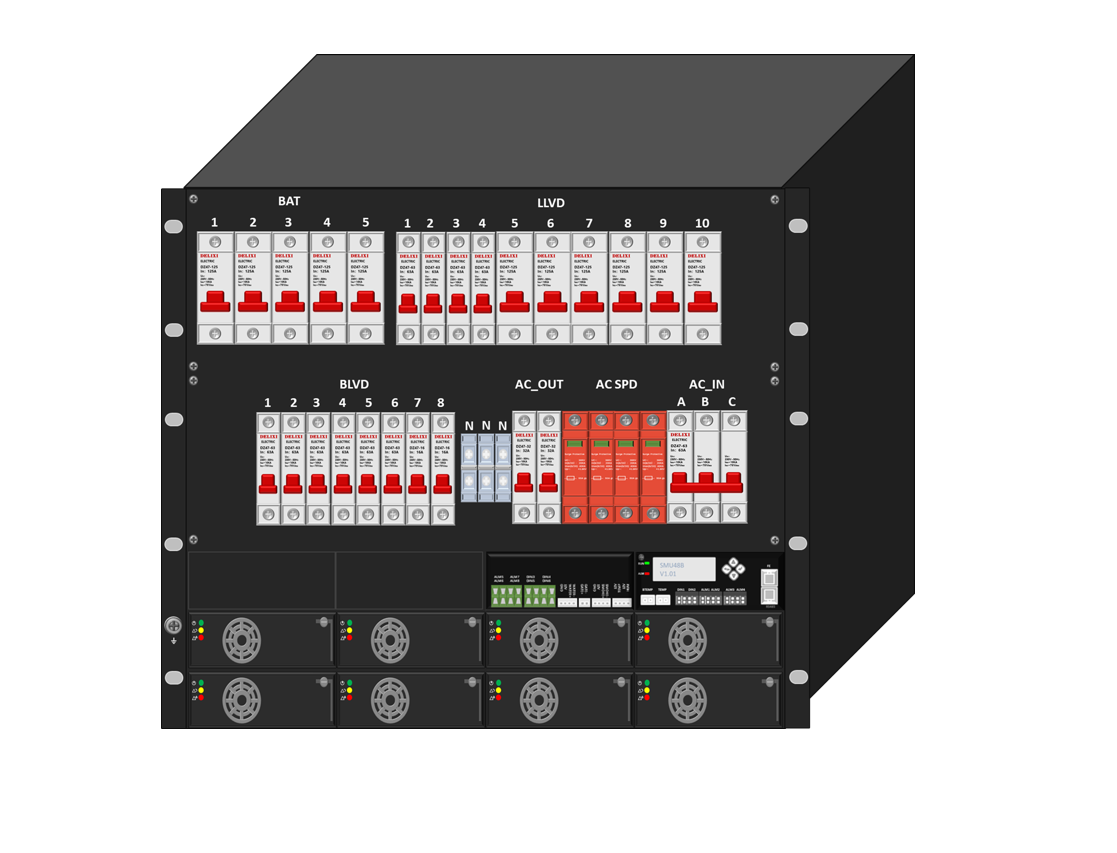

Product structure sketch

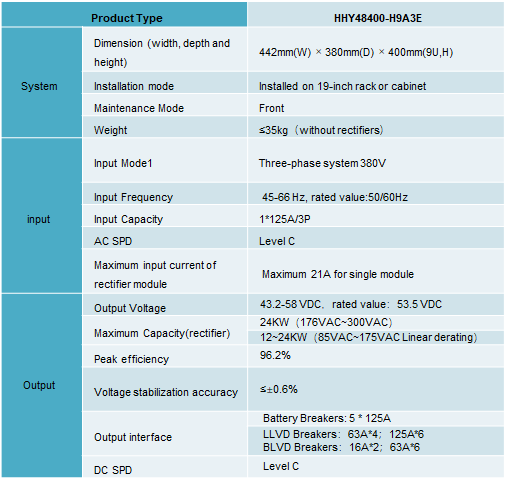

System parameter description（9U）

System parameter description（9U）

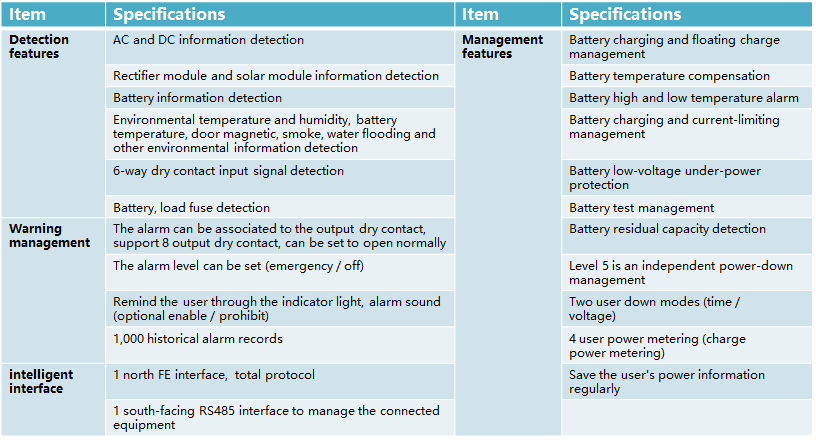

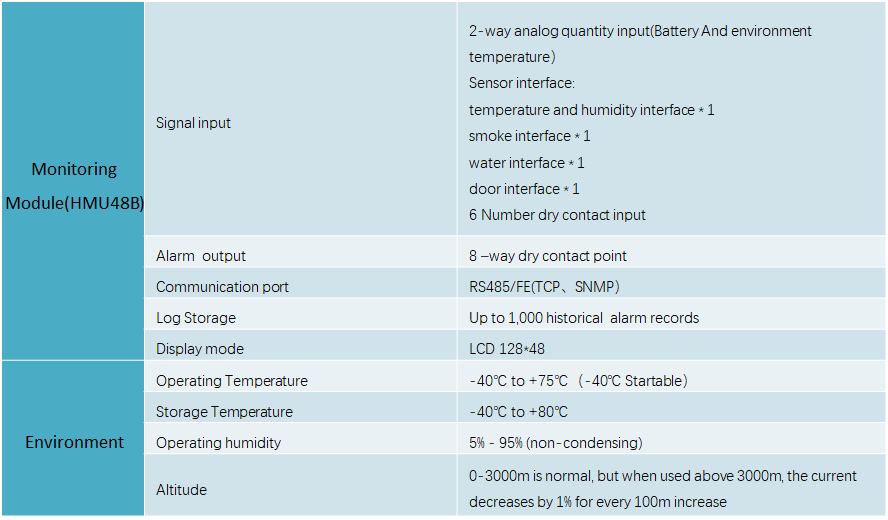

HMU48B monitor unit

HMU48B Monitoring module (hereinafter referred to as “HMU48B") is a small monitoring unit, mainly for different Types Check the operating status of the power system and control the operation of the power system. Provide rich interfaces such as sensor interface, CAN connection The port, RS 485 interface, input / output dry contact interface, etc., can be used to manage the site environment and alarm reporting. It can be provided at the same time Remote communication with the third party network management supporting the general protocol to manage the power system remotely.

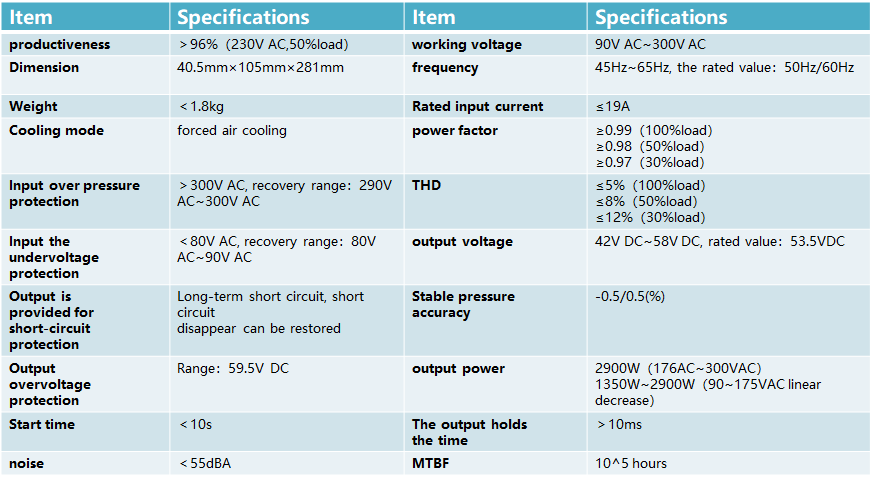

SR4850H-1U Rectifier

SR4850H-1U is a high efficiency, high power density of the digital rectifier module, to achieve a wide range of voltage input, 53.5V The DC has the default output。

It has the advantages of soft start function, perfect protection function, low noise, and parallel use. pass through Power supply monitoring realizes the real-time monitoring of rectification module status and load and output voltage regulation function.
