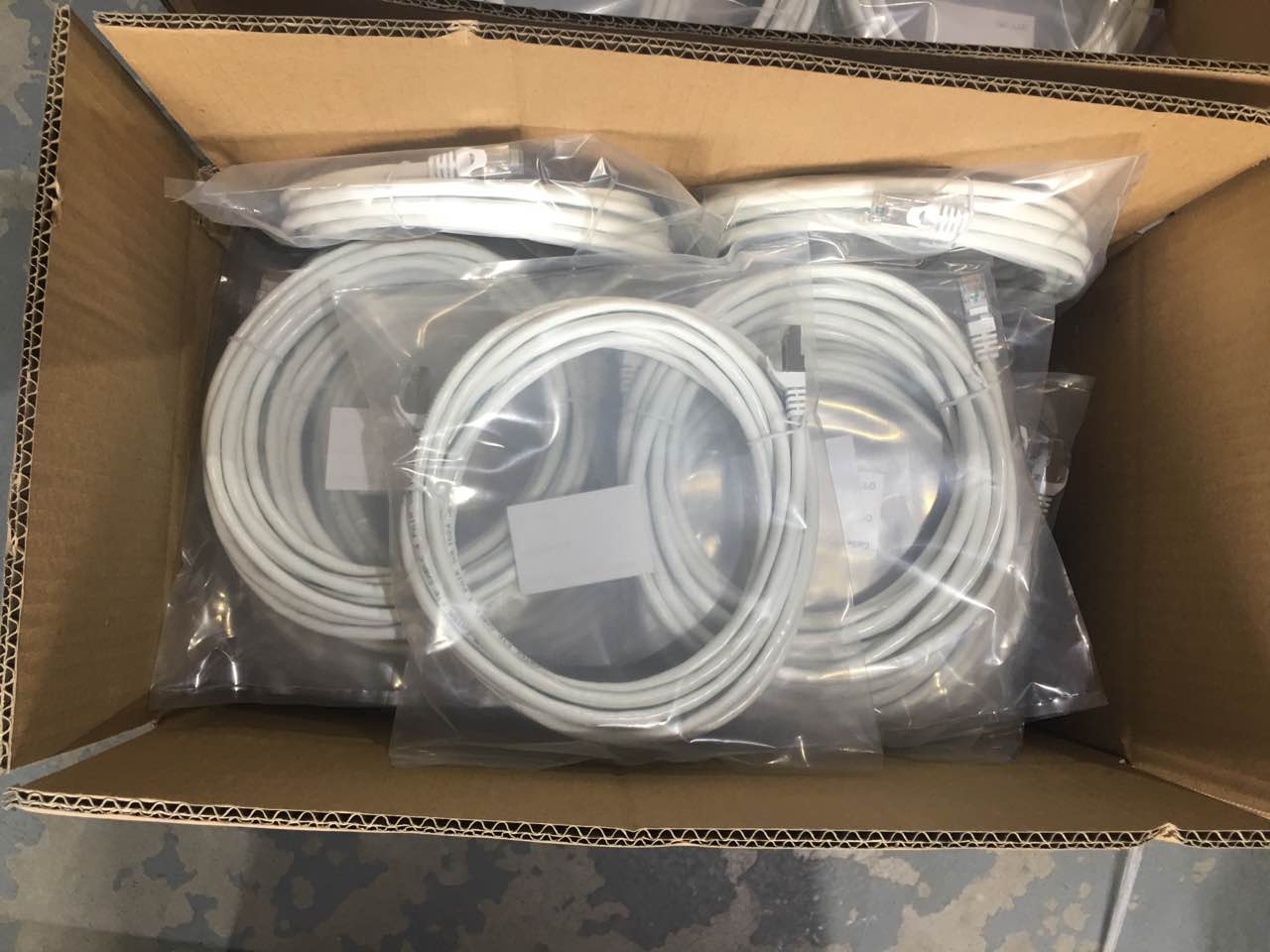

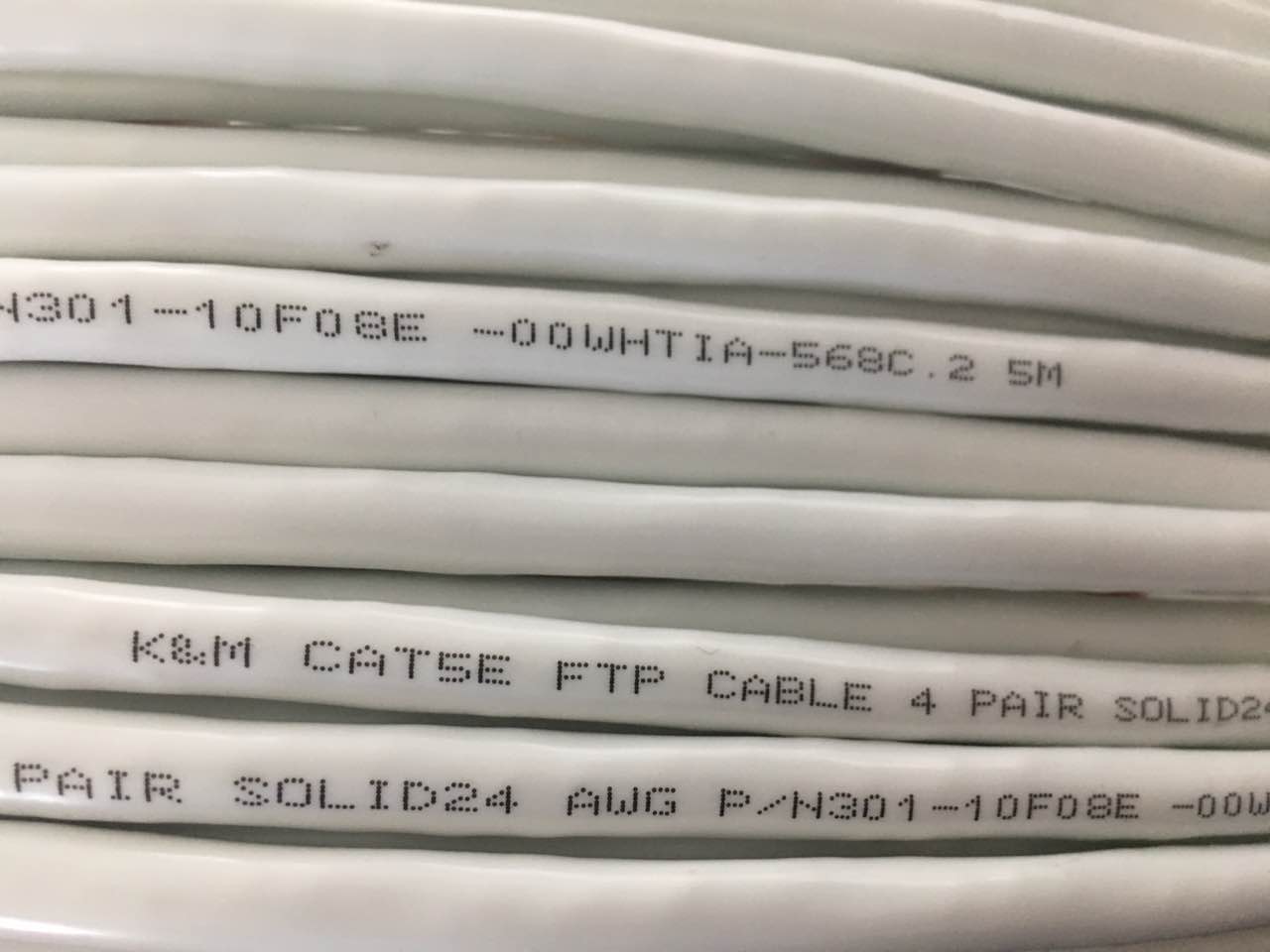

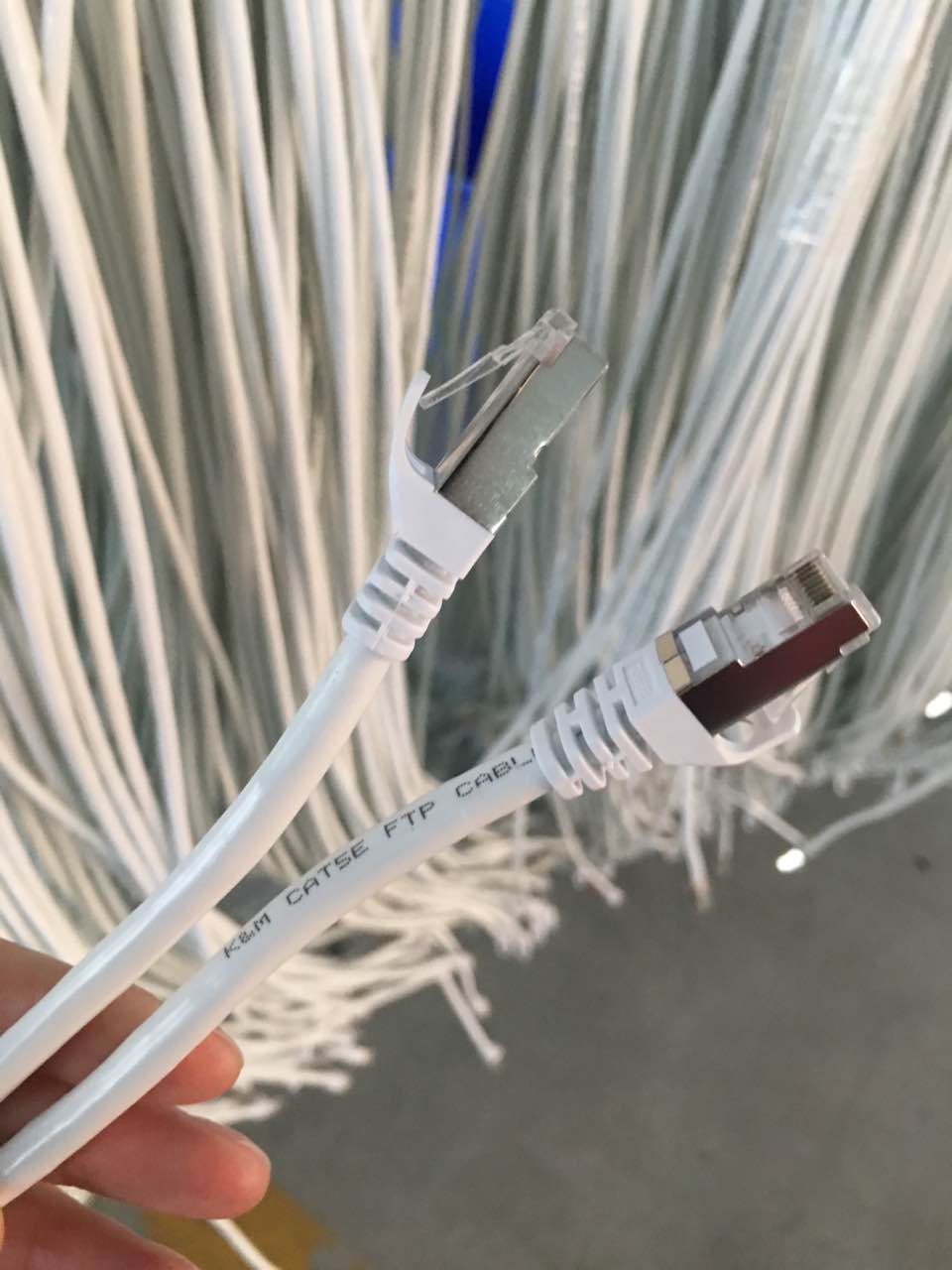

cat5e FTP Lan cable/Solid Bare Copper Cat5e Lan cable
Application:
This 4-pairs Category 5e cable is tested for power Sum NEXT, ELFEXT, Delay Skew. Propagation Delayand any other criteria as specified in the emerging standard. Application can include Voice, ISDN, ATM 155 AND 622Mbps, 100Mbps TPDDI, Fast and Gigabit Ethernet, Shielding Protects against EMR/RFI interference.
Ethernet, Shielding protects against EMI/RFI interference.
-Electrical Performance(At 100MHz)
1.0-100.0MHz impendance(ohms)100±15
1.0-100.0MHz impendance delay screw (ns/100m)<45
Pair to ground Capacitance Unbalance (PF/100M)330Max
Conductor DC resistance 20%(ohms/km)<93.8
Resistance Unbalance(%)： 5
Test object： Jacket
Test Material“： PVC
Before Tensile strength(Mpa)： ≥13.8
Aging Elongation (%)： ≥100
Aging Condition (C xhrs)： 100X240
After Tensile Strength (Mpa)： ≥85%of unaged
Aging Elongation (%)： ≥50%of naged
Cold bend： No crock
-Cable Date
Conductor： Solid bare copper
AWG： 24
Conductor Dia(mm)： 0.51
Insulation： PE
Average thickness(±0.03mm)： 0.25
Min point thickness： 0.22
Insulation Dia(±0.03mm)： 1.00
Twisting Lay Length(mm)： 30 undemeath
Cabling Lay Length(mm)： 200 undemeath
Jacket： PVC
Average thickness(±0.03mm)： 0.50
Min point thickness： 0.46
Outer Dia(±1.0mm)： 5.1
Rip Cord： Yes
Weight Nom(kg/km) ： 43
Core color： Blue-white/blue
Orange-white/Orange
Green-white/Green
Brown-white/Brown
|
Electrical performance: |
|||||||||||
|
Frequency(MHz) |
0.772 |
1.0 |
4.0 |
8.0 |
10.0 |
16.0 |
20.0 |
25.0 |
31.25 |
62.5 |
100.0 |
|
Return Loss(dB) |
19.4 |
20.0 |
21.0 |
24.5 |
25.0 |
25.0 |
25.0 |
24.3 |
23.6 |
21.5 |
20.1 |
|
Attenuation |
1.8 |
2.0 |
4.1 |
5.8 |
6.5 |
8.2 |
9.3 |
10.4 |
11.7 |
17 |
22 |
|
NEXT(dB) |
67 |
65.3 |
56.3 |
51.8 |
50.3 |
47.3 |
45.8 |
44.3 |
42.9 |
38.4 |
36.3 |
|
ACR(dB) |
65 |
63.0 |
52.0 |
46.0 |
44.0 |
39.0 |
37.0 |
34.0 |
31.0 |
21.0 |
13.0 |
|
PSNEXT(dB) |
64 |
62.3 |
53.3 |
48.8 |
47.3 |
44.3 |
42.8 |
41.3 |
39.9 |
35.4 |
32.3 |
|
ELFEXT(dB) |
66 |
63.8 |
51.7 |
45.7 |
43.8 |
39.7 |
37.7 |
35.8 |
33.9 |
27.8 |
23.8 |
|
PSACR(dB) |
63 |
60.8 |
48.7 |
42.7 |
40.8 |
36.70 |
34.7 |
32.8 |
30.9 |
24.8 |
20.8 |
|
Delayns/100m |
575.0 |
570.0 |
552.0 |
546.7 |
546.4 |
543.0 |
542.0 |
541.2 |
540.4 |
438.6 |
537.6 |
