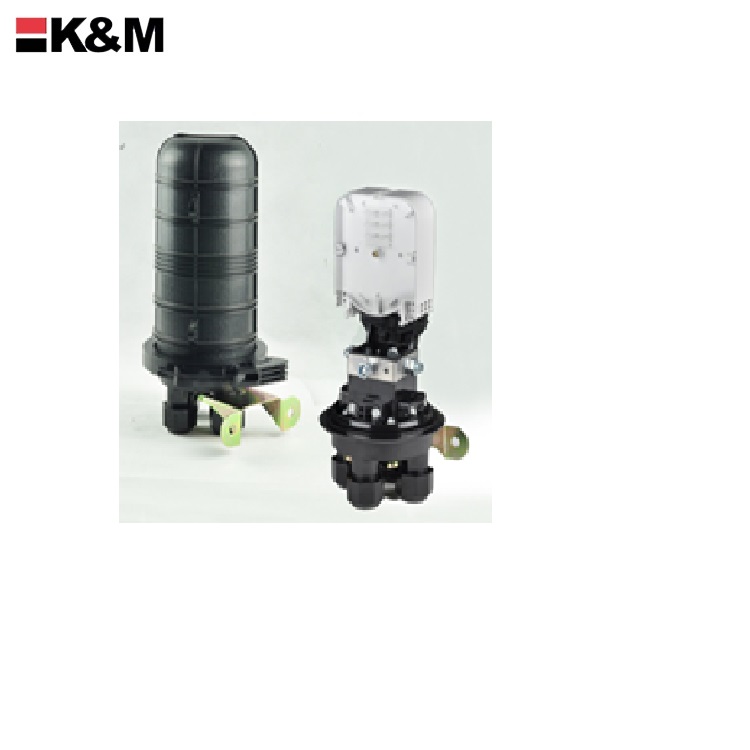

Dome Heat Shrinkable Seal Fiber Optic Splice Closure 96 core

KDM-GJSD013 Dome style fiber splices closure

 The fiber splice closure is applicable to termination of branching downstream optical cable in PON optical communication network。Over FTTX network，fiber splice closure is used for end A/B access of optical cable ，splicing of low-capacity single-fiber，lead-out and fixation of multi-fiber access cables。

 Technical specifications

Standard： 814.1-2004 and YD 814.2-2005

Product data

 Physical performances

Complete bend radius control, ensuring the bend radius of optical fibers in any position

 To >30mm Flammability： GB5169.7 Experiment A

Ambient conditions

Operating temperature：-40℃～+60 ℃

Relative humidity：≦ 85% （+30℃）

Atmospheric pressure： 70~106kPa

Storage and transport temperature：-25℃~+60 ℃

Features:

n  Installation modes: overhead-mounted，bury-mounted，wall-mounted，pole-mounted，manhole-mounted;

n  Material High quality PC, Aging-resistant plastic ，and corrosion-resistant metalworking subassemblies

n  Fast and easy sealing of closure body and optical cable openings

n  Perfect optical route design to ensure bend radius of fibers ，large fiber storage area

n  Optical splice tray ，applicable to ribbon and bundle cable， random configuration under the maximum capacity

n  Configurable with grounding device and valve

n  Service life not less than 20 years

Ordering information
