Introduction

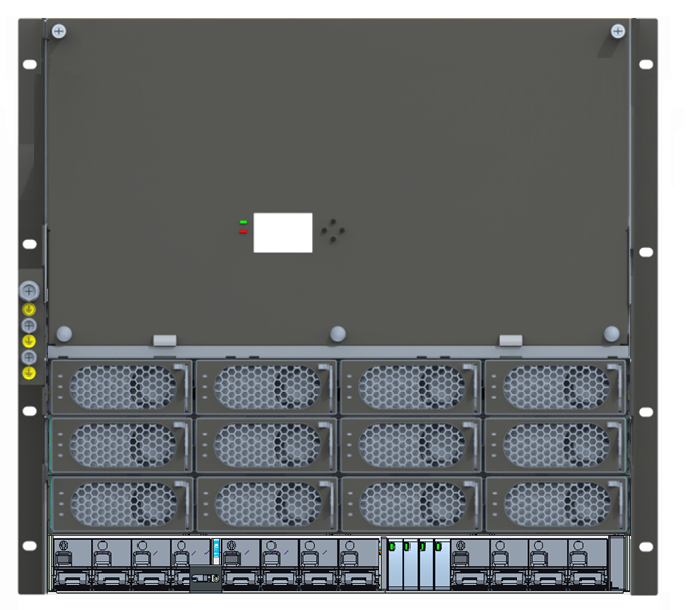

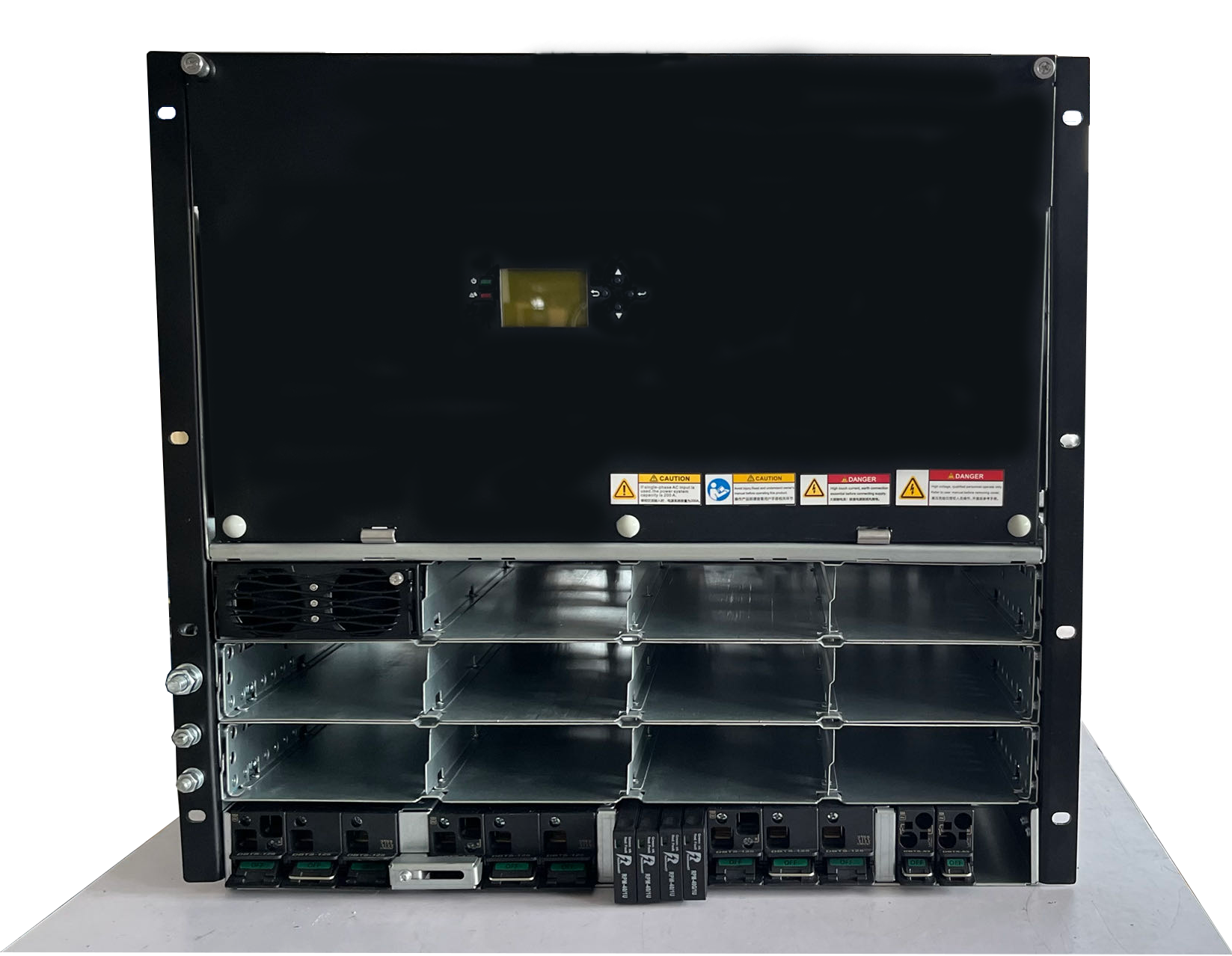

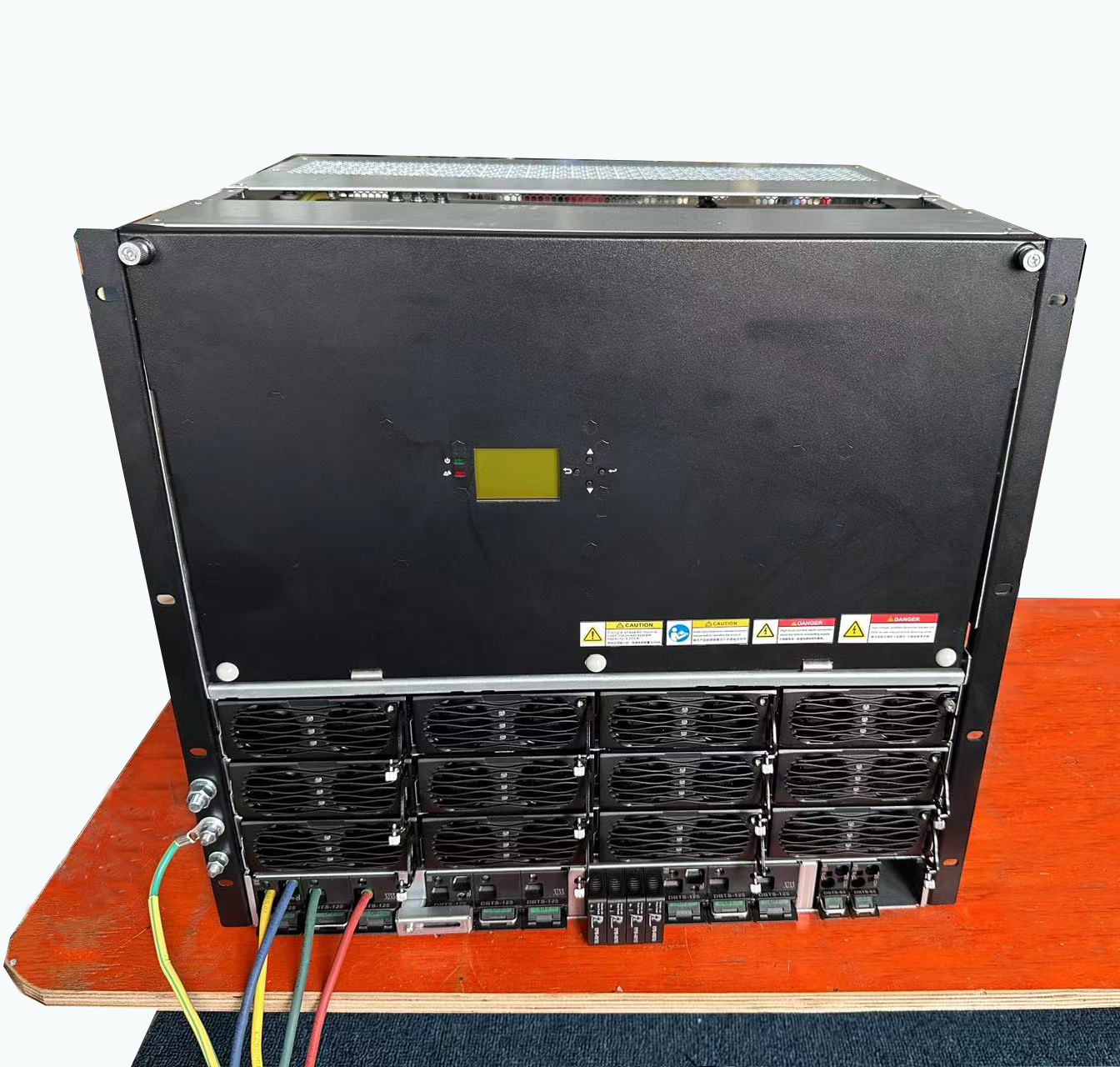

Independent embedded DC power system ETP48600 Y101 can be provided for indoor or outdoor site if required. The capacity is 36KW. Based on new generation rectifier, it has high efficiency and power density to save electricity & space for customers. Due to a standard 19 inch structure, power system can be installed flexibly. Basic components of the sub rack include a distribution Unit, a Control Unit and slots for 12 rectifiers. Low voltage disconnect included for discharge time improvement and battery health. The distribution section of the plant is split up into two branches of circuit breaker positions. The current in each branch is monitored by the controller.

●Flexible Application
Standard & compact structure, widely applied in any rack or cabinet
Large capacity to meet 5G power supply requirement
●ECO Mode
An innovative function that enables energy savings, even at low load operation
●High Efficiency
96% efficient 3000W rectifiers ensure optimized total cost of ownership

Application Scenarios

Indoor or outdoor wireless coverage sites
Indoor or outdoor transmission node sites
Legacy power transformation to reuse cabinet or rack

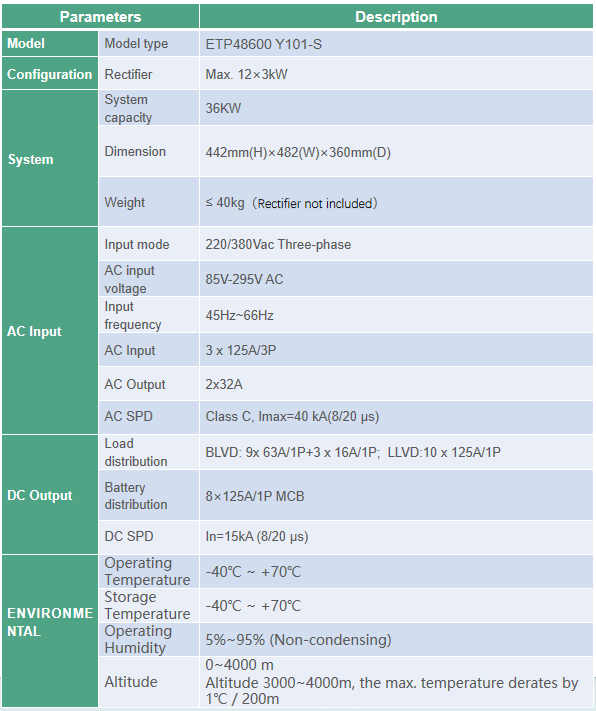

Technical Specification
