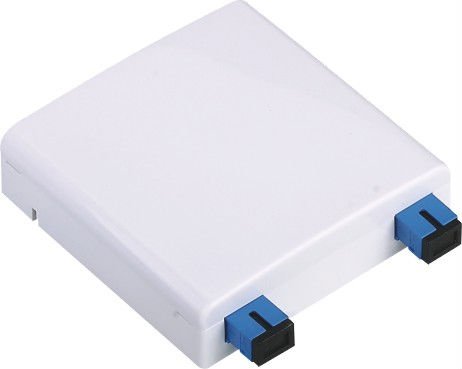

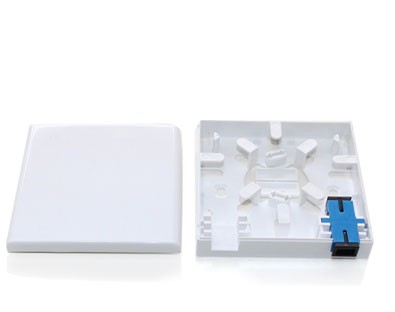

FIBER OPTIC OUTLET

 FIBER OPTIC OUTLET

 Fiber optic outlet is a rugged, low cost, low profile interconnection unit suitable for all Fiber Optic and FTTx application.

 Features

• Indoor type

• Small size

• Simple decorative design

• Easy installation

• Easy maintenance

• Low cost solution with high protection for the terminated fibers

 Applications

• FTTX Systems

• PON Networks

• CATV

 Specification

Fiber capacity 1 to 4 fibers

Number of Ports: 1 SC Simplex (in) + 1 SC Simplex (out)* Optional

Operating temperature -20°C to + 50ºC

Storage temperature -20°C to + 60ºC

Connector attenuation ≤ 0.35 dB

Return Loss: APC ≥ 60 dB, UPC ≥ 50 dB, PC ≥ 40 dB

Number of termination > 500 times

 Dimensions

 Ordering Information

z: Connector surface type (U=UPC, A=APC)

 Ordering Sample: KMFOUT1SCA (Fiber Outlet, 1 port-Out, SC coupler, APC)
