Fiber Optic Sliding type 144 ODF SCAPC Modular type complete with SCAPC adaptor 144pecs only, 5U, with accessories , bared fiber protection tube and cassettes of 24core 6 pecs,19'&21'/ETSI fixing barckets

144-port Optical Distribution Unit (5U)

1.      Application

It is applicable to high-capacity and high-density data center, convenient management and reliable connection.

2.  Ambient Conditions

l  Operation temperature:  -5°C ~ +40°C

l  Storage temperature:    -25°C~ + 55°C

l  Relative humidity:       ≤ 85% (+30°C)

l  Atmospheric pressure:   70 ~ 106 kPa

3.  Technical Specifications

Electrical Performance:

l  Connector attenuation (insertion, interchange, repeat): ≤ 0.5 dB

l  Return loss: APC ≥ 60 dB, UPC ≥ 50 dB, PC ≥ 40 dB

Physical Performance:

l  Clear identification to avoid possible disorder arising from removal during maintenance

l  Number of reterminations: > 500 times

l  Perfect optical route design to ensure bend radius of fibers greater than 30 mm

l  Inflammability: Compliance with GB5169.7 Experiment A

4.      Features

l  Rack-mounted, 19 inch, modular design, flexible installation, convenient management and expand.

l  Inlet cables are from the right or left, and outlet cables are at the two sides of front.

l  convenient operation and maintenance

l  High-quality alloy aluminium enclosure, spraying for surface treatment, pleasing appearance and light in weight

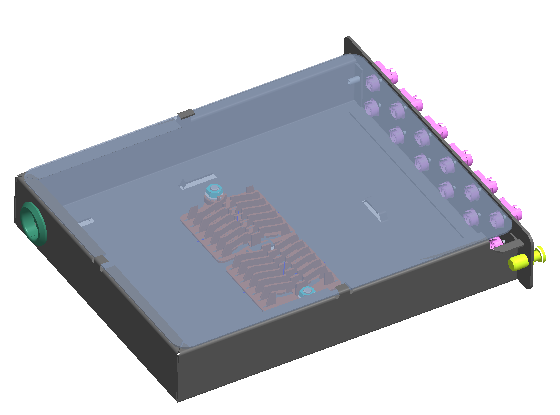

l  Each module can accommodate up to 12 splicing and adapter

 .   Apprance Structure

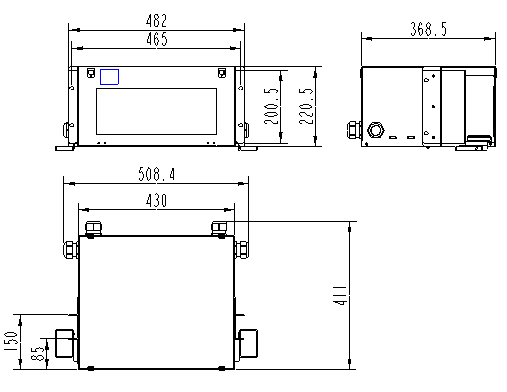

Dimensions of 144-fiber optical termination unit:

Figure 2

6.      Ordering Information
