FTTH FLAT DROP CABLE(2-4 Fibres)

FIBER OPTIC DROP CABLE:

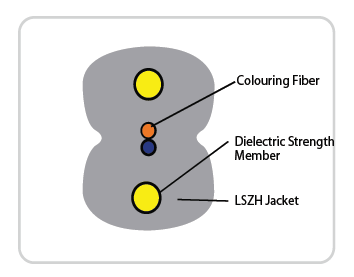

K&M drop flat cable is constructed with two single mode fibers (ITU-T G.657A) protected by dielectric strength member made of fiberglass reinforced plastic (FRP) and a LSZH outer jacket.

Ideal for use in FTTx applications between the building’s main telecommunications room and the apartment/office consolidation point.

Utilizing a 250mm fiber, the cable unit is suitable for use with industry standard connector.

Cable Design Features:

 CABLE REQUIREMENTS:

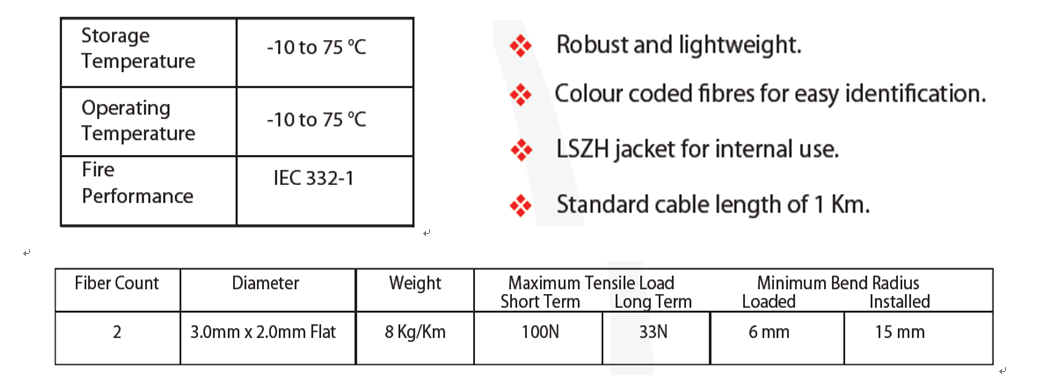

  MECHANICAL / ENVIRONMENTAL PROPERTIES:
