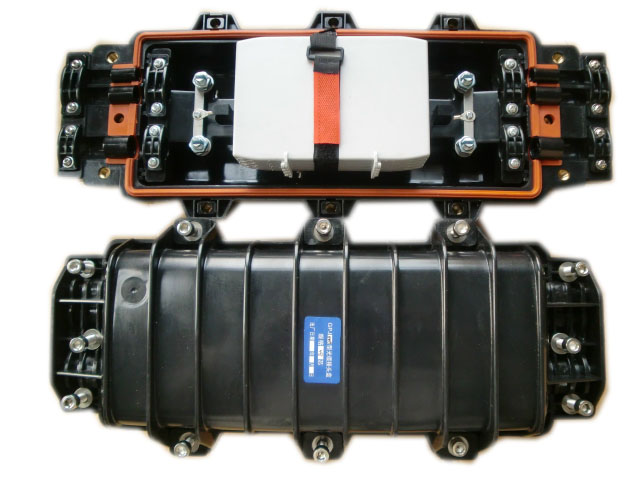

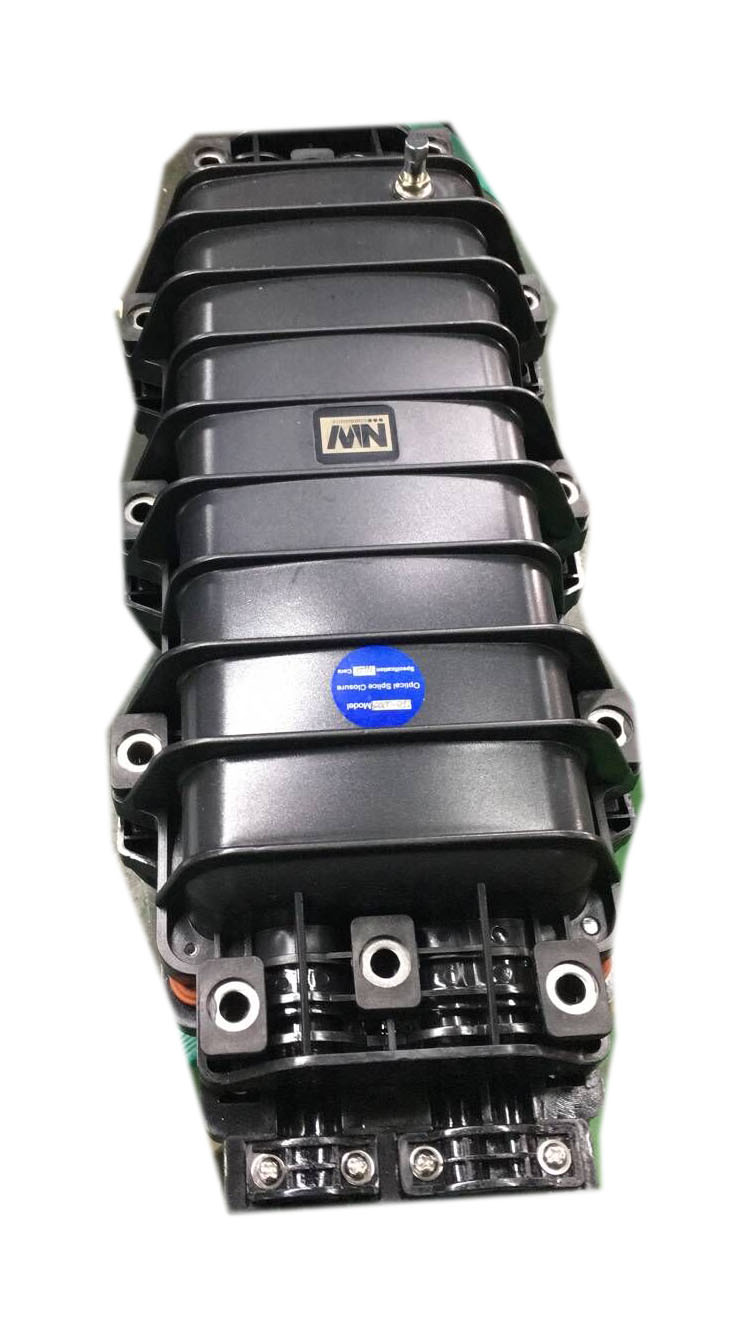

KDMGJS-H009 Horizontal Fiber Optic Splice Closure (FOSC)
The fiber splice closure is applicable to termination of branching downstream optical cable in PON optical communication network。Over FTTX network，fiber splice closure is used for end A/B access of optical cable ，splicing of low-capacity single-fiber，lead-out and fixation of multi-fiber access cables。
Technical specifications
Compliance with YD 814.1-2004 and YD 814.2-2005
Physical performance
Complete bend radius control， the bend radius >30mm
Flammability: GB5169.7 Experiment A
Ambient condition
Operating temperature: -40℃~+60 ℃
Relative humidity: ≦ 85% （+30℃）
Atmospheric pressure： 70~106kP
Storage temperature: -40℃~+65℃
Dimension and Capacity
|
Outside dimension (LxWxH) |
470x180x125 (mm) |
|
Weight (excluding outside box) |
2500g-2825g |
|
Number of inlet/outlet ports |
3 (pieces) on each side (total 6 pieces) |
|
Diameter of fiber cable |
Φ8—Φ20 (mm) |
|
Capacity of FOSC |
Bunchy: 12—96 (Cores) Ribbon: max. 144(Cores) |
Main components
|
No. |
Name of components |
Quantity |
Usage |
Remarks |
|
|
1 |
Housing |
1 set |
Protecting fiber cable splices in whole |
Internal diameter: 430x180x63(mm) |
|
|
2 |
Fiber optic splice tray (FOST) |
max. 6 pcs (bunchy) max. 4pcs (ribbon) |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy:12,24(cores) Ribbon:3 (pieces) |
|
|
3 |
Foundation |
1 set |
Fixing reinforced core of fiber- cable and FOST |
|
|
|
4 |
Seal fitting |
1 set |
Sealing between FOSC cover and FOSC bottom |
|
|
|
5 |
Port plug |
6 pieces |
Sealing empty ports |
|
|
|
6 |
Pressure testing valve |
1 set |
After injecting air, it is used for pressure testing and sealing testing |
Configuration as per requirement |
|
|
7 |
Earthing deriving device |
1 set |
Deriving metallic components of fiber cable in FOSC for earthing connection |
Configuration as per requirement |
|
|
|
|
|
|
|
|
Ordering information
|
Product Name |
Ordering code |
Model |
Dimension |
Splice capacity (Fiber) |
Cable Inlet |
Remarks |
|
|
Bundle/Ribbon |
|||||||
|
Horizontal fiber splice closure
|
Body |
080103800 |
KDMGJS-H009 |
470x180x125 (mm) |
144 |
3-inlet 3-outlet |
Inlet cable diameter: Ф8-Ф20
|
|
Splices tray |
080103040 |
RJ-J202 |
\ |
24 |
\ |
Max. 6 pcs (bunchy)
|
|
|
Splices tray |
080103790 |
RJ-J215 |
\ |
24( |
\ |
\ |
|
|
Splices tray |
080103800 |
RJ-J216 |
\ |
24(4-fiber ribbon) |
\ |
Max. 4pcs (ribbon) |
|
