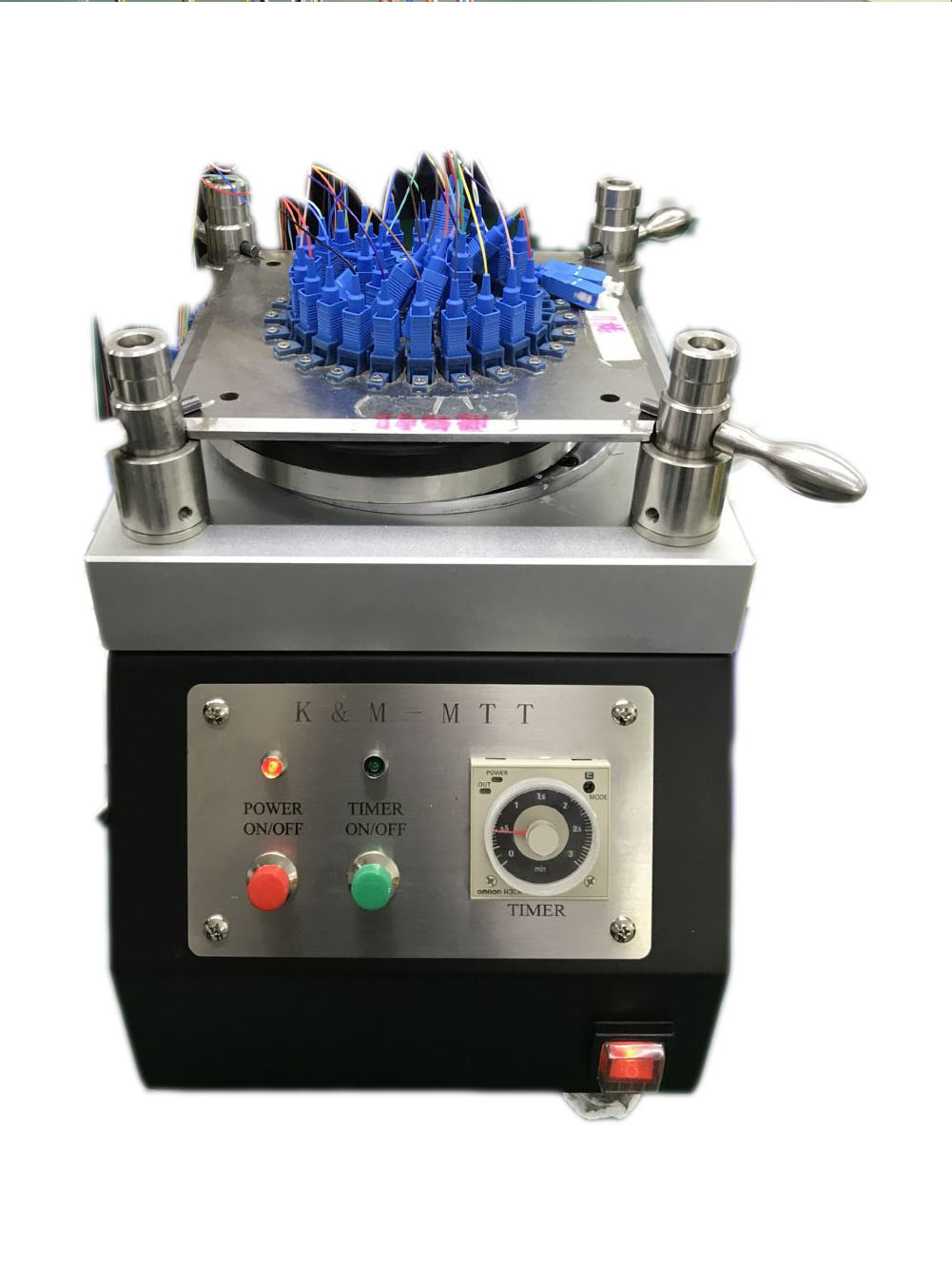

Low Cost Patch Cord Making Machine/ Optical Fiber Polishing Machine
- This Square Pressure Fiber Optic Polishing Machine
strength controlled by four angle, thus the pressure is more precise to control
and the final products has higher precision.
- For PC terminations above 95% could pass 3D
interferometer test, while for APC terminations this rate keep 90%.
- Each polishing jig for this machine is available as
LC,SC,ST, FC, MTRJ,E2000 PC connector as well as angle polishing.
- May process each kind of standard fiber optic
connectors, such as FC/UPC/APC,SC/UPC/APC, ST/UPC/APC, LC/UPC/APC, ,MU/UPC/APC,
MTRJ,E2000/UPC/APC etc.
- Convenience for adjusting
pressure, unloading and replacing jigs.
- Excellent connector and face polishing quality, the percentage of products
sent back for repair is very low.
- Save material and low cost for grinding.
- Easy to use and stable.
- Display grinding speed which can be adjusted any time.
- Control the direction with pro and con, convenience for Adjustment.
- Toothed gearing, more stable and deep-set.
Specifications:
Type: High
Volume, Installation
Pressure
Source: Coil
Spring
Polishing Capacity (max): 20 connectors for FC/SC/ST and 24 connectors for
LC/MU
Dimensions: 390*310*370mm
Weight: 27
kgs
Input
Voltage: 100-120VAC,
50/60Hz or 220-240VAC, 50/60Hz
Applicatrion: φ2.5mm PC, APC / φ1.25mm PC, APC / MT, mini-MT.
Polishing jig for Square pressure polishing machine:
|
P/N |
Description |
|
LC/P-24 |
24 position LC/PC Connector housing polishing jig |
|
LC/P-40 |
40 position LC/PC Connector housing polishing jig |
|
SC/P-20 |
20 position SC/PC Connector housing polishing jig |
|
SC/P-24 |
24 position SC/PC Connector housing polishing jig |
|
FC/P-20 |
20 position FC/PC Connector housing polishing jig |
|
FC/P-24 |
24 position FC/PC Connector housing polishing jig |
|
ST/P-20 |
20 position ST/PC Connector housing polishing jig |
|
ST/P-24 |
24 position ST/PC Connector housing polishing jig |
|
MU/P-24 |
24 position MU/PC Connector housing polishing jig |
|
MU/P-40 |
40 position MU/PC Connector housing polishing jig |
|
LC/A-20 |
20 position LC/APC Connector housing polishing jig |
|
SC/A-18 |
18 position SC/APC Connector housing polishing jig |
|
FC/A-18 |
18 position FC/APC Connector housing polishing jig |
|
MJ-18 |
18 position MTRJ connector polishing jig |
|
MP-18 |
18 position MPO connector polishing jig |
|
125/P-20 |
20 position 1.25mm PC ferrule polishing jig |
|
125/A-20 |
20 position 1.25mm APC ferrule polishing jig |
|
250/P-18 |
18 position 2.5mm PC ferrule polishing jig |
|
250/A-18 |
18 position 2.5mm APC ferrule polishing jig
|
