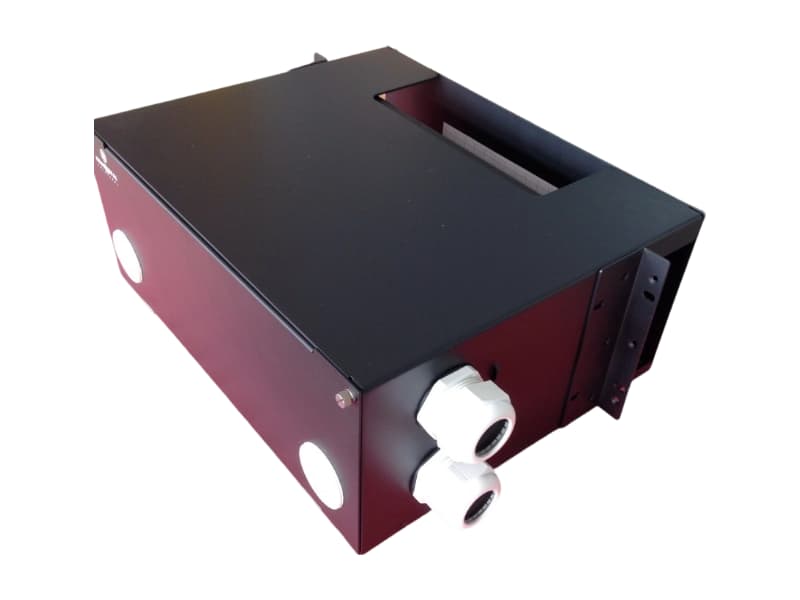

144 Port Fiber Patch Panel Rear Cable Entry

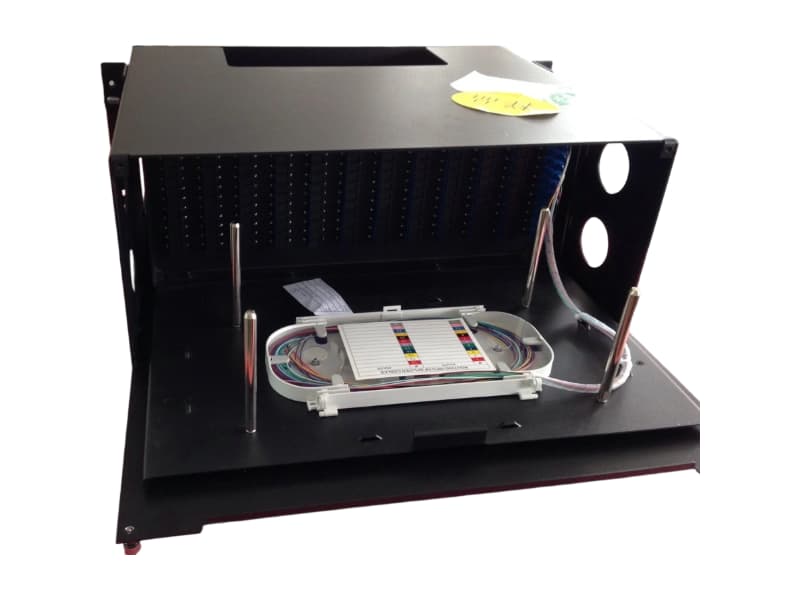

Modular 144 Core Fiber Optic Patch Panel

High Density 144 Fibers Optical Distribution Frame | 19" Sliding Patch Panel for FTTX/PON

The K&M Fiber Optic Patch Panel / Optical Distribution Frame (144 Ports) is the ideal solution for high-capacity and high-density fiber optic applications. Designed as a 4U sliding rack-mount unit , it seamlessly integrates optical cable stripping, fixing, splicing, termination, coiling, and storage into one robust enclosure. Featuring modular adapter plates, built-in patch cord management, and highly flexible cable routing (inlets on right, left, and rear; outlets on front two sides), it ensures convenient operation and maintenance. It is highly suitable for demanding environments like FTTX systems, PON networks, LANs, and CATV links.

Inquiry now

Key Features

■ 19" & 21" sliding rack-mount patch panel (4U height)
■ High fiber capacity up to 144 fibers/ports
■ Material: Light weight, high quality cold-roll steel with plastic sprayed surface
■ Inlet cables from Right, Left, and Rear; Outlet cables from front two sides
■ Modular adapter plates with built-in patch cord management
■ Integrated functions: cable fixing, splicing, termination, coiling, and storage
■ Perfect fiber route design to ensure minimum bend radius

Applications

■ Indoor fiber optic termination
■ FTTX Systems & PON Networks
■ High-density LAN and CATV Links
■ Optical Signal Distribution in Data Centers

Technical Details

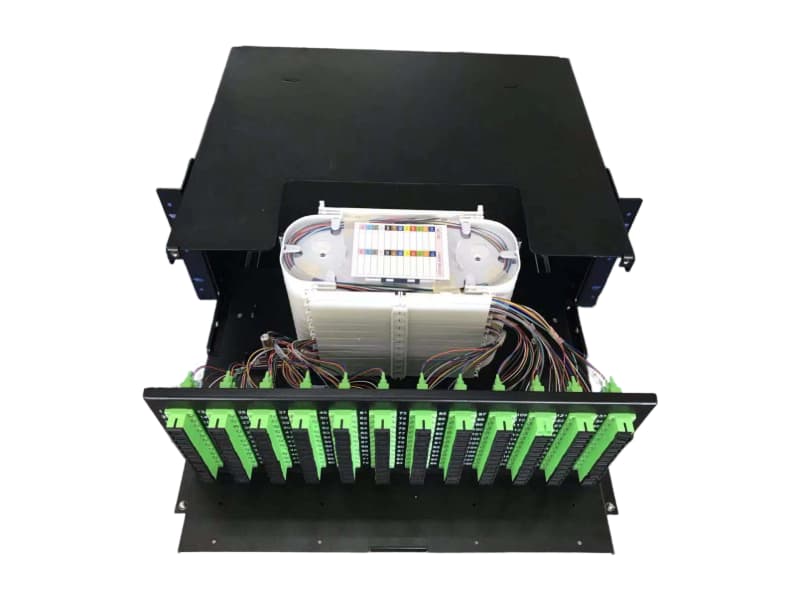

OVERALL DESIGN

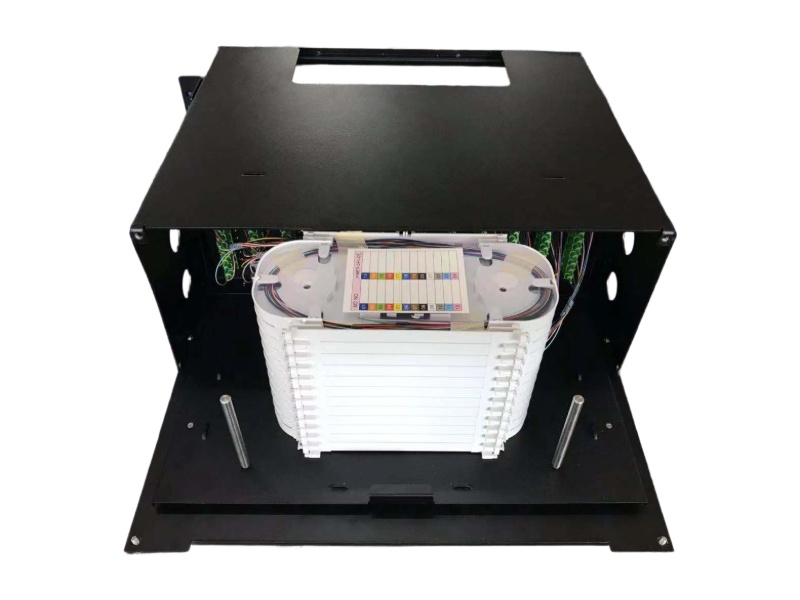

SPLICING SYSTEM

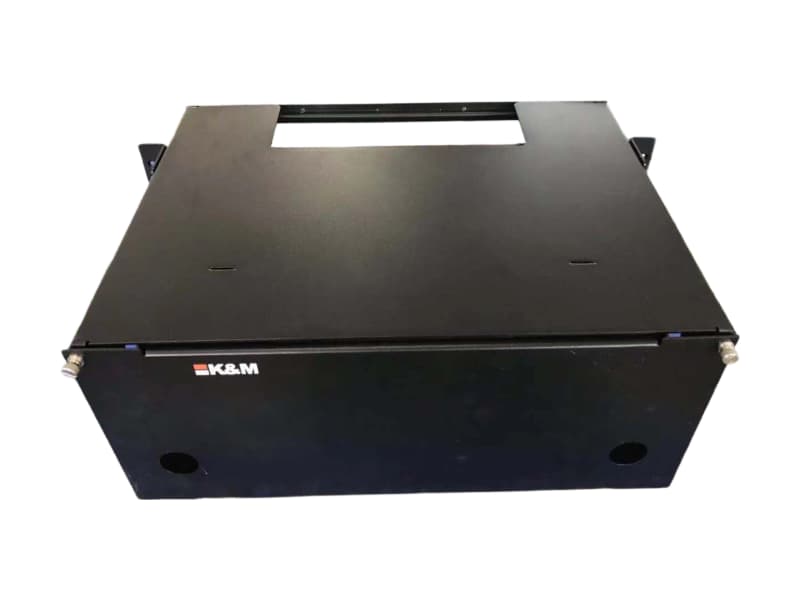

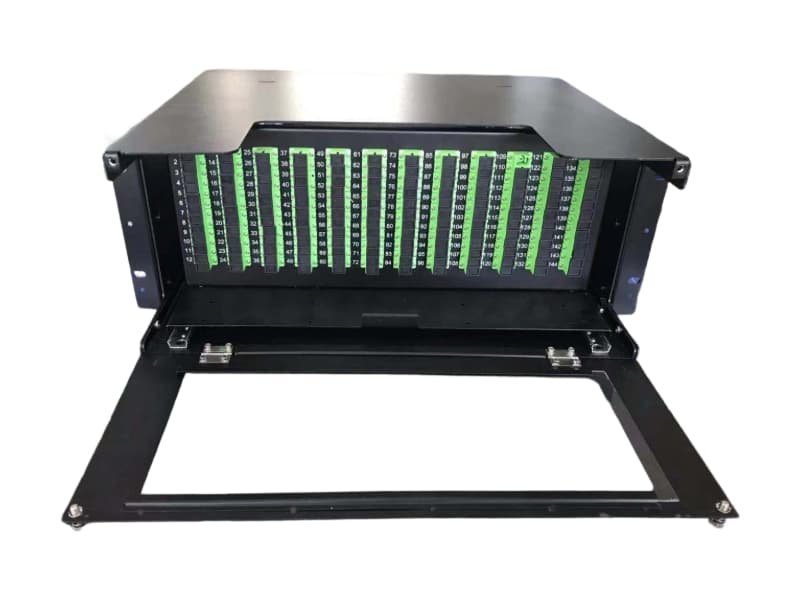

ADAPTER PLATES

CORD MANAGEMENT

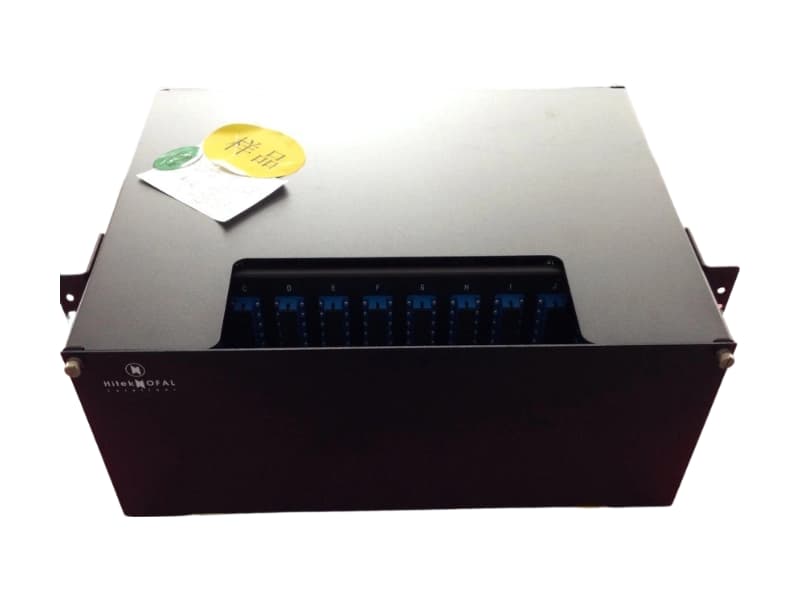

REAR I/O PORTS

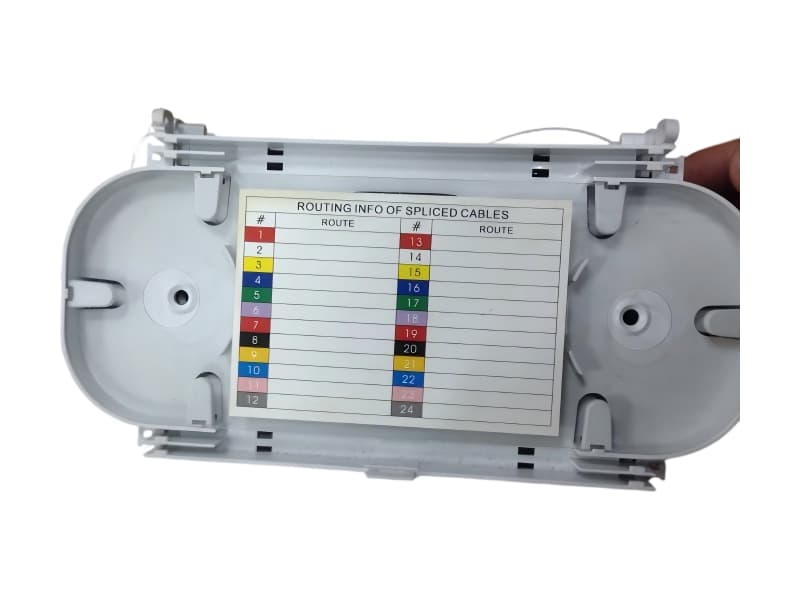

CABLE SECURING

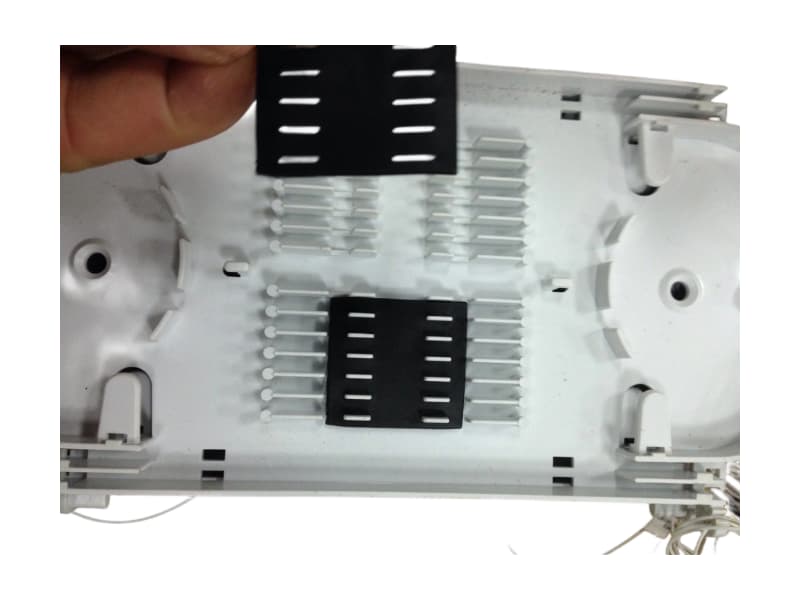

RACK MOUNT

SPLICE AREA

CABLE ENTRY

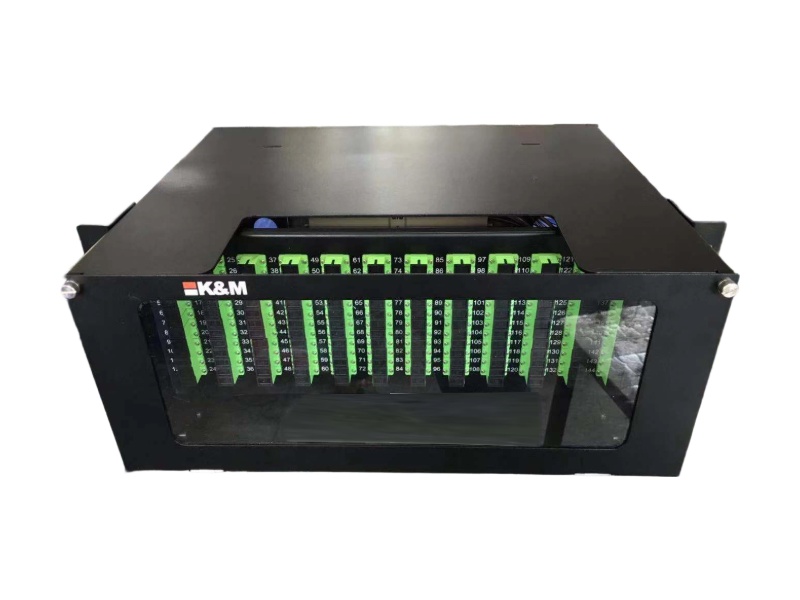

FRONT PANEL

Technical Specifications

Fiber Capacity	Up to 144 fibers
Adapter Type	SC Simplex
Installation Type	19" Rack mount (Sliding)
Height	4U (Applicable for 21" & 23" with brackets)
Material	High quality cold-roll steel sheets
Surface Finish	Plastic sprayed
Dimensions (H×W×D)	176 x 482 x 350 mm
Optical Performance	Attenuation ≤ 0.5 dB; Return Loss ≥ 40-60 dB
Operating Temperature	-20°C to +40°C

Order Information

Product Name	Ordering Code	Model	Max Capacity	Dimension (mm)	Application
Rack Mount ODF	KMODF144SCxxyz	144 Ports SC Simplex	144 Cores	176 × 482 × 350	19" Rack (4U)

Packaging Information

Packing	1 Unit / Carton
Carton Packaging	Standard Export Rigid Carton
Included Accessories	Splice Trays, Cable Fixing Kits, Rack Screws
Customization	Available upon request (Logo/Color/Capacity)

Frequently Asked Questions

Q Can this ODF be installed in standard 19-inch server racks?

A: Yes. Our 144-port fiber optic patch panel is a standard 19" rack-mount design with a 4U height. Additionally, it can be adapted for 21" or 23" racks using the appropriate mounting brackets, making it highly versatile for various server room environments.

Q What are the advantages of the sliding-type design?

A: The sliding patch panel design allows for convenient operation and maintenance. It provides easy access to the internal modular adapter plates and splice area without removing the entire unit from the rack, facilitating efficient cable stripping, fixing, and fiber coiling.

Q How does the ODF ensure the quality of high-density signal distribution?

A: The unit features a perfect fiber route design that ensures the minimum bend radius of fibers is maintained to prevent signal loss. With high-quality construction, it offers low connector attenuation (≤0.5 dB) and high return loss (APC ≥60 dB, UPC ≥50 dB), meeting the requirements for PON networks and FTTX systems.

Q Can I use different fiber types with this 144-port ODF?

A: Yes. The ODF is applicable with all types of cables. Based on your specific needs, you can order configurations for Singlemode (SM) or Multimode (MM) fibers, supporting specific fiber types like G652D, G657A, or OM1/OM2/OM3.
