FTTx TOTAL SOLUTION

According to the distance between ONU or access equipment and subscriber, FTTx is classified as:

FTTC: Fiber to The Curb

FTTB: Fiber to The Building FTTX

FTTH: Fiber to The Home

To resolve access problem in Last One Mile.

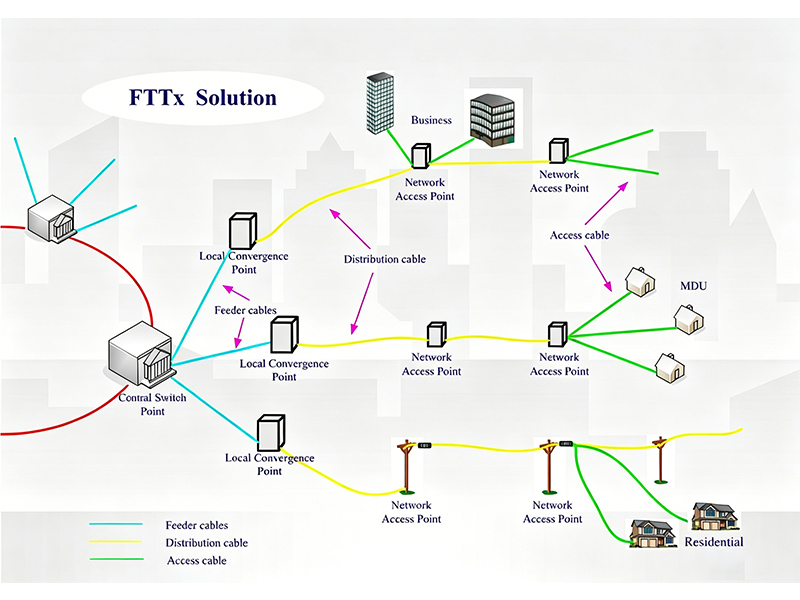

Overview of FTTx _ ADC solution

Overview of FTTx _Corning Equivalent solution

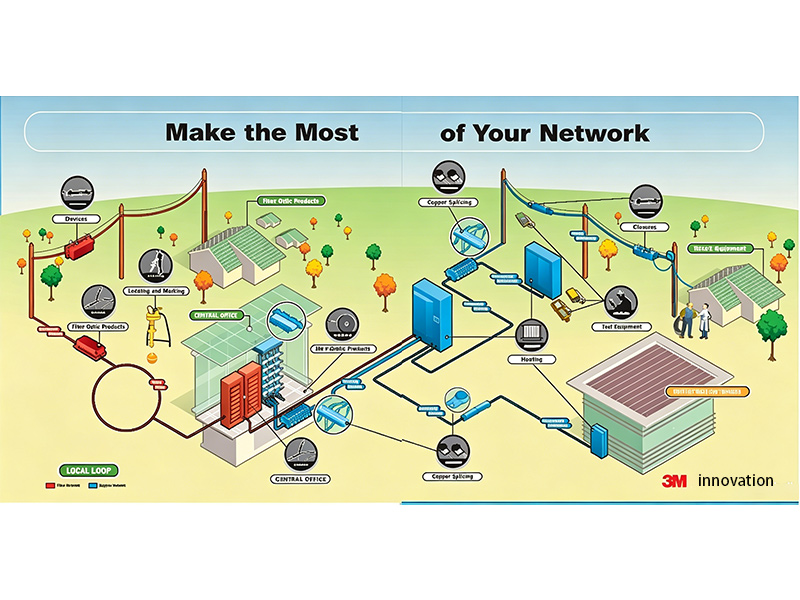

Overview of FTTx-3M solution

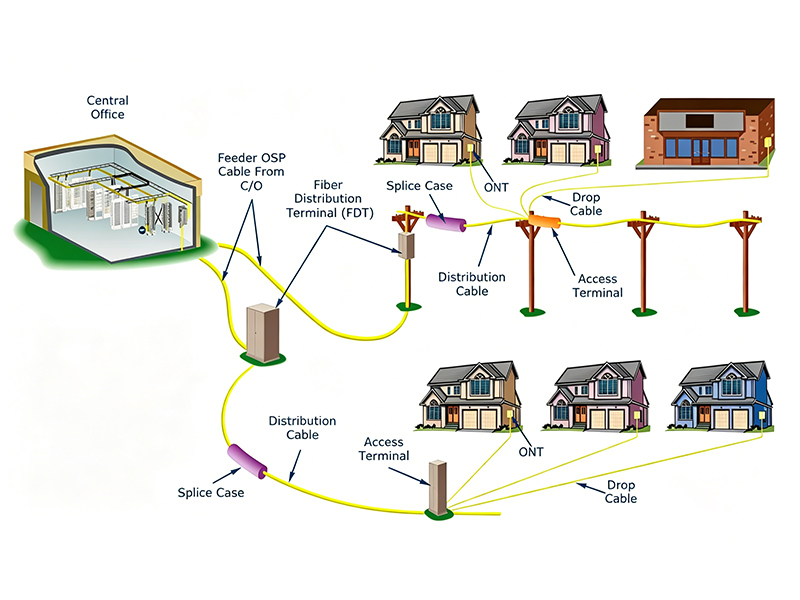

Overview of FTTx _ North American solution

From the Network structure of three companies above, we find that:

Ø FTTx Solutions above all provide for building, MDU or villa.

Ø Network node is CSP, LCP close to CSP, NAPs close to customer premises, and Customer Premises.

Ø On nodes, use outdoor fiber CCC cabinet or fiber CCC box to cross connect.

Ø On access point, use outdoor distribution cabinet or splice box to distribute and manage cables.

Ø North America has wide area and small population, and human power cost is higher, so product design is preferred to the easy and convenient operation.

K&M FTTx Solutions

Focus on the features of Chinese geography and human environment, FTTx is classified into:

Ø Office building

Ø MDU

Ø Villa

♦ Network node is CSP, LCP, NAPs, and Customer Premises

♦ On nodes, use fiber outdoor fiber distribution cabinet or splice box to cross connect.

♦ On access point, use indoor / outdoor distribution cabinet or splice box to distribute and manage.

♦ Easy operation, higher density and product appearance.

K&M FTTx Solutions– Definition of Network Node

♦ Central Switch Point （CSP）

♦ Local Convergence Point （LCP）

♦ Network Access Points (NAPs)

♦ Customer Premises

Bone band cable: CSP —— LCP

Distribution cable: LCP —— NAPs

Subscriber cable： NAPs —— Customer Premises

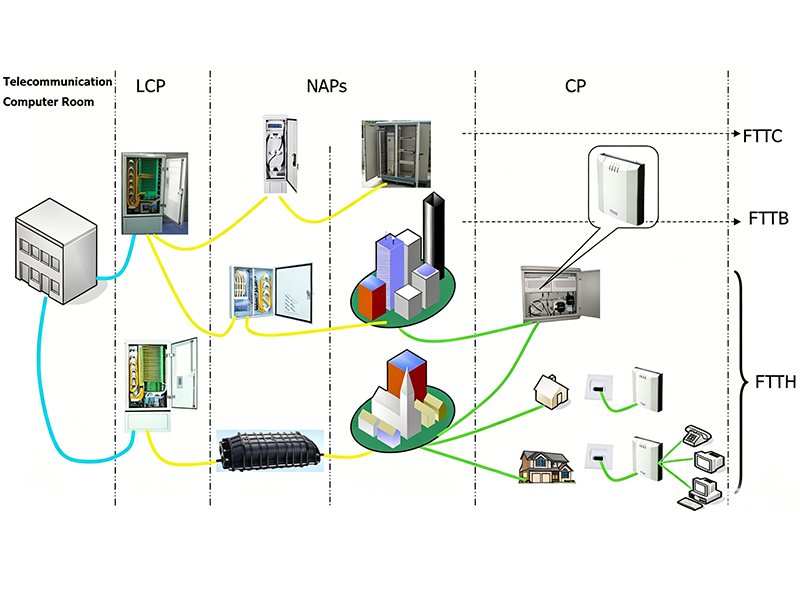

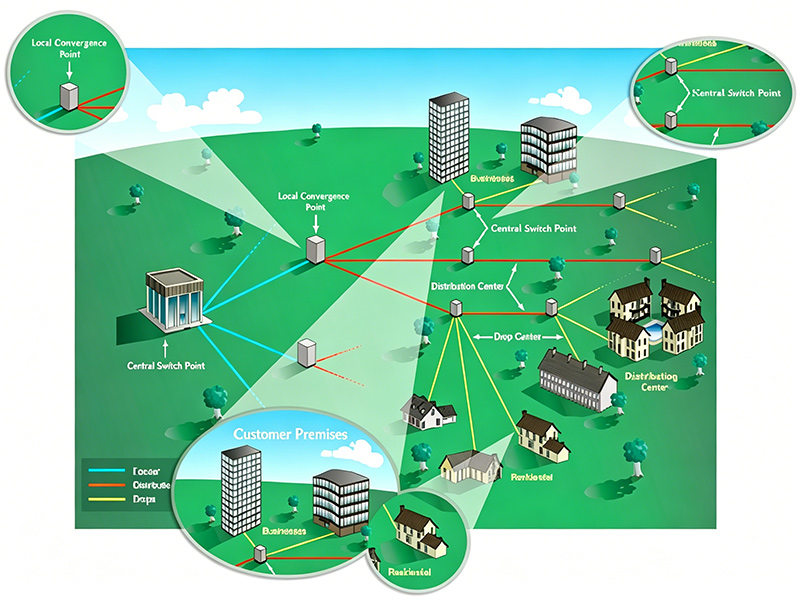

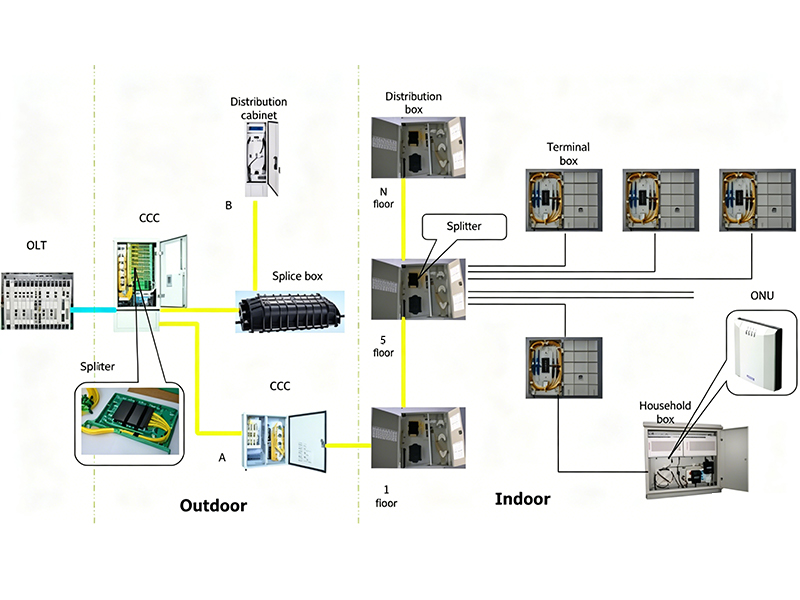

K&M FTTx Solutions–Network Structure

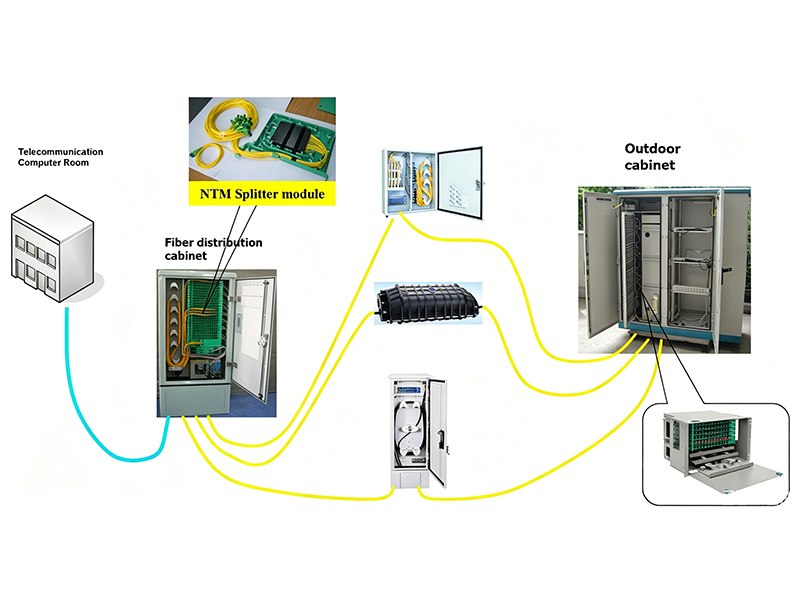

K&M FTTx Solutions– FTTx

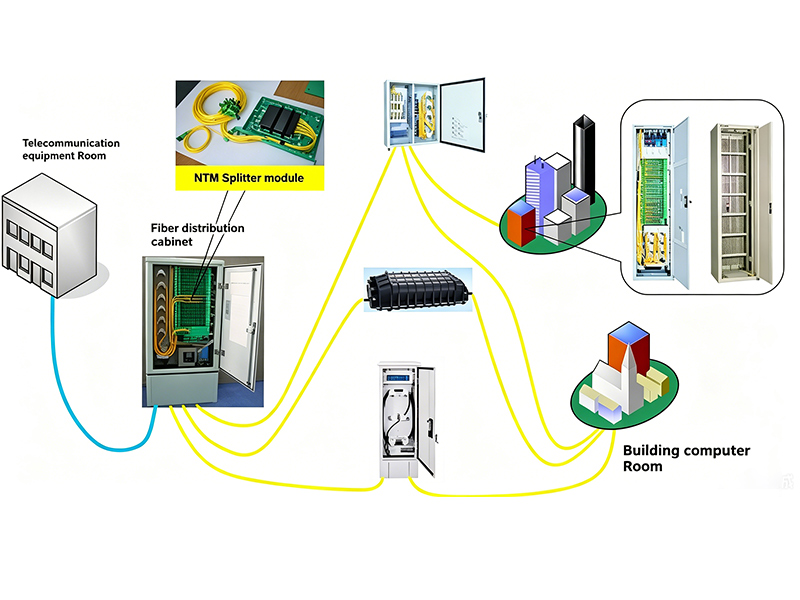

K&M FTTx Solutions– FTTc

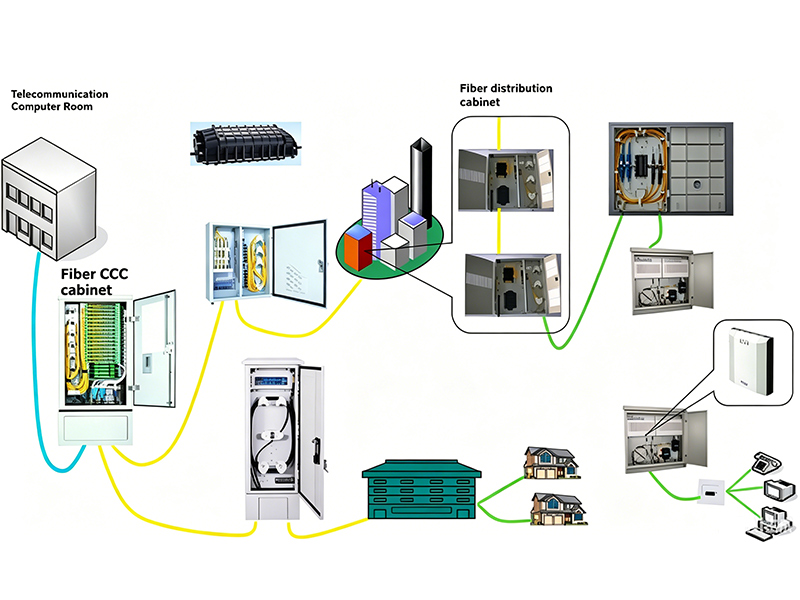

K&M FTTx Solutions– FTTB

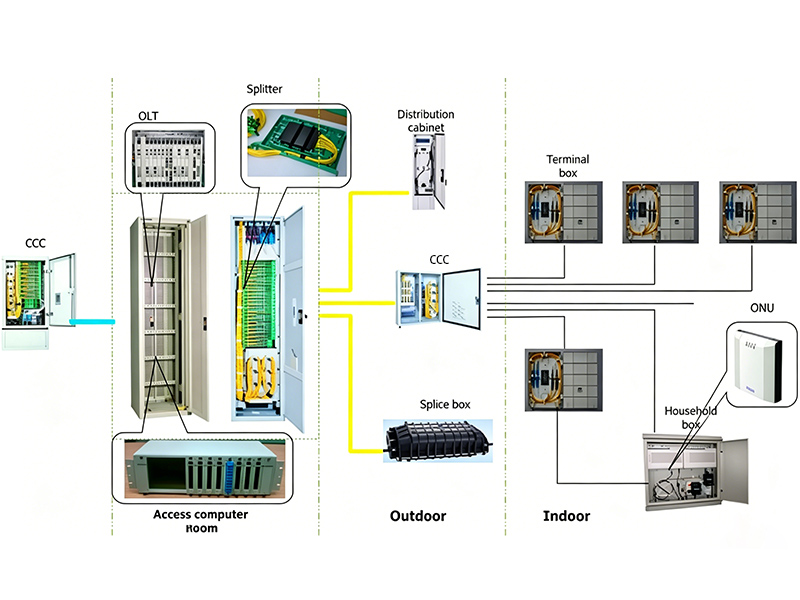

K&M FTTx Solutions– FTTH

K&M FTTx Solutions– FTTH (MDU)

K&M FTTx Solutions– FTTH (Villa)
