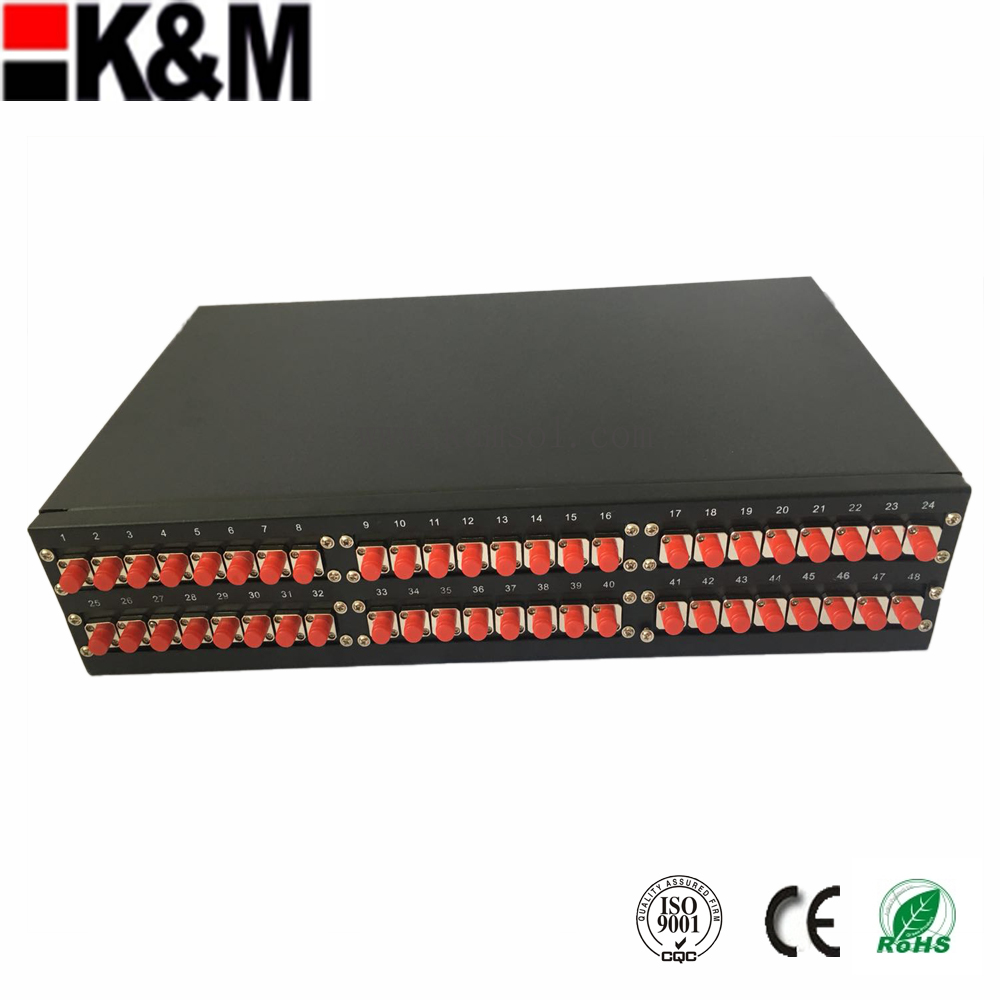

48 cores FC simplex Optical Fiber Patch Panel fix type

Optical FiberPatch Panel

1.Brief

The optical fiber patch panel is used for termination of backbone optical cables as well as connection to network switching equipment of the Local Area Network (LAN). It is mainly applied to complete the fixation splice and cabling management of the equipment room, which supports single mode or multimode fiber optics.It’smainly used to achieve the connection, distribution and dispatch between the outside optical cable and the optical transmission equipment.The product provides secure, reliable, flexible fiber optic management, widely used in broadband access network project.

 2.  Technical data

l Operating temperature:-20ºC～ +60 ºC

l Storage temperature:-20ºC～+55 ºC

l Storage relative humidity:≤75%

l Relative humidity: ≤85%（+30 ºC）

l Atmospheric pressure:70Kpa～106 Kpa

3.  Features

Ø It made of high-quality cold rolled steel sheet and surface electrostatic spraying.

Ø Drawer type, convenientoperationand space-saving;

Ø 19″standard installation.

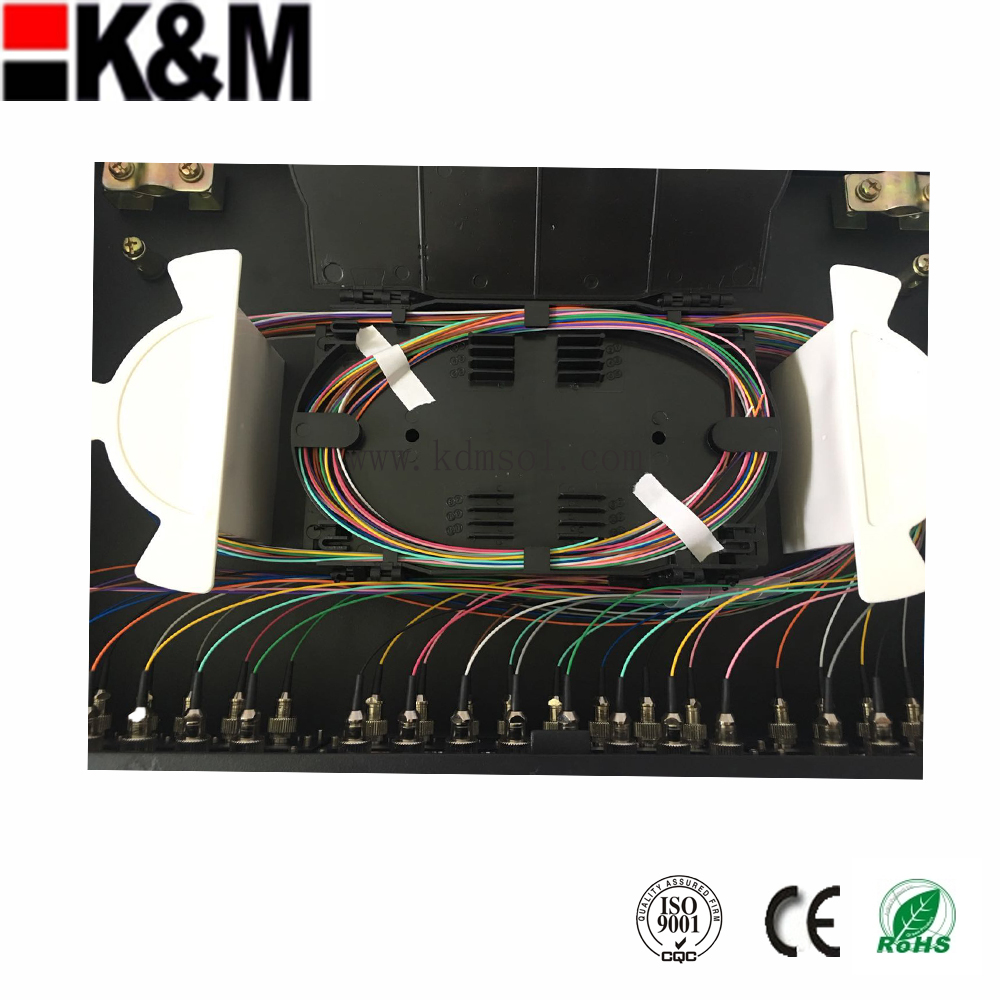

Ø Perfect design for firm protection of cable termination and optical fiber adapter installation;

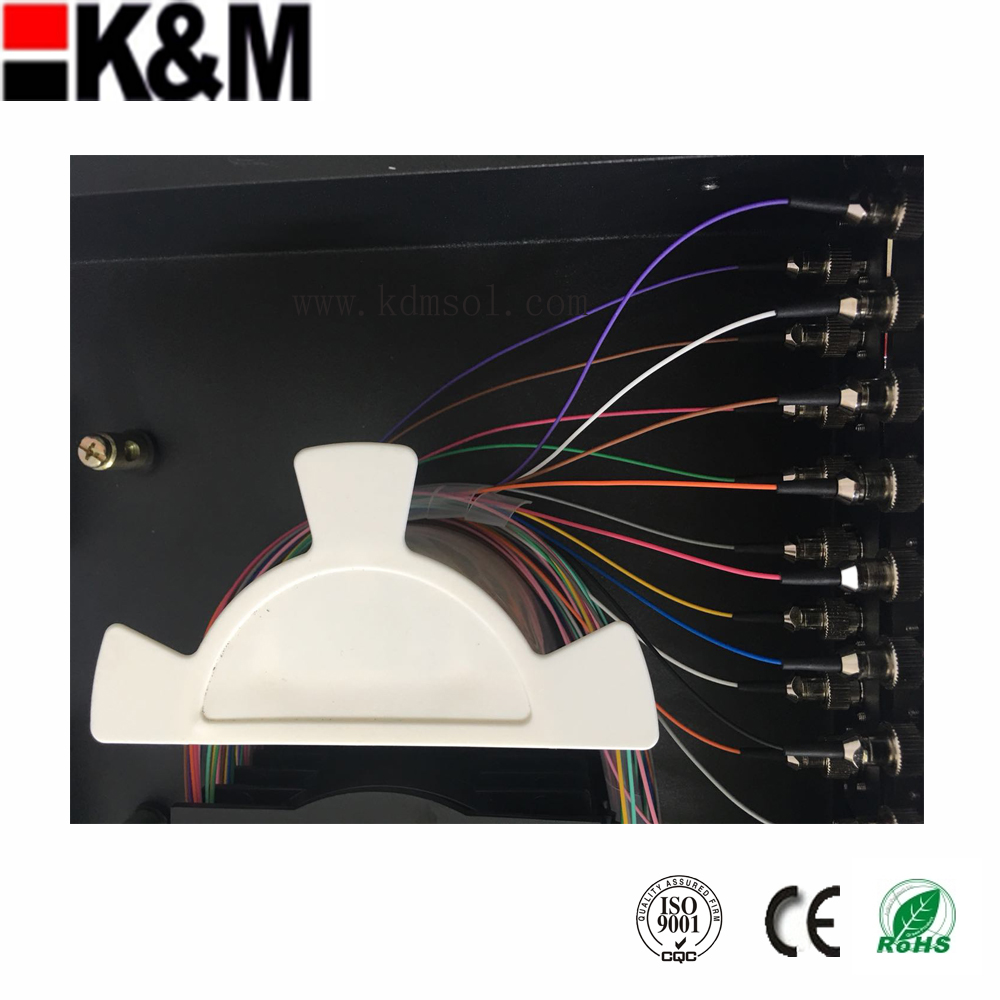

Ø Convenient and flexible leading in/out of optic fibers, and sufficient space for coiling optic fibers;

Ø Multiple fixing positions for optic fibers on both sides and the back rear, making the inlet of optic fiber convenient and flexible for peeling protection;

Ø Available in SC/LC/FC –D type adapters respectively.

Ø The max capacity is 24-fiber.

4.  Dimension:

2Umm (H) ×482.6mm (W) ×240mm（D）(Figure 1)

Figure 1

 5.  Ordering information
