Armored Central Loose Tube Cable

Home Products FO Solutions Fiber Optic Cables

Armored Central Loose Tube Cable

KDM's Armored fiber optic cable is a central tube, loose tube product used in various outside plant applications.The addition of a corrugated steel armor under the outer jacket increase the cables crush, impact and cut-through resistance compared to non-armored

products.

Inquiry now

Specifications:

OFNG-LS Listed, CSA-FT4, IEEE1202 and UL 1685
Meets requirements of NFPA 130 and NFPA 502 for use in fixed guideway transit systems and road tunnels
ICEA S-104-696
CSA 22.2 No. 230 and 232
Fluid immersion testing per ASTM D412
Sunlight Resistant Jacket
Oil Res II compliant Jacketing System
Zero Halogen Per MIL PRF 85045

Features:

Gel-Free buffer tubes
Fiber Range 12-288
Suitable for direct burial and tray installations per UL 1277
Increased tensile load rating
2X Crush Resistance compared to standard fiber optic cables
2X Cold Impact Resistance compared to standard fiber optic cables
Self-supporting capability (contact factory for system design support)

Applications Network Connectivity for:

Service (Drop) Cables
Building Interconnections (Campus LAN)
Connectorized Trunking Cables
Distance Learning
Distribution

Temperature Specifications:

TEMPERATURE RANGE
INSTALLATION	-30ºC to +70ºC
OPERATING	-40ºC to +70ºC
STORAGE	-40ºC to +75ºC

Mechanical:

Parameter	Value
Crush	440N/CM
Cold Impact	8.8 N*m
Tensile Installation	1,000 lbs (4,450N)
Operational	400 lbs (1,780N）

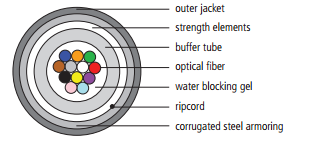

Cable Components:

Fiber Specification:

Fiber Type	ISO/IEC/ITU	Maxmum Attenuation (DB/KM)				Overfill Launch Min.Bandwidth(MHz•km)		Gigabit Ethernet Min. Link Distance (meters)
		Maxmum Attenuation (DB/KM)				Overfill Launch Min.Bandwidth(MHz•km)		Gigabit Ethernet Min. Link Distance (meters)
		850NM	1300NM	1310NM	1550NM	850NM	1300NM	850NM	1300NM
(6) 62.5/125 GIGA-Link™ 300	OM1	3.5	1.2	N/A	N/A	200	600	300	550
(5) 50/125 GIGA-Link™ 600	OM2	2.9	0.9	N/A	N/A	500	500	600	600
(L) 50/125 Laser-Link 300	OM3	2.9	0.9	N/A	N/A	1500	500	900	550
(9) Single-mode	G.652.D & G.657. A1	N/A	N/A	0.35	0.25	N/A	N/A	N/A	5000
(K) SM Futureguide SR-15e Bend Insensitive	G.655	N/A	N/A	N/A	0.25	N/A	N/A	N/A	N/A

Gigabit Ethernet Minimum Link Distances are based on "bandwidth"/modal dispersion constraints. Actual link distances may be constrained by attenuation, depending on specific loss budget.

Ordering Information:

Fibe

Fiber Count	Nominal Diameter	Nominal Weight	Maxmum Tensile Load		Minimum Bend Radius
			LBS(N)		Inches(CM)
	Inches	LBS/1,000FT	Short Term	Long Term	Short Term	Long Term
2	0.48(12.2)	95(140)	600(2670)	200 (890)	9.6 (25.0)	4.8 (13.0)
4
6
8
10
12
