Acting as the backbone for most of today’s fiber based systems, stranded fiber optic cables play a critical role in the high speed network. KDM’s Non-Armored Loose Tube fiber optic
cables are designed to provide high fiber counts with the flexibility and versatility required
for today’s most demanding installations. With fiber counts up to 576 and S-Z strand
designs for easy mid-span access, KDM’s cables comply with EIA/TIA, REA/RUS PE-90 and
GR-20. Industry standard designs combined with innovative technologies, such as a dry
core product, yield a world class cable that will support today’s and tomorrow’s
technological needs.
Specifications:
Features:
Applications Network Connectivity for:
Temperature Specifications:
| TEMPERATURE RANGE | |
| INSTALLATION | -30ºC to +50ºC |
| OPERATING | -55ºC to +70ºC |
| STORAGE | -60ºC to +75ºC |
Mechanical:
| Parameter | Value |
| Crush | 440N/CM |
| Cold Impact | 8.8 N*m |
|
Tensile Installation |
1,000 lbs (4,450N) |
| Operational | 400 lbs (1,780N） |
Cable Components:

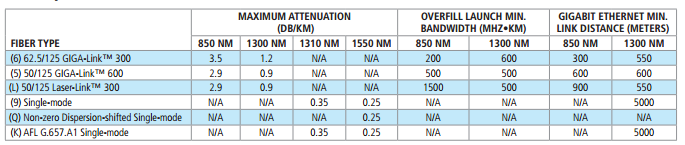

Fiber Specification:
Ordering Information:
| Fiber Count | Number Of Tubes/Fibers | Nominal Diameter | Nominal Weight | Maxmum Tensile Load | Minimum Bend Radius | ||||
| LBS(N) | Inches(CM) | ||||||||
| Inches | MM | LBS/1,000FT | KG/KM | Short Term | Long Term | Short Term | Long Term | ||
| 6 | 1w/6 (4 fillers) | 0.41 | 10.5 | 56 | 83 | 600 (2670) | 200 (890) | 8.2 (21) | 4.1 (11) |
| 12 | 1w/12 (4 fillers) | 0.41 | 10.5 | 56 | 84 | 600 (2670) | 200 (890) | 8.2 (21) | 4.1 (11) |
| 18 | 1w/12,1w/6(3 fillers) | 0.41 | 10.5 | 57 | 85 | 600 (2670) | 200 (890) | 8.2 (21) | 4.1 (11) |
| 24 | 2w/12 (3 fillers) | 0.41 | 10.5 | 57 | 85 | 600 (2670) | 200 (890) | 8.2 (21) | 4.1 (11) |
| 30 | 2w/12,1w/6 (2 fillers) | 0.41 | 10.5 | 58 | 86 | 600 (2670) | 200 (890) | 8.2 (21) | 4.1 (11) |
| 36 | 3w/12 (2 fillers) | 0.41 | 10.5 | 58 | 86 | 600 (2670) | 200 (890) | 8.2 (21) | 4.1 (11) |
| 48 | 4w/12 (1 fillers) | 0.41 | 10.5 | 59 | 87 | 600 (2670) | 200 (890) | 8.2 (21) | 4.1 (11) |
| 60 | 5w/12 (no fillers) | 0.41 | 10.5 | 60 | 89 | 600 (2670) | 200 (890) | 8.2 (21) | 4.1 (11) |
| 72 | 6w/12 (no fillers) | 0.45 | 11.5 | 71 | 106 | 600 (2670) | 200 (890) | 9.0 (22) | 4.5 (11.5) |
| 84 | 7w/12 (1 fillers) | 0.52 | 13.3 | 90 | 135 | 600 (2670) | 200 (890) | 10.4 (27) | 5.2 (14) |
| 96 | 8w/12 (no fillers) | 0.52 | 13.3 | 91 | 136 | 600 (2670) | 200 (890) | 10.4 (27) | 5.2 (14) |
| 108 | 9w/12 (1 fillers) | 0.59 | 15.1 | 117 | 174 | 600 (2670) | 200 (890) | 11.8 (31) | 5.9 (16) |
| 120 | 10w/12 (no fillers) | 0.59 | 15.1 | 118 | 175 | 600 (2670) | 200 (890) | 11.8 (31) | 5.9 (16) |
| 132 | 11w/12 (1 fillers) | 0.67 | 17 | 147 | 219 | 600 (2670) | 200 (890) | 13.4 (34) | 6.7 (17) |
| 144 | 12w/12 (no fillers) | 0.67 | 17 | 148 | 220 | 600 (2670) | 200 (890) | 13.4 (34) | 6.7 (17) |
| 216 | 18w/12 (no fillers) | 0.69 | 17.4 | 150 | 224 | 600 (2670) | 200 (890) | 14.0 (35) | 6.9 (18) |
| 188 | 24w/12 (no fillers) | 0.79 | 20.1 | 202 | 301 | 600 (2670) | 200 (890) | 17.3 (41) | 7.9 (21) |
| 432 | 24w/18 (no fillers) | 0.87 | 22 | 242 | 360 | 600 (2670) | 200 (890) | 17.3 (44) | 8.7 (22) |
| 576 | 24w/24 (no fillers) | 1 | 25.3 | 319 | 475 | 600 (2670) | 200 (890) | 20.1 (51) | 10.2 (26) |
