FIBER DISTRIBUTION HUB – OUTDOOR (STREET CABINET)

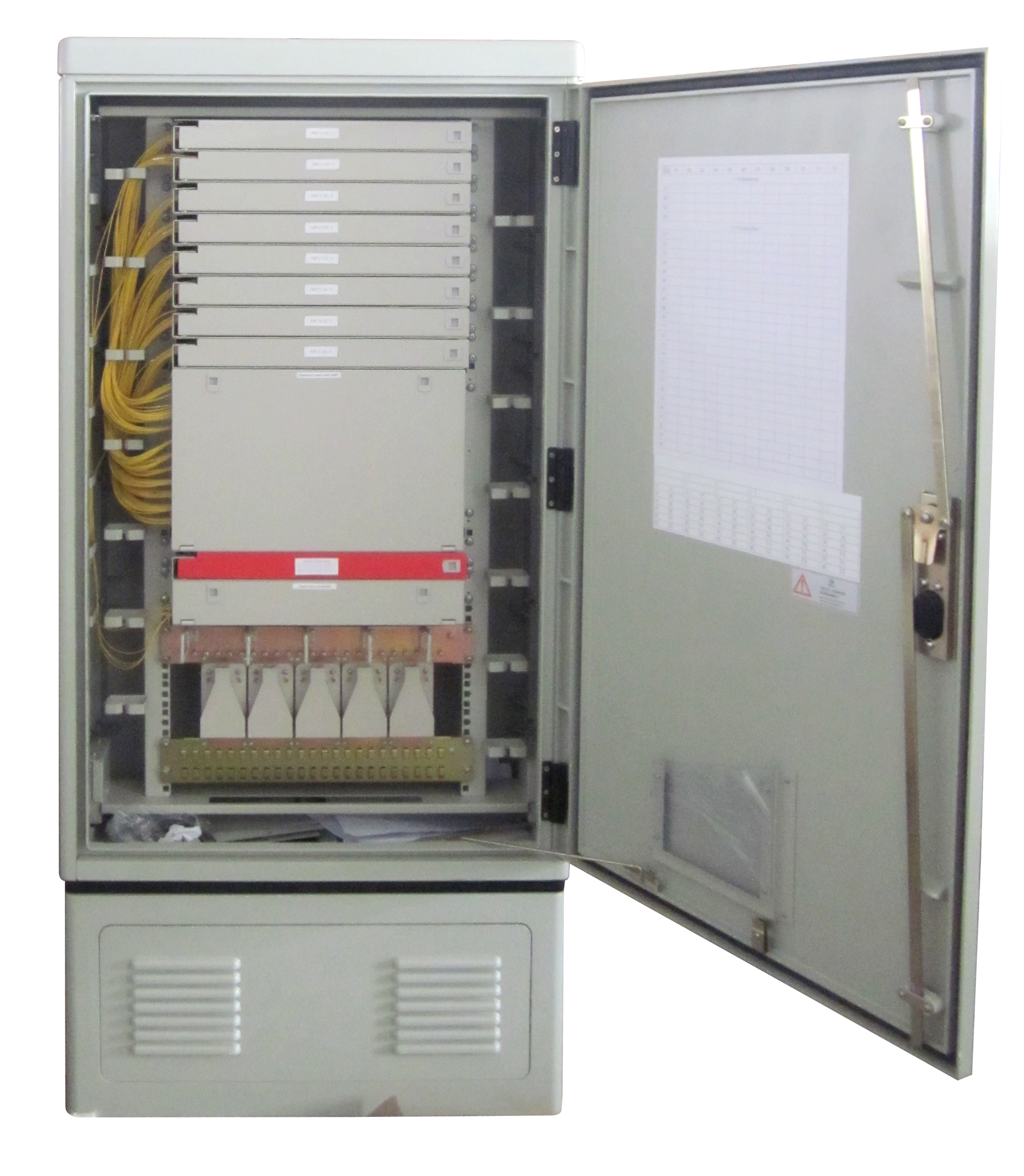

 The Outdoor Fiber Distribution Hub / Street Cabinets accommodate passive components, for spliced, cross-connect and splitter applications to serve different fiber optic and FTTH/FTTX network architectures. It has high-density fiber connectivity, weather proof design and specifications. It is the best choice for the outdoor solutions

  Features

• Stainless steel material

• Outdoor painted coating

• Double layer with heat-assistance filled-in material

• Optional location for splitter modules

• Applicable for both single fiber and ribbon fiber

• Reliable fiber storage and protection function

• Built in cable management

• Single door, front single-side operation

• Perfect fiber route design to ensure bend radius of fibers

• Whole hinge 3 points lock

• Distribution, Interconnect and splitter applications

 Applications

• FTTX Systems

• PON Networks

• CATV Links

• Optical Signal Distribution

 Specification

Up to 6 splitters (extra splitters up on request)

Capacity 144/288 fibers

IP rating: IP65

Operating temperature -40°C to + 60ºC

Storage temperature -25°C to + 55ºC

Connector type: SC, LC, ST, FC

Connector attenuation ≤ 0.35 dB

Return Loss: APC ≥ 60 dB, UPC ≥ 50 dB, PC ≥ 40 dB

Number of termination > 500 times

 Dimensions

 Ordering Information

Ta: Cabinet type (T1, T2, T3)

x: Number of splitter inputs (1,2)

yy: Number of output channels (2, 4, 8,16, 32)

zz: Connector type (SC, LC, ST, FC)

b: Connector surface type (U=UPC, A=APC)

n: Fiber type (A=G657A, D=G652D)

 Ordering Sample: KMFDHOT1132SCAD (FDH, Outdoor, Type T1, PLC Splitter 1:32, SC connector, APC, G652D)
