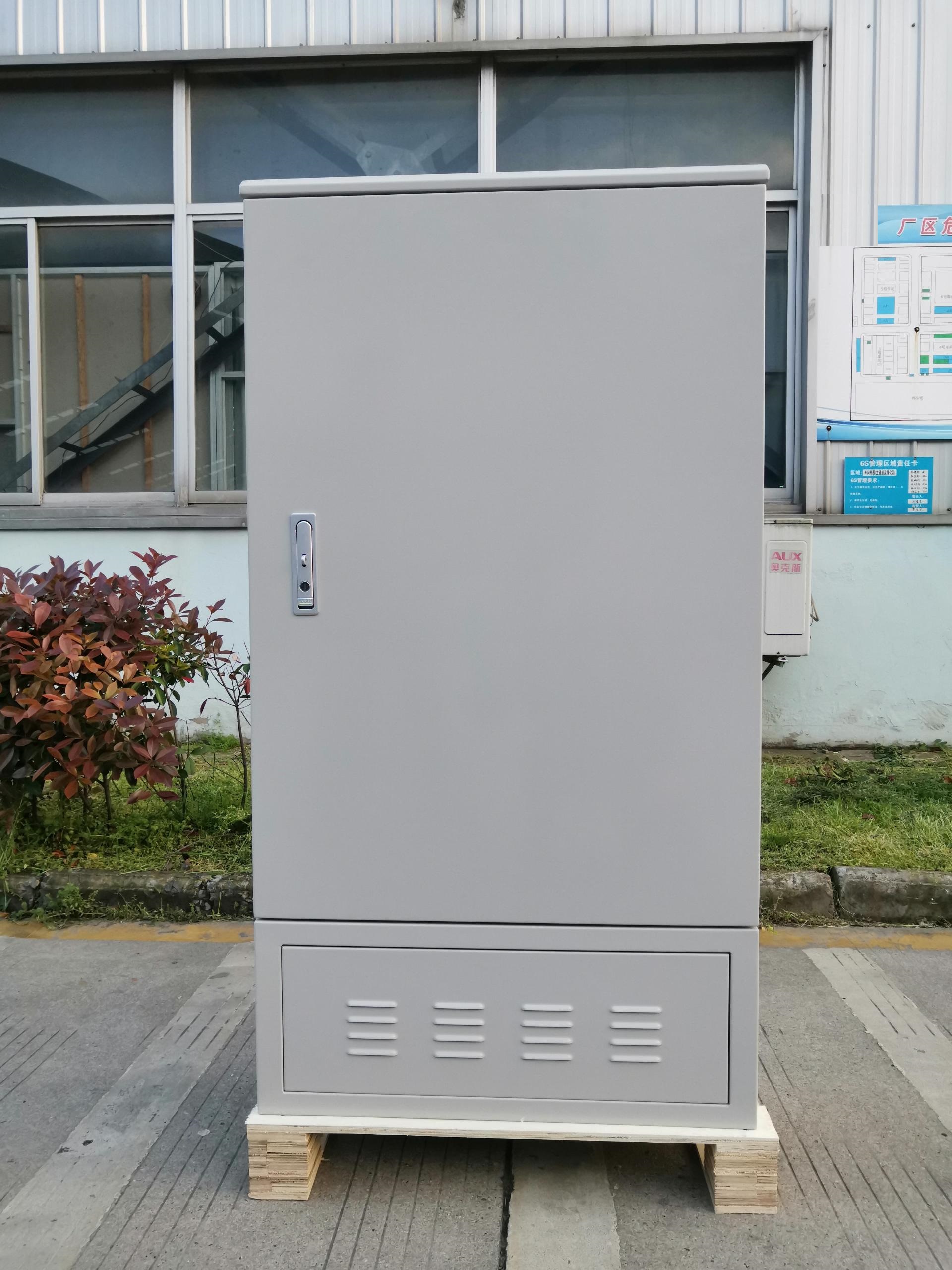

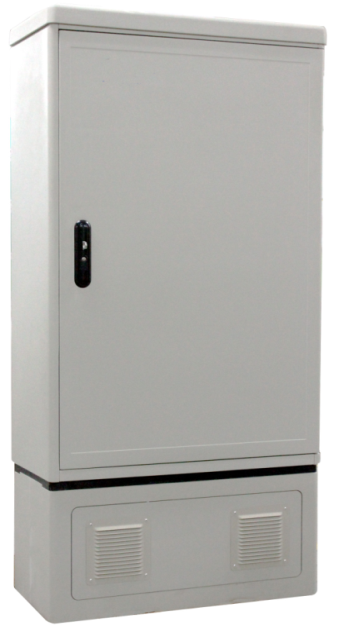

FIBER DISTRIBUTION HUB – OUTDOOR (STREET CABINET) 366 Fiber

FIBER DISTRIBUTION HUB – OUTDOOR (STREET CABINET)

 The Outdoor Fiber Distribution Hub / Street Cabinets accommodate passive components, for spliced, cross-connect and splitter applications to serve different fiber optic and FTTH/FTTX network architectures. It has high-density fiber connectivity, weather proof design and specifications. It is the best choice for the outdoor solutions

  Features

• Stainless steel material

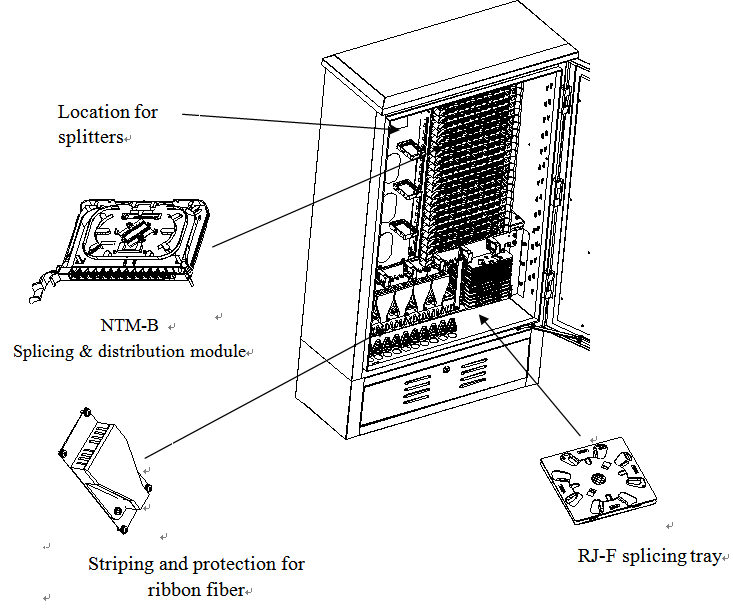

• NTM-B module design

• Outdoor painted coating

• Double layer with heat-assistance filled-in material

• Optional location for splitter modules

• Applicable for both single fiber and ribbon fiber

• Reliable fiber storage and protection function

• Built in cable management

• Single door, front single-side operation

• Perfect fiber route design to ensure bend radius of fibers

• Whole hinge 3 points lock

• Distribution, Interconnect and splitter applications

 Applications

• FTTX Systems

• PON Networks

• CATV Links

• Optical Signal Distribution


Specification

Up to 6 splitters (extra splitters up on request)

Capacity 144/288 fibers

IP rating: IP65

Operating temperature -40°C to + 60ºC

Storage temperature -25°C to + 55ºC

Connector type: SC, LC, ST, FC

Connector attenuation ≤ 0.35 dB

Return Loss: APC ≥ 60 dB, UPC ≥ 50 dB, PC ≥ 40 dB

Number of termination > 500 times

 Dimensions
