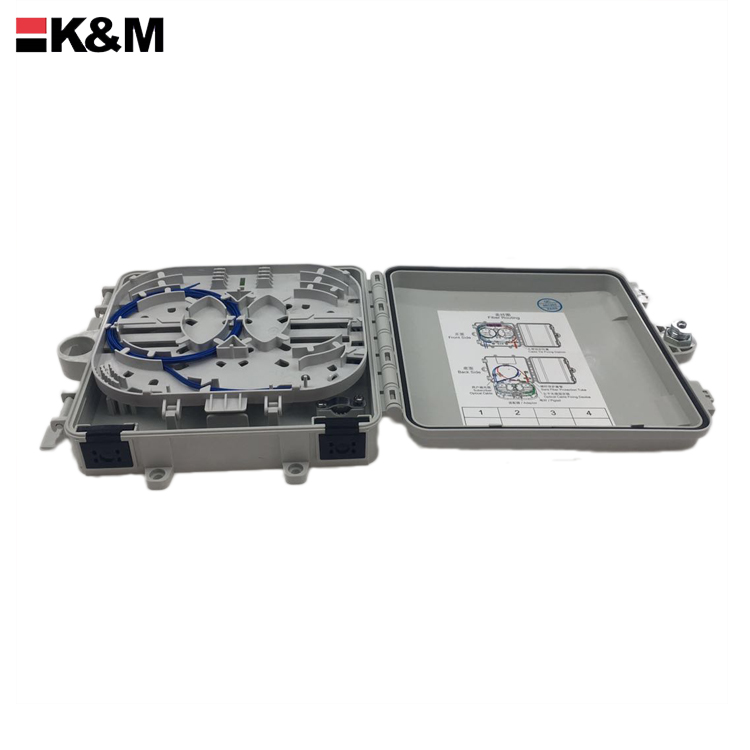

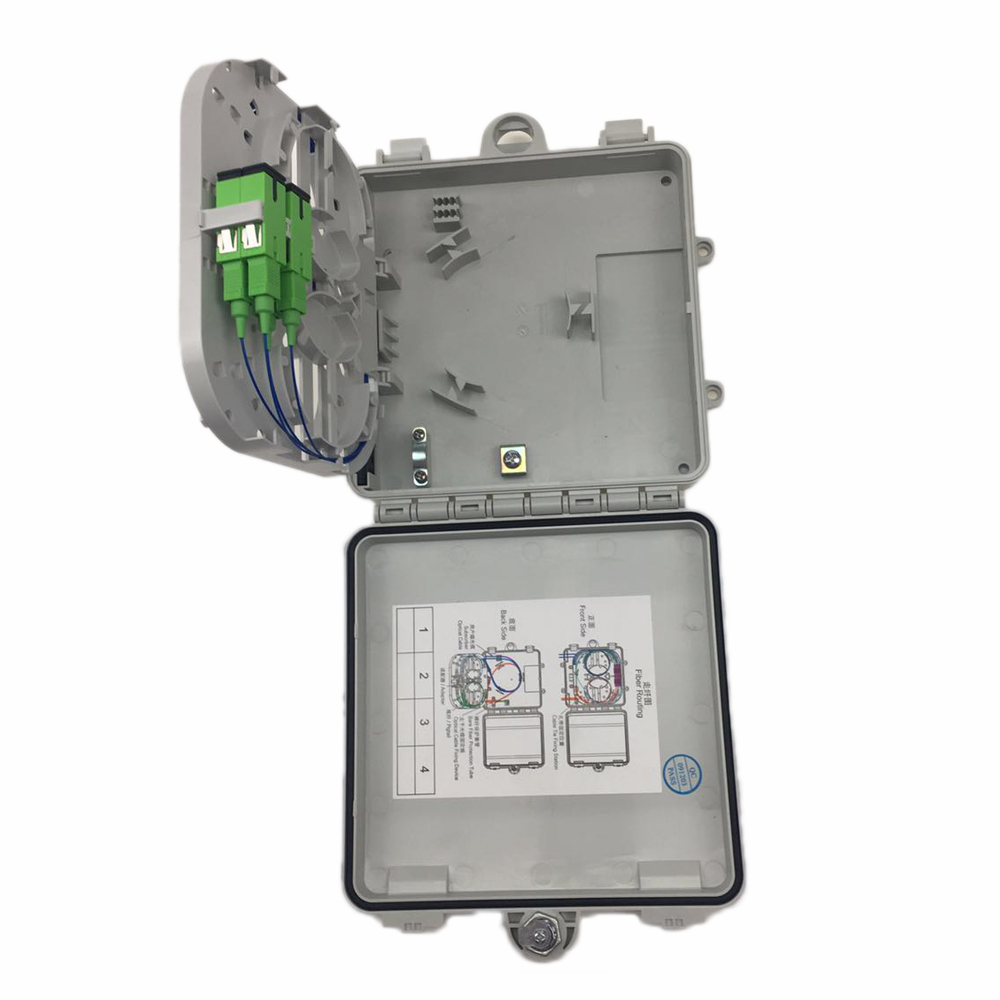

Fiber optic termination box 4 Cores

FIBER OPTIC TERMINATION BOX

 Fiber Optic Termination Box is a rugged, low profile interconnection unit suitable for all Fiber Optic and FTTx application, specially designed for residential use and it is applicable for large business premises

 Features

• Indoor/Outdoor type

• Nonmetallic material

• Compacted wall mount type

• Simple decorative design

• Easy installation

• Easy maintenance

• Easy access with front door

• Support both mechanical and fusion splicing

• Low cost solution with high protection for the terminated fibers

• IP55 rated for outdoor applications

  Applications

• FTTX Systems

• PON Networks

• Fiber Optic Termination

• CATV

 Specification

Fiber capacity 4 fibers

Number of Ports: 4 x SC Simplex,

Operating temperature -20°C to + 50ºC

Storage temperature -20°C to + 60ºC

Connector attenuation ≤ 0.35 dB

Return Loss: APC ≥ 60 dB, UPC ≥ 50 dB, PC ≥ 40 dB

Number of termination > 500 times

 Dimensions

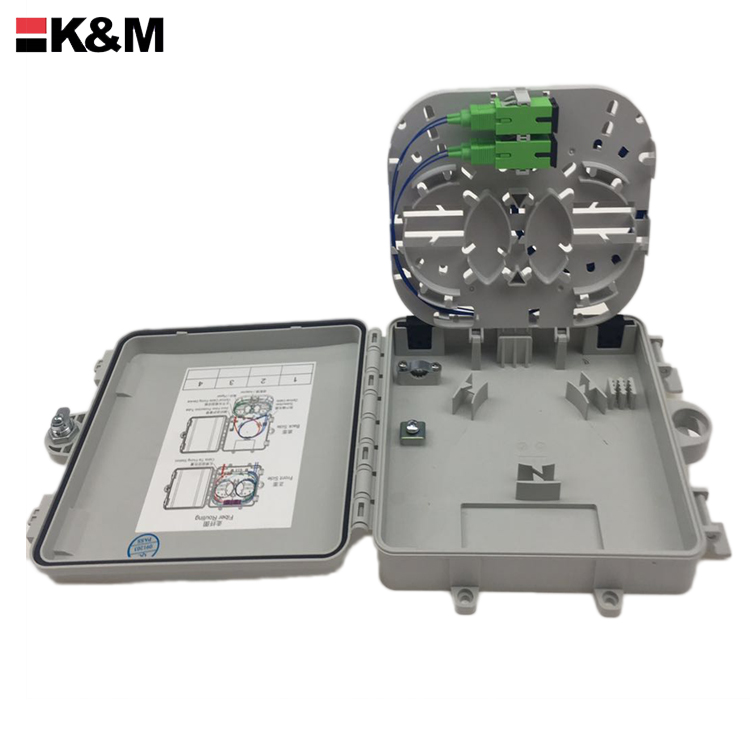

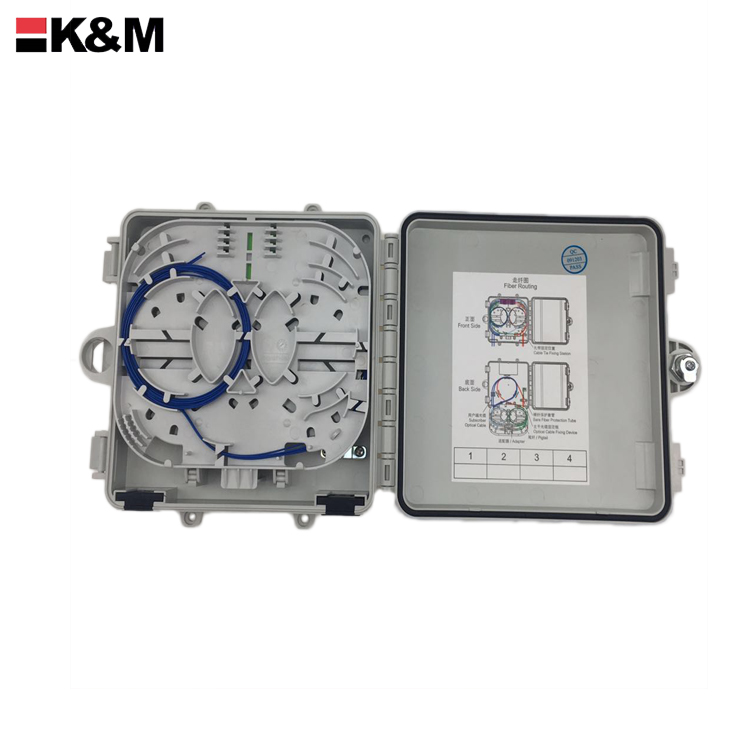

Photos

Ordering Information
