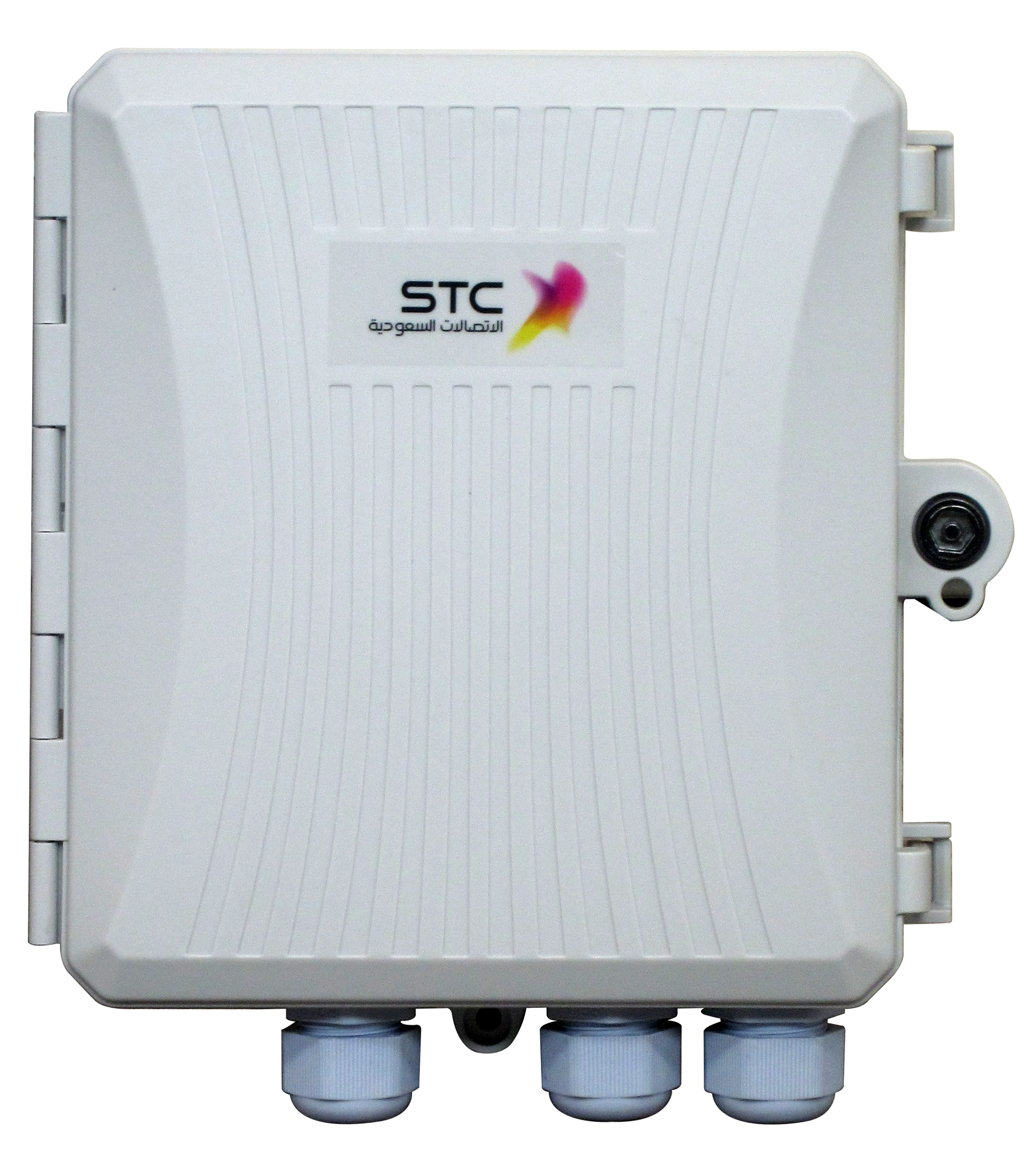

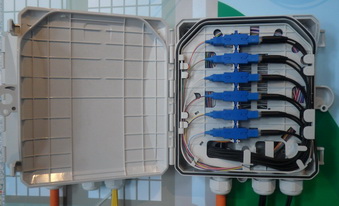

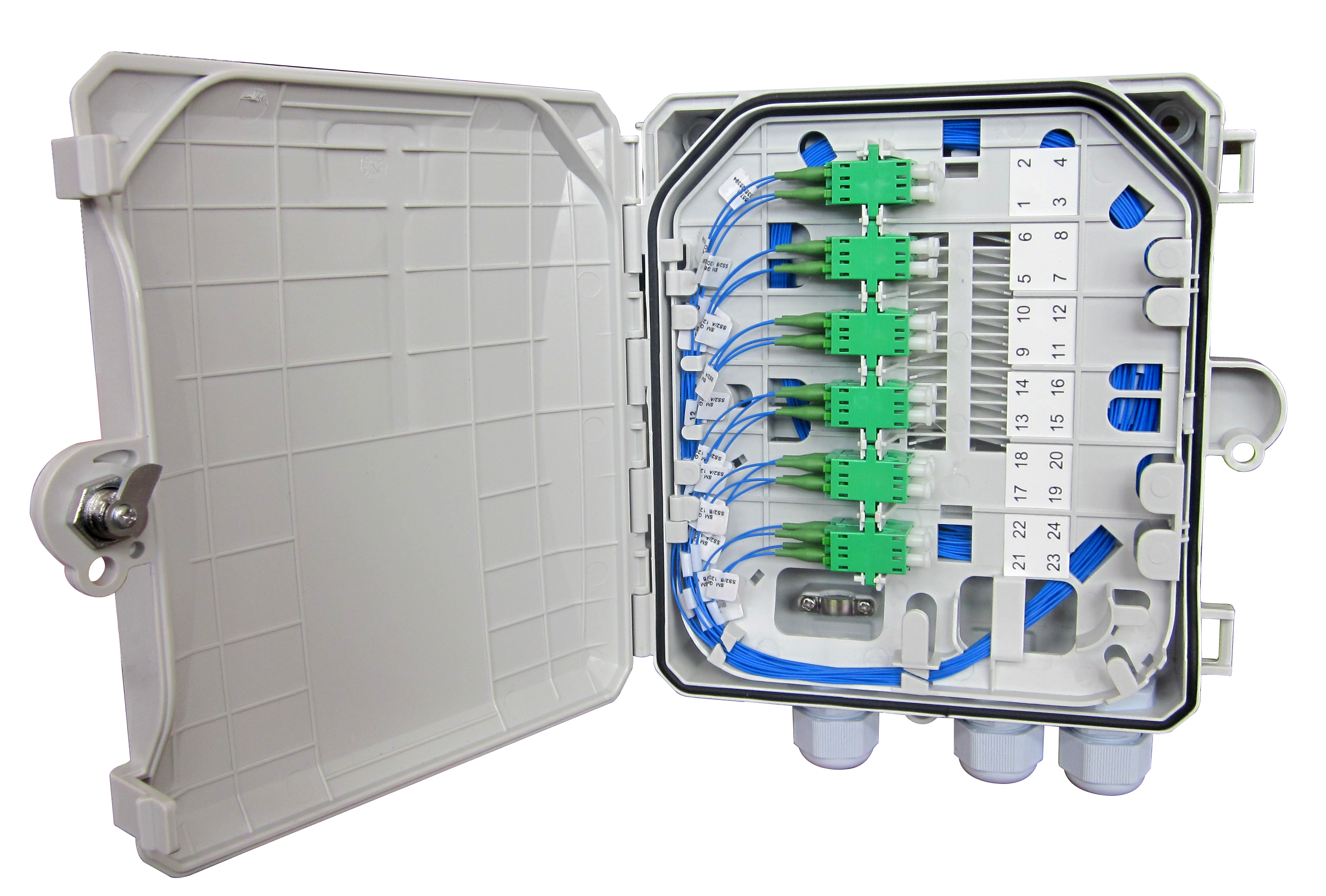

Fiber optic termination box

FIBER OPTIC TERMINATION BOX

 Fiber optic termination box is a rugged, low profile interconnection unit suitable for all Fiber Optic and FTTx application, specially designed for residential use and it is applicable for large business premises

 Features

• Indoor/Outdoor type

• Nonmetallic material

• Compacted wall mount type

• Simple decorative design

• Easy installation

• Easy maintenance

• Easy access with front door

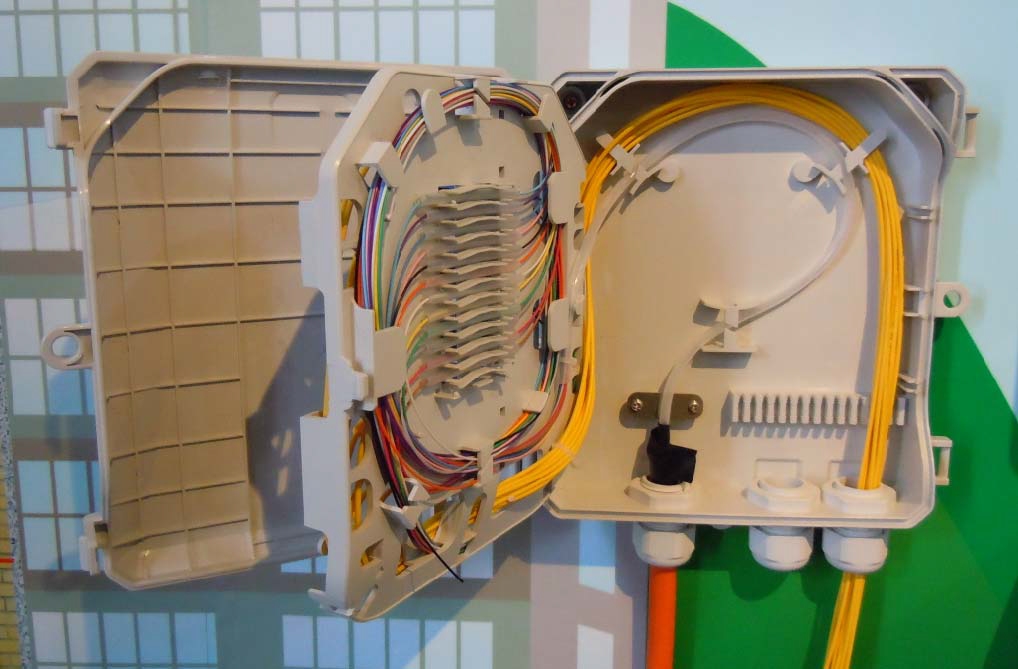

• Support both mechanical and fusion splicing

• Low cost solution with high protection for the terminated fibers

• IP55 rated for outdoor applications

  Applications

• FTTX Systems

• PON Networks

• Fiber Optic Termination

• CATV

 Specification

Fiber capacity 8/12 /24fibers

Number of Ports: 12 x SC Simplex, or, 12x LC Duplex,

Operating temperature -20°C to + 50ºC

Storage temperature -20°C to + 60ºC

Connector attenuation ≤ 0.35 dB

Return Loss: APC ≥ 60 dB, UPC ≥ 50 dB, PC ≥ 40 dB

Number of termination > 500 times

 Dimensions

Ordering Information

x: Connector surface type (U=UPC, A=APC)

zzz: Coupler/Connector type (OM1, OM2, OM3, OS1, OS2)

 Ordering Sample: KMFTBO2SCAOS2 (Fiber Termination Box - FTB, 12 ports, SC coupler,Or 12 LC DX)
