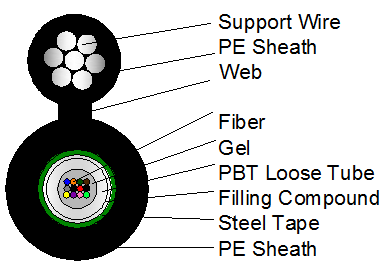

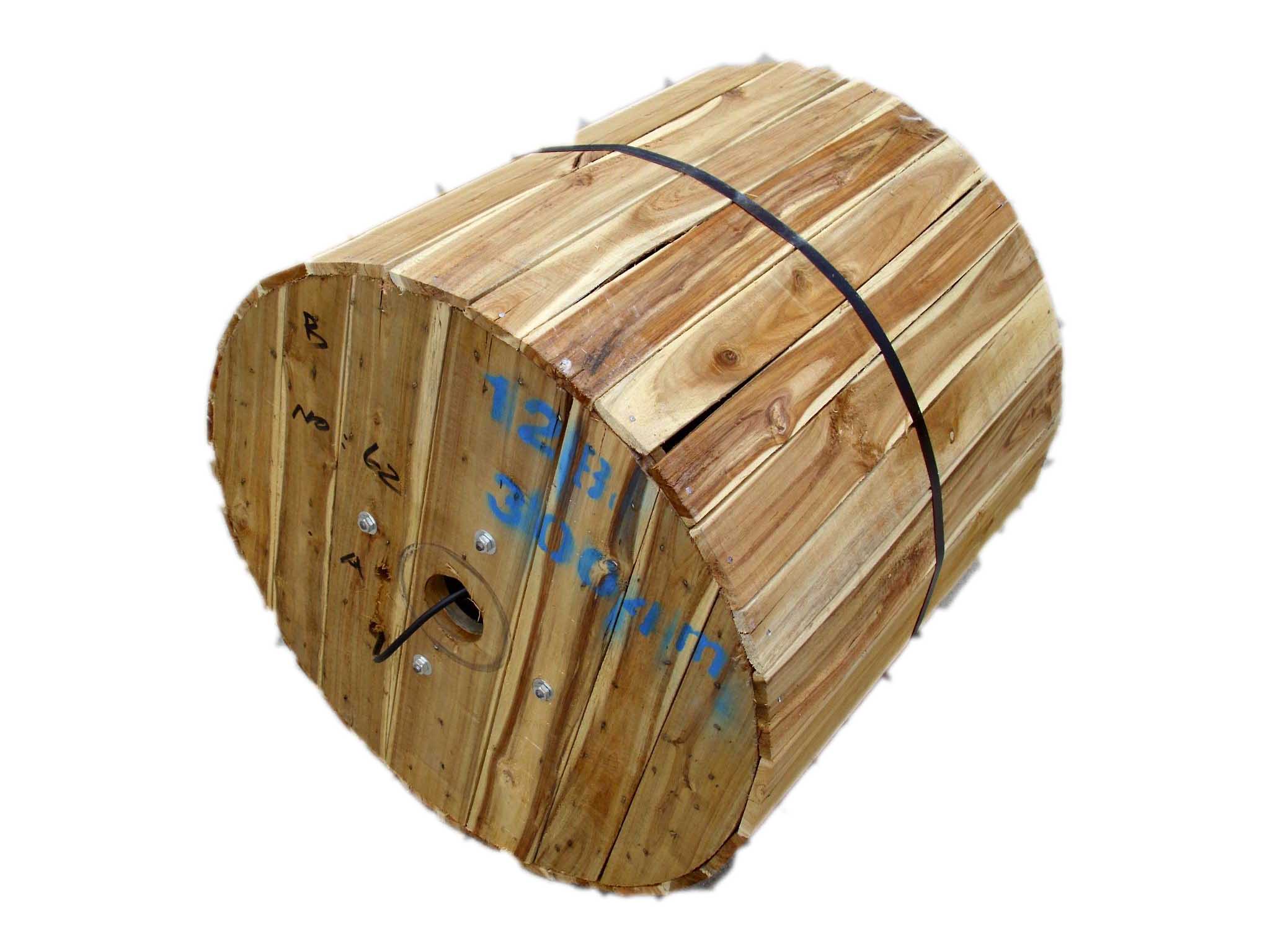

GYXTC8S cheap price outdoor self-supporting fiber optic cable

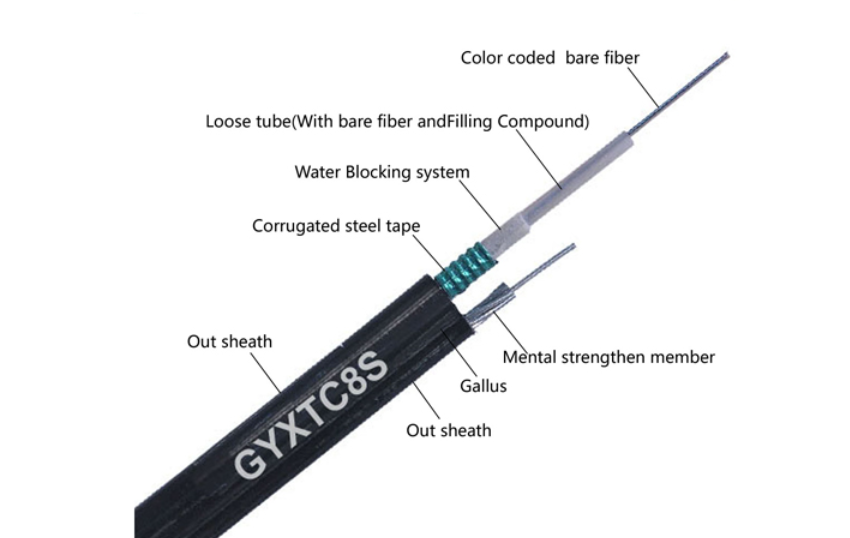

Outdoor GYXTC8S Self-Supporting Armored Optic Cable
For Self-supporting Aerial installation
TECHNICAL SPECIFICATION
|
Fiber count |
2～12 |
|
|
Loose Tube |
OD(mm): |
2.6±0.1 |
|
Material： |
PBT |
|
|
Max fiber count/tube |
12 |
|
|
Water Block Material： |
Water blocking Compound |
|
|
Supporting wire (mm) |
7*1.0mm |
|
|
Sheath |
Support Thickness: |
Non. 1.0mm |
|
Cable Thickness: |
Non. 1.5mm |
|
|
Material： |
PE |
|
|
Armor layer |
Steel tape |
|
|
OD of cable (mm) |
7.0*14.3±0.2 |
|
|
Net weight ( kg/km) |
107 |
|
FIBER IDENTIFICATION
|
NO. |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
Fiber Color |
Blue |
Orange |
Green |
Brown |
Slate |
White/natural |
Red |
Black |
Yellow |
Violet |
Pink |
Aqua |
OPTICAL FIBER-Single Mode Fiber
|
LTEMS |
UNITS |
SPECIFICATION |
||
|
Fiber type |
|
G652D |
G657A |
|
|
Attenuation |
dB/km |
1310nm ≤ 0.36 1550nm ≤ 0.22 |
||
|
Chromatic Dispersion |
ps/nm.km |
1310nm≤ 3.5 1550nm≤ 18 1625nm≤ 22 |
||
|
Zero Dispersion Slope |
ps/nm2.km |
≤ 0.092 |
||
|
Zero Dispersion Wavelength |
nm |
1300 ~ 1324 |
||
|
Cut-off Wavelength (lcc) |
nm |
≤ 1260 |
||
|
Attenuation vs. Bending (60mm x100turns) |
dB |
(30mm radius，100ring )≤ 0.1 @ 1625nm |
(10mm radius，1ring)≤ 1.5 @ 1625nm |
|
|
Mode Field Diameter |
mm |
9.2 ± 0.4 at 1310nm |
9.2 ± 0.4 at 1310nm |
|
|
Core-Clad Concentricity |
mm |
≤ 0.5 |
≤ 0.5 |
|
|
Cladding Diameter |
mm |
125±1 |
125±1 |
|
|
Cladding Non-circularity |
% |
≤ 0.8 |
≤ 0.8 |
|
|
Coating Diameter |
mm |
245±5 |
245±5 |
|
|
Proof Test |
Gpa |
≥ 0.69 |
≥ 0.69 |
|
|
|
|
|
|
|
Multi-Mode Fiber
|
LTEMS |
UNITS |
SPECIFICATION |
|||||||
|
62.5/125 |
50/125 |
OM3-150 |
OM3-300 |
OM4-550 |
|||||
|
Fiber Core Diameter |
μm |
62.5±2.5 |
50.0±2.5 |
50.0±2.5 |
|||||
|
Fiber Core Non-circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
|||||
|
Cladding Diameter |
μm |
125.0±1.0 |
125.0±1.0 |
125.0±1.0 |
|||||
|
Cladding Non-circularity |
% |
≤2.0 |
≤2.0 |
≤2.0 |
|||||
|
Coating Diameter |
μm |
245±10 |
245±10 |
245±10 |
|||||
|
C0at-Clad Concentricity |
μm |
≤12.0 |
≤12.0 |
≤12.0 |
|||||
|
Coating Non-circularity |
% |
≤8.0 |
≤8.0 |
≤8.0 |
|||||
|
Core-Clad Concentricity |
μm |
≤1.5 |
≤1.5 |
≤1.5 |
|||||
|
Attenuation |
850nm |
dB/km |
3.0 |
3.0 |
3.0 |
||||
|
1300nm |
dB/km |
1.5 |
1.5 |
1.5 |
|||||
|
OFL |
850nm |
MHz﹒km |
≥160 |
≥200 |
≥700 |
≥1500 |
≥3500 |
||
|
1300nm |
MHz﹒km |
≥300 |
≥400 |
≥500 |
≥500 |
≥500 |
|||
|
The biggest theory numerical aperture |
/ |
0.275±0.015 |
0.200±0.015 |
0.200±0.015 |
|||||
