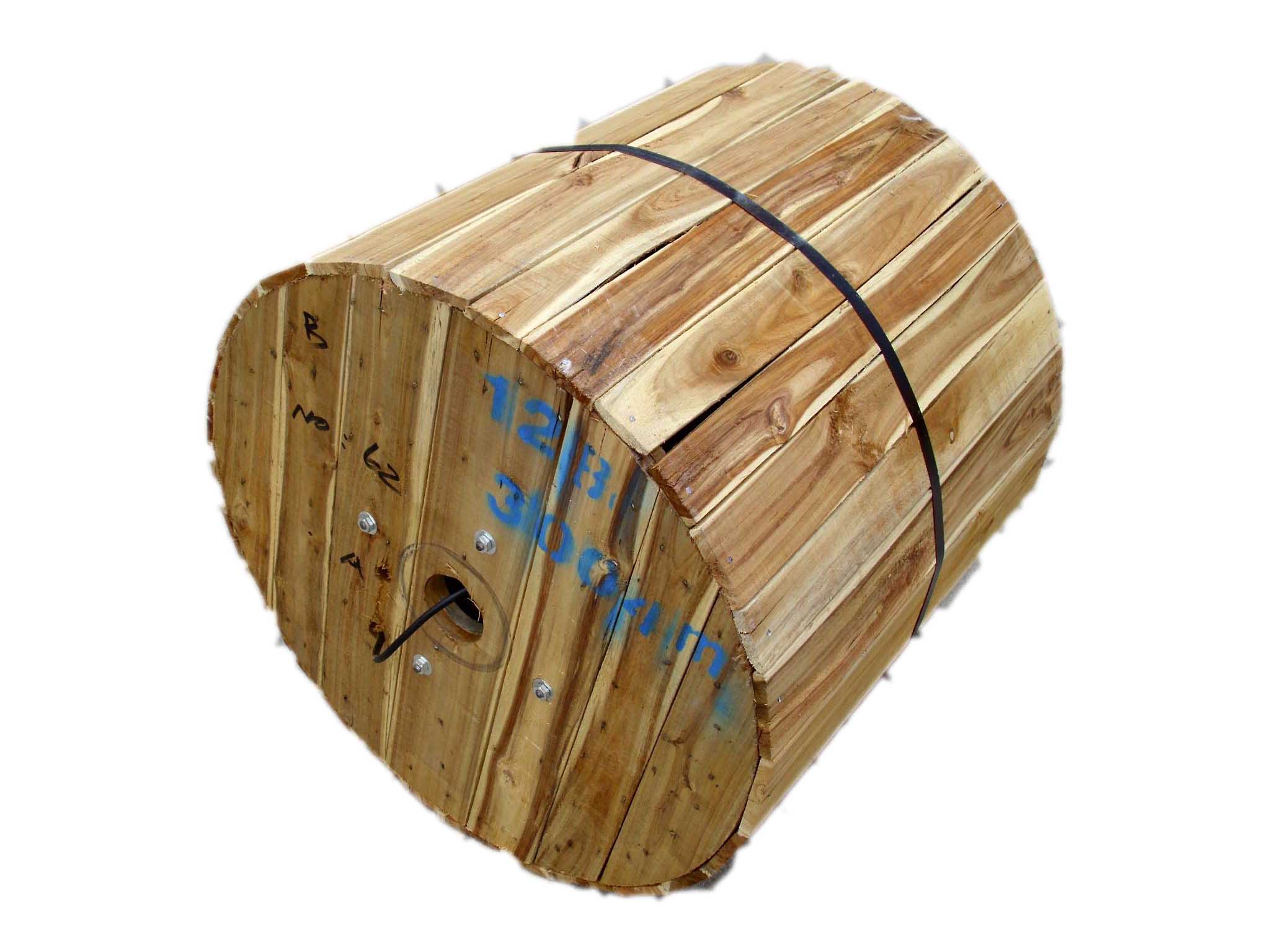

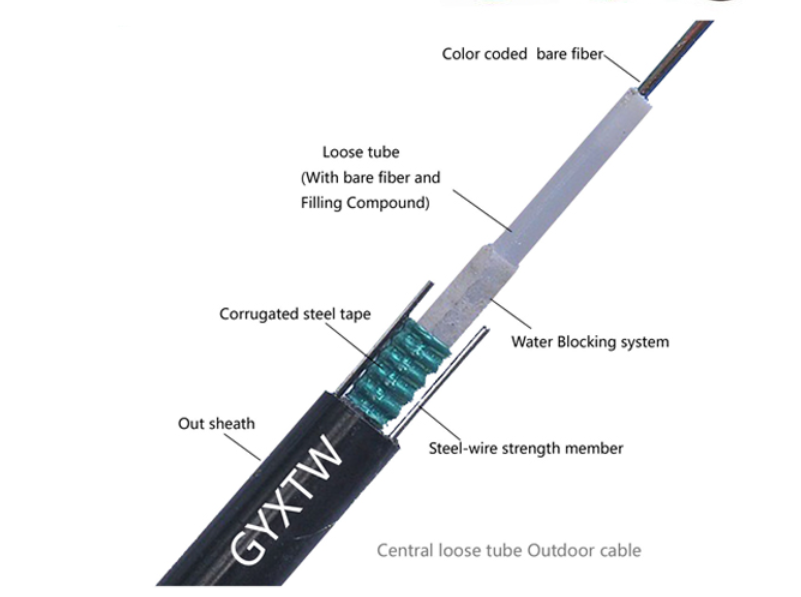

GYXTW outdoor 12 core fiber optic cable

LTEMS

DESCRIPTION

Fiber count

2-12F

Loose Tube

OD(mm):

2.2±0.1

Material：

PBT

Water Block Material：

Water blocking Compound

Armored

Corrugation Steel tape

Strength Number（steel）

0.9mm*2

Sheath

Thickness:

Non. 2.2mm

Material：

PE

OD of cable  (mm)

8.0

Net weight ( kg/km)

68

LTEMS

UNITS

SPECIFICATION

Fiber type

G652D

G657A

Attenuation

dB/km

1310nm ≤ 0.36

1550nm ≤ 0.22

Chromatic Dispersion

ps/nm.km

1310nm≤ 3.5

1550nm≤ 18

1625nm≤ 22

Zero Dispersion Slope

ps/nm².km

≤ 0.092

Zero Dispersion Wavelength

nm

1300 ~ 1324

Cut-off Wavelength (lcc)

nm

 ≤ 1260

Attenuation vs. Bending

(60mm x100turns)

dB

(30mm radius，100ring

)≤ 0.1 @ 1625nm

(10mm radius，1ring)≤ 1.5 @ 1625nm

Mode Field Diameter

mm

9.2 ± 0.4 at 1310nm

9.2 ± 0.4 at 1310nm

Core-Clad Concentricity

mm

≤ 0.5

≤ 0.5

Cladding Diameter

mm

125±1

125±1

Cladding Non-circularity

%

≤ 0.8

≤ 0.8

Coating Diameter

mm

245±5

245±5

Proof Test

Gpa

≥ 0.69

≥ 0.69

LTEMS

UNITS

SPECIFICATION

62.5/125

50/125

OM3-150

OM3-300

OM4-550

Fiber Core Diameter

μm

62.5±2.5

50.0±2.5

50.0±2.5

Fiber Core Non-circularity

%

≤6.0

≤6.0

≤6.0

Cladding Diameter

μm

125.0±1.0

125.0±1.0

125.0±1.0

Cladding Non-circularity

%

≤2.0

≤2.0

≤2.0

Coating Diameter

μm

245±10

245±10

245±10

C0at-Clad Concentricity

μm

≤12.0

≤12.0

≤12.0

Coating Non-circularity

%

≤8.0

≤8.0

≤8.0

Core-Clad Concentricity

μm

≤1.5

≤1.5

≤1.5

Attenuation

850nm

dB/km

3.0

3.0

3.0

1300nm

dB/km

1.5

1.5

1.5

OFL

850nm

MHz﹒km

≥160

≥200

 ≥700

 ≥1500

 ≥3500

1300nm

MHz﹒km

≥300

≥400

 ≥500

 ≥500

 ≥500

The biggest theory numerical aperture

/

0.275±0.015

0.200±0.015

0.200±0.015
