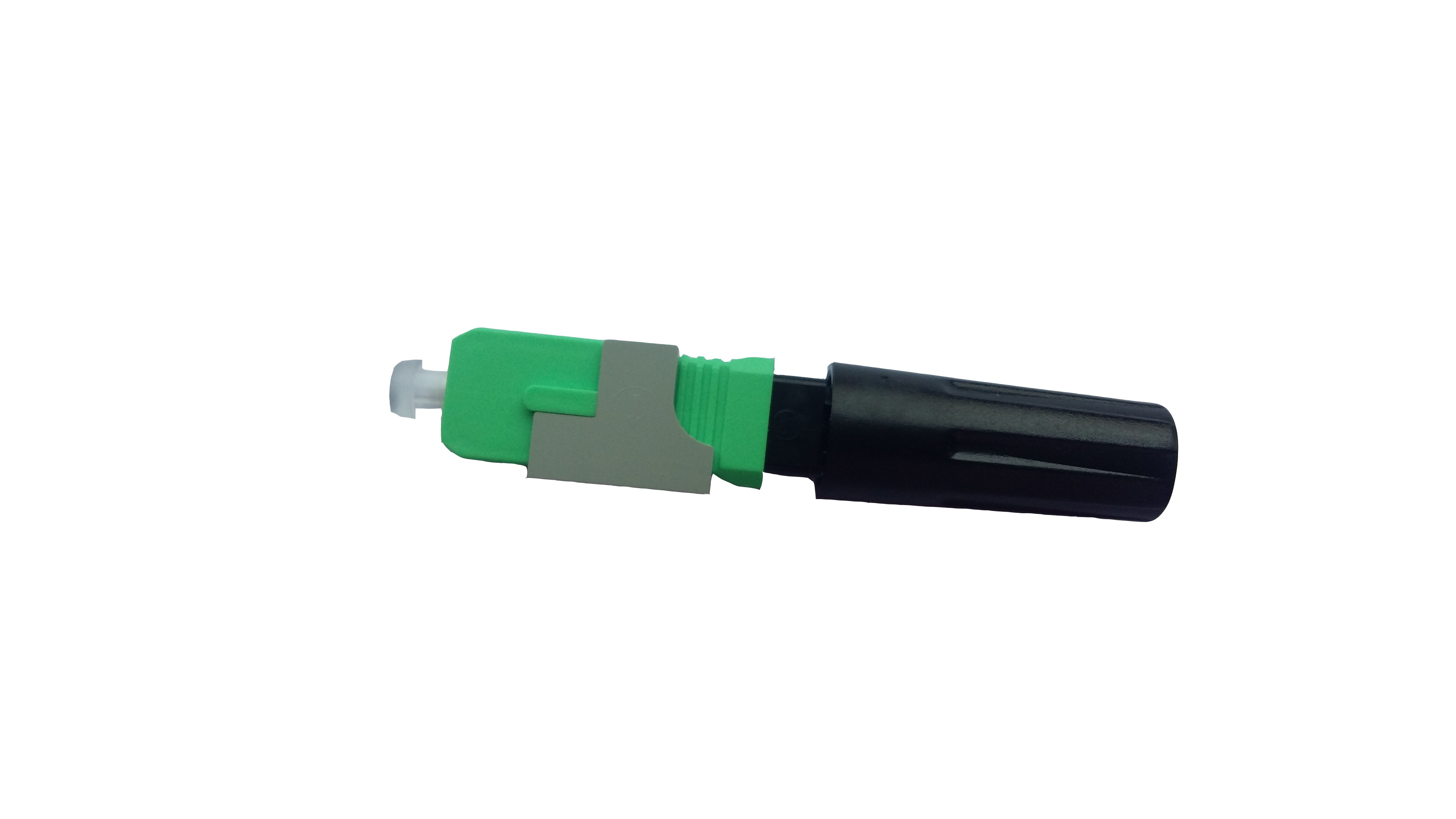

K&M-03 FIELD INSTALLABLE CONNECTOR
Field installation connector can be assembled easily and quickly in the field with no fusion device or special tool. To reduce material waste, the drop cable connector can be repeatedly used for 5 times. The fiber mating alignment and gripping technology include a factory-polished zirconia ferrule, which improve durability and provide a reliable, low-loss fiber termination. The kit can be separately ordered. It contains Trip and cut tool, cleaver, and cleaning paper.
Feature
Pre-embedded fiber in the ferrule, no fusion and polish.
Stable optical performance and reliable environmental performance.
Repeat use, low scrap rate, low cost.
Compact size length is less than 53mm.
Screw fixed structure
Specification
|
Insertion loss |
Main≤0.25dB Max.≤0.40dB |
|
|
Return loss |
UPC≥40dB |
APC≥45dB |
|
Tensile |
△IL＜0.3dB @ 30N |
|
|
Cable |
3.0X2.0mm Drop cable and Φ3.0Cable |
|
|
Operating temp. |
-40℃～+70℃ |
|
|
Storage temp. |
-40℃～+80℃ |
|
Ordering information
|
Products |
Part NO. |
Remark |
|

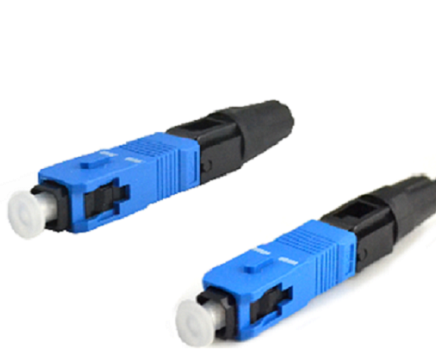

SC/UPC field connector |
KDM-16-0301 |
Blue |
|

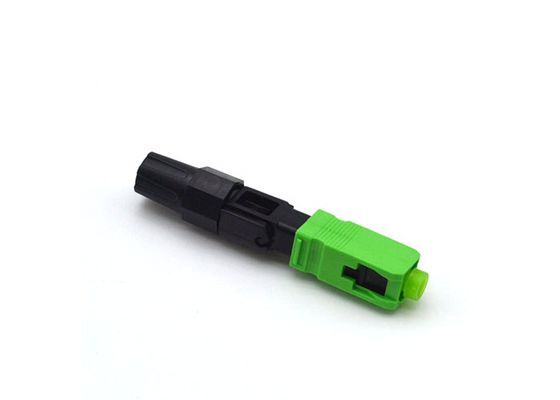

SC/APC field connector |
KDM-16-0302 |
Green |
|
Tripping and cutting tool |
KDMT0301 |
For fiber tripping and cutting to length |
|
Fiber cleaver |
KDMT0102 |
For cutting bare fiber |
|
|
|
|
