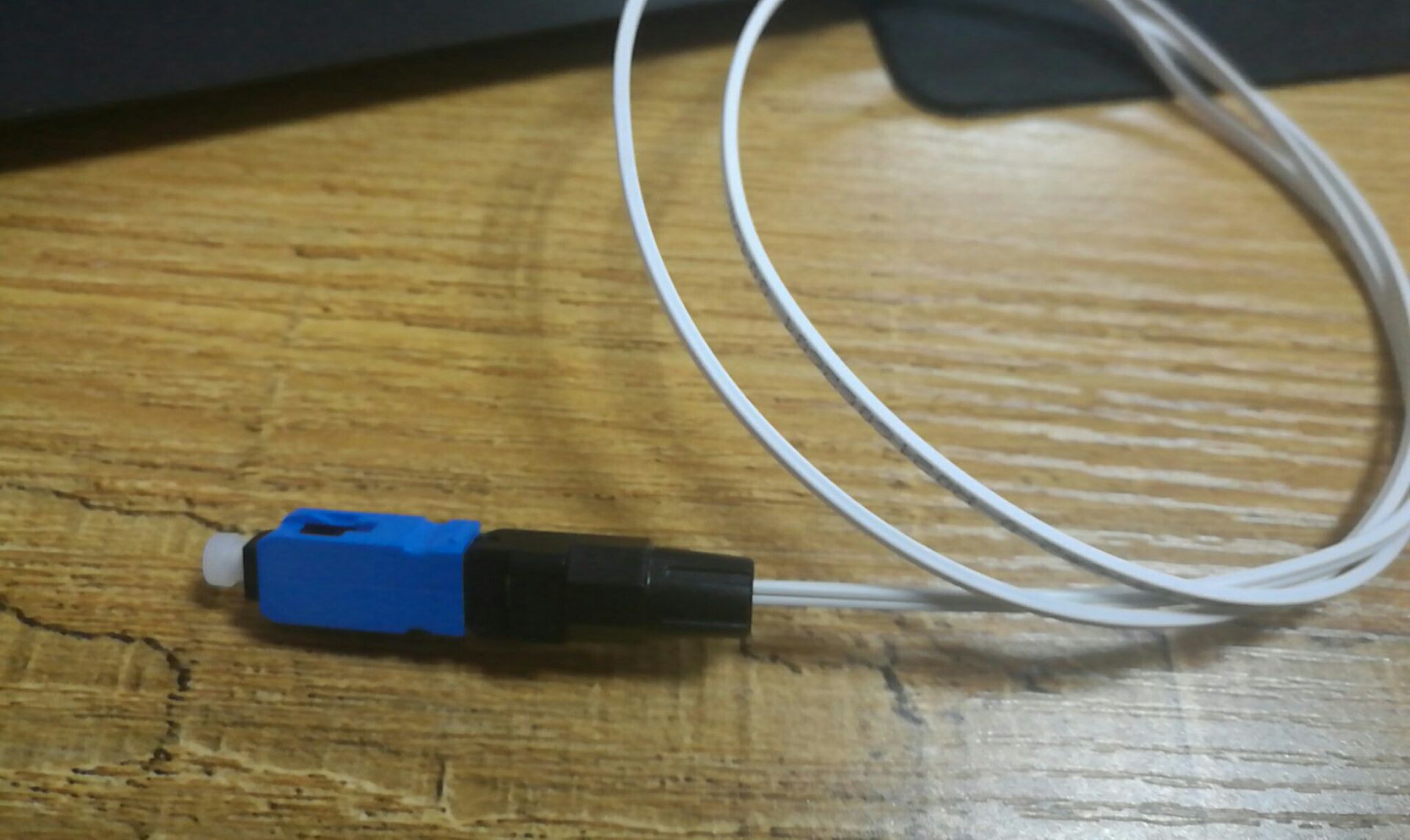

SCAPC 45MM short boot Fast Connector
In FTTH installations the optical drop cable will differ in length for every house, traditional fixed length patch cords will not always be suitable.
The K&M field connector removes this problem as it can be fit- ted with no epoxy or power requirements in less than two minutes.
K&M-03-MINI FIELD INSTALLABLE CONNECTOR
In FTTH installations the optical drop cable will differ in length for every house, traditional fixed length patch cords will not always be suitable.
The K&M field connector removes this problem as it can be fit- ted with no epoxy or power requirements in less than two minutes.
Features:
• No epoxy, no fusion polishing, Pre-embedded fiber in the ferrule
• Well suited for FTTX
• Less than two minutes assembly time
• Outstanding optical performance
• Compact size length is less than 45mm
• Screw fixed structure
• Repeat use, low scrap rate, low cost
Specification
|
Insertion loss |
Main≤0.25dB Max.≤0.40dB |
|
Return loss |
UPC≥45dB APC≥55dB |
|
Tensile |
△IL＜0.3dB @ 40N |
|
Cable |
3.0X2.0mm Drop cable |
|
Operating Wavelength |
1310&1550nm |
|
Average assembly time |
1 min |
|
Assembly success rate |
≥97% |
|
Repeatability |
＞5 times |
|
Insertion and pull out |
＞500 times |
|
Fiber Type |
Single mode |
|
Standard |
Telcordia GR-326-Core:2010 and IEC 61754-4:2002 |
|
Humidity |
95% |
|
Temperature range: |
-40℃～+70℃ |
|
Locking mechanism in Port |
Push-Pull |
|
Re-assembly connector |
≥3 |
|
|
|
|
|
|
Ordering information
|
Products |
Part NO. |
Remark |
|
SC/UPC field connector |
KDM0301 |
Blue |
|
SC/APC field connector |
KDM0302 |
Green |
|
Tripping and cutting tool |
KDMT0301 |
For fiber tripping and Cutting to length |
|
Fiber cleaver |
KDMT0102 |
For cutting bare fiber |
|
|
|
|
Product Structure
Measured the Structure
Product length L≤45mm
