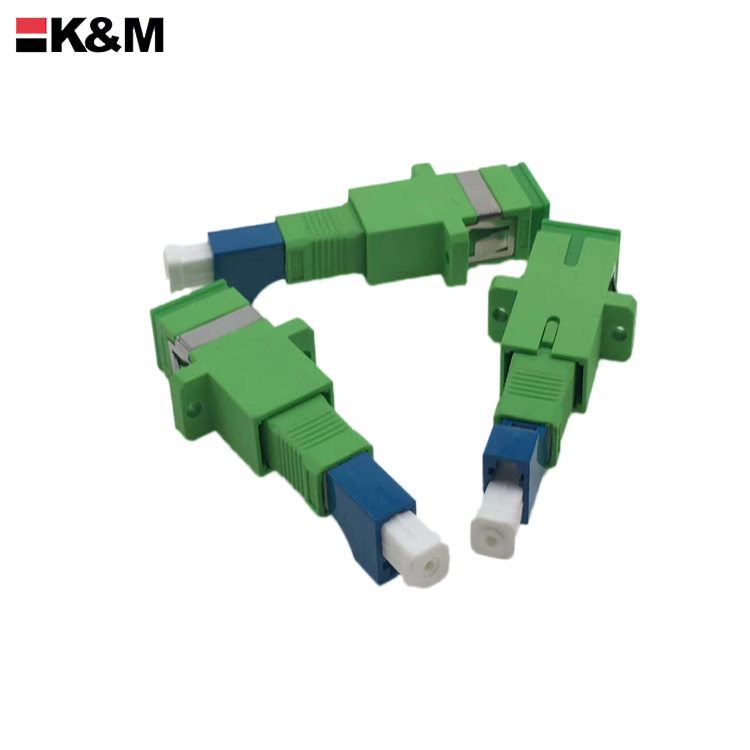

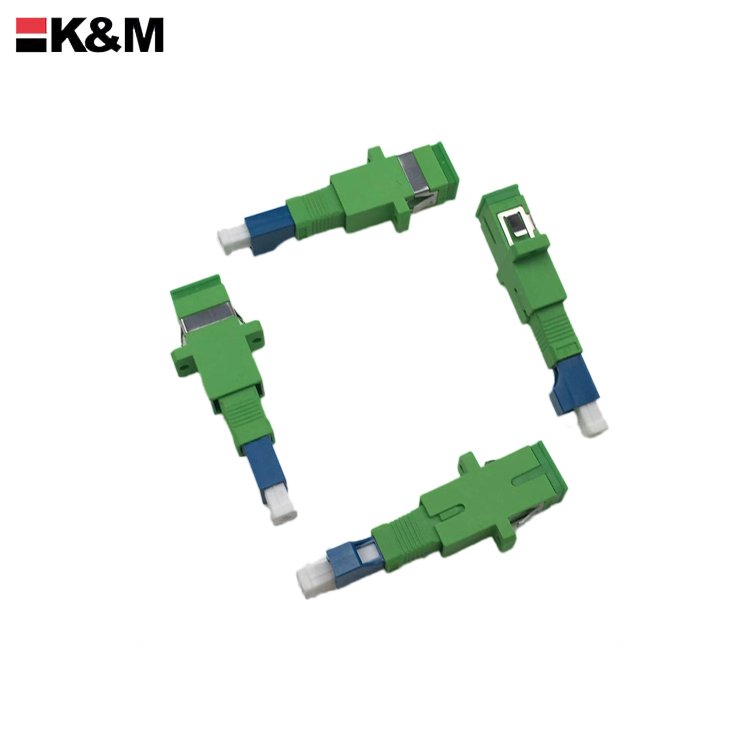

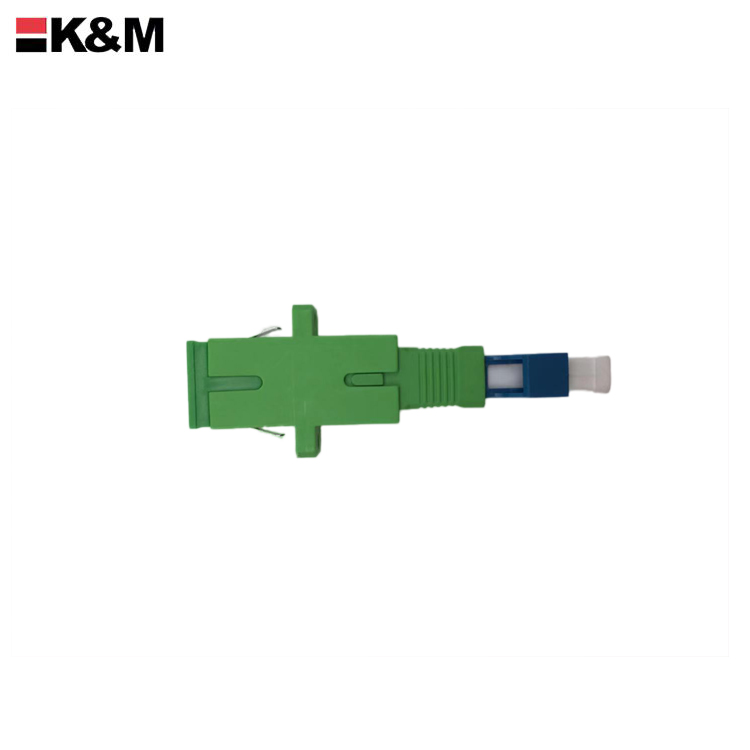

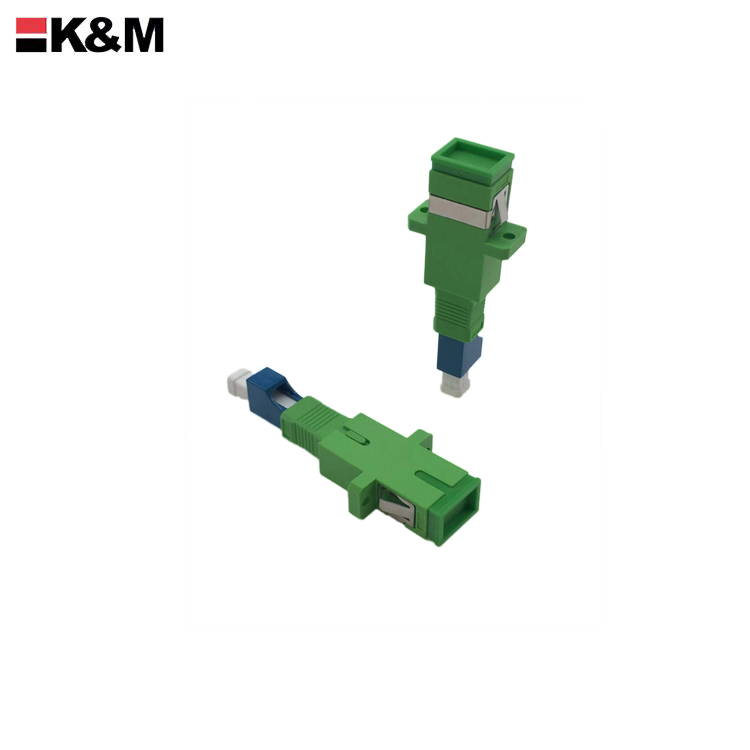

SC/APC female to LC/PC Female Simplex Singlemode Fiber Optic Hybird Adapter

Home Products FO Solutions Fiber Optic Connectivity Adaptor

SC/APC female to LC/PC Female Simplex Singlemode Fiber Optic Hybird Adapter

Normally used to connect two fiber optic cables with APC (angle polish) SC (male) connectors.

Inquiry now

SC/APC female to LC/PC Female Simplex Singlemode Fiber Optic Hybird Adapter

Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.

Key Features:

ST style to ST style

lower insertion loss

Use in Singlemode or Multimode applications.

Free-hanging or panel-mount design.

Dust caps protect against debris and contamination

RoHS Compliant

Functions:

A cable to cable fiber optic connection

Cable to equipment fiber optic connection

Specifications:

Material: Copper

Connectors: SC/APC (female) to LC/PC (female)
Body material:   Polymer
Mounting: Free standing or bulkhead, SC footprint hole (13.2mm x 9.7mm, 0.52in x 0.38in)
Alignment sleeve material: Zirconia Ceramic
Channels:   Simplex
Precision: Singlemode
Color:   Green
Insertion Loss (IL): <0.2dB
Durability: <0.1dB change after 500 matings
Operating Temperature: -4 ℃ to +75 ℃

Description & technical parameter of Fiber Optic Adapter:

Product	Adapter
Mode	S.M	M.M
Insertion Loss	≤0.2dB	≤0.3dB
Mating Durability(1000times)	Additional Loss≤0.1dB,Return Loss Variability 5dB
Temperature Stability(-40°C~85°C)	Additional Loss≤0.2dB,Return Loss Variability 5dB
Operating Temperature	-40°C~ +85°C
Storage Temperature	-40°C~ +85°C

Fiber Optic adapter ordering guide:

Adapter type	FC, SC, ST, LC, MU, MTRJ, E2000, D4 and hybrid: FC-SC, FC-ST, SC-ST, SC-LC, LC-ST,SC-SC, LC-LC, E2000-FC, E2000-SC
Mode type	Singlemode, Multimode or APC
Fiber count	Simplex,Duplex or Four cores
Sleeve	Ceramic/Zirconia sleeve,made in China or Japan
Housing color	Standard(Blue/Beige/Green) or OEM color, with or without flange available

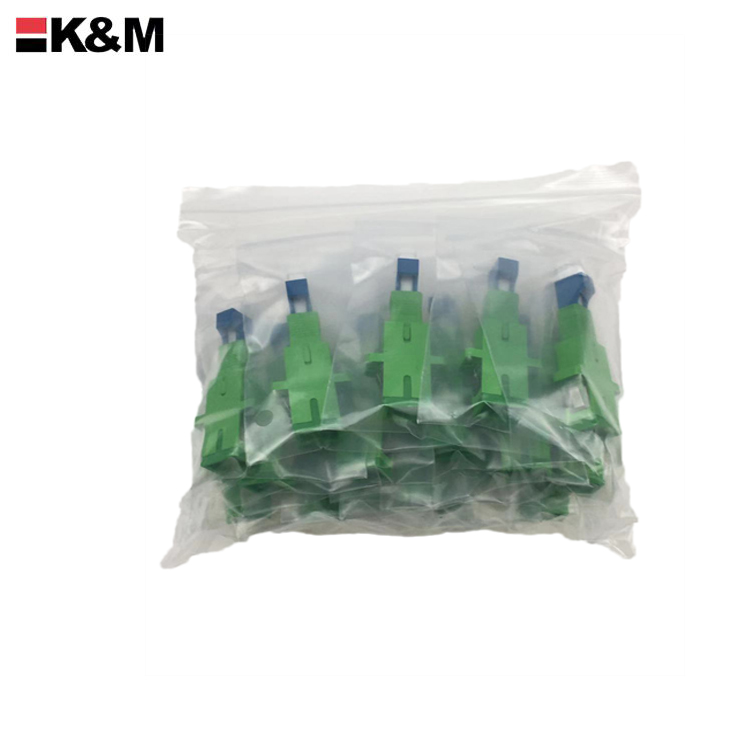

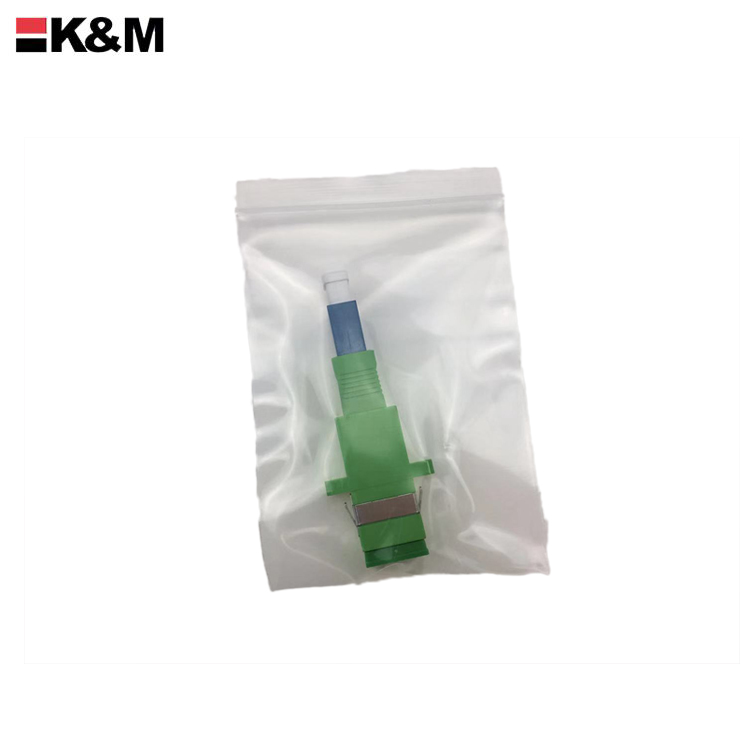

Packing	Normally polybag+carton box, can be customized
