SC/APC female to SC/PC Female Simplex Singlemode Fiber Optic Hybird Adapter

Home Products FO Solutions Fiber Optic Connectivity Adaptor

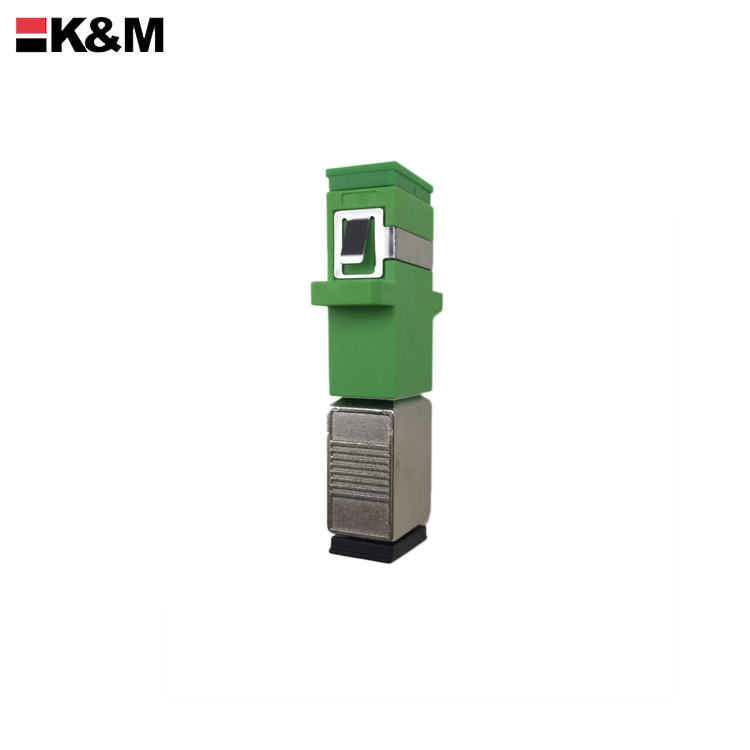

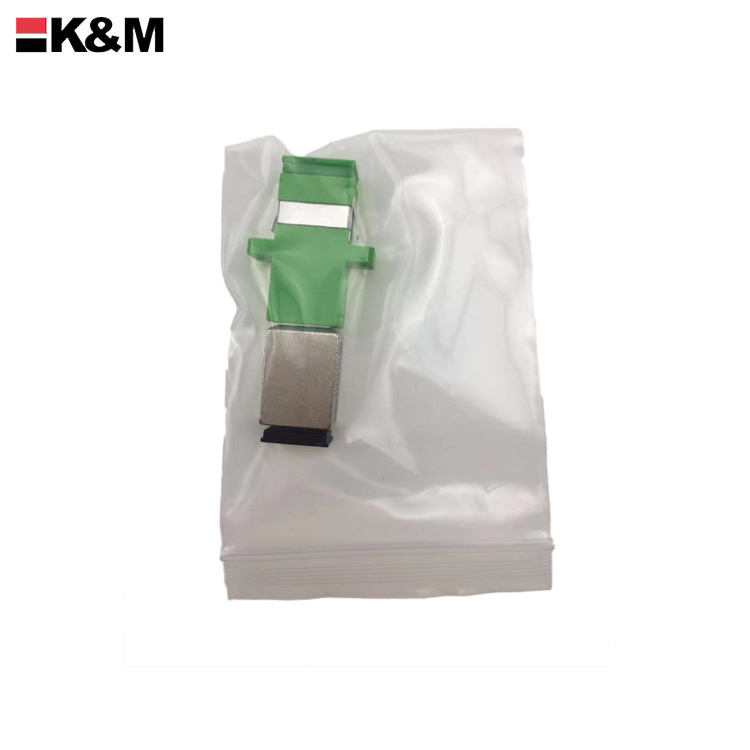

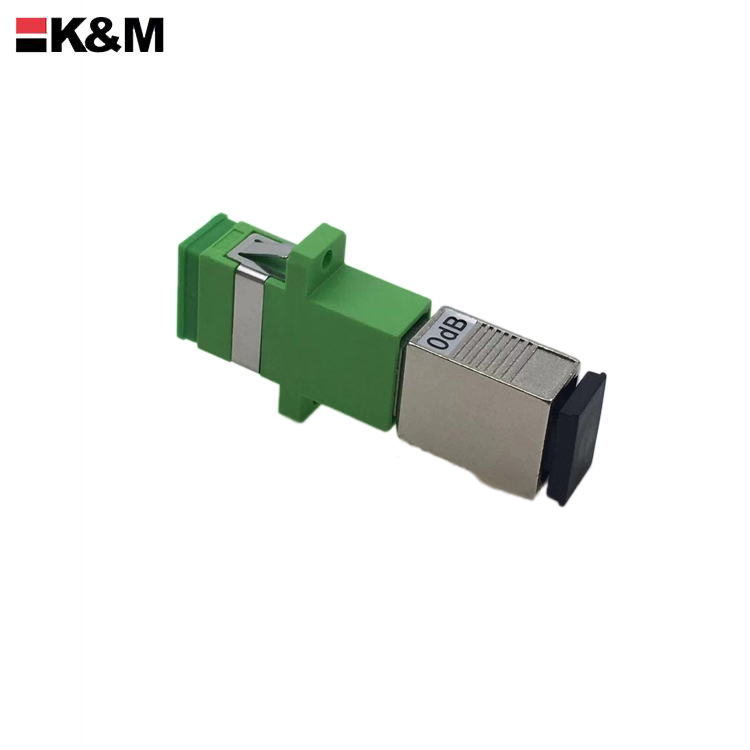

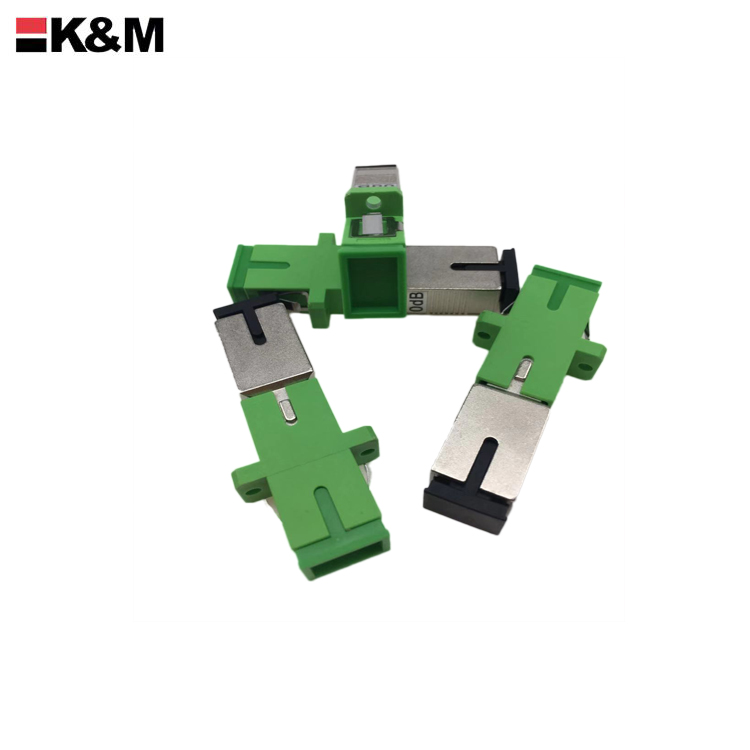

SC/APC female to SC/PC Female Simplex Singlemode Fiber Optic Hybird Adapter

Normally used to connect two fiber optic cables with APC (angle polish) SC (male) connectors.

Inquiry now

SC/APC female to SC/PC Female Simplex Singlemode Fiber Optic Hybird Adapter

Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.

Key Features:

lower insertion loss

Use in Singlemode or Multimode applications.

Free-hanging or panel-mount design.

Dust caps protect against debris and contamination

RoHS Compliant

Functions:

A cable to cable fiber optic connection

Cable to equipment fiber optic connection

Specifications:

Material: Copper

Connectors: SC/APC (female) to SC/PC (female)
Body material:   Polymer
Mounting: Free standing or bulkhead, SC footprint hole (13.2mm x 9.7mm, 0.52in x 0.38in)
Alignment sleeve material: Zirconia Ceramic
Channels:   Simplex
Precision: Singlemode
Color:   Green
Insertion Loss (IL): <0.2dB
Durability: <0.1dB change after 500 matings
Operating Temperature: -4 ℃ to +75 ℃

Description & technical parameter of Fiber Optic Adapter:

Product	Adapter
Mode	S.M	M.M
Insertion Loss	≤0.2dB	≤0.3dB
Mating Durability(1000times)	Additional Loss≤0.1dB,Return Loss Variability 5dB
Temperature Stability(-40°C~85°C)	Additional Loss≤0.2dB,Return Loss Variability 5dB
Operating Temperature	-40°C~ +85°C
Storage Temperature	-40°C~ +85°C

Fiber Optic adapter ordering guide:

Adapter type	FC, SC, ST, LC, MU, MTRJ, E2000, D4 and hybrid: FC-SC, FC-ST, SC-ST, SC-LC, LC-ST,SC-SC, LC-LC, E2000-FC, E2000-SC
Mode type	Singlemode, Multimode or APC
Fiber count	Simplex,Duplex or Four cores
Sleeve	Ceramic/Zirconia sleeve,made in China or Japan
Housing color	Standard(Blue/Beige/Green) or OEM color, with or without flange available
Packing	Normally polybag+carton box, can be customized

Our advantage and special services:

With our own R&D, more completed production lines,advanced production & testing equipment experienced staffs, We're confident to provide you satisfied quality and service with competitive price and punctual delivery.
Rich experiences in OEM&ODM, besides standard items, we can help you design unique newproducts and put into production. We care about innovation and would like to change for you and grow up with you.
Prompt answer for any question or inquiry within 1 working day.
Confidential of your commercial information.
One or several solutions available for every case.
Using ERP Systerm to ensure that each link is correct.
