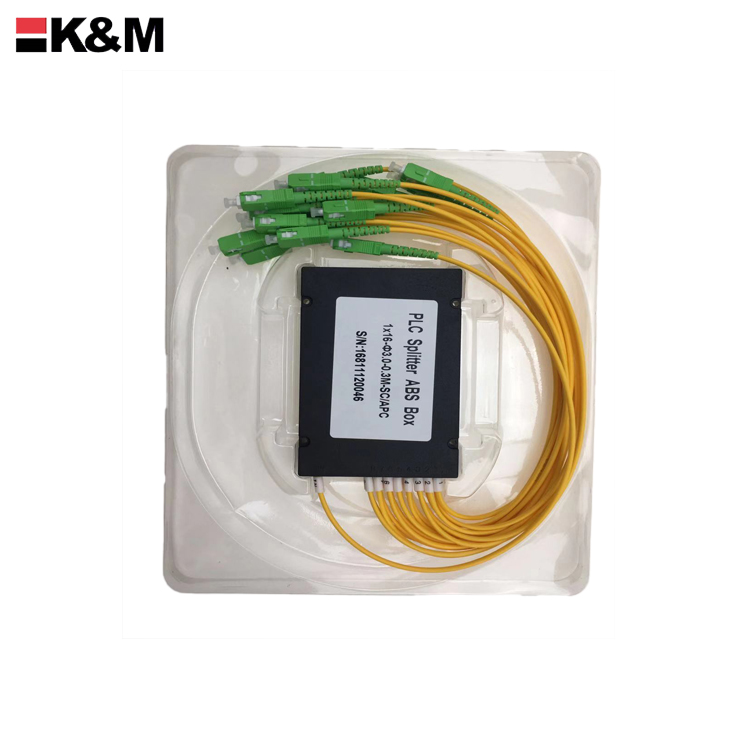

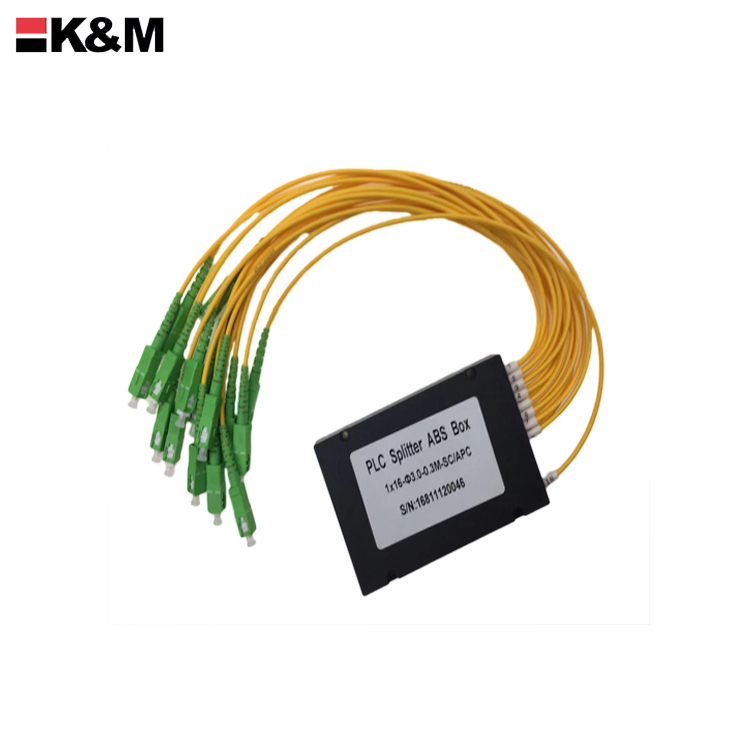

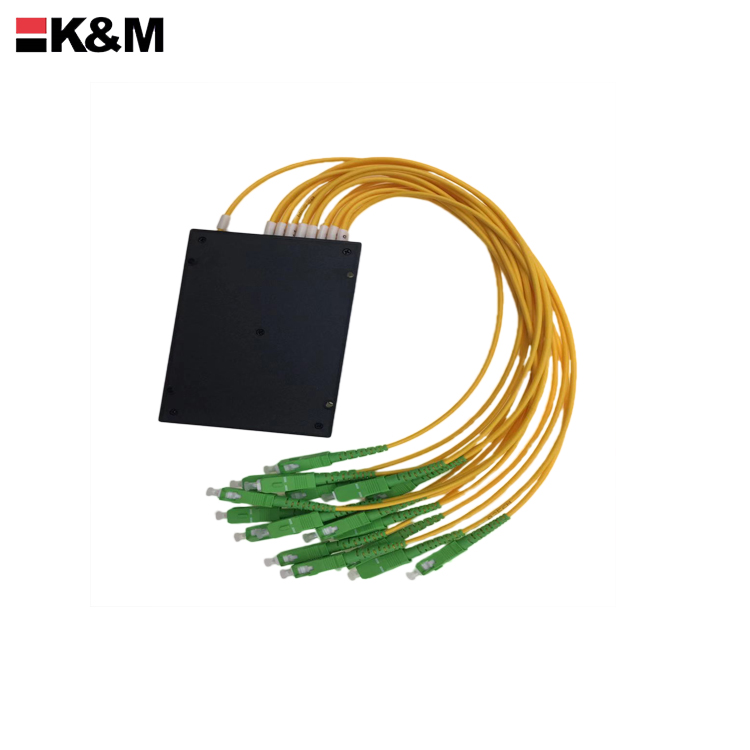

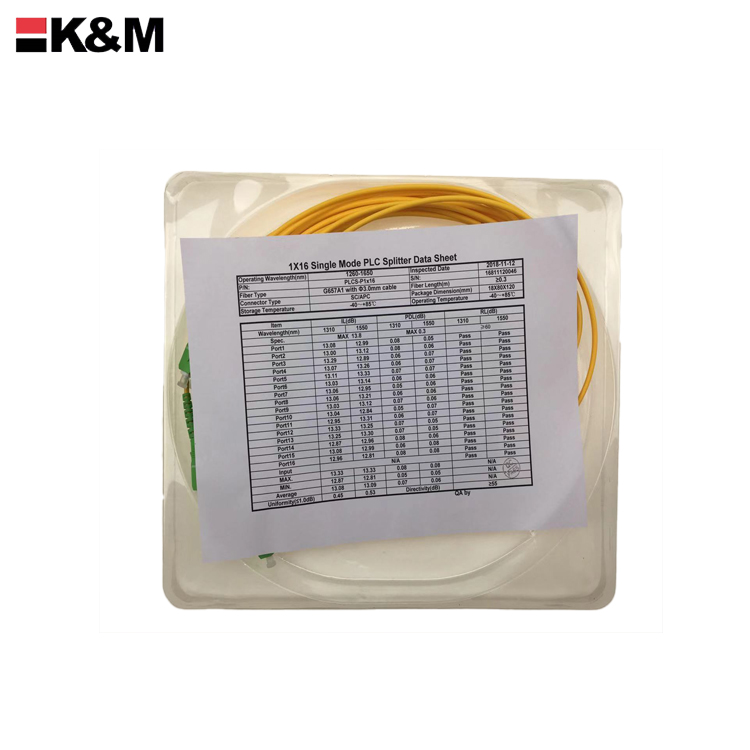

SC/APC PLC Splitter 1:16 box type 3.0mm with numbers pass 3D test

MINI TYPE PLC SPLITTER

 K&M Planar Lightwave Circuit (PLC splitter) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. We provide whole series of 1xN and 2xN splitter products that are tailored for specific applications.

Features

• Made of high quality steel sheet

• Modularized design

• Convenient for installation and maintenance

• Low Insertion loss and PDL

• High return loss (P/S Grade: 55/50 dB)

• Directivity 55 dB

• Compact Design

• Wide Operating Wavelength: From 1260nm to 1650nm

• Wide Operating Temperature: From -40°C to 85°C

• 1 & 2 input channel, and 4, 8, 16, 32 and 64 channel available

• High Reliability and Stability

• Telcordia GR-1209-CORE-2001 compliant

• elcordia GR-1221-CORE-1999 compliant

• RoHS compliant

 Applications

• FTTX Systems

• PON/GPON/EON Networks

• CATV Links

• Optical Signal Distribution

 Specification

*The above specification without connector. With connectors should add 0.3dB.

Ordering Information
