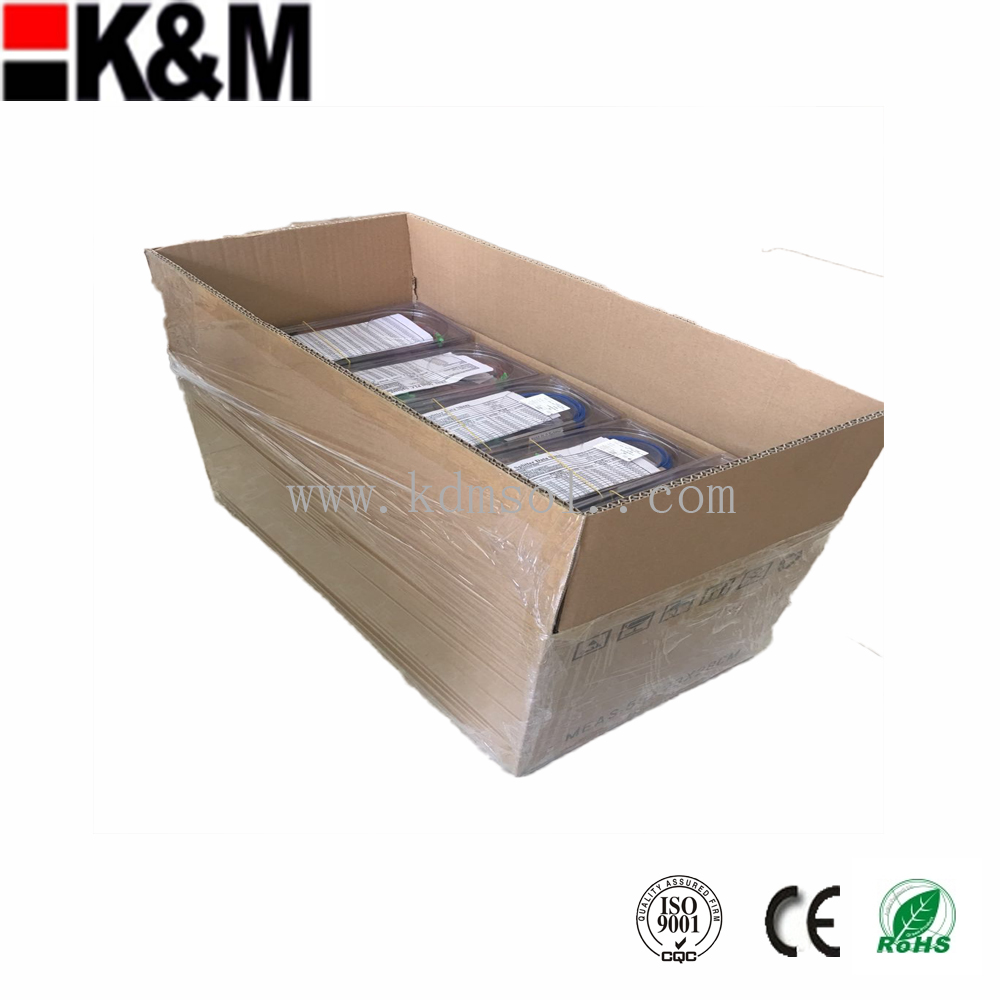

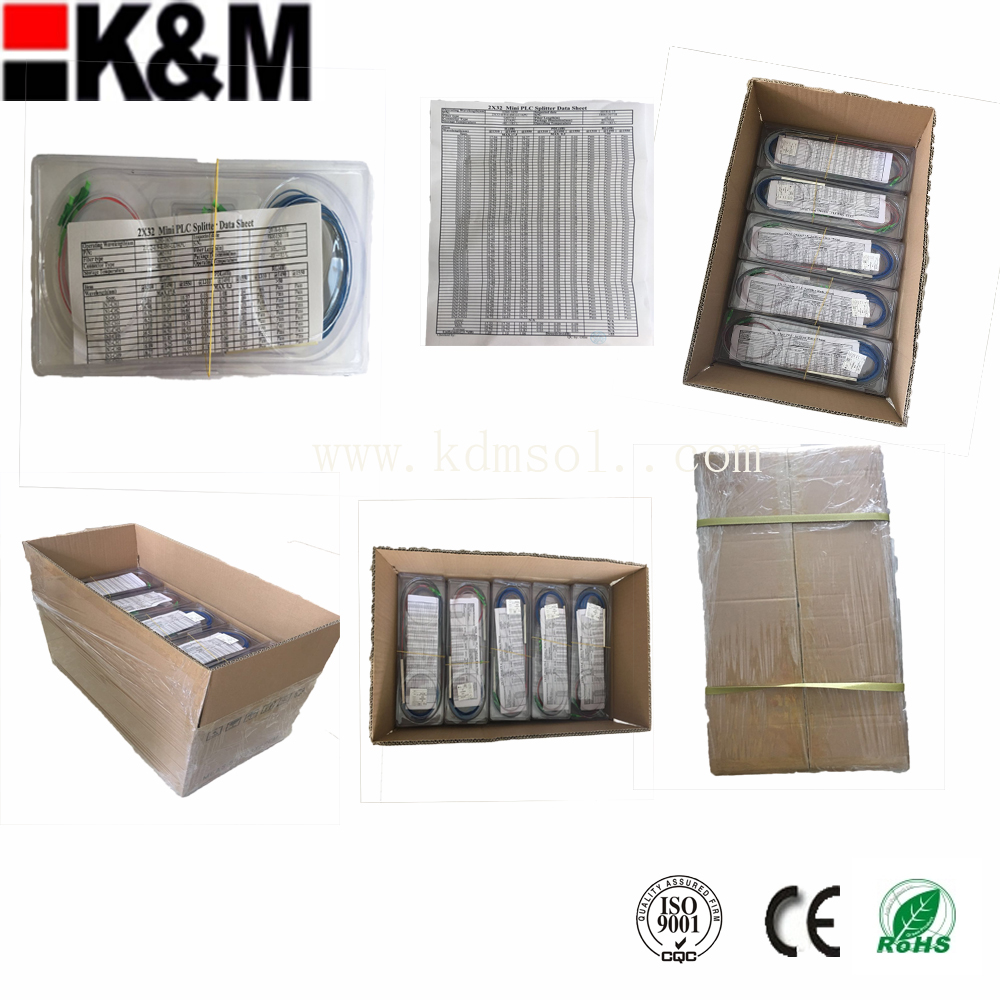

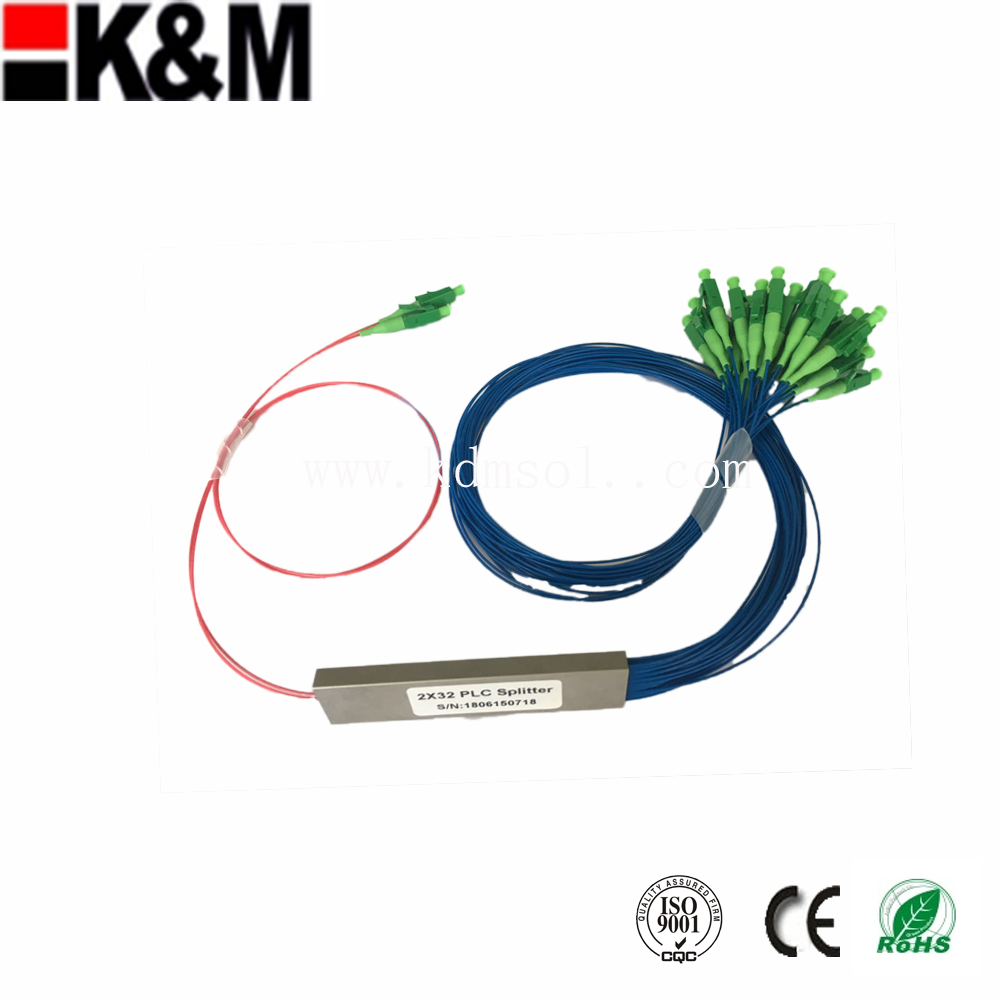

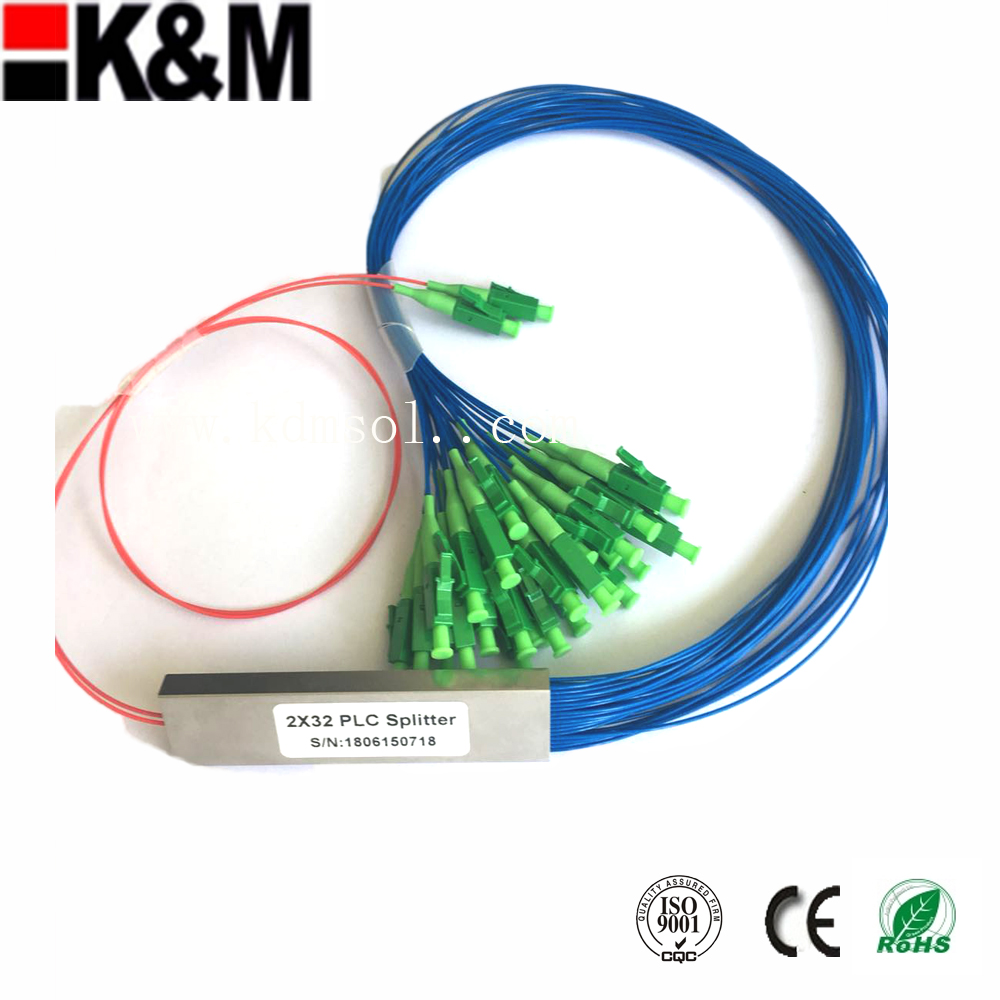

high quality 2:32 LC/APC PLC Splitter with 3D test

Home Products FO Solutions Fiber Optic Connectivity PLC /FBT Splitter

high quality 2:32 LC/APC PLC Splitter with 3D test

Inquiry now

MINI TYPE PLC SPLITTER

K&M Planar Lightwave Circuit (PLC splitter) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. We provide whole series of 1xN and 2xN splitter products that are tailored for specific applications.

Features

Made of high quality steel sheet
Modularized design
Convenient for installation and maintenance
Low Insertion loss and PDL
High return loss (P/S Grade: 55/50 dB)
Directivity 55 dB
Compact Design
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40°C to 85°C
1 & 2 input channel, and 4, 8, 16, 32 and 64 channel available
High Reliability and Stability
Telcordia GR-1209-CORE-2001 compliant
elcordia GR-1221-CORE-1999 compliant
RoHS compliant

Applications

FTTX Systems
PON/GPON/EON Networks
CATV Links
Optical Signal Distribution

Specification

1:N PLC Splitter Parameters	1:2	1:4	1:8	1:16	1:32	1:64	2:4	2:8	2:16	2:32
Operating Wavelength (nm)	1260～1650
Insertion Loss (dB)（P/S Grade）	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	7.6	11.0	14.5	17.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0	1.2	1.5	2.0	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.3	0.3	0.4	0.4
