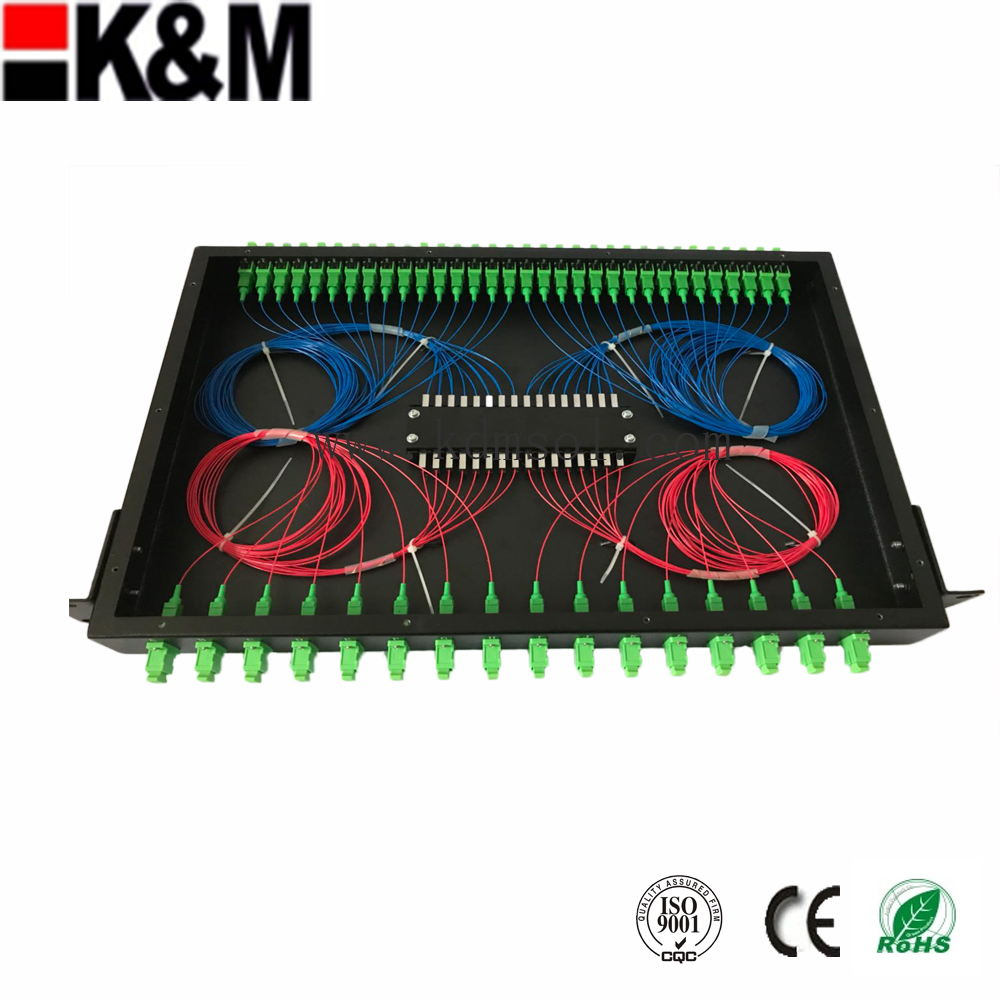

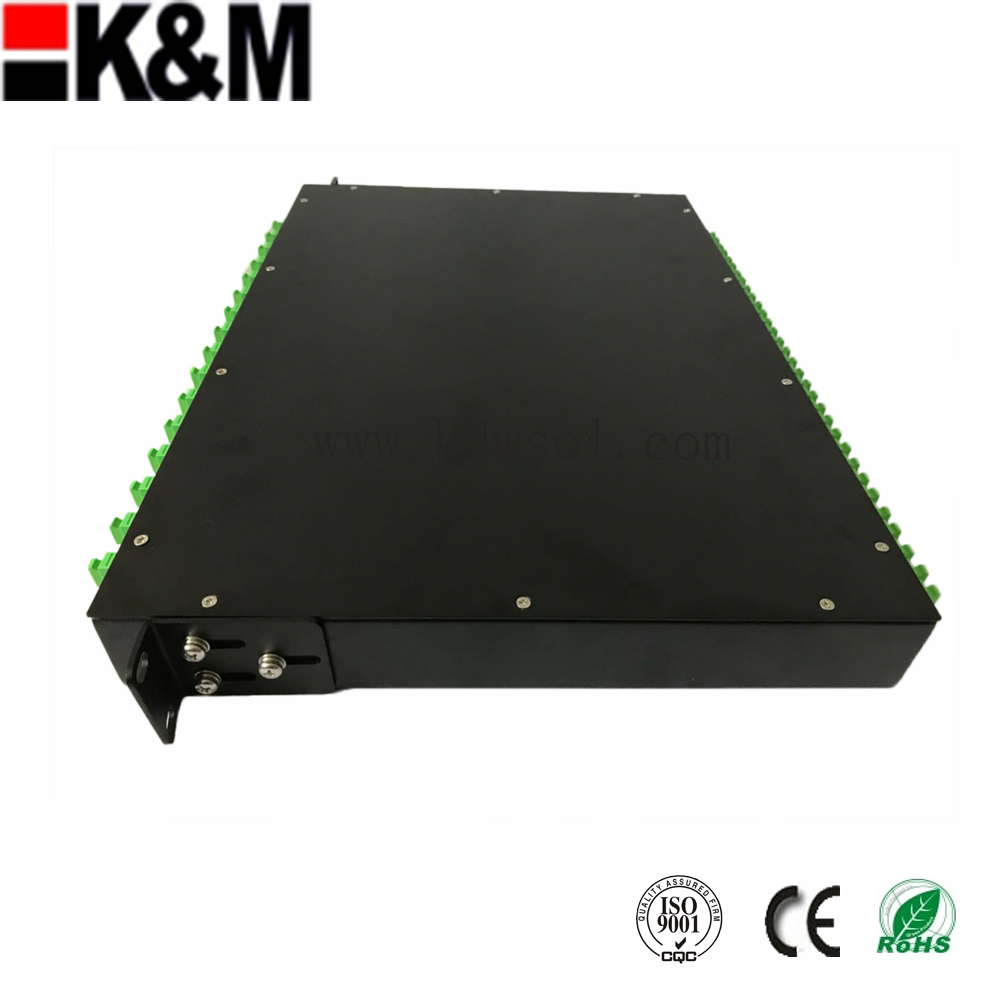

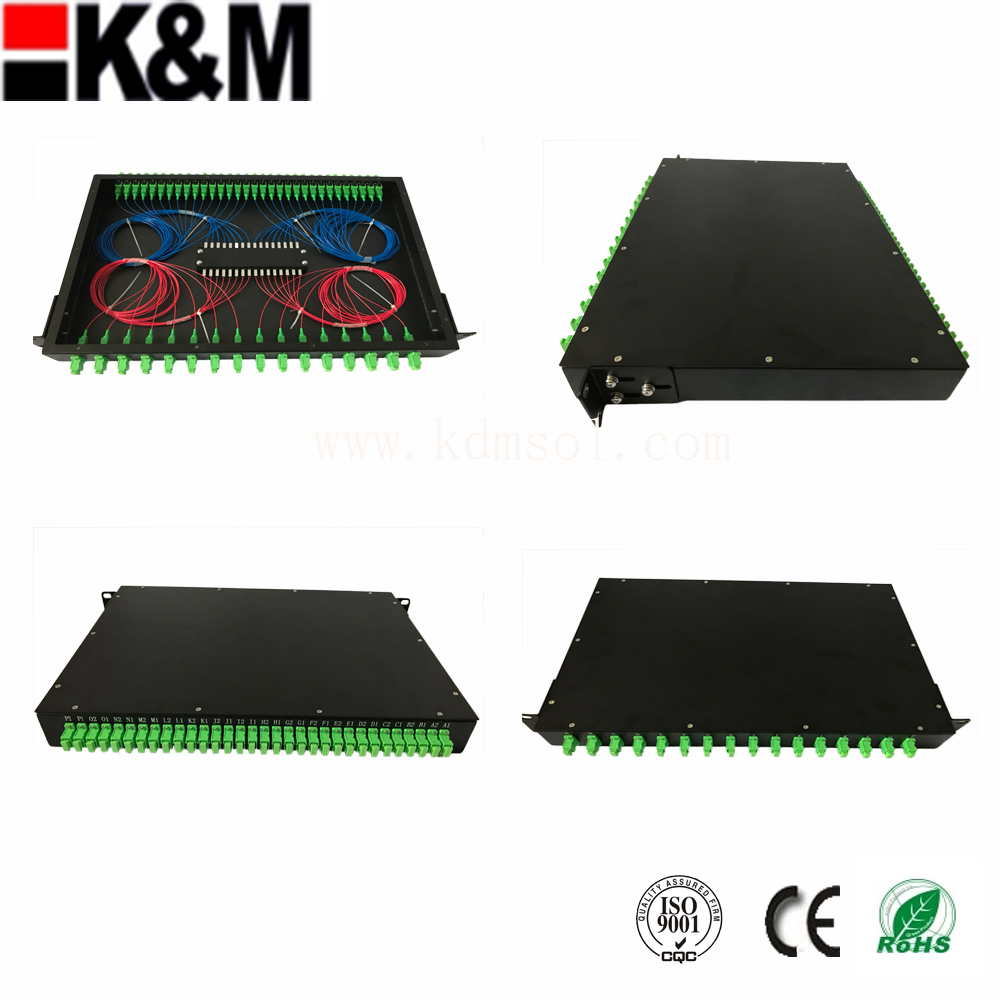

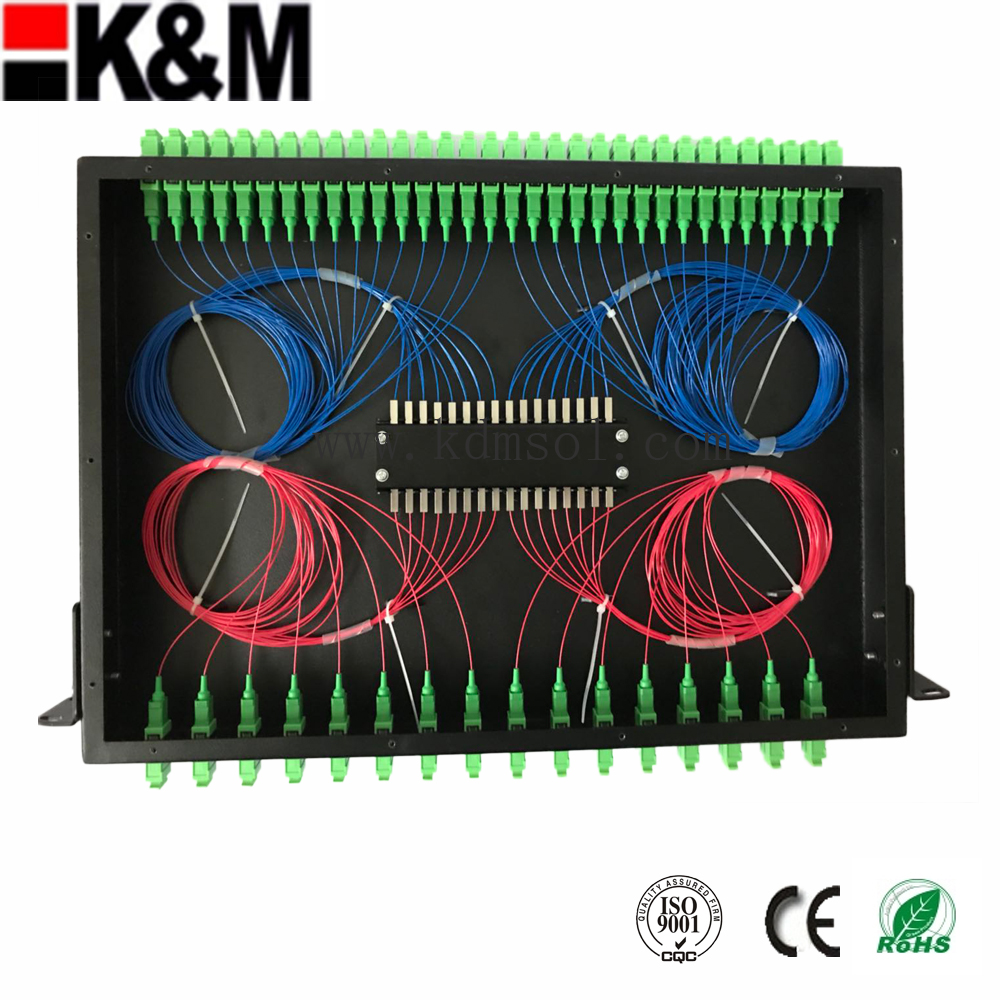

Splitter Unit Module (16:32)

Splitter Unit Module (16:32)

1. Technical data

1.1 Standard：

Comply with YD/T 778

1.2 Anti-flaming:

Comply with standard GB5169.7 Laboratory A requirement

1.3 Environment condition

1.3.1 Operating temperature:-5ºC ～ +40 ºC

1.3.2 Storage temperature:-25ºC ～ +55 ºC

1.3.3 Relative humidity: ≤85%（+30 ºC）

1.3.4 Atmospheric pressure: 70Kpa ～ 106 Kappa

2. Main features

2.1   Standard 19 installation, flexible installation

2.2   Plate body materials is made of high qualified steel plate, the surface electrostatic spray treatment, beautiful appearance, thickness 1.2mm plate,Good optical fiber routing design, ensure the curvature radius of the optical fiber

2.3

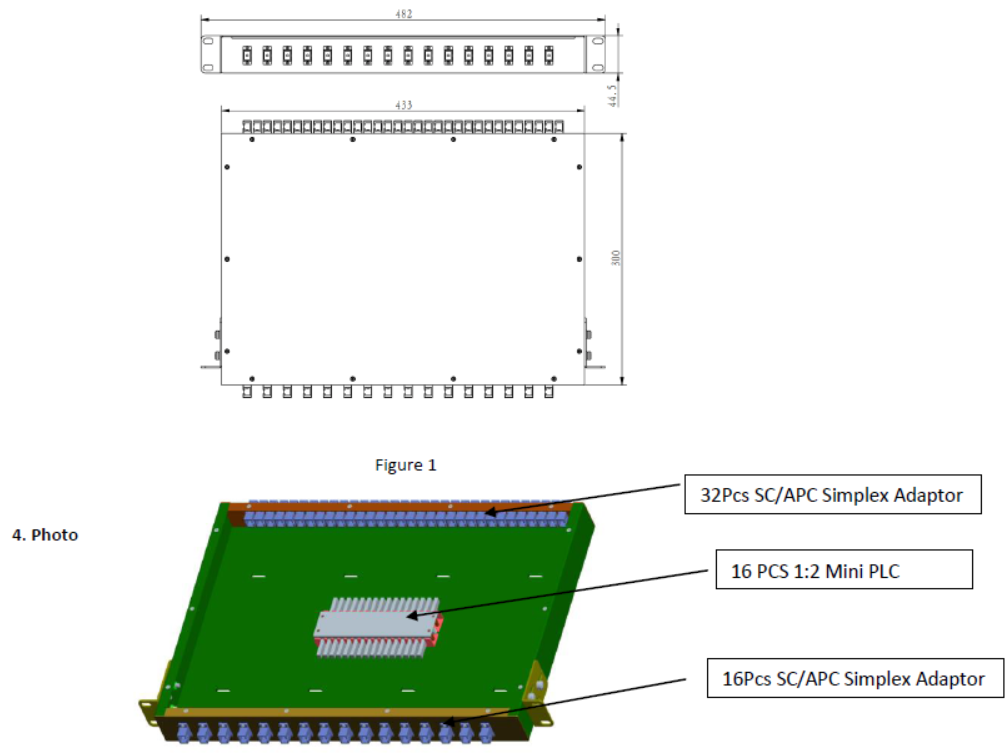

3. Outside dimension： H×W×D=1U×482mm×300mm (Figure 1)
