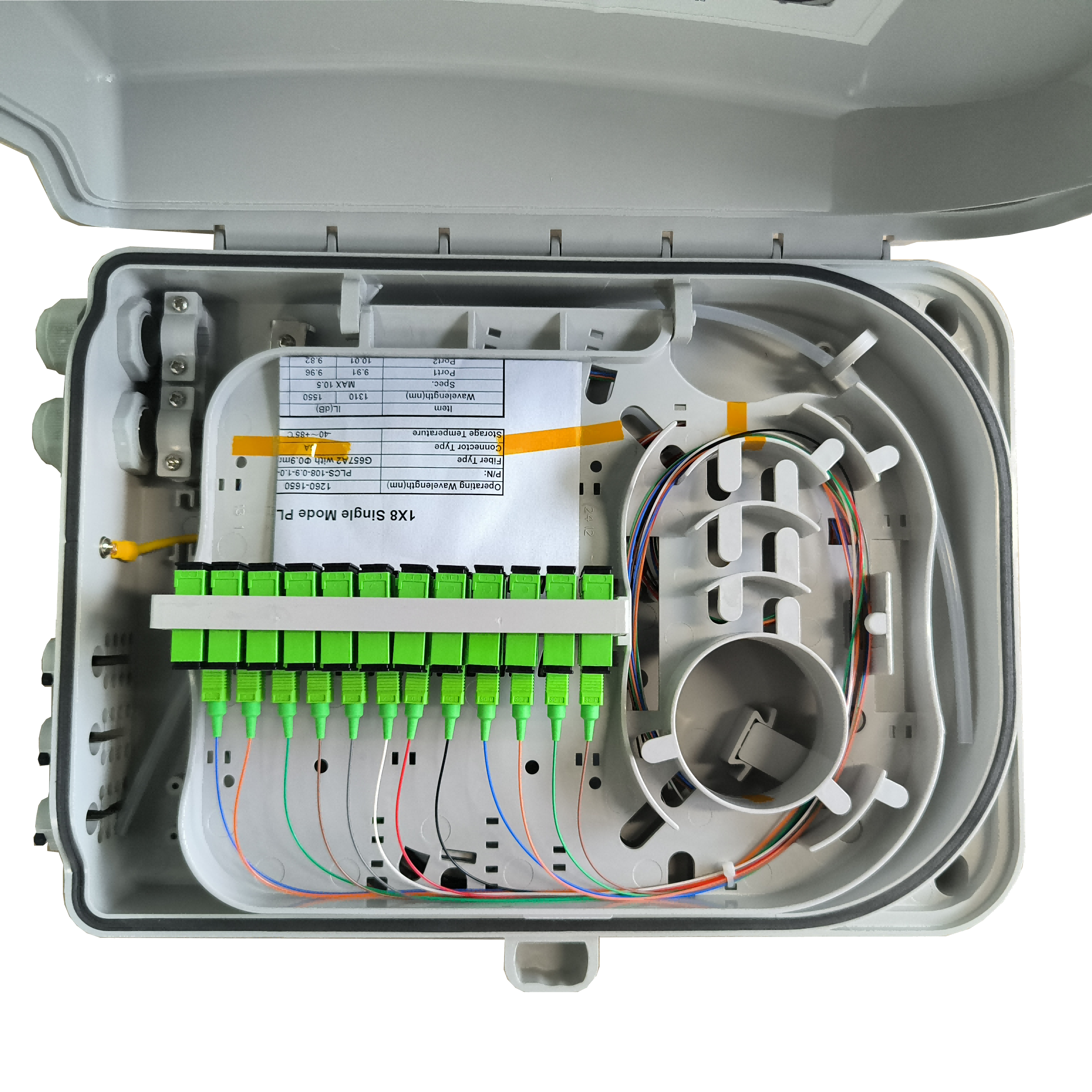

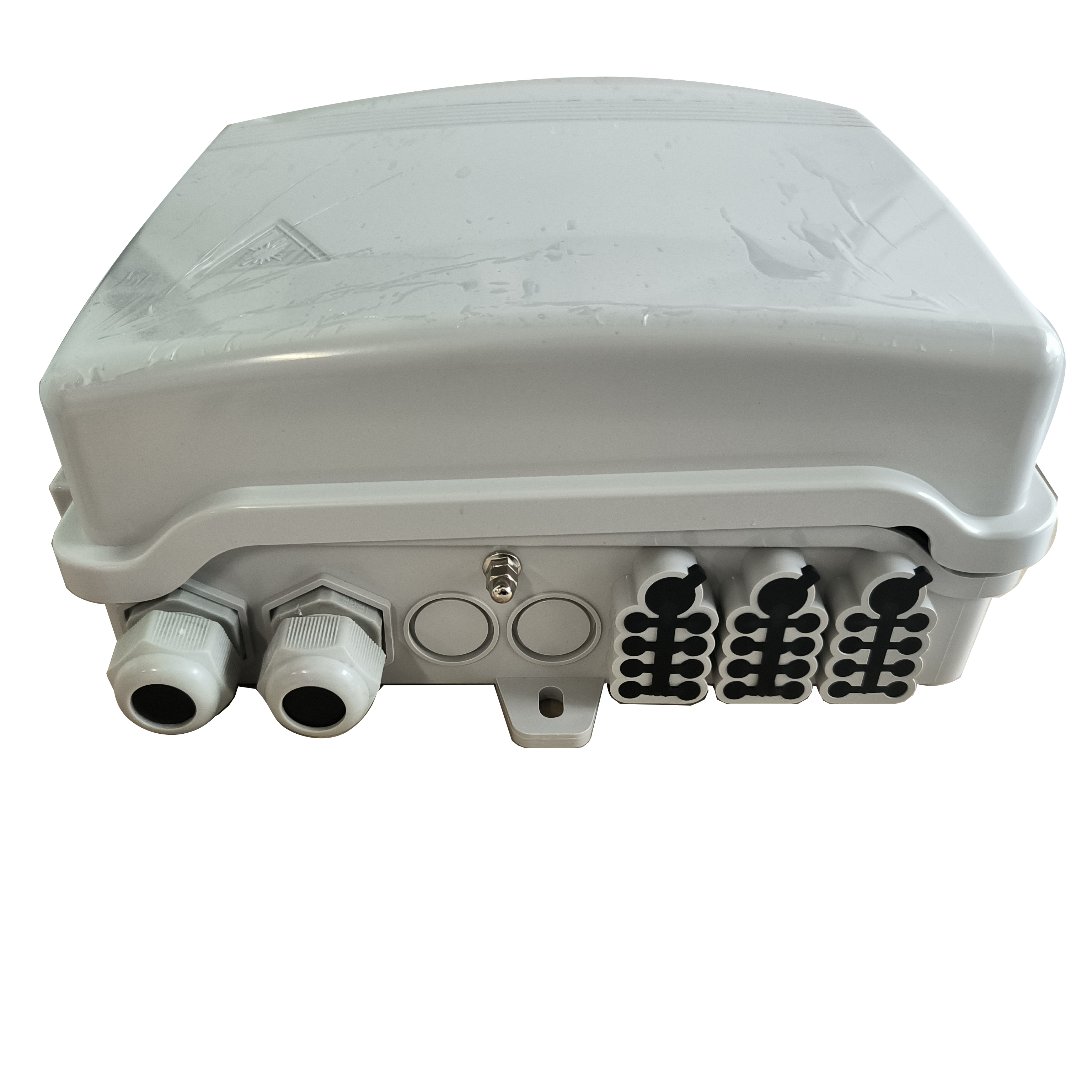

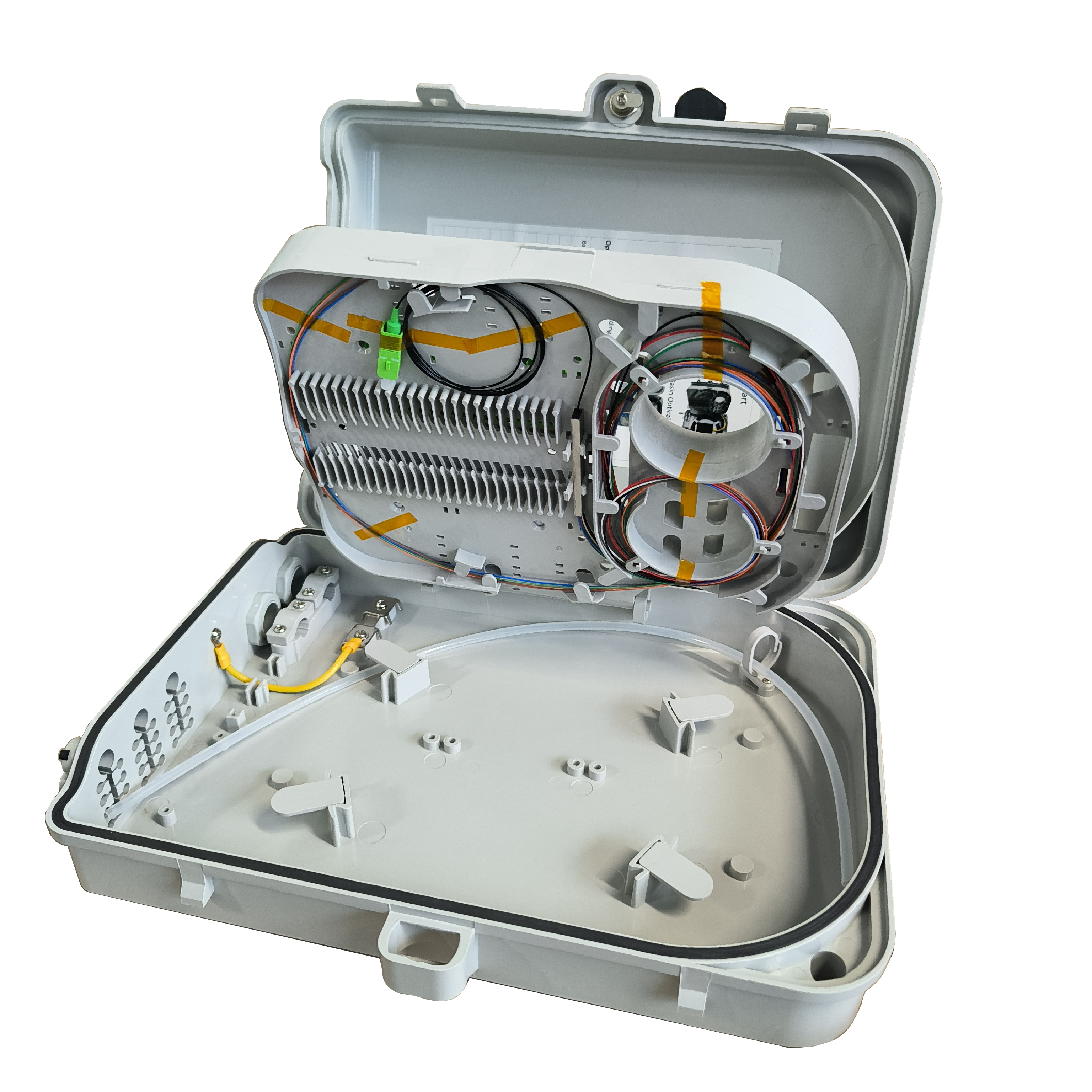

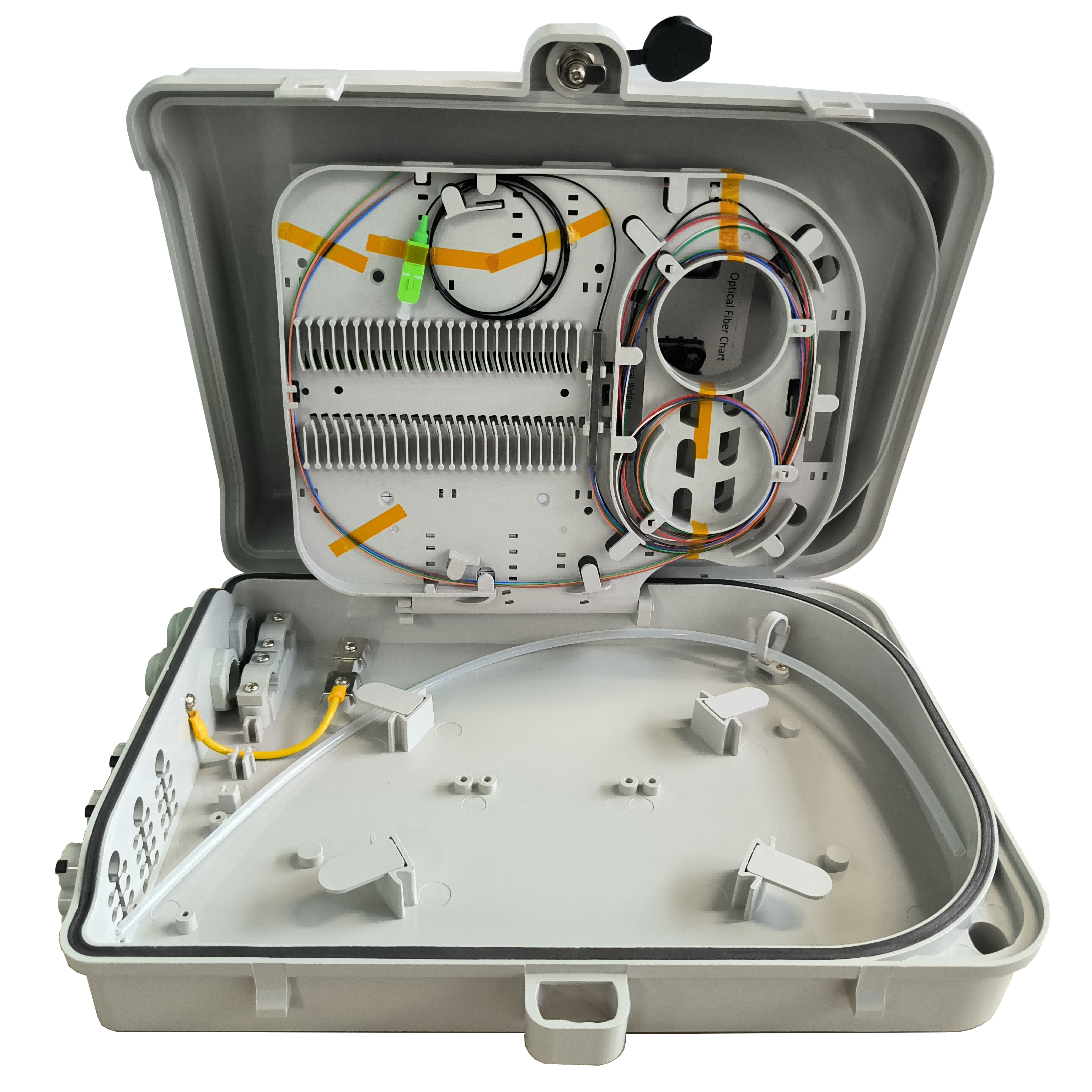

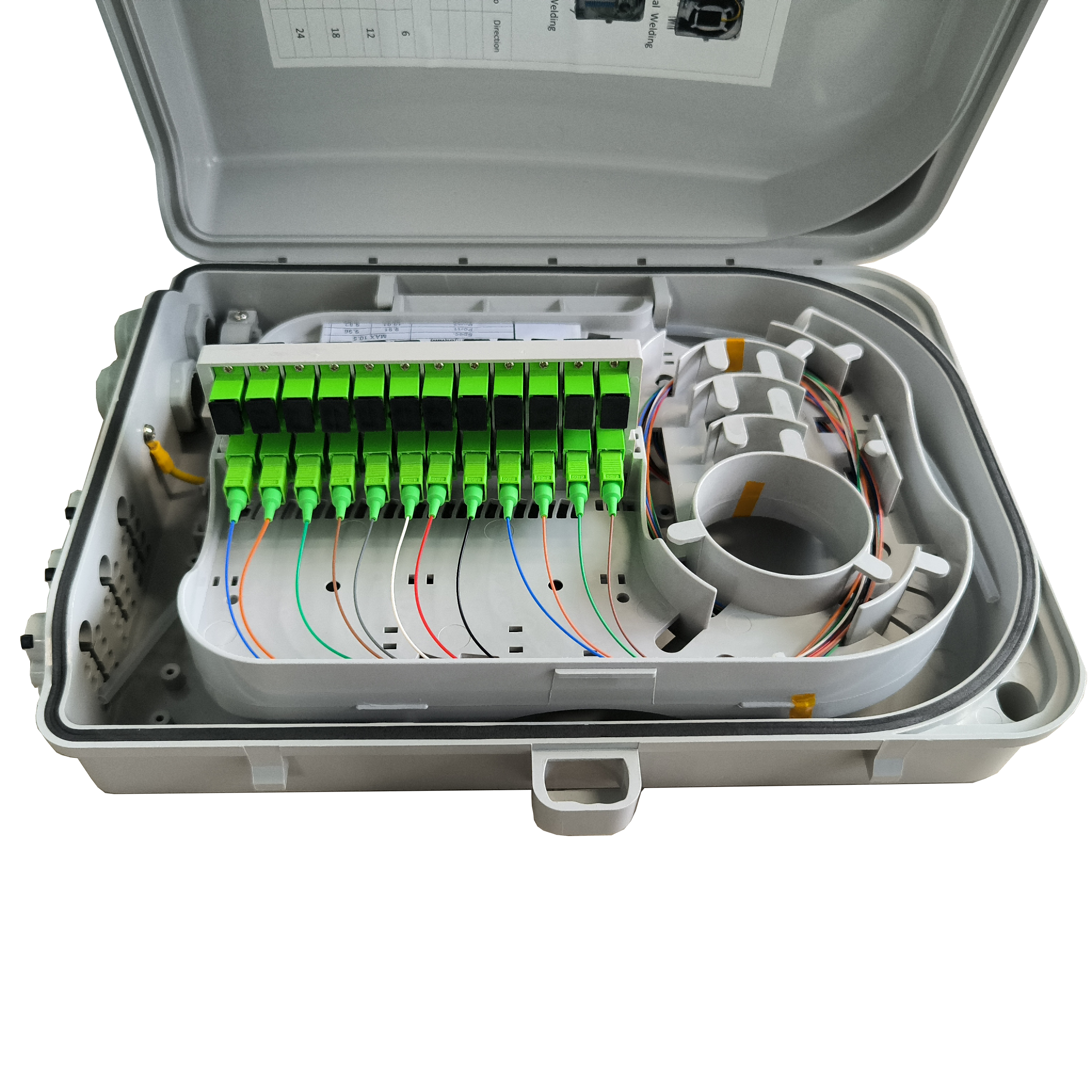

FIBER Termination Box – 24F
Fiber Termination Box (FTB) is mounted to in & out side wall of building or pole to distribute and connect optical cable for distribution of subscriber ,the box achieve mechanical splicing, splicing and distribution of fiber, use for FTTH network
Features
Indoor/Outdoor type
Nonmetallic material
Compacted wall mount type
Simple and clearly arranged incoming and outgoing cable management
Higher fiber count capacity box is available upon request
Easy maintenance ,easy access with front door
Support both mechanical and fusion splicing
Low cost solution with high protection for the terminated fibers
IP65 rated for outdoor applications
Customized design product is available upon request
Applications
FTTX Systems
PON Networks
Fiber Optic Termination
CATV

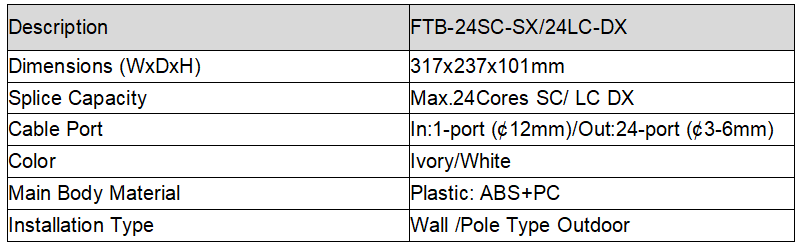

Specification
Wall Mounted termination box for indoor/outdoor use
Up to 24 Fiber capacity LC duplex(24Pcs) or 24 fiber SC Simplex
Available for SC Simplex Adaptors or LC duplex
Available install 1*4/1*8/1*16 Mini type PLC Splitters as required
Cable entry available for uncut cable
Dimensions

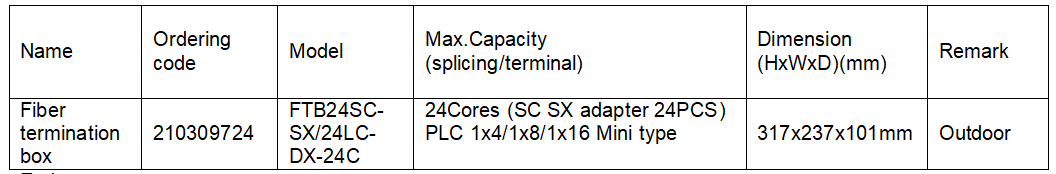

Order information
