FTTH Fiber Interface Device/Slack Storage Box

FTTH Fiber Interface Device/Slack Storage Box

FTTH Fiber Interface Device/Slack Storage Unit are compact enclosures which provide demarcation between the OSP fiber drop and customer fiber drop, as well as slack storage for up to 50ft. of customer drop fiber.

Key Product Benefits

· Multiple slack storage and adapter plate configurations available: Fiber Interface Device 1 Port SC-APC

· Hardened fiber connector compatible adapter provision - either at cable entry port or internal bracket

· Optional cable entry clamp and internal/external ground stud

· Corner slack retention for “springy” OSP drop cable or buffer tubes

· Multiple slack management tie down points

· Bottom grommets accept up to 1 inch conduit with tie-wrap provision

· Grommets on back provide rear fiber entry or exit

  Applications

· FTTX Systems

· PON Networks

· Fiber Optic Termination

· CATV

 Specification

· Wall Mounted termination box for indoor & outdoor use

· Up to 1 Fiber capacity SC simplex

· Available for SC or LC

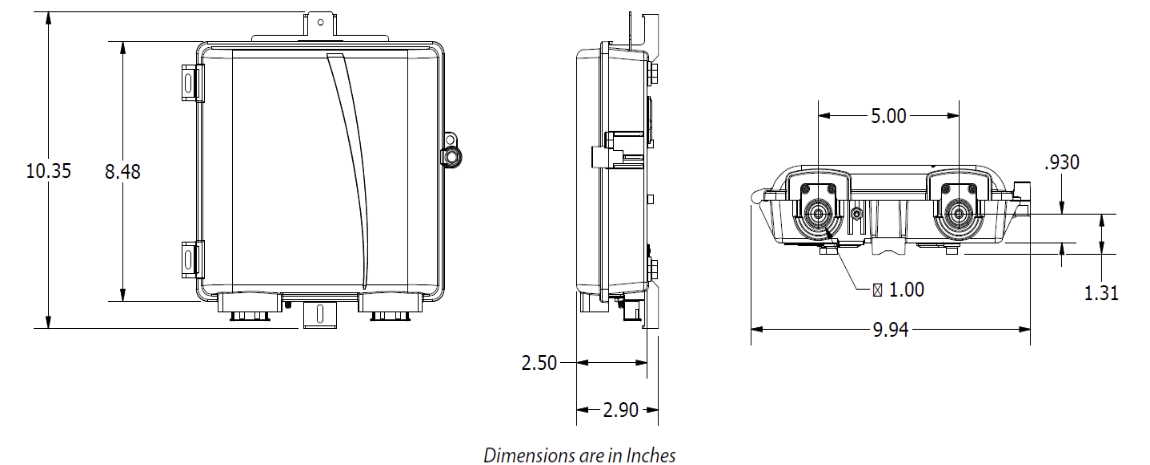

 Dimensions
