K&M 19" & 23" Freestanding Network Cabinets (24U-56U)

The K&M Freestanding Cabinet series provides a robust, secure, and highly adaptable environment for housing critical IT, telecommunications, and networking equipment. Manufactured from premium SPCC cold-rolled steel, these heavy-duty cabinets offer an outstanding static load capacity of up to 800KG.

To meet diverse cooling and security requirements, this series is available in two distinct front door options: a sleek Tempered Glass Door for easy equipment monitoring, or a highly ventilated Perforated Metal Door for maximum airflow. Ranging from 24U to 56U, these cabinets are the ideal infrastructure solution for modern data centers and enterprise server rooms.

Key Features

• ■ Two Front Door Options: Choose between a 1.2mm tempered glass front door with locking, or a perforated metal door depending on your thermal management needs.
• ■ Heavy-Duty Structure: Constructed with a 1.2mm SPCC frame and 2.0mm thick mounting rails, ensuring a static load capacity of 800KG.
• ■ Enhanced Security: Features a metal rear door with locking (1.2mm) and removable side panels equipped with both plastic latches and locks.
• ■ Superior Cooling: Equipped with a four-fan tray unit (for 800mm & 1000mm depth models) and a roof plate with vents to optimize airflow.
• ■ Comprehensive Accessories: Includes 4 standard 19" mounting rails, 3 fixed shelves (2.0mm), castors, leveling feet, cable guiders, and a gland plate for bottom cable entry.
• ■ Power Distribution: Comes standard with a 5-Way Germany standard PDU or a 1x6-Way UK Type PDU.

Applications

• ■ Data Centers: Ideal for high-density server hosting with efficient cable and thermal management.
• ■ Telecommunication Rooms: Securely houses switches, routers, and essential optical networking equipment.
• ■ Enterprise IT Infrastructure: Perfect for corporate server rooms requiring robust and organized rack solutions.
• ■ Security & Broadcasting: Suitable for mounting AV equipment, DVRs, and extensive CCTV networking gear.

Product Gallery

Available Front Door Options

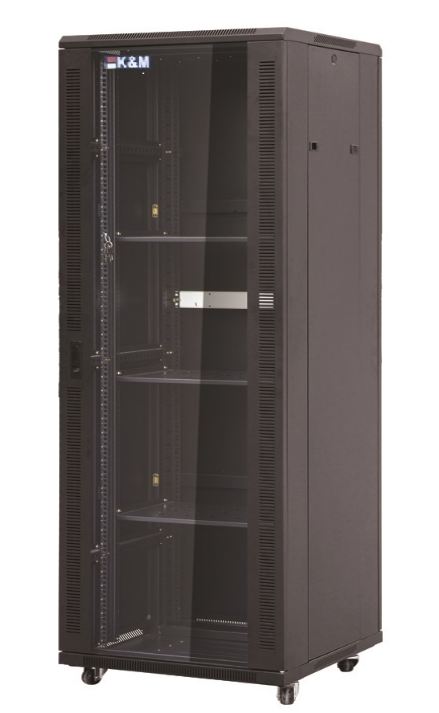

TYPE A: TEMPERED GLASS FRONT DOOR

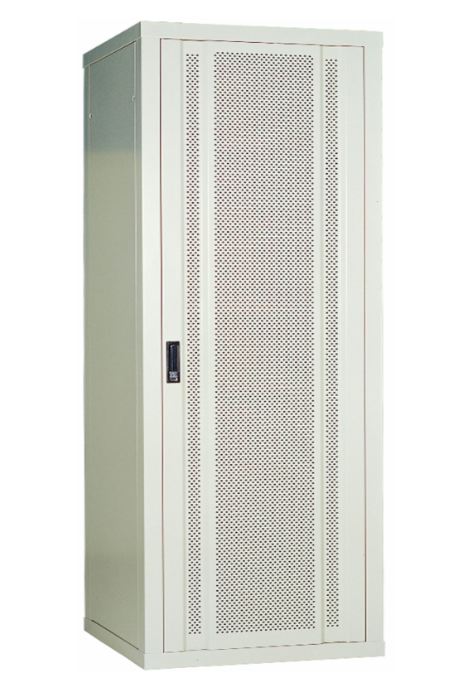

TYPE B: PERFORATED METAL FRONT DOOR
