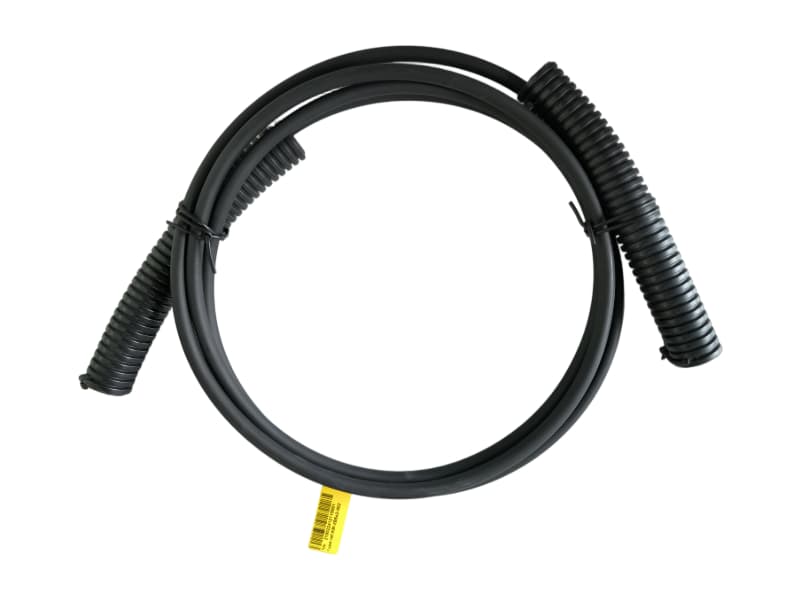

PDLC-DLC Waterproof Fiber Patch Cord G657A2 fiber, armored branch with Corrugated PVC tube Protection
We provide the broadest choices of outdoor patch cord including high-grade FC, SC, ST, LC, MTRJ, E2000 and MU with Ultra-polished (UPC), Angle-Polished (APC) connectors for outdoor use or other polish requirement. Which mainly used in wireless base station horizontal and vertical cabling solutions.
As an ideal choice for next-generation wireless base stations (FTTA/BBU-RRU) and demanding industrial network cabling applications, our PDLC-DLC outdoor waterproof armored fiber optic patch cords are custom-engineered for extreme open-air environments.

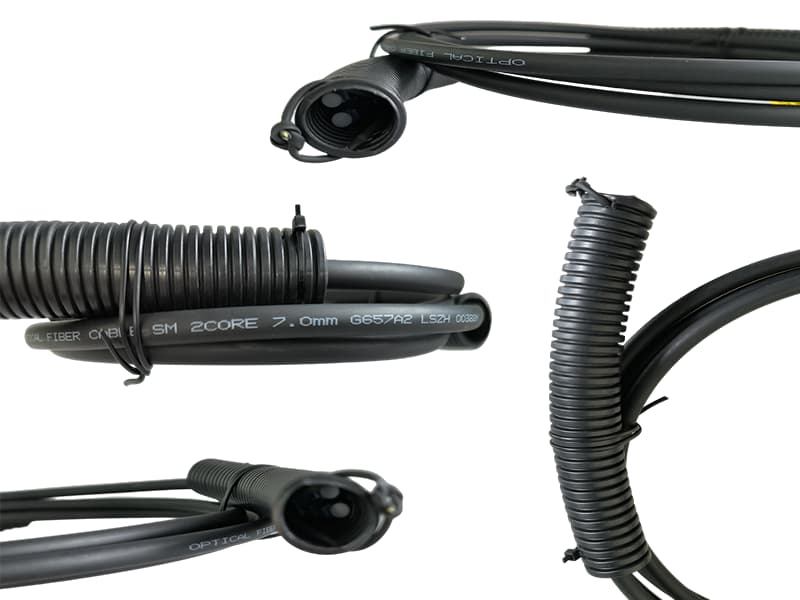

The cable features a high-performance 7.0mm duplex GYFJH Low Smoke Zero Halogen (LSZH) outer jacket, internally integrating bend-insensitive G657A2 single-mode optical fibers.
Thanks to a unique "armor + corrugated tube" dual anti-pinch and compression-resistant structure—combined with an industry-leading 1,000-hour UV resistance certification—this product ensures low-loss, high-capacity data transmission while providing years of all-weather protection against extreme outdoor conditions.
| ITEM | PARAMETER |
|---|---|
| Connector type | DLC-LC/UPC |
| Fiber Type | SM-G675A2 |
| Insertion Loss | <=0.3db |
| Return Loss | >=50db |
| IP level | IP67 |
| Operating wavelength | 1310nm, 1550nm |
| Test wavelength | 1310nm, 1550nm |
| Repeatability | <=0.1 |
| Interchangeability | <=0.2dB |
| Durability | <=0.2dB |
| Fiber Length | 1m, 2m..... any length optional. |
| Length and tolerance | 10cm |
| Operating Temperature | -40C ~ +85C |
| Storage Temperature | -40C ~ +85C |

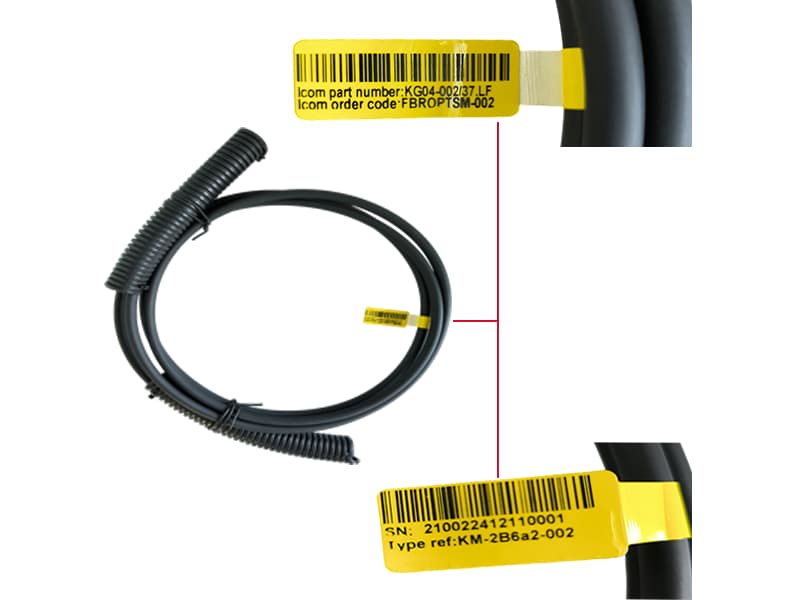

A: In accordance with the specifications and the markings shown in the product images, the label should be positioned 0.5 meters (50 cm) from the tip of the fiber optic connector.
A: The connector type used for this product is DLC-LC/UPC. Its Insertion Loss requirement is ≤ 0.3 dB.
A: This product features an IP67 protection rating, offering excellent water and dust resistance; its specified operating temperature range is -40°C to +85°C.

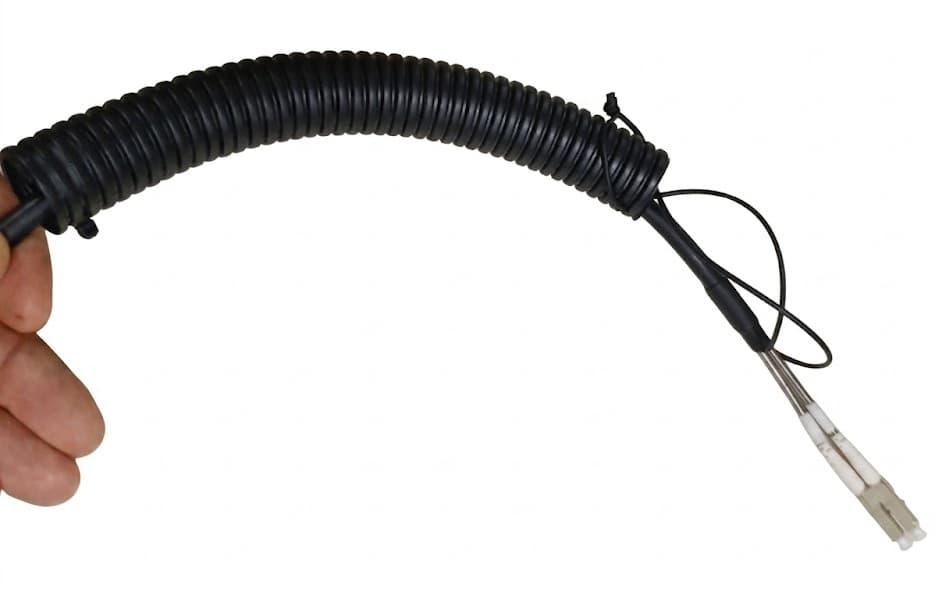

A: This small cable tie is not cinched tightly against the fiber optic cable to rigidly secure it; its primary purpose is simply to prevent the corrugated spiral tubing from sliding along the length of the cable.
