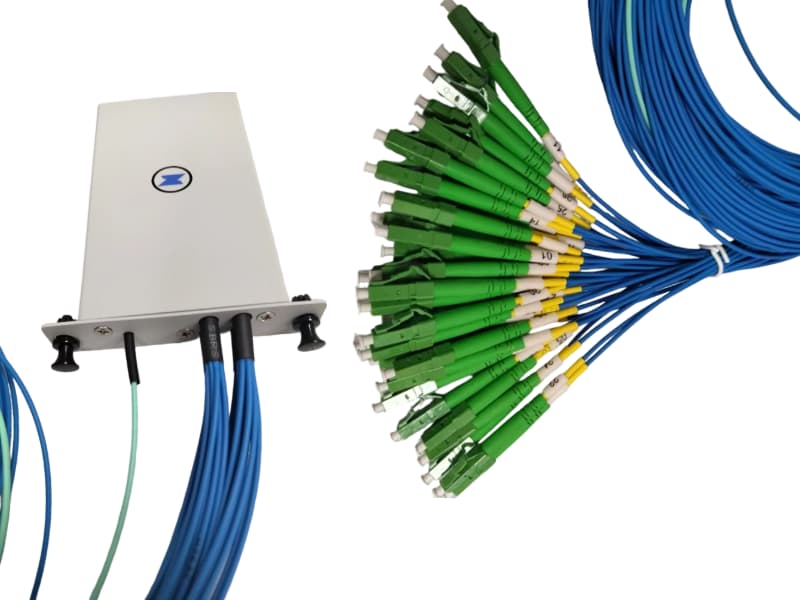

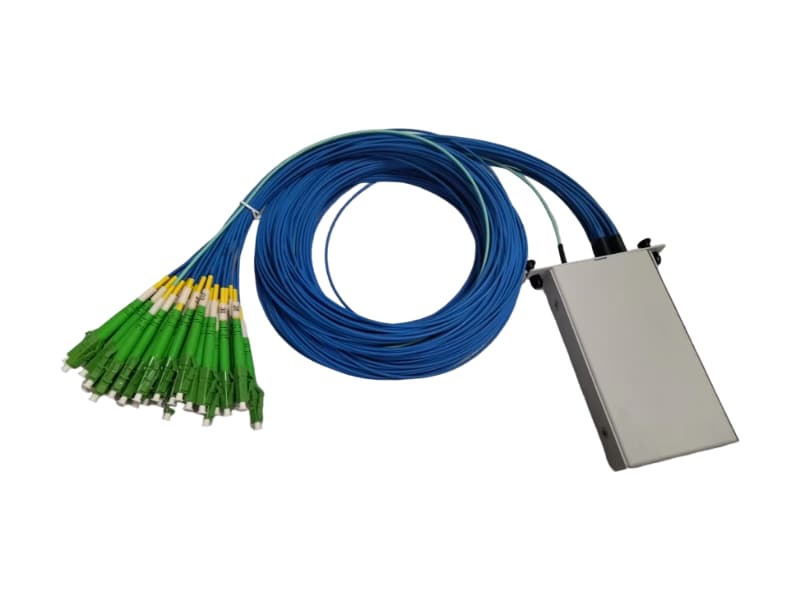

PLC Module Splitter - 1x32 LC/APC LGX Box Compact PLC Splitter
"Growth in today’s broadband applications demands reliable, high performance splitters. The move towards PONs within the FTTx sector calls for a device ensuring low insertion loss, linear uniformity and low return loss.
We introduce a new family of PLC Module Splitter for today’s high port count application that demands the best performance and the highest reliability under the most adverse environment. "
| Parameters Category | Specification Details |
|---|---|
| Model | PLC Module Splitter - 1x32 LC/APC LGX Box |
| General Parameters | |
| Operating Wavelength (nm) | 1260 ~ 1650 |
| Return Loss (dB Min) | 55/50 (P/S) |
| Directivity (dB Min) | 55 |
| Fiber Type | G.652.D |
| Fiber Length (m) | 1.0 (bare splitter) |
| Connector Type | Customer specified |
| 1x32 Splitter Performance Specifications | |
| Insertion loss without connector (dB Max) | 16.5 / 16.9 (P/S) |
| Insertion loss with connector (dB Max) | 17.0 / 17.5 (P/S) |
| Loss uniformity without connector (dB Max) | 1.5 |
| Loss uniformity with connector (dB Max) | 1.7 |
| Polarization dependent loss (dB Max) | 0.3 |
| Environmental Data | |
| Operating Temperature | -40 °C to 85 °C |
| Storage Temperature | -40 °C to 85 °C |
| Dimensions & Configurations | |

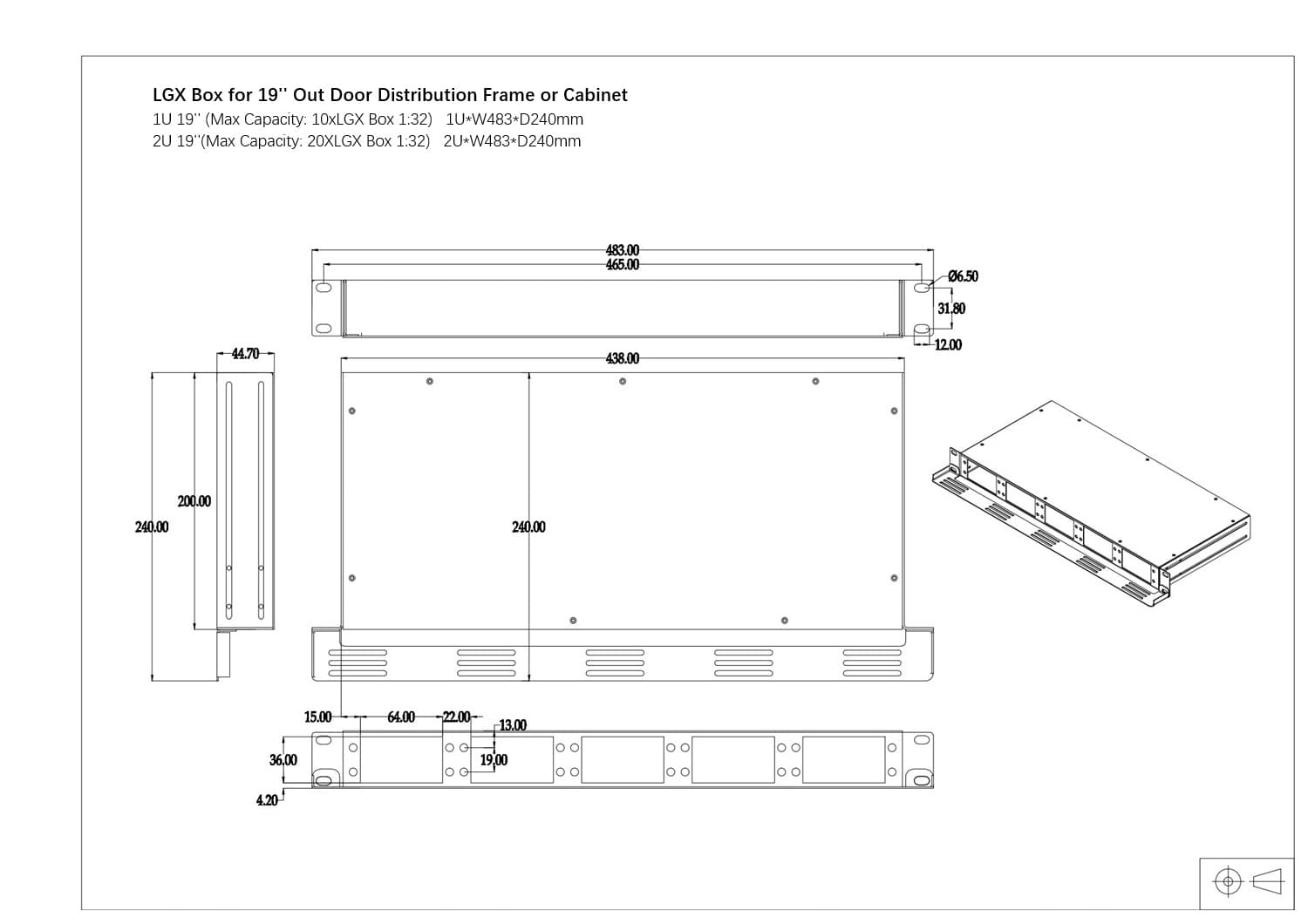

| LGX Box Dimension (L×W×H, mm) | 116.0 × 63.0 × 17.0 |

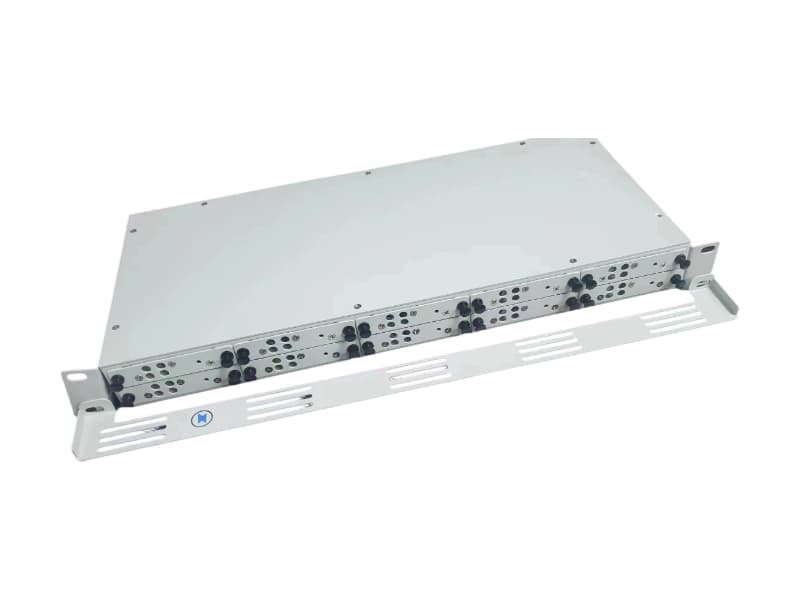

| 1U 19'' Out Door Distribution Frame | 1U × W483 × D240mm (Max Capacity: 10xLGX Box 1:32) |
| 2U 19'' Out Door Distribution Frame | 2U × W483 × D240mm (Max Capacity: 20xLGX Box 1:32) |
