Self-Supporting Non-Metal Optical Fiber Cable [ ADSS-100M Span]

Home Products 1. FO Connection Solutions 1.7 Fiber Optic Cables 1.7-1 Outdoor Cable

Self-Supporting Non-Metal Optical Fiber Cable [ ADSS-100M Span]

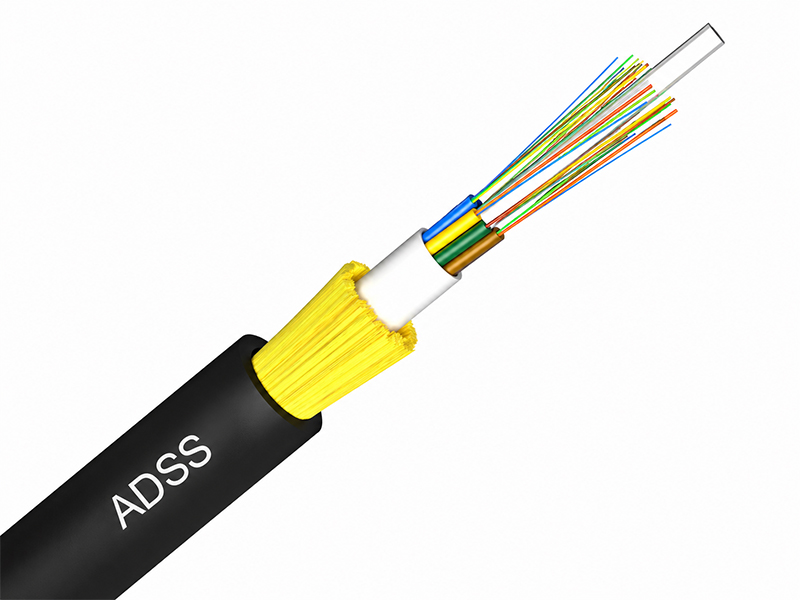

Non Metallic Aerial Fiber Optic Cable 100m

Outdoor Single Sheath ADSS Fiber Optic Cable

Self-Supporting Non-Metal Optical Fiber Cable [ ADSS-100M Span]

Name: Self-Supporting Non-Metal Optical Fiber Cable [ ADSS-100M Span]
Availability: InStock

The K&M ADSS (Self-Supporting Non-Metal Optical Fiber Cable) 100M Span Optical Fiber Cable is a high-performance, non-metallic aerial cable designed specifically for telecommunications networks. Engineered with a single sheath structure and reinforced with high-modulus aramid yarns, it provides excellent tensile strength for self-supporting aerial installations with spans up to 100 meters.

Inquiry now

Self-Supporting Non-Metal Optical Fiber Cable [ ADSS-100M Span]

This ADSS optical fiber cable features an all-dielectric construction, utilizing a central Fiber Reinforced Plastic (FRP) strength member. Stranded around the center are PBT loose tubes filled with water-blocking gel, capable of housing up to 144 optical fibers. The core is wrapped with water-blocking tape and water-blocking yarns to ensure superior moisture protection. A layer of high-modulus aramid yarns provides the necessary tensile strength, all enclosed within a durable, black High-Density Polyethylene (HDPE) outer sheath equipped with a ripcord for easy access.

Key Features

All-Dielectric Construction: Completely non-metallic, making the cable immune to electromagnetic interference (EMI) and safe from lightning strikes.
High Tensile Strength: Utilizes high-modulus aramid yarns to reliably support aerial installations spanning up to 100 meters without the need for a separate messenger wire.
Robust Water Protection: Features a comprehensive water-blocking system, including gel-filled loose tubes, water-blocking tape, and yarns to prevent moisture ingress.
Durable & Weather Resistant: The black HDPE outer sheath offers excellent protection against harsh environmental conditions, with a tested operating temperature range of -40 ℃ to +60 ℃.
Easy Installation & Splicing: Built-in ripcords facilitate quick, safe stripping of the outer sheath, while standard color-coded tubes and fibers allow for rapid identification.

ADSS Optical Fiber Cable 100m Span Price

Application

Power Utility Networks
Aerial Telecommunications
Harsh Environments

CABLE CONSTRUCTION

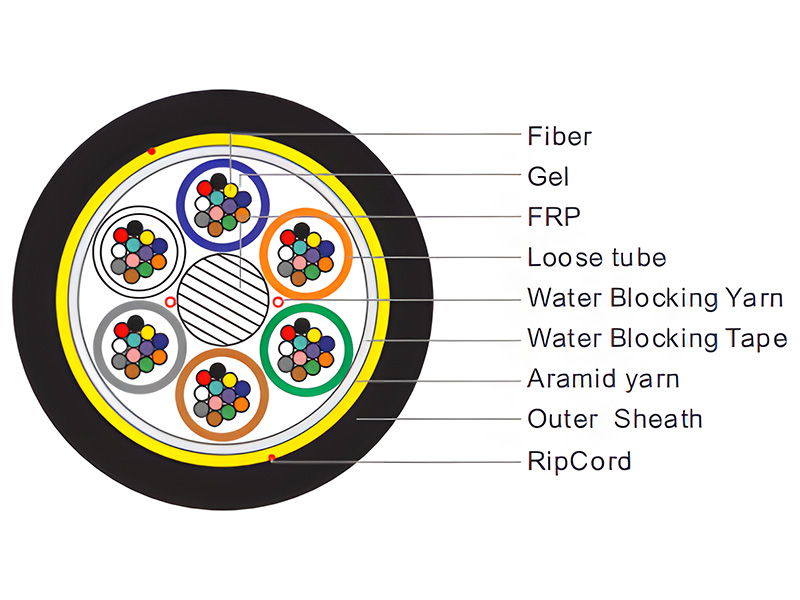

CROSS SECTIONAL DIAGRAM

Mechanical and Environmental Performance of the Cable

NO.	ITEMS	TEST METHOD	ACCEPTANCE CRITERIA
1	Tensile Loading Test	IEC 60794-1-E1	-. Long-tensile load: 0.5MAT -. Short-tensile load: As MAT -. Cable length: ≥50m -. Attenuation increment@1550nm:≤0.1dB -. No jacket cracking and fiber breakage
2	Crush Resistance Test	IEC 60794-1-E3	-. Long load: 300 N/100mm -. Short load: 1000 N/100mm -. Load time: 1 minutes -. Attenuation increment@1550nm:≤0.1dB -. No jacket cracking and fiber breakage
3	Impact Resistance Test	IEC 60794-1-E4	-. Impact height: 1M -. Impact weigh: 500g -. Impact point: ≥5 -. Impact frequency: ≥3/point -. Attenuation increment@1550nm:≤0.1dB -. No jacket cracking and fiber breakage
4	Repeated Bending	IEC 60794-1-E6	-. Mandrel diameter: 20D (D = cable diameter) -. Subject weight: 25kg -. Bending frequency: 30 times -. Bending speed: 2s/time -. Attenuation increment@1550nm:≤0.1dB -. No jacket cracking and fiber breakage
5	Torsion Test	IEC 60794-1-E7	-. Length: 1m -. Subject weight: 25kg -. Angle: ±180 degree -. Frequency: ≥10/point -. Attenuation increment@1550nm:≤0.1dB -. No jacket cracking and fiber breakage
6	Water Penetration Test	IEC 60794-1-F5B	-. Height of pressure head: 1m -. Length of specimen: 3m -. Test time: 24 hours -. No leakage through the open cable end
7	Temperature Cycling Test	IEC 60794-1-F1	-. Temperature steps: ＋20 ℃ 、－40 ℃ 、＋70 ℃ 、＋20 ℃ -. Testing Time: 24 hours/step -. Cycle index: 1 -. Attenuation increment@1550nm:≤0.1dB -. No jacket cracking and fiber breakage
8	Drop Performance	IEC 60794-1-E14	-. Testing length: 30cm -. Temperature range: 70±2 ℃ -. Testing Time: 24 hours -. No filling compound drop out
9	Temperature	-	Operating: -40 ℃ ~+60 ℃ Store/Transport: -50 ℃ ~+70 ℃ Installation: -20 ℃ ~+60 ℃

TECHNICAL SPECIFICATION

Fiber count		12FO	24FO	48FO	72FO	96FO	144FO
Loose Tube	OD(mm)	1.9	2.0	2.1	2.1	2.1	2.2
Loose Tube	Material	PBT	PBT	PBT	PBT	PBT	PBT
Max fiber count/tube		12	12	12	12	12	12
No. Of Tubes / Fillers		1/5	2/4	4/2	6/0	8/0	12/0
FRP/Coating(mm)		2.0	2.1	2.2	2.2	2.6/3.5	3.5/6.6
W-Blocking Material		Water-blocking Tape/Water-blocking Yarns
Strength member		High Modulus Aramid yarns
Sheath	Thickness	Non. 1.60mm
Sheath	Material	Black HDPE
OD of cable (mm)		9.4±0.2	9.8±0.2	10.1±0.2	10.1±0.2	11.4±0.2	14.5±0.2
N.weight (kg/km)		70	72	76	76	102	155
MAT (N)		1800	1800	2000	2000	2200	2500
RCD Initial Sag		Up To 100m, Sag 1.0%
Worst Load Condition		Wind Velocity : Max 30m/s, Ice Thickness : 0mm

Single Mode Fiber

ITEMS	UNITS	SPECIFICATION
Fiber type	SM	OS2 type, ITU-T G.652.D	OS2 type, ITU-T G.657.A
Attenuation	dB/km	1310nm ≤ 0.34 1383nm ≤ 0.34 1550nm ≤ 0.21 1625nm ≤ 0.23
Chromatic Dispersion	ps/nm.km	1310nm ≤ 3.5 1550nm ≤ 18 1625nm ≤ 22
Zero Dispersion Slope	ps/nm2.km	≤ 0.092
Zero Dispersion Wavelength	nm	1300 ~ 1324
Cut-off Wavelength (cc)	nm	≤ 1260
Attenuation vs. Bending	1625nm	30mm radius, 100ring ≤ 0.05 dB	15mm radius, 10ring ≤ 1.0 dB
	1310nm	25mm radius, 100ring ≤ 0.05 dB	15mm radius, 10ring ≤ 0.25 dB
	1550nm	16mm radius, 1ring ≤ 0.05 dB	10mm radius, 1ring ≤ 0.75 dB
Mode Field Diameter	um	8.7 ~ 9.5 at 1310nm 9.8 ~ 10.8 at 1550nm	8.4 ~ 9.2 at 1310nm 9.3 ~ 10.3 at 1550nm
Core-Clad Concentricity	um	≤ 0.5	≤ 0.5
Cladding Diameter	um	125.0±0.7	125.0±0.7
Cladding Non-circularity	%	≤ 1.0	≤ 0.7
Coating Diameter	um	235 ~ 250	235 ~ 245
Proof Test	N	≥ 9.0	≥ 9.0
Polarisation Mode Dispersion	Ps/Ѵkm	≤ 0.1	≤ 0.1
Standards	Fibers are designed and tested by TIA/EIA-492CAAB, IEC 60793-2-50 Type B1.3, ITU-T G.652.D and ISO/IEC 11801 Ed.2.2.

PACKAGE AND MARK

PACKAGE

Not allowed two length units of cable in one drum, two ends should be sealed,. Two ends should be packed inside drum, reserve length of cable not less than 3 meters.

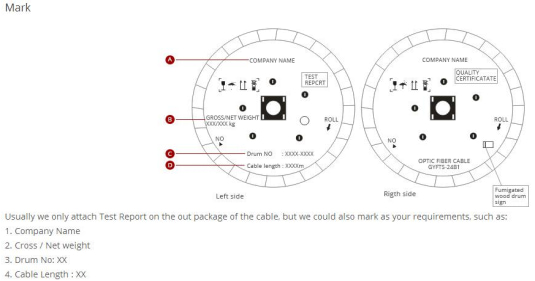

MARK

Cable Mark: length, brand

Drum Mark: Manufacturer, cable category, No. of drum, length, GW. direction of rotation, manufacturing date.

144 Core ADSS Aerial Fiber Optic Cable

Container Loading Diagram 1
FRP Center Strength Member ADSS Fiber Cable

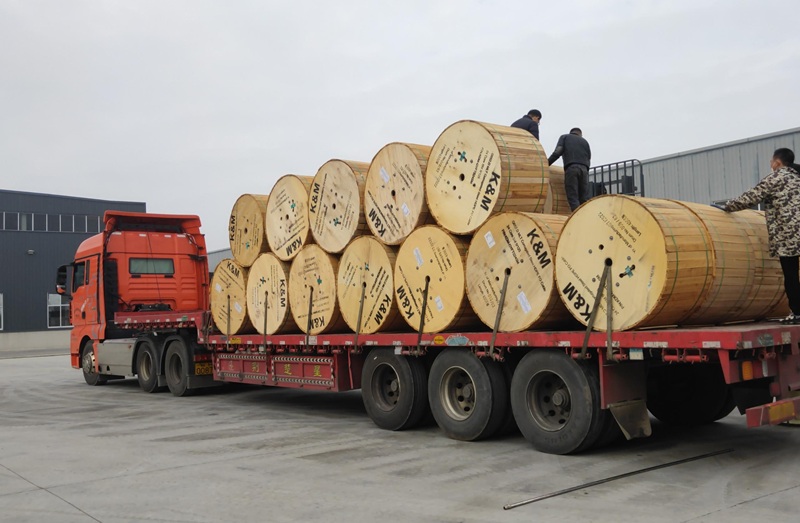

Container Loading Diagram 2

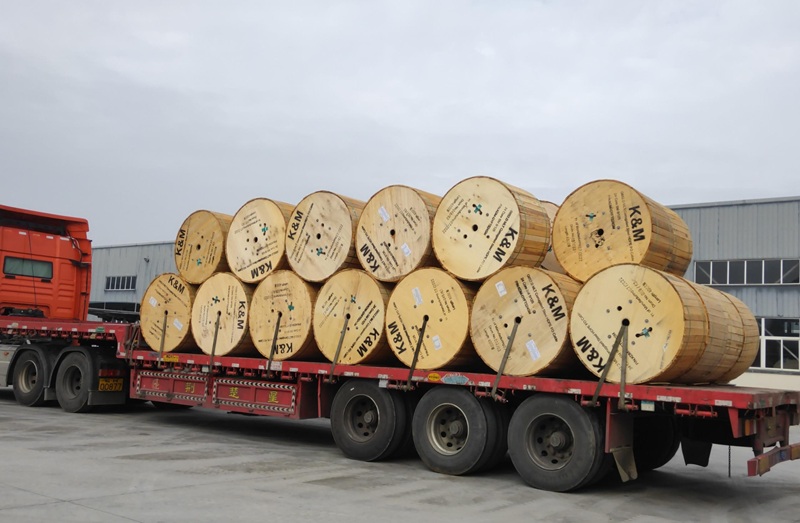

Weather Resistant ADSS Telecommunications Fiber Cable

Frequently Asked Questions

Q What is the maximum installation span for this ADSS cable?

A: This cable is designed for aerial installations with a maximum span of up to 100 meters.

Q Can this cable be installed near high-voltage power lines?

A: Yes, it features an entirely non-metal, all-dielectric construction. This makes it completely immune to electromagnetic interference and perfectly safe to run alongside power utility lines.

Q What temperature range can this cable operate in?

A: The cable is highly durable and supports an operating temperature range of -40 ℃ to +60 ℃, making it suitable for extreme weather conditions.
