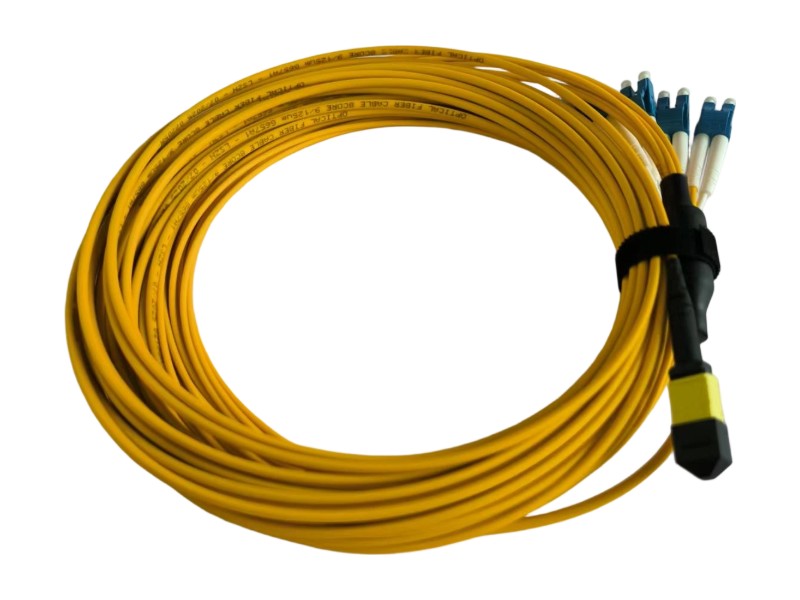

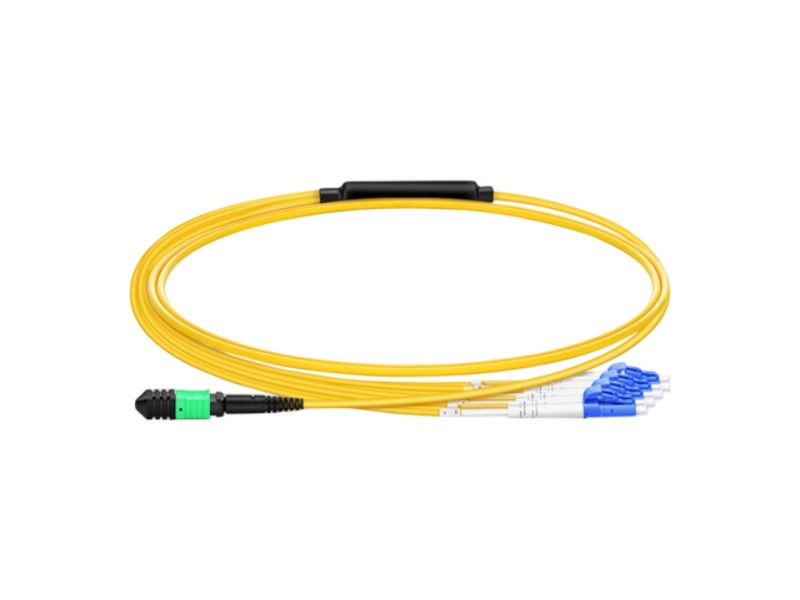

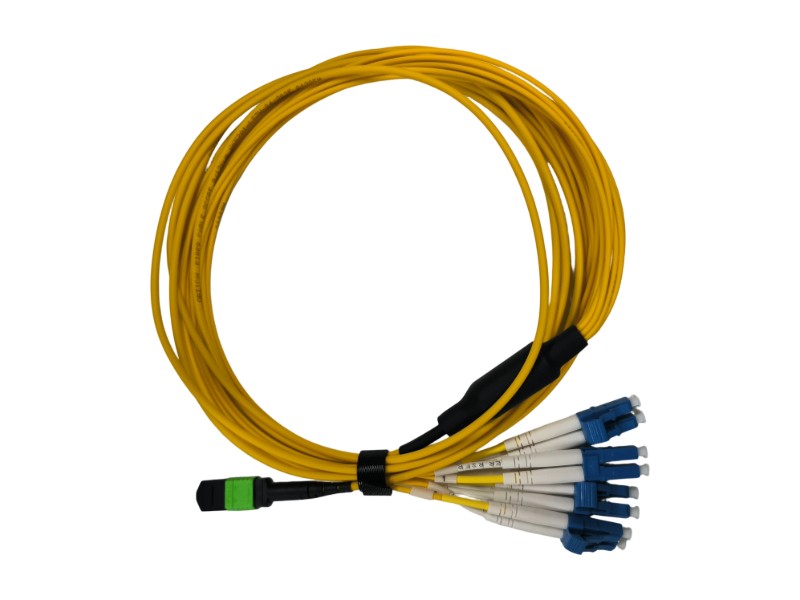

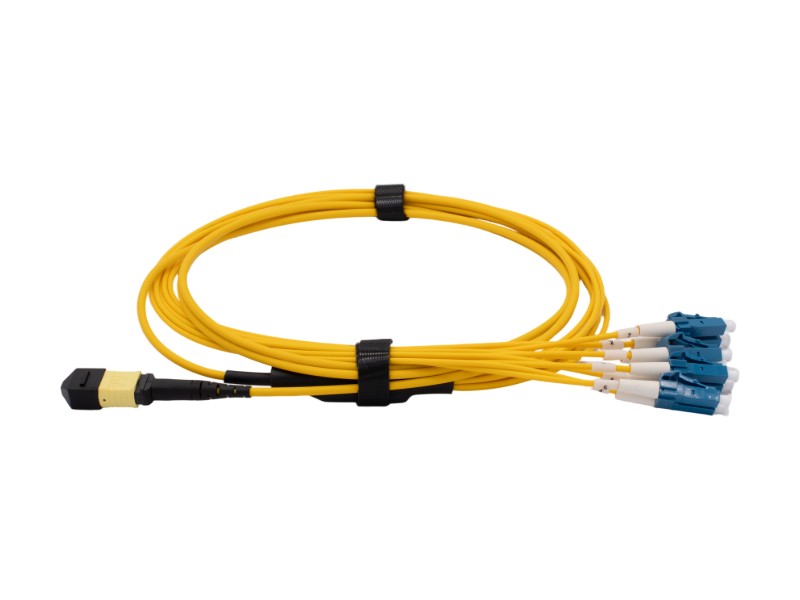

8F MPO/APC To LC/PC Duplex OS2 Single Mode Fanout Patch Cord

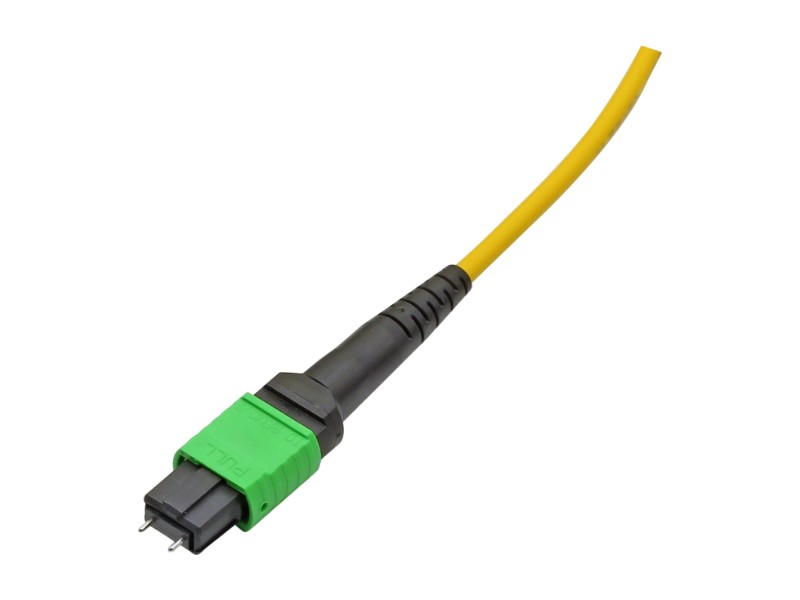

Compliant with IEC-61754-7 standards, the MPO connector allows for quick deployment in Equipment Distribution Areas (EDA). It fully supports high-speed 40G and 100G protocols , offering exceptional optical performance with typical insertion loss as low as 0.30dB for low-loss SM MPO connectors and ≤ 0.2dB for LC connectors. Encased in a durable, flame-retardant 3.0mm LSZH yellow jacket , this breakout cable guarantees both reliability and superior safety in high-density environments.

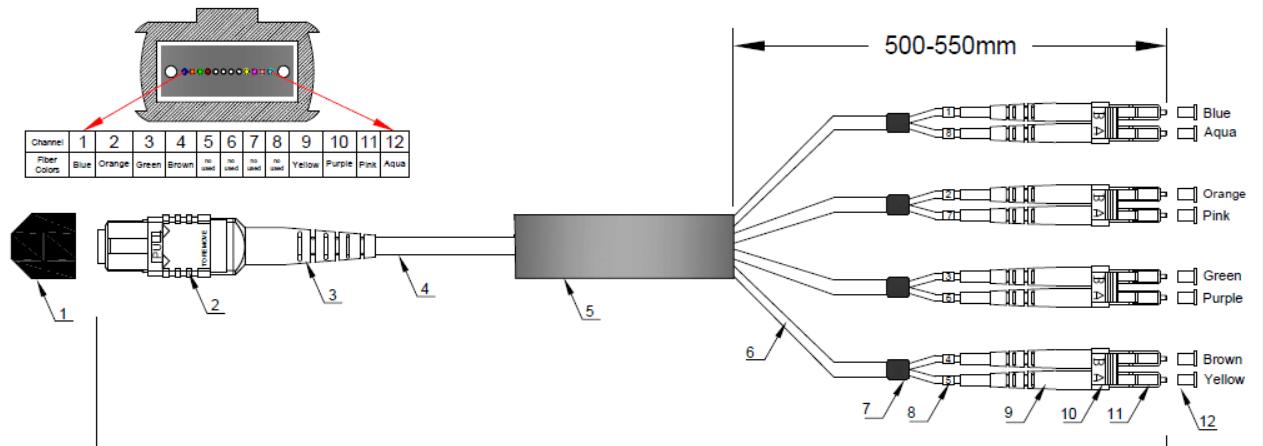

Optical cable assembly outline drawing
| No. | Element | Requirements |
|---|---|---|
| X1 | 8MPO/APC-LC DUPLEX | 8 cores |
| 1 | 3.0mm optical cable | Sub Branch O.D 2.0mm length 0.5m or Customized length |
| No. | Type and Spec | Length (L) |
|---|---|---|
| 1 | MPO/APC Green (8F) to fan out LC/PC Blue Duplex (8F) Type A 8F SM OS2 Length | 3m |

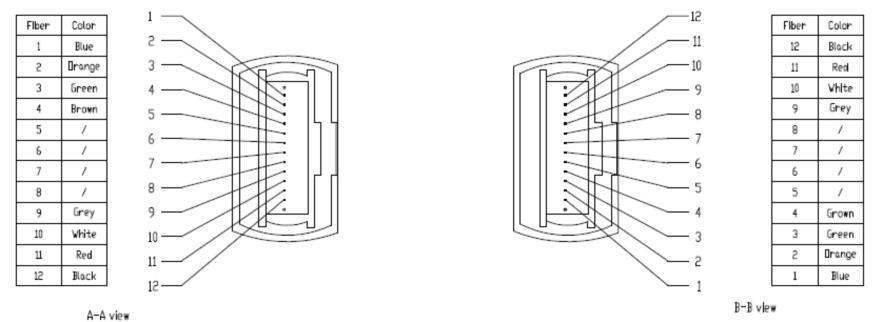

PIN code of MPO connectors
| Start Part | Color | End Part |
|---|---|---|
| X1-1 | Blue | X2-1 |
| X1-2 | Orange | X2-2 |
| X1-3 | Green | X2-3 |
| X1-4 | Brown | X2-4 |
| X1-5 | / | X2-5 |
| X1-6 | / | X2-6 |
| X1-7 | / | X2-7 |
| X1-8 | / | X2-8 |
| X1-9 | Grey | X2-9 |
| X1-10 | White | X2-10 |
| X1-11 | Red | X2-11 |
| X1-12 | Black | X2-12 |
| MPO Connector | Standard, SM MT Ferrule | Low Loss, SM MT Ferrule | Standard, MM MT Ferrule | Low Loss, MM MT Ferrule | ||
|---|---|---|---|---|---|---|
| APC | PC | APC | PC | PC | PC | |
| Insertion Loss(dB) Typical | 0.50 | 0.50 | 0.30 | 0.30 | 0.50 | 0.30 |
| Insertion Loss(dB) Maximum | 0.70 | 0.70 | 0.50 | 0.50 | 0.70 | 0.50 |
| Return Loss(dB) | 60 | 45 | 60 | 45 | 20 | 20 |
| Exchangeability(dB) | ≤0.3dB | |||||
| Durability(dB) | ＜0.2dB(500 Matings, per EIA-455-21A) | |||||
| Tensile Strength (dB) | ≤0.3dB(Max 66N) | |||||
| Operating Temperature(℃) | -20 ~ +60 | |||||
| Storage Temperature(℃) | -40 ~ +80 | |||||
| Item(LC/SC/FC/ST) | Single mode UPC | Single mode APC | Multimode |
|---|---|---|---|
| Insertion Loss |
≤ 0.2dB (typical) 0.3dB(Max) |
≤ 0.2dB (typical) 0.3dB(Max) |
≤ 0.2dB (typical) 0.3dB(Max) |
| Return Loss | ≥50 dB | ≥65 dB | ≥25 dB |
| Durability | Min 500 mate times | ||
| Operating Temperature | -40℃ to+85℃ | ||
| Cord length | Customized | ||
| Optical fiber | 1-144 fiber | ||
| Items | Specification (Fiber count 2~12) | Specification (Fiber count 14~24) | |
|---|---|---|---|
| Optical fiber | Diameter(±5μm) | 250 | |
| Color | 1. White 2. Blue 3. Orange 4. Green 5. Brown 6. Grey 7. Red 8. Black 9. Yellow 10. Violet 11. Pink 12. Aqua | The second set of 12 fibers with black rings is separated from The first set of 12, and the color of NO.20 fiber is natural. | |
| Core reinforce | Aramid yarn | ||
| Jacket material | LSZH | ||
| Cable | Color | Yellow for single mode fiber; Orange for multi-mode fiber; Or other color available upon request | |
| Out diameter(±0.5mm) | 3.0 | 3.8 | |
| Cable weight(kg/km) | Appro. 8.3 | Appro. 10.8 | |
| Fiber type | Single-mode G652D (1310/1550nm) |
Single-mode G657A1 (1310/1550nm) |
Single-mode G657A2 (1310/1550nm) |
|---|---|---|---|
| Attenuation Typical | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 |
| Attenuation Maximum | 0.5/0.4 | 0.5/0.4 | 0.5/0.4 |
| Zero Dispersion Slope | ≤0.091 ps/km·nm² | ≤0.092 ps/km·nm² | ≤0.092 ps/km·nm² |
| Dispersion(1285~1340nm) | -3.5 – 3.5ps/(nm·km) | -3.5 – 3.5ps/(nm·km) | -3.5 – 3.5ps/(nm·km) |
| Mode field Diameter(@1300nm) | 9.3±0.4 µm | 8.8±0.4 µm | 8.8±0.4 µm |
| Cutoff wavelength cable(nm) | ≤1260 nm | ≤1260 nm | ≤1260 nm |
| Min bend radius(mm) | 16 mm | 10 mm | 7.5 mm |
| Cladding diameter(µm) | 125±1.0 | 125±1.0 | 125±1.0 |
Other optical properties should meet international standards of IEC 60793/IEC60794 or ITU-T.
| Mechanical properties | Fiber count 2~4 | Fiber count 6~12 | Fiber count 14-24 |
|---|---|---|---|
| Tensile strength (Installation) | 440N | 660N | 1320N |
| Tensile strength (Operation) | 130N | 200N | 400N |
| Min bend radius (Installation) | 20D | 20D | 20D |
| Min bend radius (Operation) | 10D | 10D | 10D |
| Crush resistance | 1000N/100mm | ||
| * The mechanical properties of other optical fibers and cables shall meet international standards of IEC 60794. | |||
| Transportation temperature | -20℃~+60℃ |
| Storage temperature | -20℃~+60℃ |
| Installation temperature | -20℃~+60℃ |
| Operation temperature | -20℃~+60℃ |
| Flame retardant | IEC 60332-1 |
Wooden or plywood drums with protection.
Cable Marker every Meter by:
Standard delivery lengths are 2 km/drum.

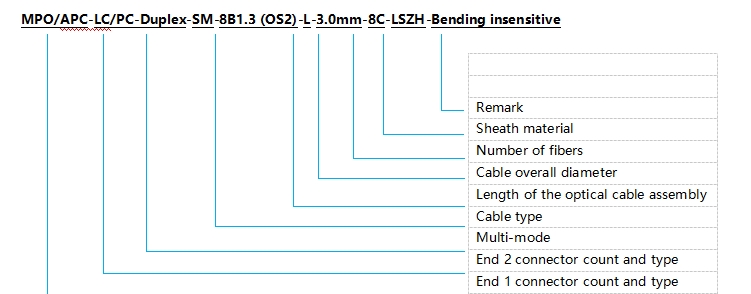

BOCS-G3D-2.0-FA00-2Z
| 1 Tight buffer material | 2 Select cable color | 3 Fiber number | 4 Select fiber type |
|---|---|---|---|
| Z=LSZH H=Hytrel |
O=Orange Y=Yellow A=Aqua Other color available upon request |
014~024 | B1.3=G652D B6a1=G657A1 B6a2=G657A2 A1=50/125μm A1b=62.5/125μm BIOM3=Bend Insensitive-Maxband OM3 BIOM4= Bend Insensitive-Maxband OM4 OM5= Bend Insensitive-Maxband OM5 |
| X to X | X | X | X | X | X | X | X | X |
|---|---|---|---|---|---|---|---|---|
| Connector Type | MPO Polish | Housing Color | Fiber Type | Fiber Count | Cable Length | Pigtail length | Cable type | Polarity |
| 1 = MPO-Female 2 = MPO-Male 3 = LC/APC 4 = LC/UPC 5 = SC/APC 6 = SC/UPC 7 = FC/APC 8 = FC/UPC 9 = ST 0 = MU S = Special |
1 = UPC 2 = PC 3 = APC 8degree |
1 = Beige 2 = Aqua 3 = Green 4 = Yellow 5 = Black 6 = Red S = Special |
1 = SM 9/125 G652D 2 = SM 9/125 G657A 3 = MM 50/125 (OM2) 4 = MM 50/125 (OM3) 5 = MM 50/125 (OM4) 6 = MM 62.5/125 (OM1) |
1 = 8 2 = 12 3 = 24 4 = 48 5 = 72 6 = 96 7 = 144 S = Special |
0 = 0.5m 1 = 1.0m 2 = 2.0m 3 = 3.0m S = Special |
0 = 0m 1 = 0.5m 2 = 0.6m 3 = 1.0m 4 = 1.5m 5 = 2.5m 6 = 3.0m S = Special |
1 = Bare-Ribbon 2 = Oval 3 = Round S = Special |
A = Polarity A B = Polarity B C = Polarity C |
