K&M 12V 150Ah LiFePO4 Battery Pack With 4S150A BMS 1920Wh

Home Products 4. Battery& Energy Storage Solutions

K&M 12V 150Ah LiFePO4 Battery Pack With 4S150A BMS 1920Wh

K&M 12V 150Ah LiFePO4 Battery Pack With 4S150A BMS 1920Wh

Name: K&M 12V 150Ah LiFePO4 Battery Pack With 4S150A BMS 1920Wh
Availability: InStock

Upgrade your energy storage system with the K&M 12.8V 150Ah Lithium Iron Phosphate (LiFePO4) Battery. Weighing only 16.9kg (about 40% of a comparable lead-acid battery), this ultra-lightweight powerpack serves as a perfect 'drop-in' replacement for traditional setups.

It boasts a massive 1920Wh energy capacity and delivers an outstanding cycle life of over 6,000 cycles at 0.2C. Built with superior safety chemistry and a robust 4S150A BMS, it completely eliminates combustion risks while supporting flexible modular deployment (up to 4 in series or 10 in parallel). It is the ultimate choice for solar/wind energy storage, UPS backup, telecommunications, and electric mobility.

Inquiry now

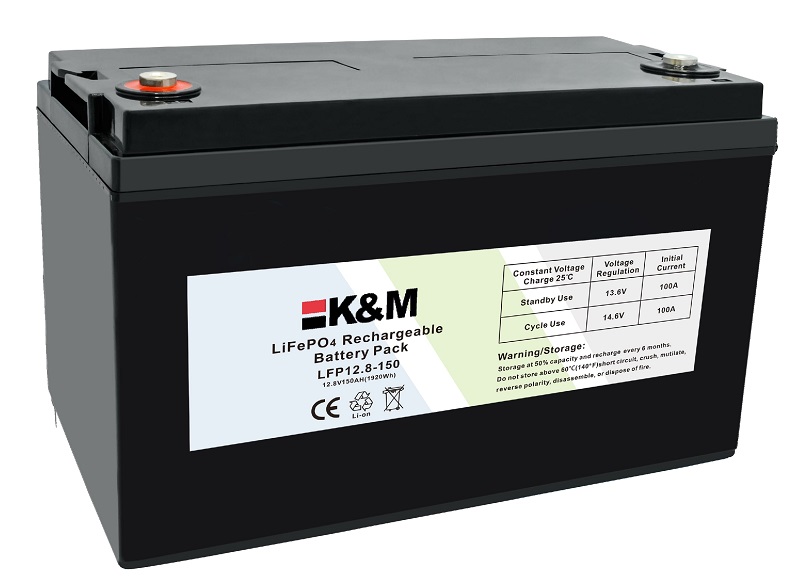

K&M Lithium Iron Phosphate (LiFePO4) Battery

LFP12.8-150 (12.8V150Ah)

Features of LiFePO4 Battery

• Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
• Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
• Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
• Wider Temperature Range: -20°C~60°C.
• Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
• Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to ten batteries in parallel.

Application

Electric vehicles, electric mobility
Solar/wind energy storage system
UPS, backup power
Telecommunication
Medical equipment
Lighting

Specifications & Dimensions

Nominal voltage		12V
Nominal capacity		150Ah
Dimensions	Length	330±2mm (12.99inch)
	Width	172±2mm (6.73inch)
	Height	215±2mm (8.43inch)
	Total height	220±2mm (8.66inch)
Approx. weight		16.9kg (39.68lbs)±4%

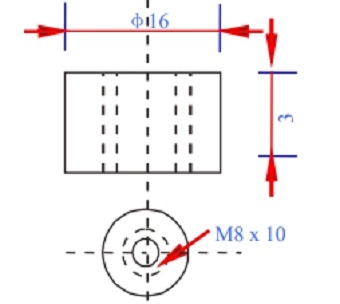

Terminal (M8 x 10)

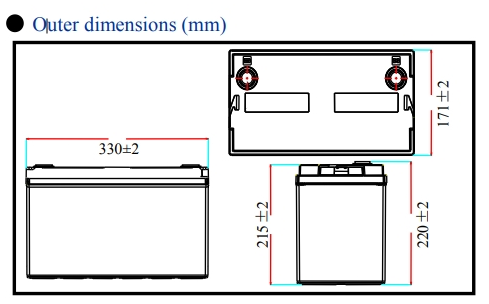

Outer dimensions (mm)

Detailed Specification

Basic Parameters	Nominal Voltage	12.8V
	Nominal Capacity	150Ah (C5, 25°C)
	Energy	1920Wh
Electrical Characteristics	Internal Resistance	<150mΩ
	Cycle Life	>6000 cycles@0.2C
	Months Self Discharge	<3%
	Efficiency of Charge	100% @0.2C
	Efficiency of Discharge	96~99% @1C
Standard Charge	Charge Voltage	14.6±0.2V
	Charge Mode	current 0.02C(CC/CV) 0.2C to 14. 6 V, then 14.6,charge
	Charger Current	30A
	Max. Charge Current	150A
	Charge Cut-off Voltage	14.8V±0.2V
Standard Discharge	Continuous Current	30A
	Max. Pulse Current	200A (<3s)
	Discharge Cut-off Voltage	10.5V
Environmental	Charge Temperature	0°C~45°C (32°F to 113°F) @60±25% Relative Humidity
	Discharge Temperature	-20°C~60°C (-4°F to 140°F) @60±25% Relative Humidity
	Storage Temperature	0°C~40°C (32°F to 104°F) @60±25% Relative Humidity
	Water Dust Resistance
Mechanical	Cell & Method	3.2 V150AH-4S1P
	Plastic Case	ABS
	Dimensions (in./mm.)	330172220mm
	Weight (lbs./kg.)	16.9KG
	Terminal	M8
	Protocol (optional)	NO
	BMS	4S150A

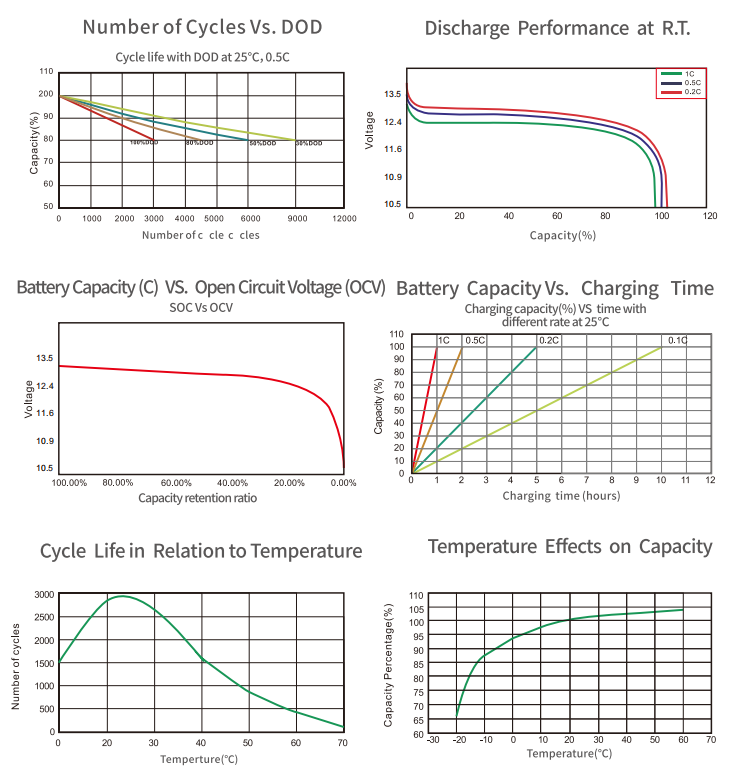

Model Performance Diagrams

Frequently Asked Questions

Q Can I connect these batteries in series or parallel to increase voltage or capacity?

A: Yes! The modular design of the LFP12.8-150 enables increased flexibility for your energy storage system. You can safely deploy up to four batteries in series (e.g., to build a 24V, 36V, or 48V system) and up to ten batteries in parallel to massively expand your total Ah capacity.

Q Does this battery pack include a built-in Battery Management System (BMS)?

A: Absolutely. It is equipped with a robust built-in 4S150A BMS. This intelligent system continuously monitors and protects the cells against potential hazards such as overcharging, over-discharging, short circuits, and extreme temperature conditions, ensuring superior safety and prolonging the cycle life.

Q What are the recommended charging parameters for this LiFePO4 battery?

A: For optimal performance, the recommended charge voltage is 14.6±0.2V using a CC/CV (Constant Current/Constant Voltage) charge mode. The standard charger current is 30A, though the battery is engineered to safely handle a maximum charge current of up to 150A if fast charging is required.
