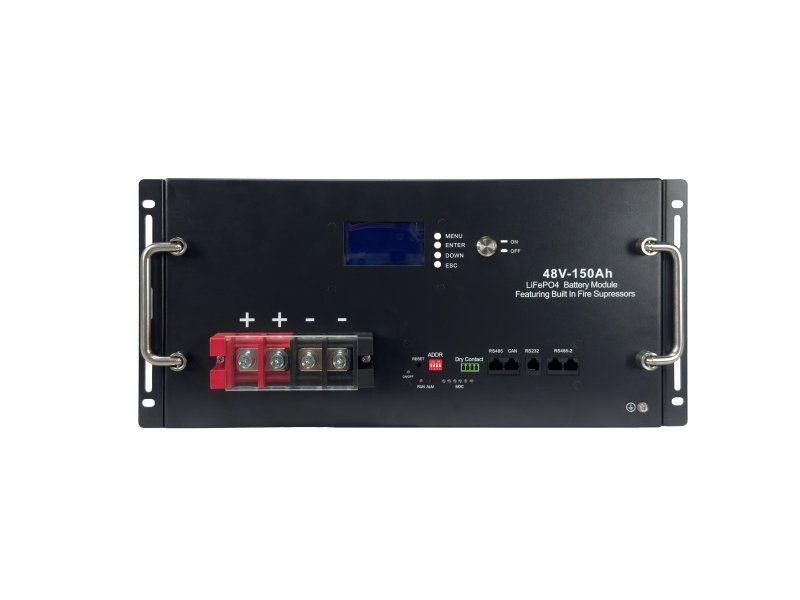

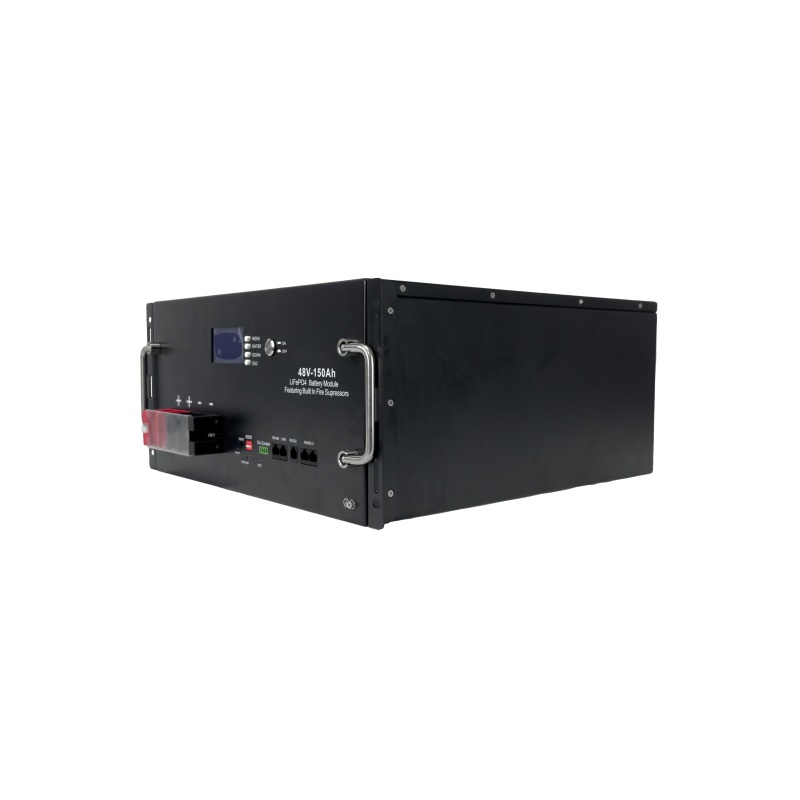

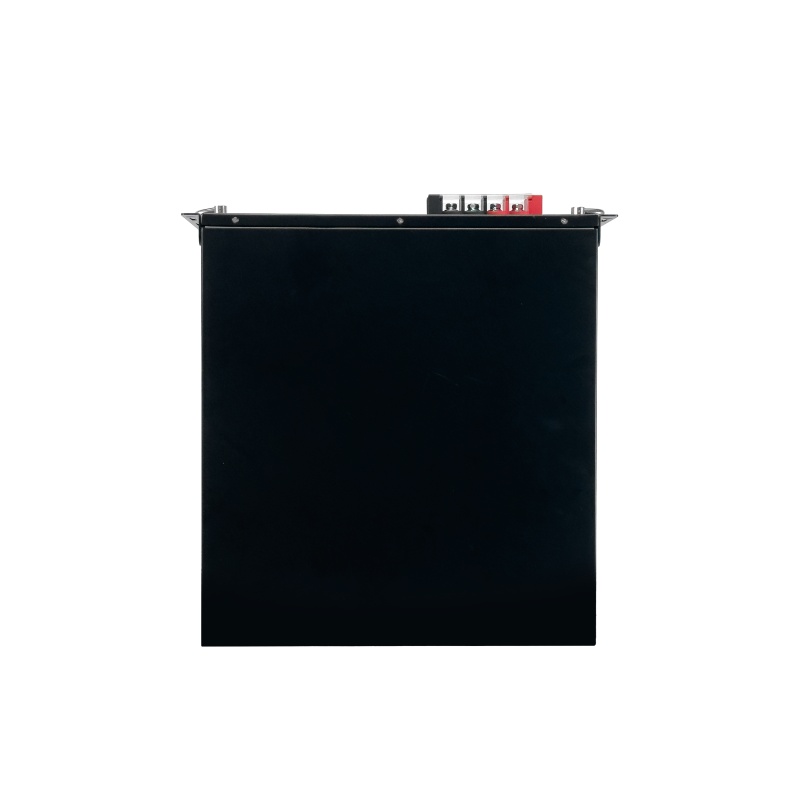

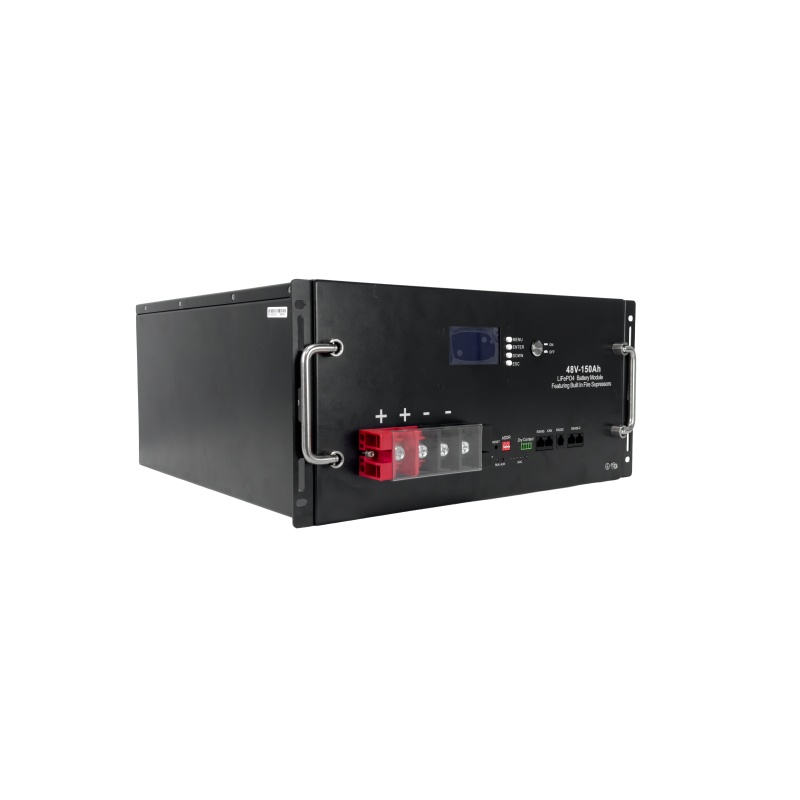

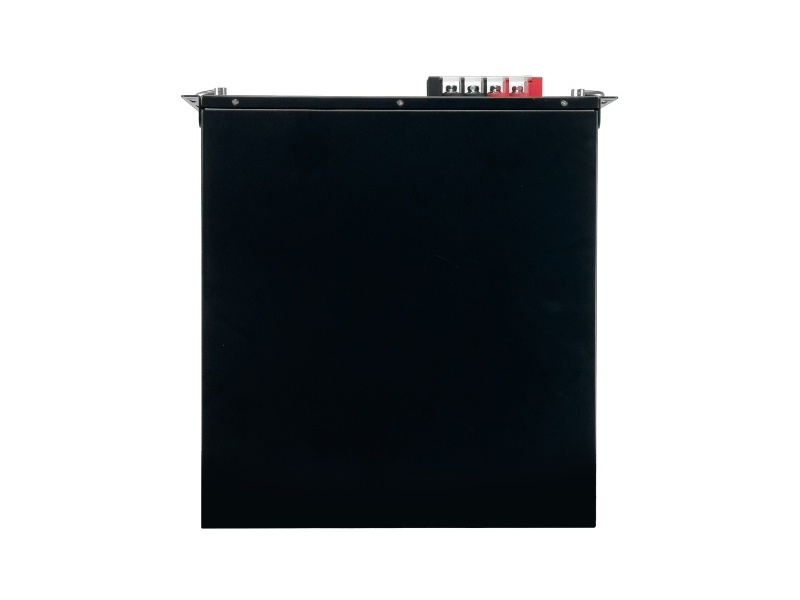

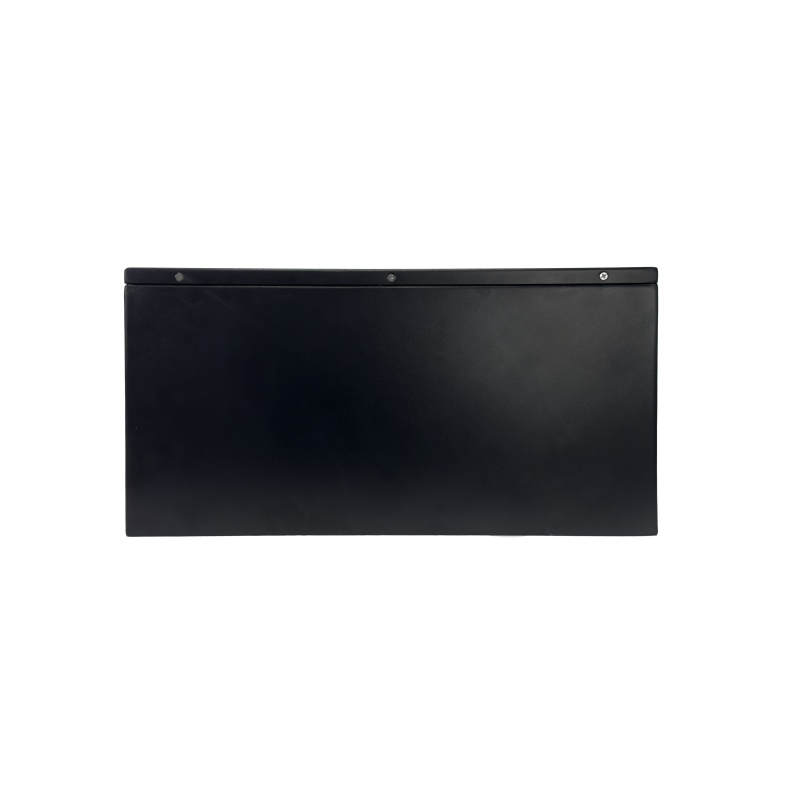

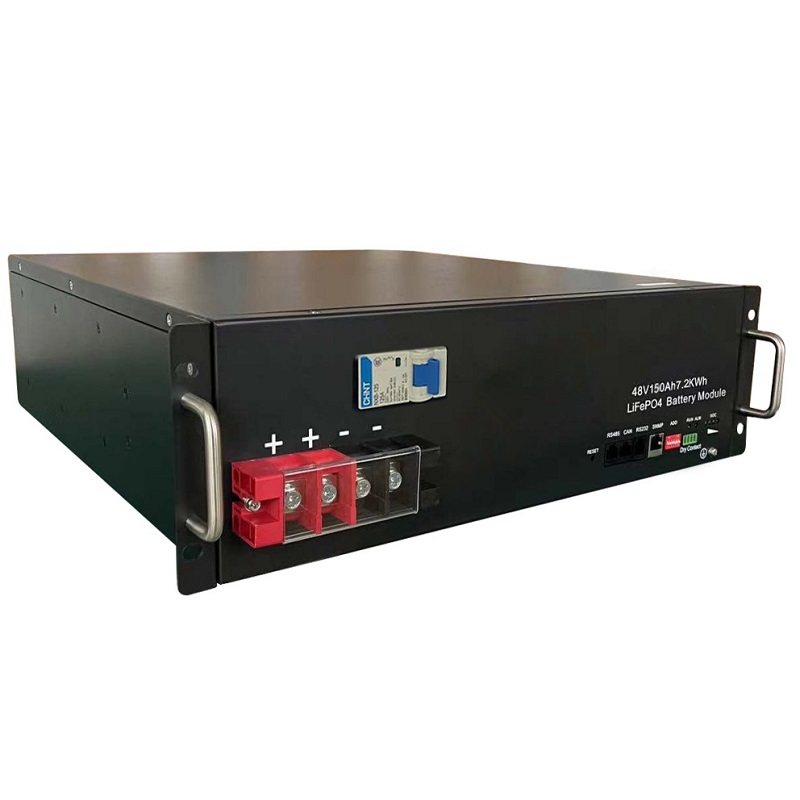

Rack Mounted LiFePO4 Battery LFP-R48-150 Lithium Battery
Intelligent lithium battery, integrated with self-designed BMS and long life LFP cells, which can be widely used in various telecom and energy storage system.
This 48V 150Ah rack-mounted LiFePO4 battery is a high-performance energy storage solution designed for telecom, data center, and solar applications. Featuring a nominal energy of around 7.2kWh, it delivers stable and reliable power output for critical systems. Built with advanced LiFePO4 cells and an intelligent BMS, it ensures enhanced safety with protection against overcharge, over-discharge, overcurrent, and temperature fluctuations. The standard 19-inch rack design allows easy installation and scalability, supporting multiple units in parallel for larger capacity systems. With a long cycle life exceeding 6000 cycles and wide operating temperature range, it provides a durable, maintenance-free, and cost-effective solution for long-term energy storage needs.
The LFP-R48-150 is a high-performance 48V 150Ah lithium iron phosphate (LiFePO4) battery module designed for rack-mounted energy storage. This advanced system offers a massive 7200Wh energy capacity, making it an ideal choice for demanding power requirements in telecommunications, solar systems, and backup power applications.
Featuring a sophisticated 15S 150A Battery Management System (BMS), the unit ensures maximum safety against abuse while maintaining superior charge/discharge efficiency. With a cycle life exceeding 6,000 cycles at 80% DOD, it provides an exceptionally low total cost of ownership over its long service life.
| Parameters Category | Specification Details |
|---|---|
| Electrical Characteristics | |
| Nominal Voltage | 48V |
| Nominal Capacity | 150Ah (C₅, 25℃) |
| Energy | 7200Wh |
| Internal Resistance | ≤10mΩ@50%SOC |
| Cycle Life | >6000 cycles |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96~99%@0.5C |
| Standard Charge | |
| Charge Mode | 0.2C to 54.75V, then 54.75V, charge to current till 0.02C(CC/CV) |
| Continuous Current | 75A |
| Recom. Charge Current | 30A |
| Max. Charge Current | 150A |
| Charge Cut-off Voltage | 54.75±0.2V |
| Standard Discharge | |
| Continuous Current | 75A |
| Recom. Discharge Current | 30A |
| Max. Discharge Current | 150A |
| Discharge Cut-off Voltage | 40.5V |
| Environmental | |
| Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity |
| Storage Temperature | 0℃ to 40℃(32℉ to 104℉) @60±25% Relative Humidity |
| IP Grade | IP20 |
| Mechanical | |
| Cell & Method | 3.2V150AH 15S1P |
| Metal Case | Metal |

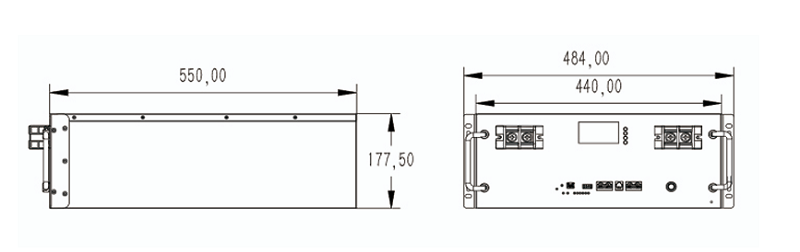

| Dimensions (mm.) | W484×D550×H178MM |
| Weight (kg.) | N.W.: 58Kg / G.W.: 62Kg |
| Terminal | M8 |
| Communication | RS485/WIFI/CAN/Bluetooth/SNMP |
| BMS | 15S150A |
| Parallel | Up to 16 units |
| Anti-Theft | Gyroscope |
```
A: Yes, it supports parallel connection of multiple units, allowing flexible capacity expansion for different energy storage requirements.
A: Absolutely. It is designed to work with most mainstream inverters and supports integration with solar energy storage systems.
A: The battery uses LiFePO4 technology with a long cycle life and stable performance, ensuring reliable operation over many years.
A: Yes, it is equipped with an intelligent BMS that protects against overcharge, over-discharge, overcurrent, and short circuits.
