GJS-6808-B Inline Fiber Optic Splice Closure (Up to 144/432 Cores)

Inline Fiber Optic Splice Closure GJS-6808-B Exterior

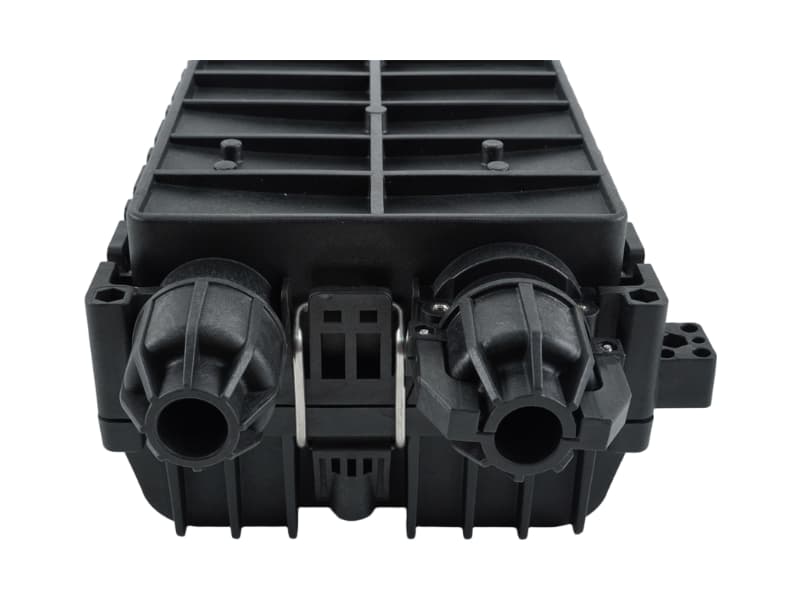

IP68 Waterproof Horizontal Inline Fiber Optic Splice Closure

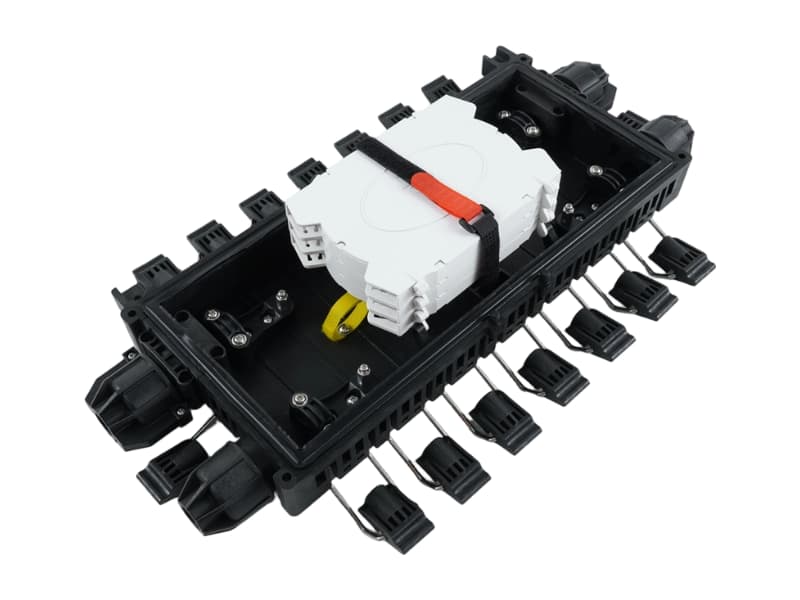

144 Core Inline Fiber Optic Splice Closure with Mechanical Seal

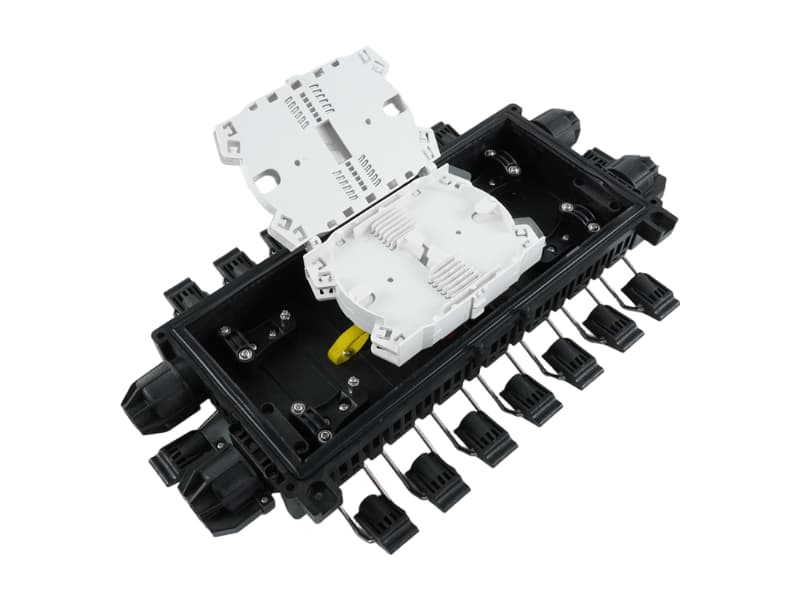

Internal PC+ABS Splice Trays of Inline Fiber Optic Splice Closure

GJS-6808-B Inline Fiber Optic Splice Closure (Up to 144/432 Cores)

Name: GJS-6808-B Inline Fiber Optic Splice Closure (Up to 144/432 Cores)
Availability: InStock

The fiber splice closure is applicable to termination of branching downstream optical cable in PON optical communication network. Over FTTX network fiber splice closure is used for end A/B access of optical cable ，splicing of low-capacity single-fiber，lead-out and fixation of multi-fiber access cables.

Inquiry now

Key Features

■ IP degree: IP68 protection grade
■ Material: Constructed with a PC+GF closure body and an inside PC+ABS splice tray
■ Sealing structure: Mechanical sealing type with no special tooling requested
■ Design: Hinged type with a buckle design that is easy to open and re-entry
■ Hardware: Tighten screws and gaskets are all made of 304 stainless steel to improve corrosion resistance. Pressure valve and grounding device optional
■ Features complete bend radius control, ensuring the bend radius > 30mm
■ Long-lasting durability with a service life not less than 20 years

Applications

■ Applicable to termination of branching downstream optical cable in PON optical communication network
■ Used over FTTX networks for end A/B access of optical cables
■ Suitable for splicing of low-capacity single-fiber
■ Ideal for the lead-out and fixation of multi-fiber access cables
■ Supports varied installation modes including aerial, wall pipe line, manhole, and underground mounting

Product Views & Internal Structure

GJS-6808-B product appearance with hinged buckle design

Flip-up Splice Trays View

Internal PC+ABS splice tray showing fiber routing

Top-Down Internal Layout

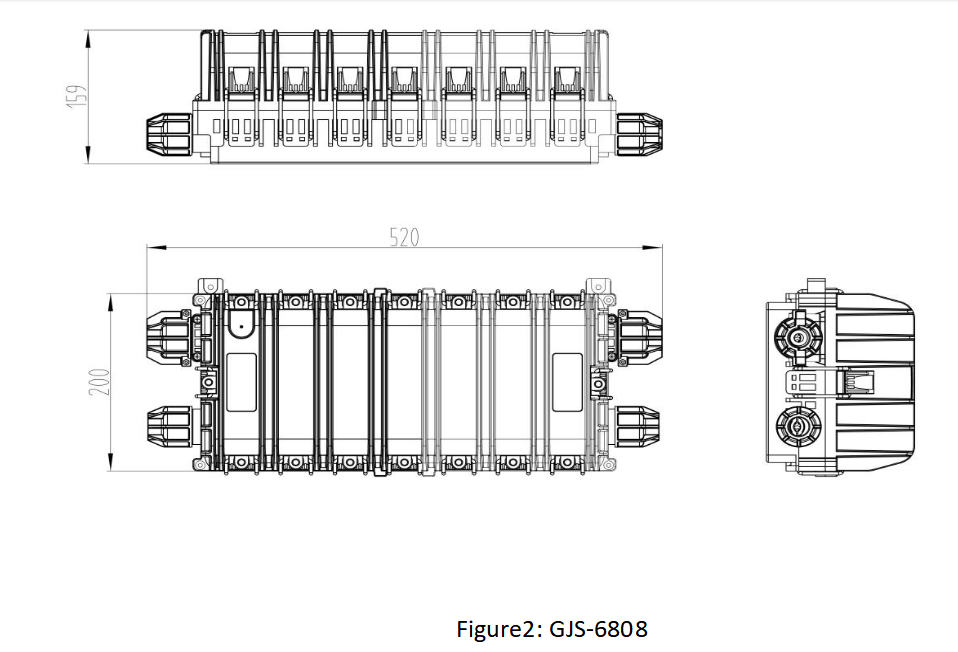

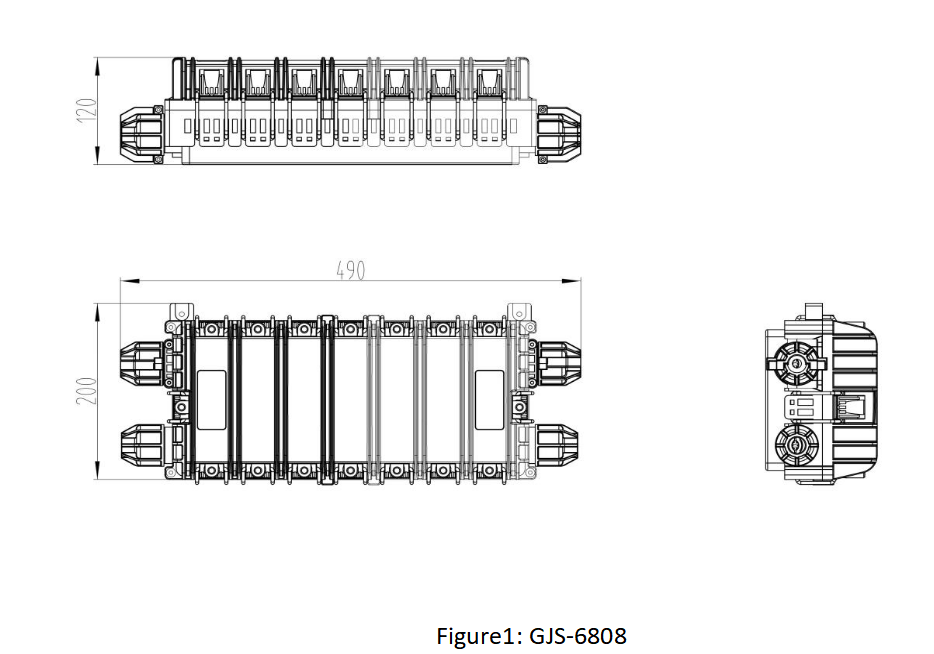

Structure drawing of GJS-6808 with dimensions

Stacked Splice Trays View

2.1 Dimension and capacity

Model No.	GJS-6808-B
Style	In-line/ Horizontal
Dimensions	520(L)×200(W)×159(H) mm
Weight (kg)	4.0 - 4.5
Material	PP+GF
Sealing Type	Mechanical Seal
Protection Grade	IP68
Cable ports	4
Cable diameter	Φ 10-18 mm
Fiber Splice Capacity	144(bundle)/ 432(ribbon)
Tray Capacity	24(bundle)/ 6/12(ribbon)
Tray Count	6 max
Application	Aerial/Wall/pipeline/Direct burial mounting/Manhole

Physical performance

Complete bend radius control	the bend radius > 30mm
Flammability	GB5169.7 Experiment A
Ambient condition - Operating temperature	-40℃~+65 ℃
Ambient condition - Relative humidity	≦ 85% （+30℃）
Ambient condition - Atmospheric pressure	70~106kP
Ambient condition - Storage temperature	-25℃~+60 ℃
Voltage Strength	under 15KV direct current, without breakdown or flashover phenomenon.
Insulation Resistance	≥2×104MΩ
Tensile Force	≥800N
Leakproofness	inflate the closure, making internal pressure to 100Kpa，then put the closure into the water over 15min, without any bubbles or pressure drop happened.
Impact Strength	can bear 16N.m.after 3 impact times; there is no crack on the body.

Internal Structure of Inline Fiber Optic Splice Closure

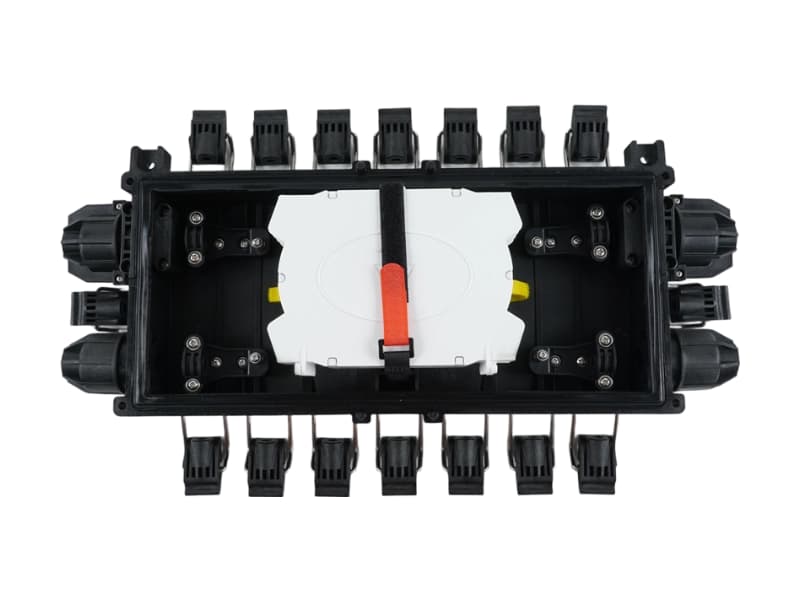

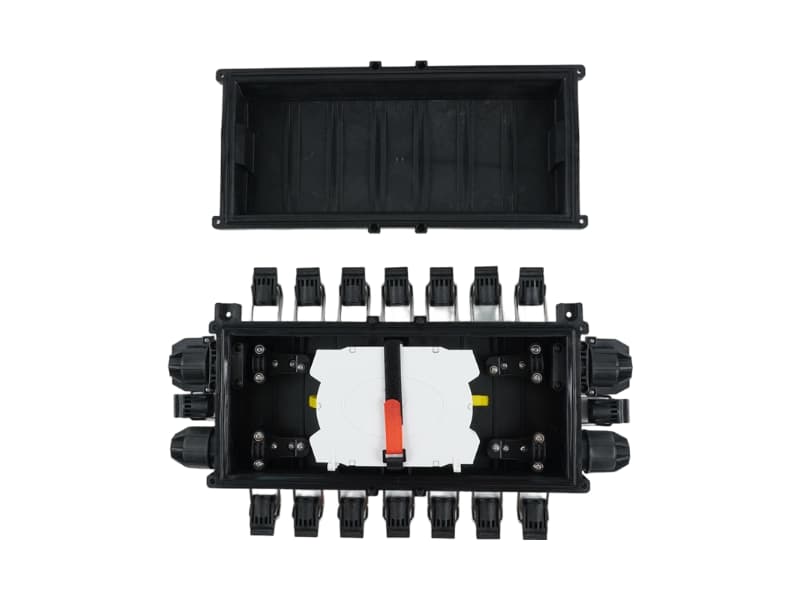

Internal View 1

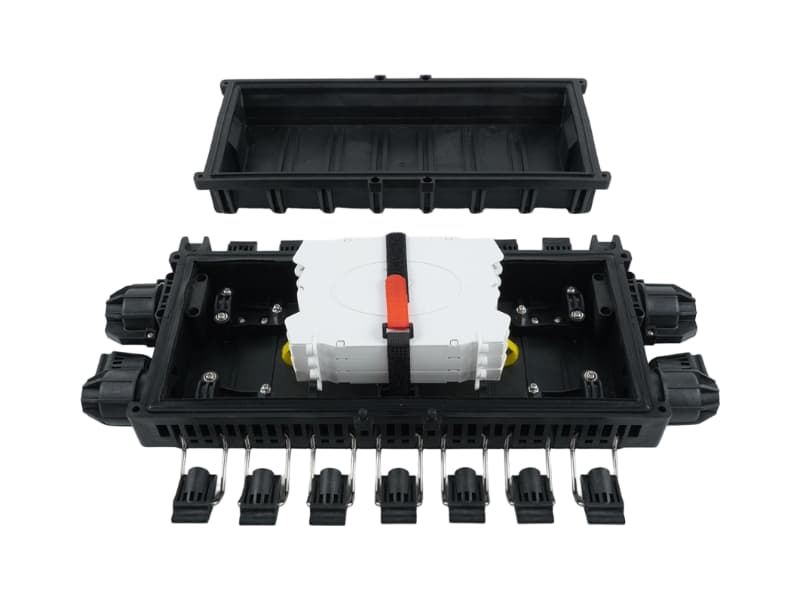

Internal View 2

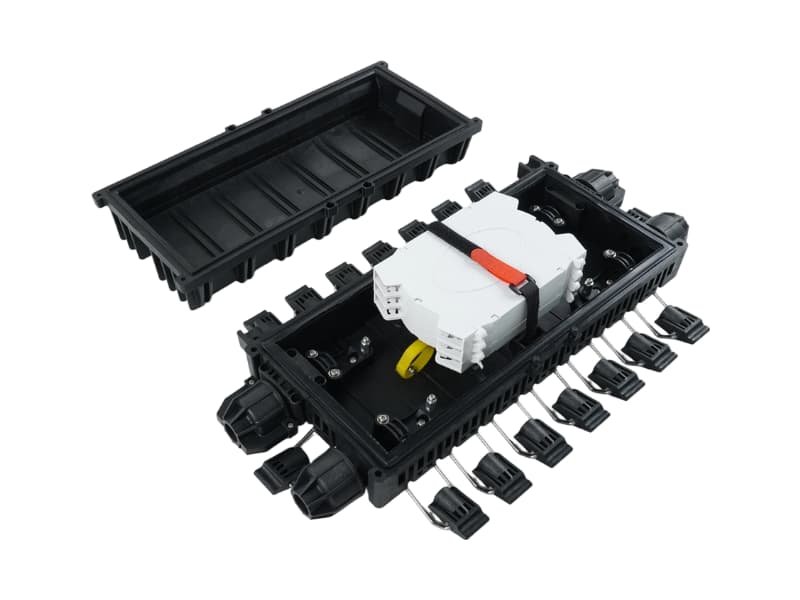

Internal View 3

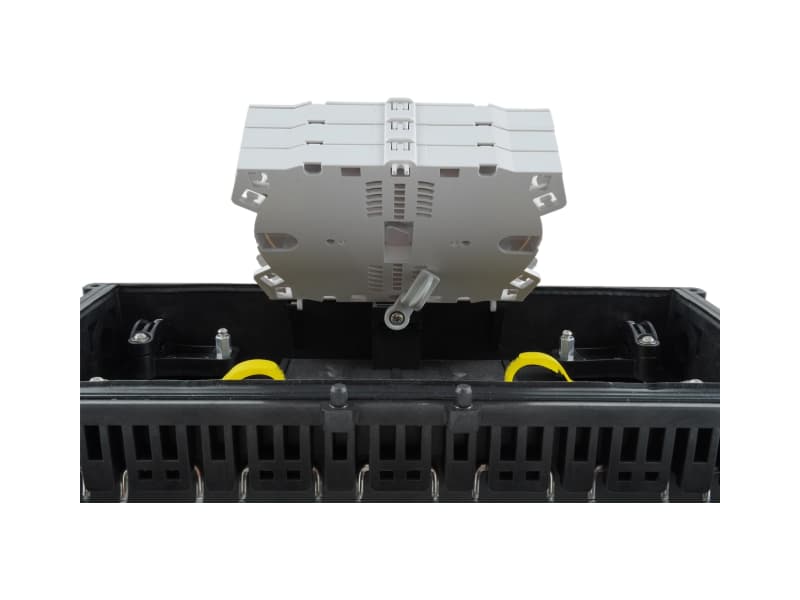

Internal View 4

Internal View 5

Internal View 6

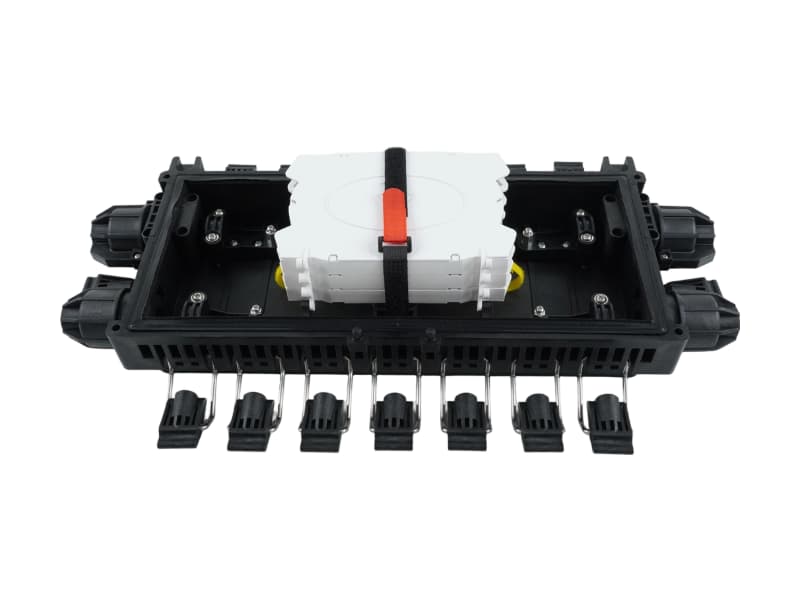

Internal View 7

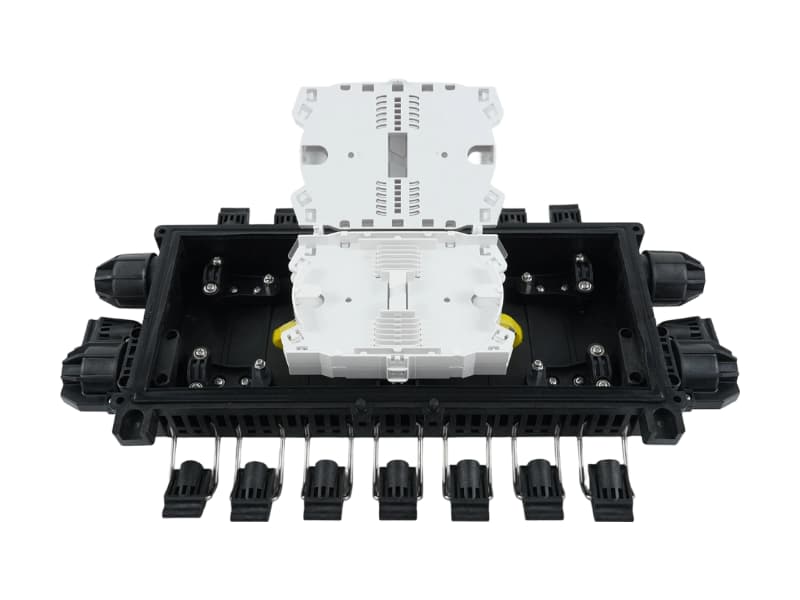

Internal View 8

Internal View 9

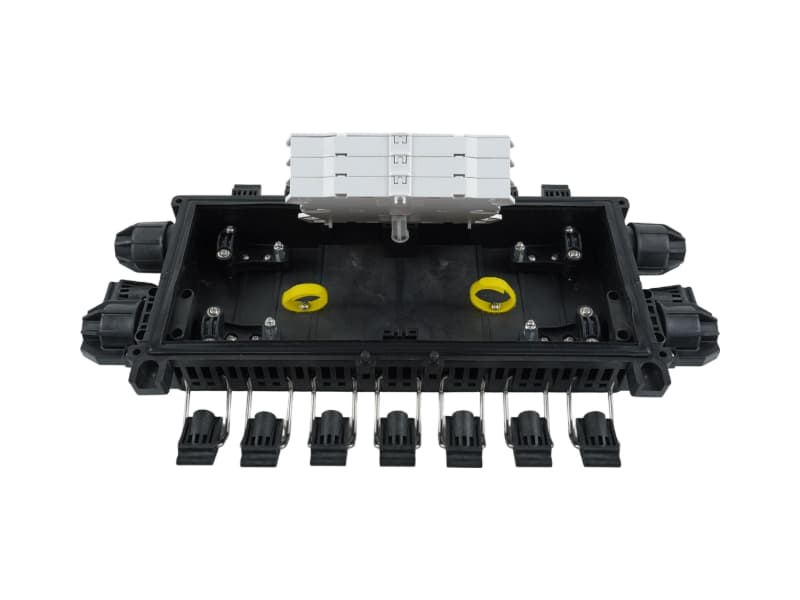

Internal View 10

Installation Applications

Aerial Mounted

Designed to be securely installed in overhead telecommunications line environments.

Wall mounted/pipeline

Perfectly compatible for surface wall mounting or integrating directly within infrastructure pipelines.

direct burial/manhole

Built ruggedly with IP68 protection to handle extreme conditions in manholes and underground direct burial.

Ordering Information

Type	Size	Inner Carton size	Outer carton size
GJS-6808-B	520×200×159mm	540×220×180 mm (1PCS)	560×460×570 mm (6 PCS)

Accessories

Standard Accessories

Item	Description	Qty
1	Insulation tap	1 roll
2	Splicing protective tube	1 bag
3	Nylon cable tie	1 bag
4	Choke plug	2 pcs
5	Installation manual	1 set
6	EVA tube	1 roll

Optional accessory

Item	Description	Qty
1	Air valve	1 set
2	Aerial mounting fittings	1 set
3	Wall mounting fittings	1 set
4	Ground lead	1 set

Package Contents & Accessories

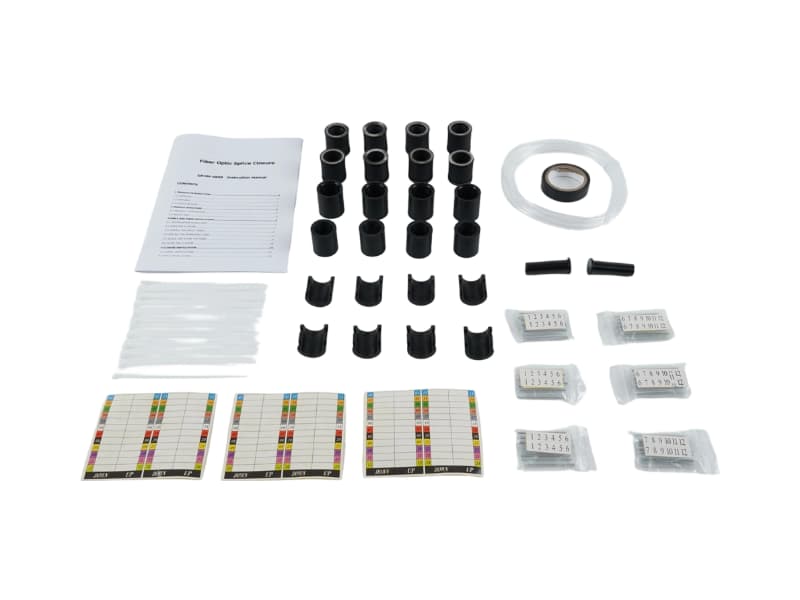

Fiber Access Terminal Package Contents including pole mount clamps, screws, and zip ties

Frequently Asked Questions

Q Can this closure withstand harsh environments like water exposure?

A: Yes, it features an IP degree of IP68 and leakproofness tested by inflating the closure to an internal pressure of 100Kpa and submerging it in water for over 15 minutes without any bubbles or pressure drop happening.

Q What materials are used to ensure the durability of the closure?

A: The material includes aging-resistant plastic and corrosion-resistant metalworking subassemblies. Specifically, it has a PC+GF closure body and an inside PC+ABS splice tray. Furthermore, the tighten screws and gaskets are all made of 304 stainless steel.

Q What is the maximum fiber splicing capacity for this model?

A: The fiber splice capacity is 144 (bundle) or up to 432 (ribbon). It supports a maximum tray count of 6, with a tray capacity of 24 (bundle) or 6/12 (ribbon) per tray.
