4 Core Outdoor Fiber Termination Box IP55 Wall Mount FTTH Box

Home Products 1. FO Connection Solutions 1.5 Fiber Termination Box

4 Core Outdoor Fiber Termination Box IP55 Wall Mount FTTH Box

4 Core Outdoor Fiber Termination Box IP55 Wall Mount FTTH Box

Name: 4 Core Outdoor Fiber Termination Box IP55 Wall Mount FTTH Box
Availability: InStock

Fiber Termination Box (FTB) is mounted to in & out side wall of building or pole to distribute and connect optical cable for distribution of subscriber ,the box achieve mechanical splicing, splicing and distribution of fiber, use for FTTH network.

Inquiry now

Key Features

■ Outdoor type
■ Nonmetallic material（PC+10%GF/ABS)
■ Compacted wall mount type
■ Simple and clearly arranged incoming and outgoing cable management
■ Higher fiber count capacity box is available upon request
■ Easy maintenance ,easy access with front door
■ Support both mechanical and fusion splicing
■Low cost solution with high protection for the terminated fibers
■IP55 rated for outdoor applications
■Customized design product is available upon request

Applications

■ FTTX Systems
■ PON Networks
■ Fiber Optic Termination
■ CATV

Product Views & Internal Structure

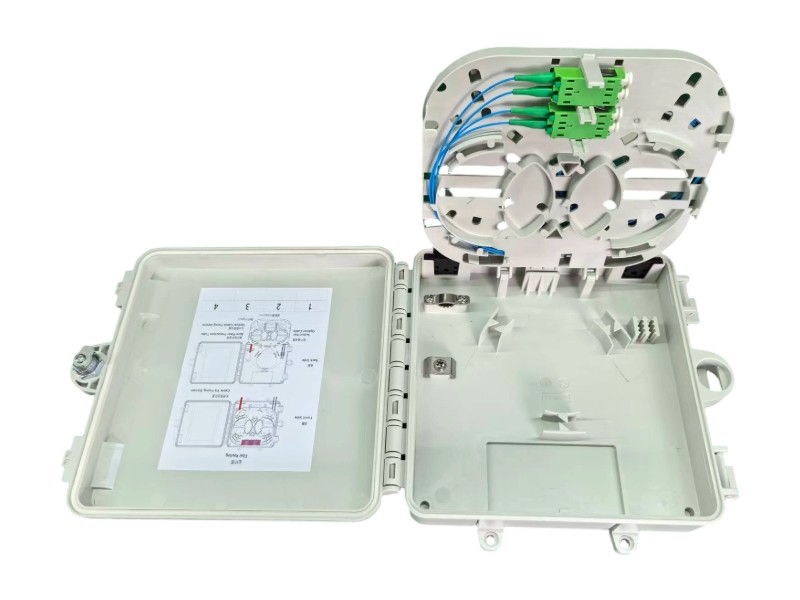

Internal Detail View 1

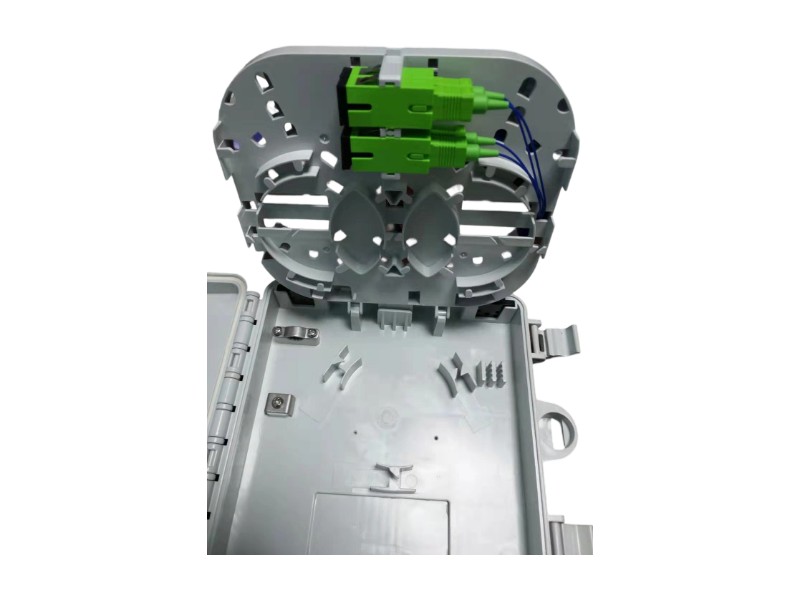

Internal Detail View 2

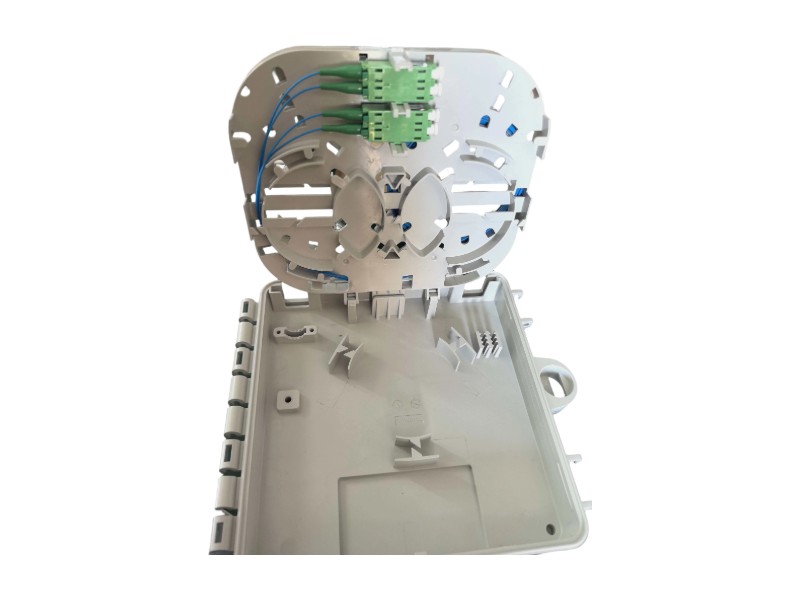

Internal Detail View 3

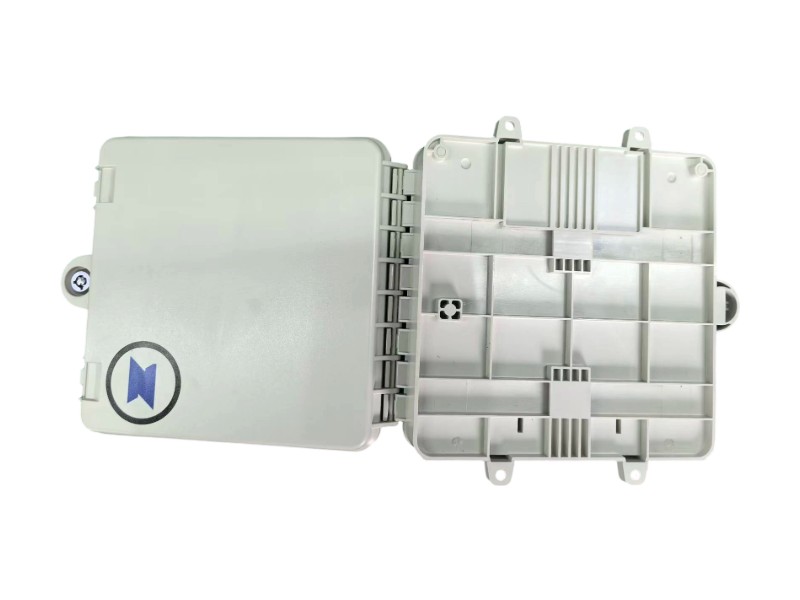

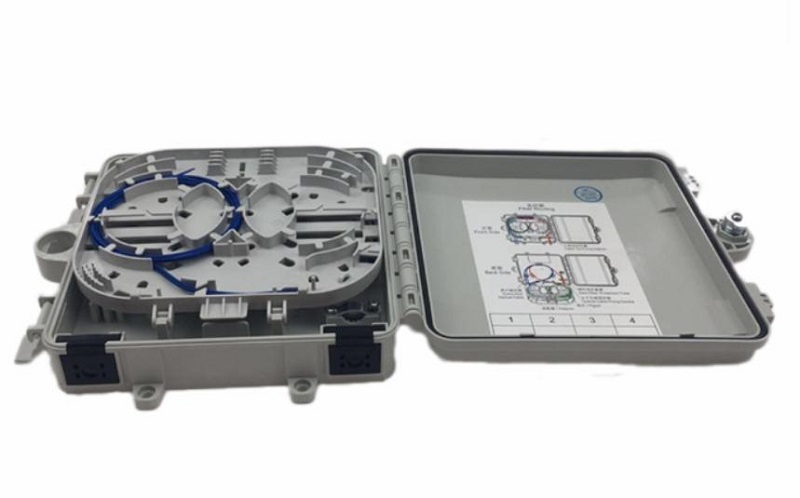

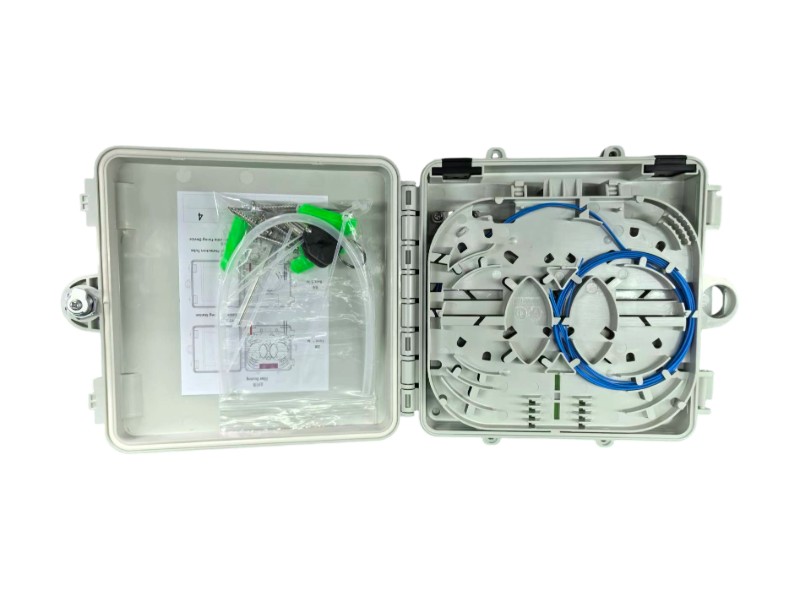

Rear Unfolded View

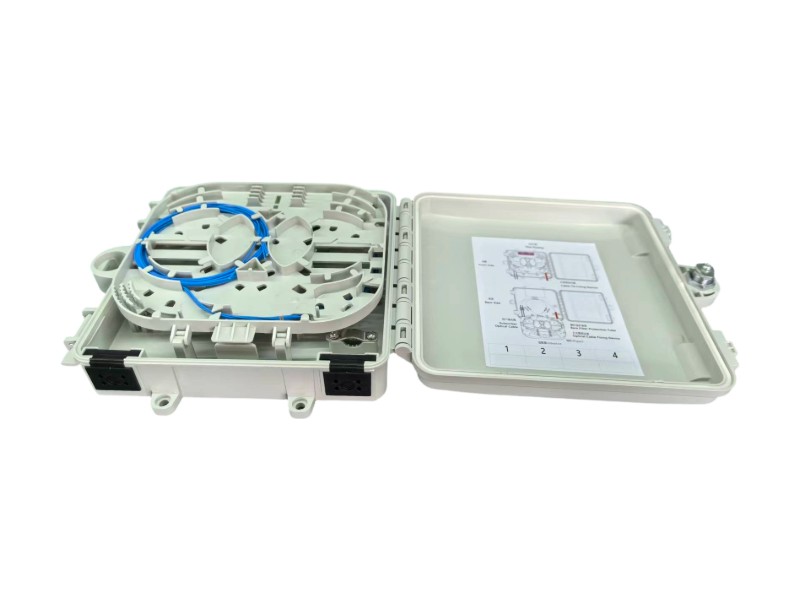

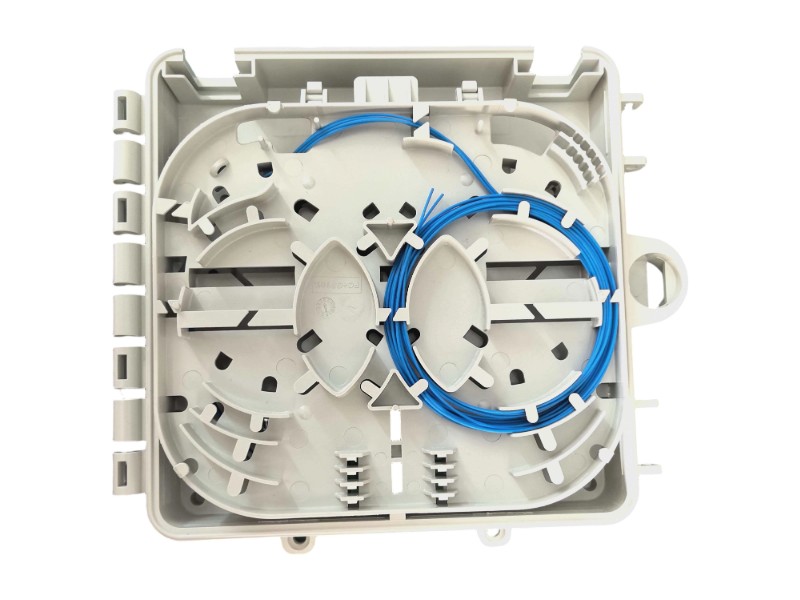

Internal Top View (Open Box)

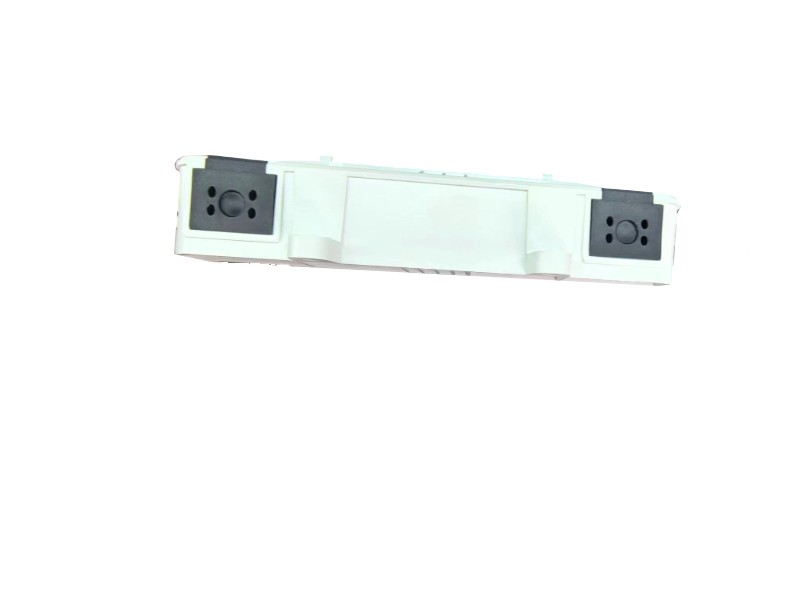

Top Detail View

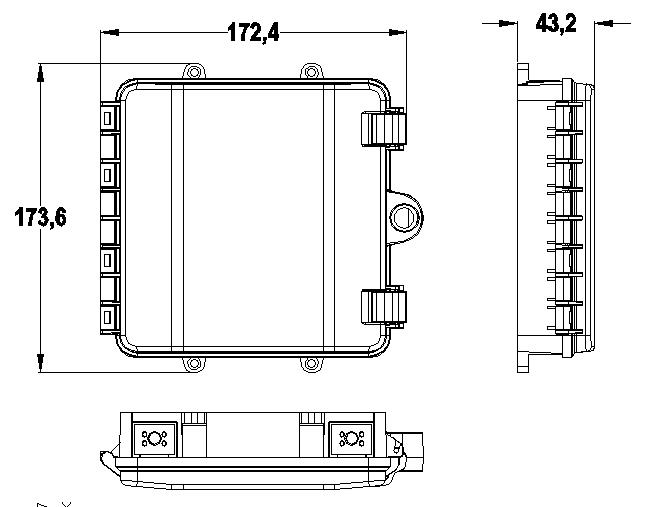

2.1 Dimension and capacity

Description	FTB-4SCSX/2LCDX
Dimensions (WxDxH)	182×43×174mm
Splice Capacity	Max. 4 Cores
Cable Port	In: 1-port (¢12mm) / Out: 1-port (¢3-6mm)
Color	Ivory / White
Main Body Material	Plastic: PC+ABS/10%GF
Installation Type	Wall / Pole Type Outdoor

Specification

Wall Mounted termination box for indoor/outdoor use
Up to 4 Fiber capacity LC duplex(2Pcs long ear) or 4 fiber SC Simplex (short ear)
Available for SC Simplex Adaptors or LC duplex
