GJS-6814-C FTTX/PON Inline Fiber Optic Splice Mechanical Sealing Enclosure

Home Products 1. FO Connection Solutions 1.5 Fiber Termination Box

GJS-6814-C FTTX/PON Inline Fiber Optic Splice Mechanical Sealing Enclosure

6-Port Mechanical Seal Fiber Optic Joint Box for FTTX Networks

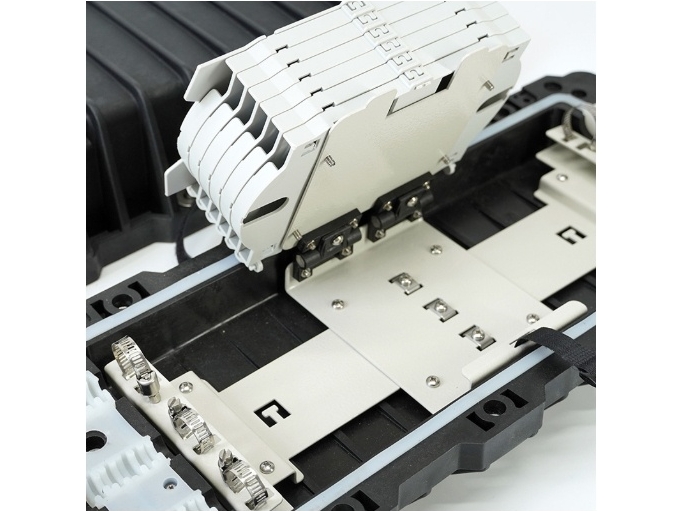

High-Density 1152 Core Ribbon Horizontal Fiber Splice Enclosure

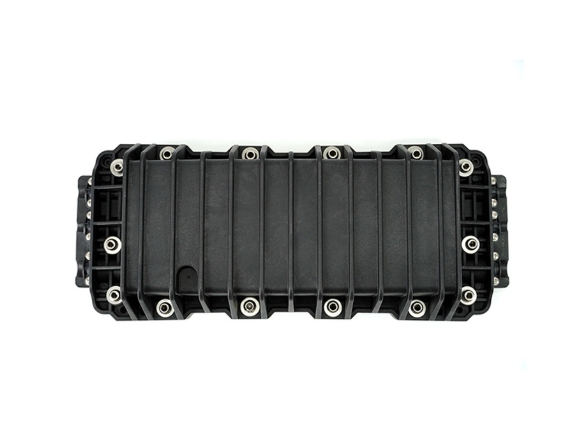

Stacked PC+ABS Splice Trays Inside GJS-6814-C Fiber Distribution Closure

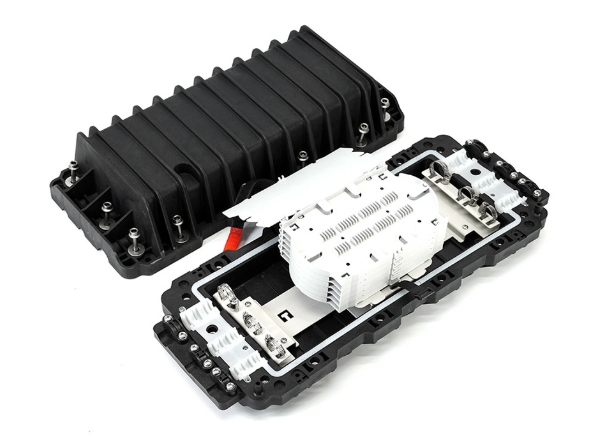

Aerial Mounted GJS-6814-C Inline Fiber Splice Case

GJS-6814-C FTTX/PON Inline Fiber Optic Splice Mechanical Sealing Enclosure

Name: GJS-6814-C FTTX/PON Inline Fiber Optic Splice Mechanical Sealing Enclosure
Availability: InStock

The GJS-6814-C is a robust, IP68-rated inline fiber optic splice closure designed for high-density networks, supporting up to 1152 ribbon cores with a secure 6-port mechanical seal. Built with durable polymer materials, it offers a highly versatile and reliable distribution solution for aerial, underground, and wall-mounted FTTX/PON applications.

Inquiry now

Key Features

■ Engineered for high-density network distributions, supporting a massive capacity of up to 1152 ribbon cores or 288 bundle cores across 6 maximum trays.
■ Constructed from ruggedized Polymer Modified Plastics, featuring a PC+GF closure body and PC+ABS inside splice trays for superior environmental resilience.
■ Features a highly efficient mechanical sealing structure utilizing a 6-port configuration (3 inlets, 3 outlets) that requires no special tooling for installation.
■ Incorporates a smart hinged type design equipped with robust screws, ensuring simple opening and reliable re-entry for routine network maintenance.
■ Strictly maintains signal integrity with complete bend radius control, guaranteeing the fiber bend radius remains > 30mm.
■ Delivers a certified IP68 protection degree and utilizes aging-resistant plastics alongside corrosion-resistant metalworking subassemblies for a service life exceeding 20 years.

Applications

■ Serves as a critical distribution node for the termination of branching downstream optical cables within advanced PON optical communication networks.
■ Provides robust end A/B access for heavy-duty optical cables deployed across extensive FTTX infrastructures.
■ Perfectly adapted for the lead-out and secure fixation of high-capacity multi-fiber access cables as well as splicing low-capacity single-fiber lines.
■ Highly versatile deployment capabilities support complex installations including Aerial, Wall Pipe line, Manhole, and Underground mounting.

Product Views & Internal Structure

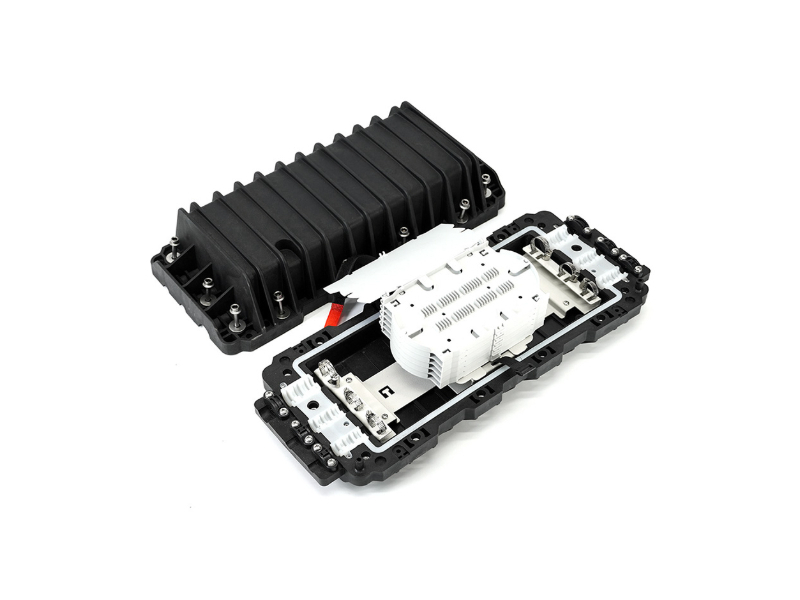

GJS-6808-B product appearance with hinged buckle design

Internal Splice Trays with Cover Open

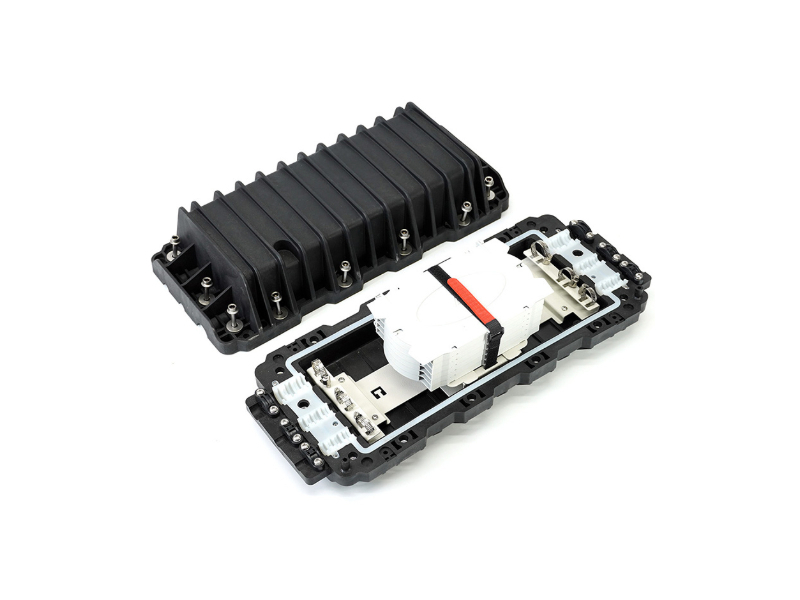

Internal PC+ABS splice tray showing fiber routing

Secured Splice Trays Layout

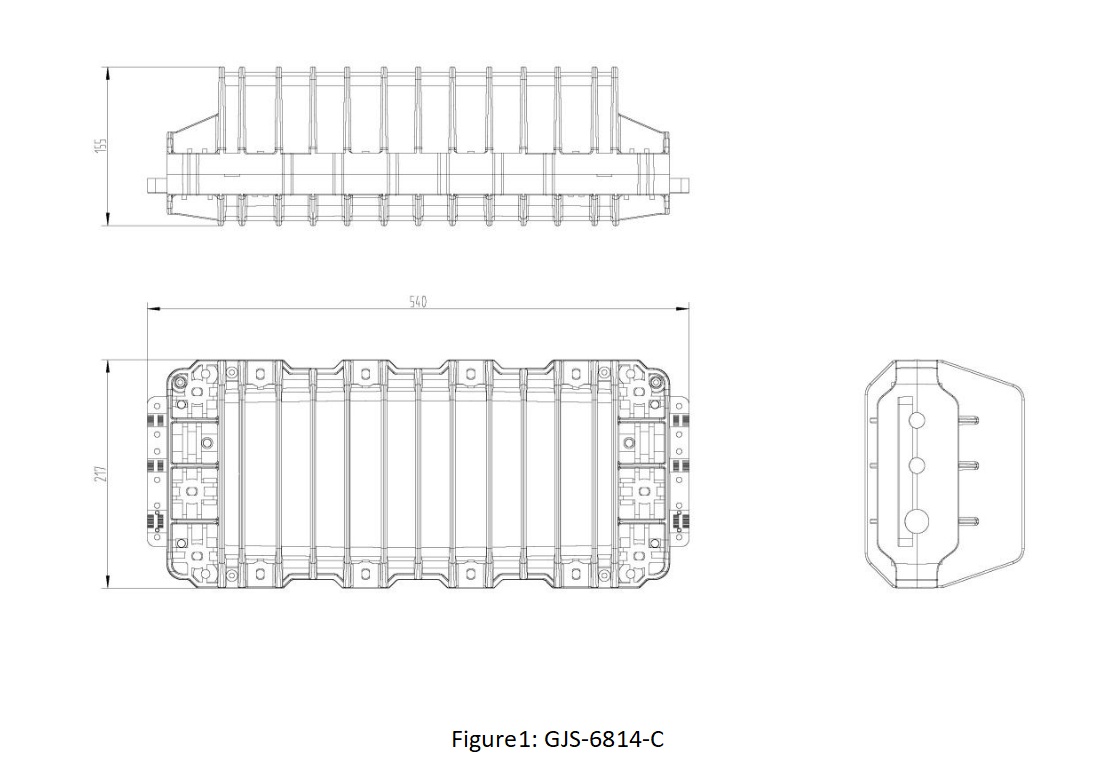

Structure drawing of GJS-6808 with dimensions

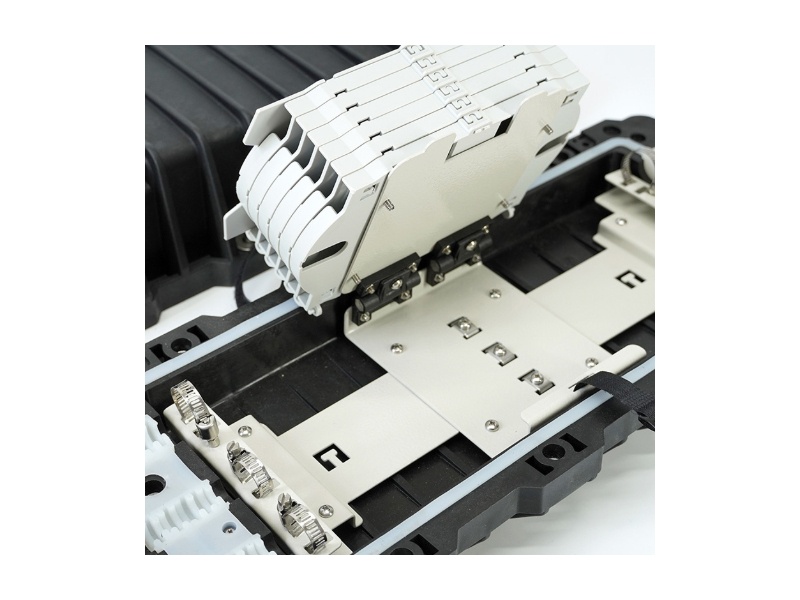

Hinged Tray Mechanism View

GJS-6814-C IP68 Inline Mechanical Fiber Optic Splice Closure

Dimension and capacity

Model No.	GJS-6814-C
Style	In-line/ Horizontal
Dimensions	540(L)×217(W)×155(H) mm
Weight (kg)	4.0 - 4.5
Material	Polymer Modified Plastics
Sealing Type	Mechanical Seal
Protection Grade	IP68
Cable ports	3 inlets and 3 outlets
Cable diameter	Φ 10-18 mm
Fiber Splice Capacity	96/144/288(bundle)/ 576/1152(ribbon)
Tray Capacity	24/48(bundle)/ 6/12(ribbon)
Tray Count	6 max
Application	Aerial/Wall/pipeline/Direct burial mounting/Manhole

Physical performance

Complete bend radius control	the bend radius > 30mm
Flammability	GB5169.7 Experiment A
Ambient condition - Operating temperature	-40℃~+65 ℃
Ambient condition - Relative humidity	≦ 85% （+30℃）
Ambient condition - Atmospheric pressure	70~106kP
Ambient condition - Storage temperature	-25℃~+60 ℃
Voltage Strength	under 15KV direct current, without breakdown or flashover phenomenon.
Insulation Resistance	≥2×104MΩ
Tensile Force	≥800N
Leakproofness	inflate the closure, making internal pressure to 100Kpa，then put the closure into the water over 15min, without any bubbles or pressure drop happened.
Impact Strength	can bear 16N.m.after 3 impact times; there is no crack on the body.

Installation Applications

Aerial Mounted

Purpose-built to be securely installed in overhead telecommunications line environments, managing high-capacity drop nodes.

Wall mounted/pipeline

Provides exceptional compatibility for surface wall mounting or integrating directly within demanding infrastructure pipelines.

direct burial/manhole

Built ruggedly with IP68 defense and 16N.m impact strength to handle the extreme moisture and pressure of manholes and underground direct burials.

Ordering Information

Type	Size	Inner Carton size	Outer carton size
GJS-6814-C	540×217×155mm	570×235×180 mm (1PCS)	580×460×530 mm (6 PCS)

Accessories

Standard Accessories

Item	Description	Qty
1	Insulation tap	1 roll
2	Splicing protective tube	1 bag
3	Nylon cable tie	1 bag
4	Choke plug	2 pcs
5	Installation manual	1 set
6	EVA tube	1 roll

Optional accessory

Item	Description	Qty
1	Air valve	1 set
2	Aerial mounting fittings	1 set
3	Wall mounting fittings	1 set
4	Ground lead	1 set

Frequently Asked Questions

Q How does this heavy-duty closure perform in wet or underground environments?

A: Extremely well. The enclosure maintains an IP68 degree of protection and has been rigorously verified for leakproofness. It safely withstands internal inflation to 100Kpa while fully submerged in water for over 15 minutes, with zero bubbles or pressure drop recorded.

Q What is the structural composition that gives it a 20-year service life?

A: It utilizes highly durable Polymer Modified Plastics, featuring a PC+GF main closure body combined with internal PC+ABS splice trays. This is further reinforced by aging-resistant plastics and corrosion-resistant metalworking subassemblies, ensuring it easily surpasses a 20-year lifespan.

Q What is the maximum fiber capacity and port configuration for the GJS-6814-C?

A: This specific inline model features 6 cable ports (3 inlets and 3 outlets) accommodating Φ 10-18 mm diameter cables. Designed for massive scalability, it houses up to 6 trays supporting a maximum capacity of 288 fibers (bundle) or up to 1152 fibers (ribbon).
