IP68 Waterproof 16-Port Aerial Drop Joint Closure Pre-terminated Fiber Access Terminal (FAT)

Home Products 1. FO Connection Solutions 1.5 Fiber Termination Box

IP68 Waterproof 16-Port Aerial Drop Joint Closure Pre-terminated Fiber Access Terminal (FAT)

Black IP68 waterproof pre-terminated fiber access terminal exterior

Wall-mounted installation of IP68 waterproof fiber access terminal

Outdoor pole-mounted installation of 16-core fiber optical terminal

FTTH PON network outdoor fiber distribution closure

Package contents and pole mount accessories for fiber access hub

IP68 Waterproof 16-Port Aerial Drop Joint Closure Pre-terminated Fiber Access Terminal (FAT)

Name: IP68 Waterproof 16-Port Aerial Drop Joint Closure Pre-terminated Fiber Access Terminal (FAT)
Availability: InStock

The fiber access termination hub is able to hold up to 16 subscribers and 96 splicing points as terminal. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Inquiry now

Key Features

■ Water-proof design with IP-68 Protection Level
■ Constructed from durable ABS and PC+ABS materials
■ Integrated with flap-up splice cassette and adaptor holder
■ All stainless metal plate and anti-rusting bolts/nuts
■ Ability to host up to 4 mini steel PLC splitters (1:4, 1:8, or 1:16)
■ Mechanical sealing structure, uncut port and 2 separate cable ports
■ 16 SC or 12 Fast Connect ports with robust pre-terminated options

Applications

■ FTTX network systems (Fiber To The X)
■ Splicing closure and termination points
■ Aerial drop deployments
■ Outdoor pole-mounted installations
■ High-capacity fiber distribution and storage
■ Connecting feeder cables with drop cables securely

Internal Routing & Structures

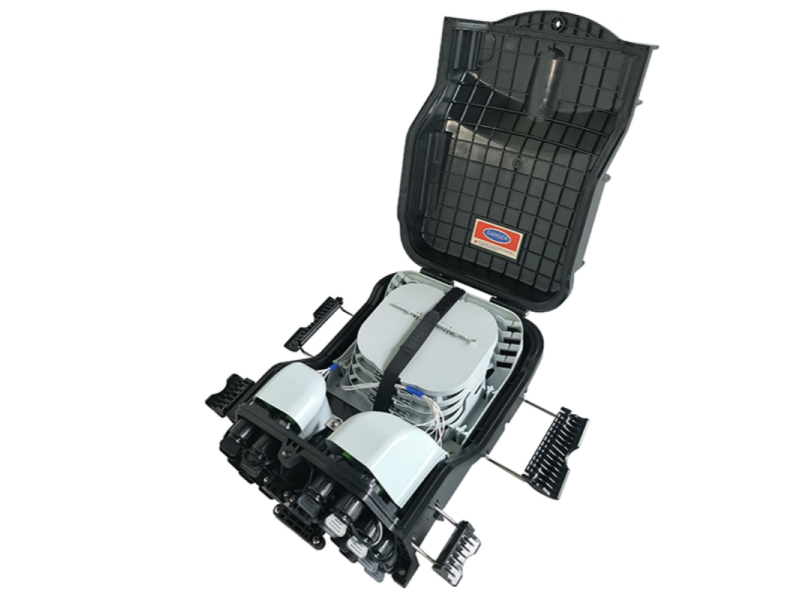

Inside view of 16-port aerial drop joint closure with splice trays

Internal Structure

Pre-terminated SC and LC waterproof adapters on FTTH terminal box

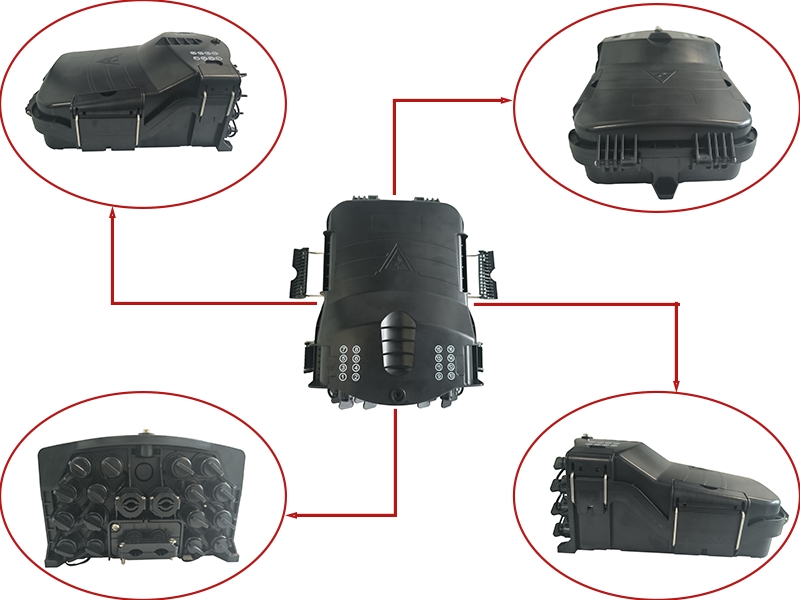

Multi-Angle View

Flip-up Cassettes View

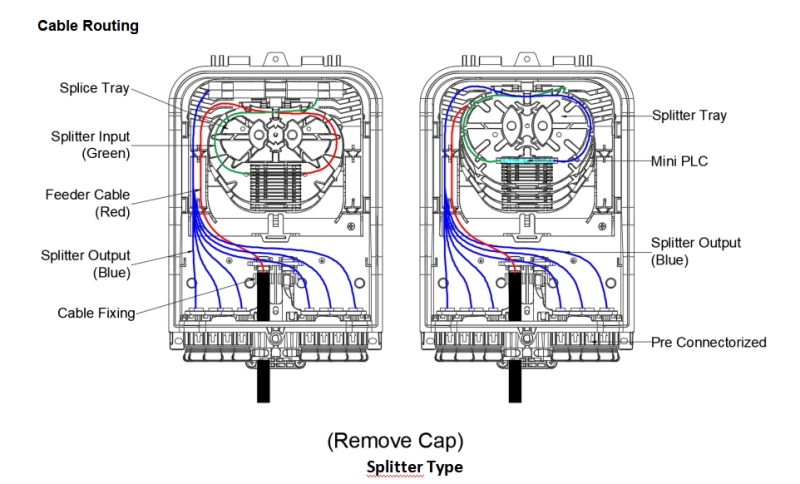

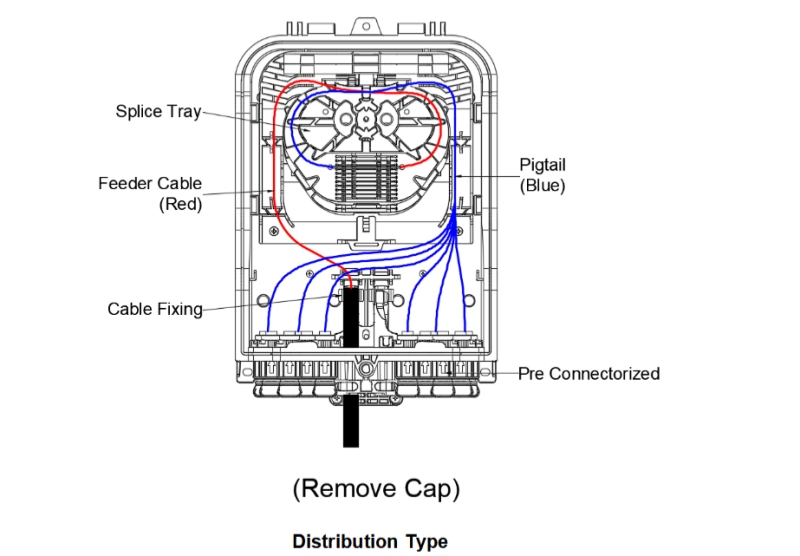

Internal cable routing and splitter configuration diagram for FAT box

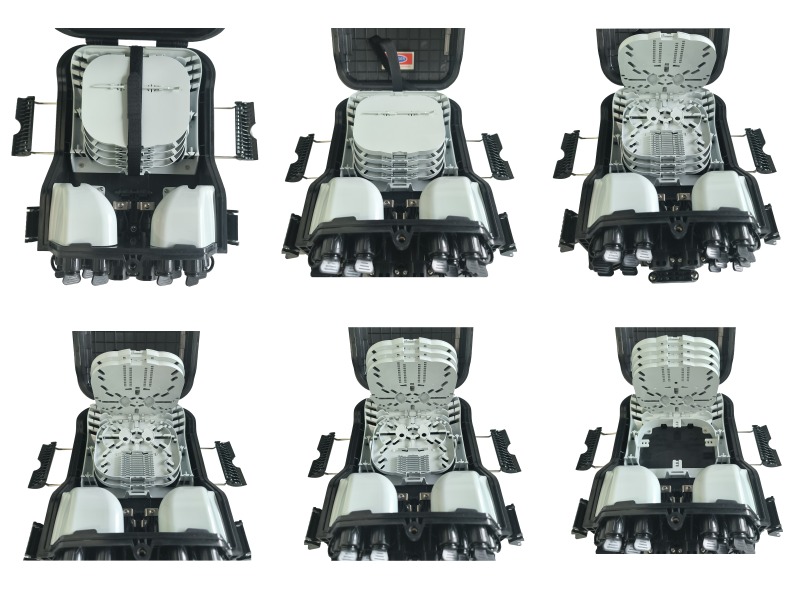

Flip-up splice cassettes inside 96-fiber capacity joint closure

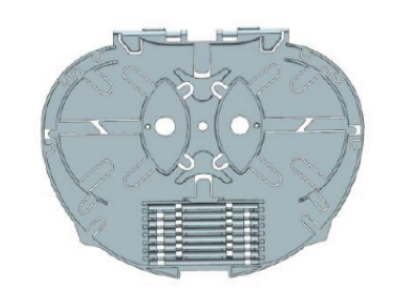

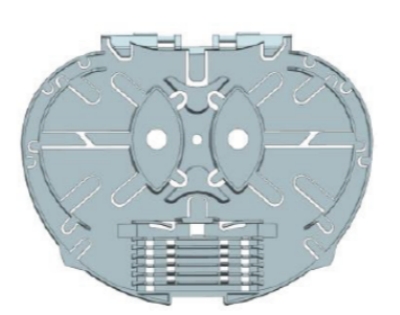

Cassettes Specifications

Item	Splicing Tray A	Splicing Tray B
Dimensions (H x W x D; mm)	134 × 104 × 8	134 × 104 × 4
Net weight (kg)	0.021	0.015
Color	Customizable	Customizable
Material	PC+ABS	PC+ABS
Splicing capacity (cores)	12, 1 slot for 1/8 PLC	8

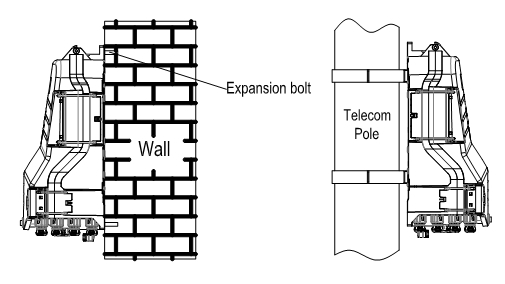

Installation Guide

Wall-Mounted Installation

Drill 3 holes in the wall according to the installation size, place the expansion bolts, place the box to match up the holes, and use bolts to fasten securely.

Pole-Mounted Installation

Fix 2 sets of the hose clamps tightly around the telecom pole to ensure a robust and stable outdoor installation.

Product & Order Information

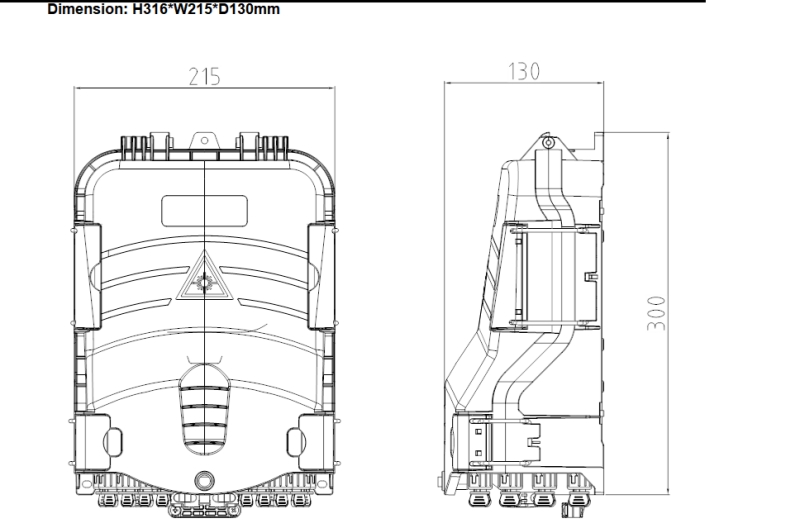

Name	Model	Dimension (mm)	Max Capacity (Termination)	Max Capacity (Splice)	Remarks
Fiber Access Terminal	FAT-16SC	316 × 215 × 130	16	16 / 96	Ability to host 4 mini steel PLC splitters (4pc of 14 or 21:8 or 1:16). Max: 16*SC Water Proof Adaptor. Splice 96 Fibers (4 trays, 24 fiber/tray).
Fiber Access Terminal	FAT-8SC+4DLC	316 × 215 × 130	16	16 / 96	Ability to host 4 mini steel PLC splitters. Max: 8SC/APC Adaptor + 4LC/APC duplex water proof Adaptor. Splice 96 Fibers (4 trays, 24 fiber/tray).

Package Contents & Accessories

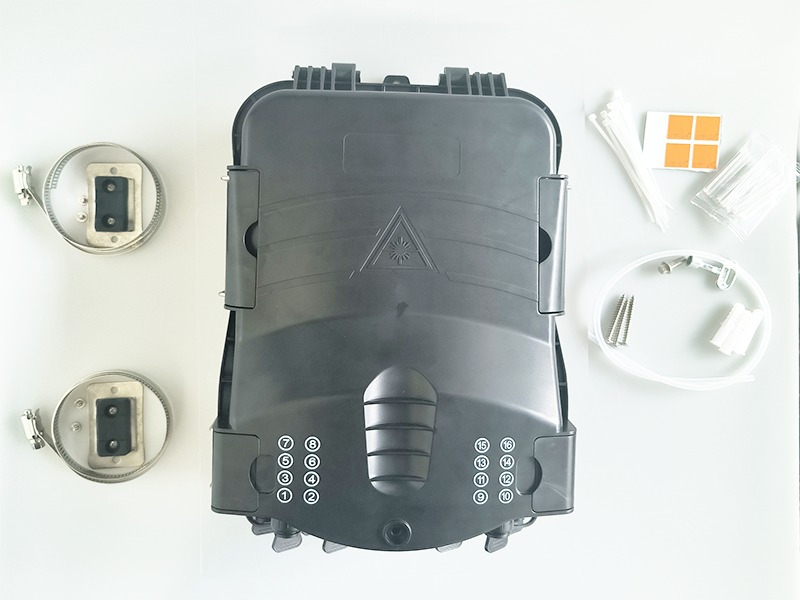

Fiber Access Terminal Package Contents including pole mount clamps, screws, and zip ties

Frequently Asked Questions

Q Can this FAT closure withstand harsh outdoor environments?

A: Yes, absolutely. It features an IP-68 water-proof protection level and is built with durable ABS and PC+ABS materials, along with anti-rusting stainless metal plates and bolts. It is specifically designed for reliable outdoor pole-mounted or wall-mounted applications.

Q What is the maximum splicing and splitting capacity?

A: This Fiber Access Terminal can hold up to 96 splicing points across 4 trays (24 fibers per tray). For splitting, it has the ability to host up to 4 mini steel PLC splitters (such as four 1:4 splitters, two 1:8 splitters, or one 1:16 splitter).

Q What types of adaptor ports are available for this model?

A: We offer configurations such as the FAT-16SC which supports up to 16 SC waterproof adaptors, and the FAT-8SC+4DLC which mixes up to 8 SC/APC adaptors and 4 LC/APC duplex waterproof adaptors, providing flexible pre-terminated solutions for varying project needs.
