144/288 Port 4U Rack Mount Modular Optical Distribution Frame ODF

Home Products 1. FO Connection Solutions 1.5 Fiber Termination Box

144/288 Port 4U Rack Mount Modular Optical Distribution Frame ODF

144/288 Port 4U Rack Mount Modular Optical Distribution Frame ODF

Name: 144/288 Port 4U Rack Mount Modular Optical Distribution Frame ODF
Availability: InStock

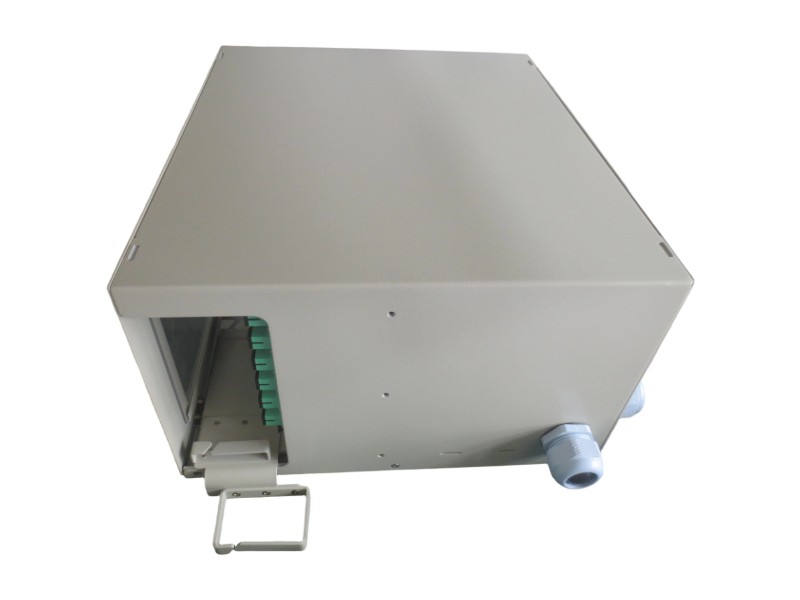

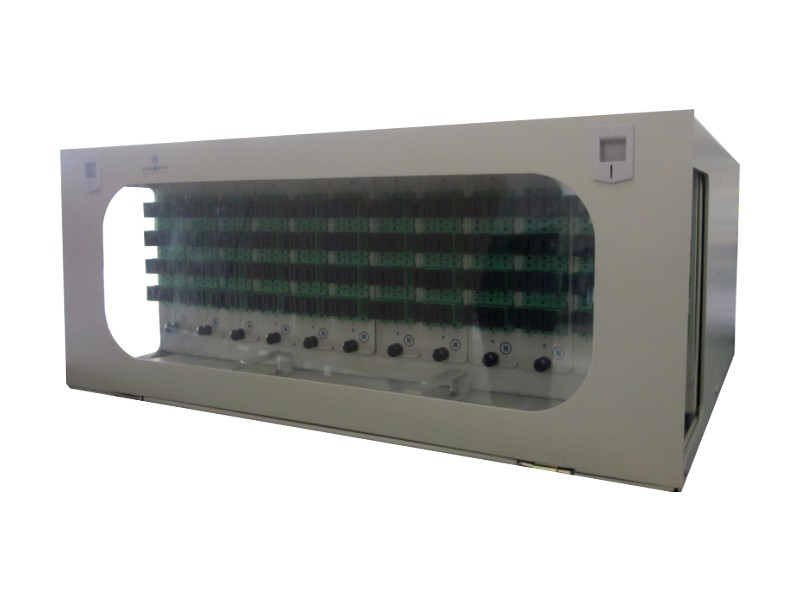

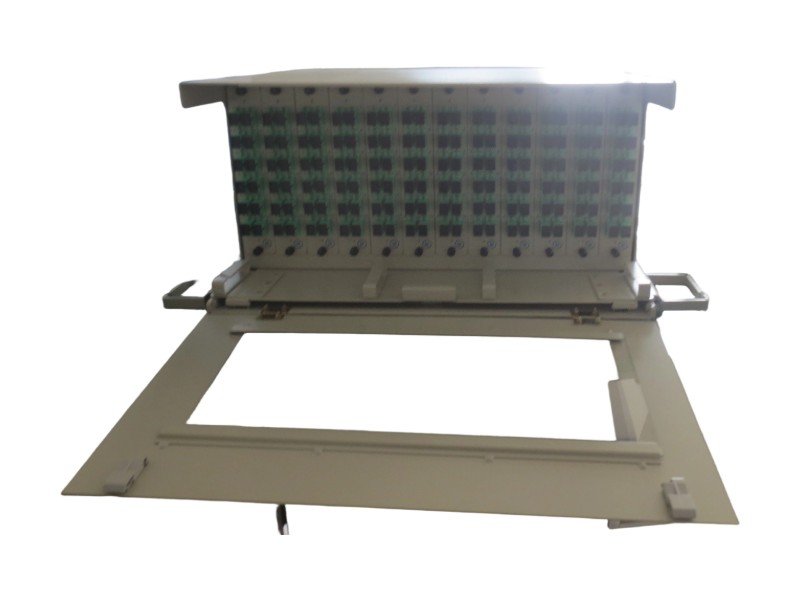

Designed for modern telecommunication networks, our 4U Modular Optical Distribution Frame is the ultimate solution for any High Density Data Center ODF deployment. Constructed from premium materials, this Aluminum Alloy Optical Distribution Unit offers both a lightweight build and exceptionally reliable connectivity.

Inquiry now

Key Features

■ Rack-mounted, 19 inch, modular design, flexible installation, convenient management and expand.
■ Inlet cables are from the right or left, and outlet cables are at the two sides of front.
■ Convenient operation and maintenance.
■ High-quality alloy aluminum enclosure, spraying for surface treatment, pleasing appearance and light in weight.
■ Each module can accommodate up to 12/24 splicing and adapter.

Applications

■ It is applicable to high-capacity and high-density data center, convenient management and reliable connection.

Dimensions of 144/288-fiber optical termination unit

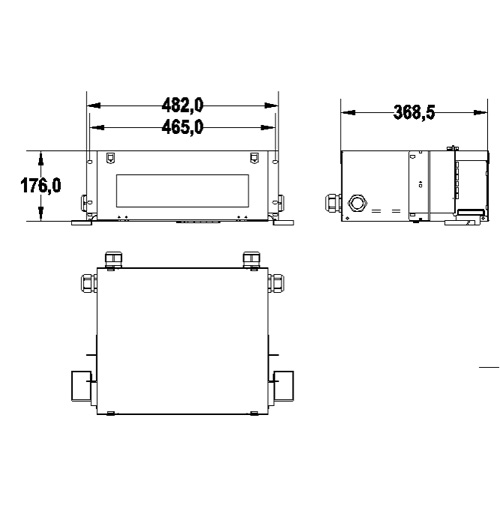

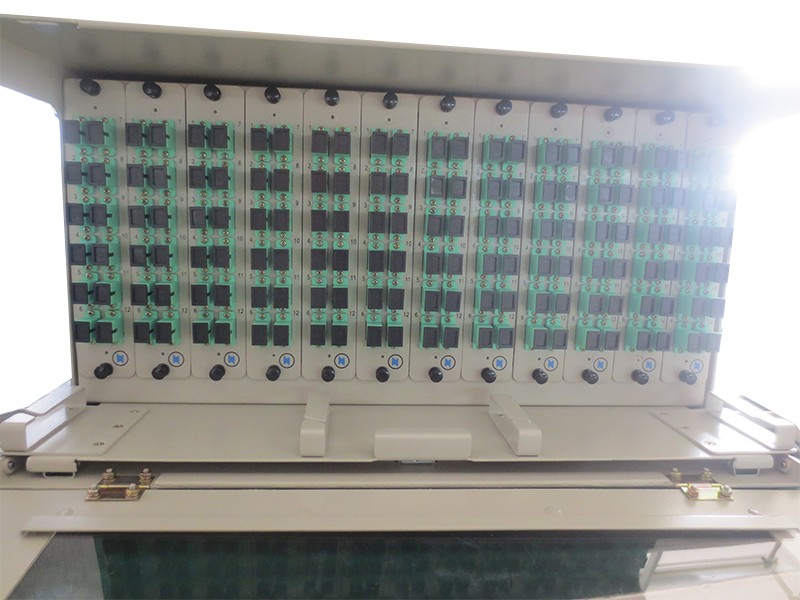

Front View of 4U Rack Mount Modular Optical Distribution Frame

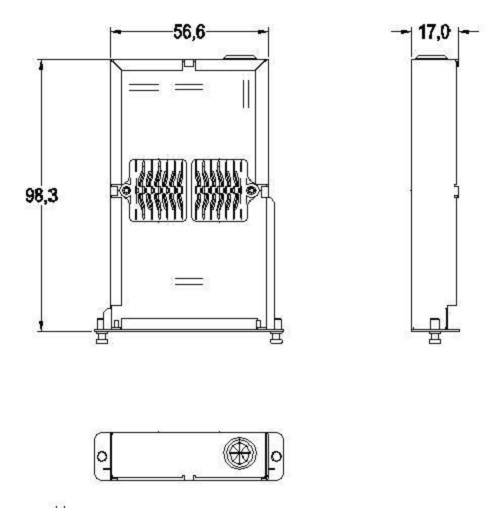

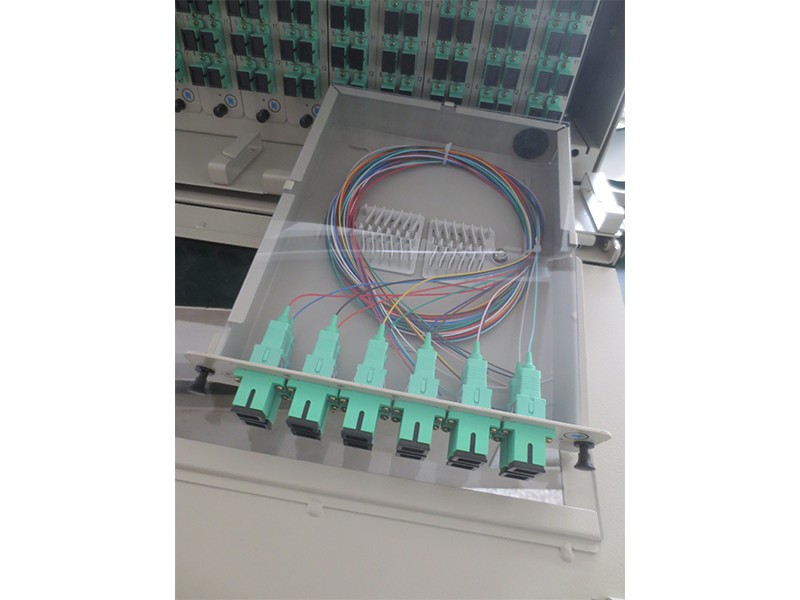

Internal Structure View of 144 Core Fiber Distribution Unit

Appearance Structure

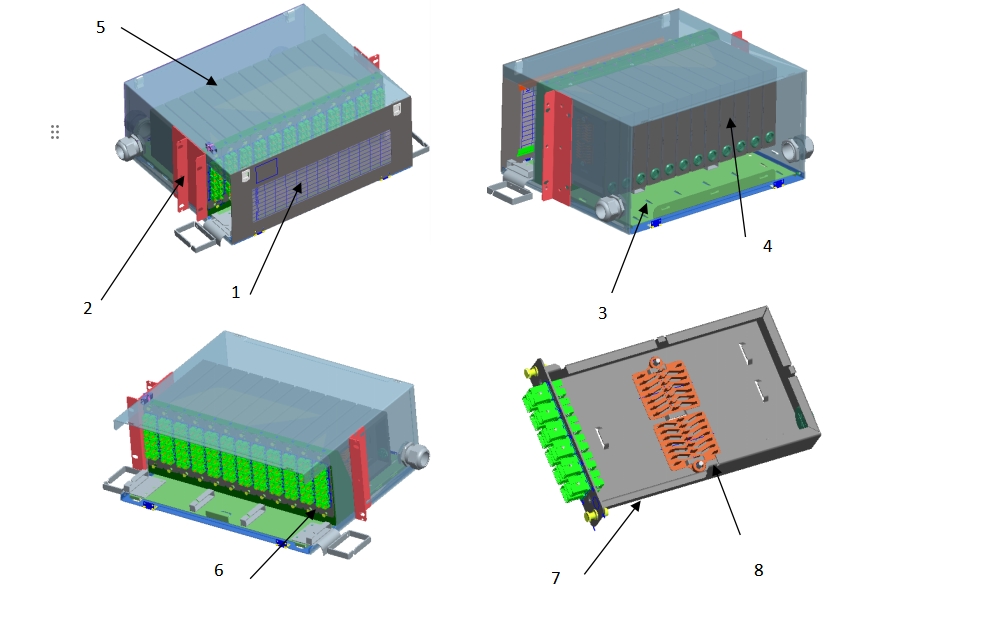

1 - Front Door 2 - Bracket 3 - Fiber Fixing 4 - Cable Storage Area 5 - Top Cover 6 - Module 7 - Splicing Tray 8 - Transparent Cover

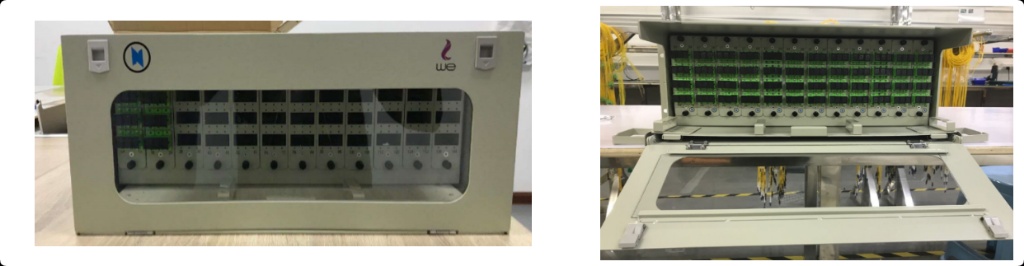

Exterior & Interior Structure

Ambient Conditions

Operation temperature	-5°C ~ +40°C
Storage temperature	-25°C ~ +55°C
Relative humidity	≤ 85% (+30°C)
Atmospheric pressure	70 ~ 106 kPa

Performance

Electrical Performance
Connector attenuation (insertion, interchange, repeat)	≤ 0.5 dB
Return loss	APC ≥ 60 dB, UPC ≥ 50 dB, PC ≥ 40 dB
Physical Performance
Identification	Clear identification to avoid possible disorder arising from removal during maintenance
Number of reterminations	> 500 times
Optical route design	Perfect optical route design to ensure bend radius of fibers greater than 30 mm
Inflammability	Compliance with GB5169.7 Experiment A

Ordering Information

Name	Ordering code	Model	Dimensions H × W × D (mm)	Remarks
144-fiber Optical Distribution Unit 4U	FOA801001	SC	176×482×411	SC Simplex Adapter
288-fiber Optical Distribution Unit 4U	FOA80A002	LC	176×482×411	LC duplex Adaptor
288-fiber Optical Distribution Unit 8U	FOA80A003	SC	356×482×411	SC Simplex Adapter

Accessories

The ODF will be loaded with all the required accessories (couplers, pigtails, heat shrinks (144 pcs), glands, protective tube 12 * 50 cm, Cable tie (36).. etc.)

Frequently Asked Questions

Q What is the capacity of this ODF?

A: It supports up to 144 or 288 cores in a 4U rack space. Each modular cassette holds 12 or 24 fibers for easy expansion.

Q Where is this ODF typically used?

A: It fits standard 19-inch racks , making it ideal for high-density data centers requiring reliable fiber management.

Q What is it made of and how are cables routed?

A: It is constructed from lightweight, durable aluminum alloy. Inlet cables enter from the left or right, and outlet cables exit from the front sides.
