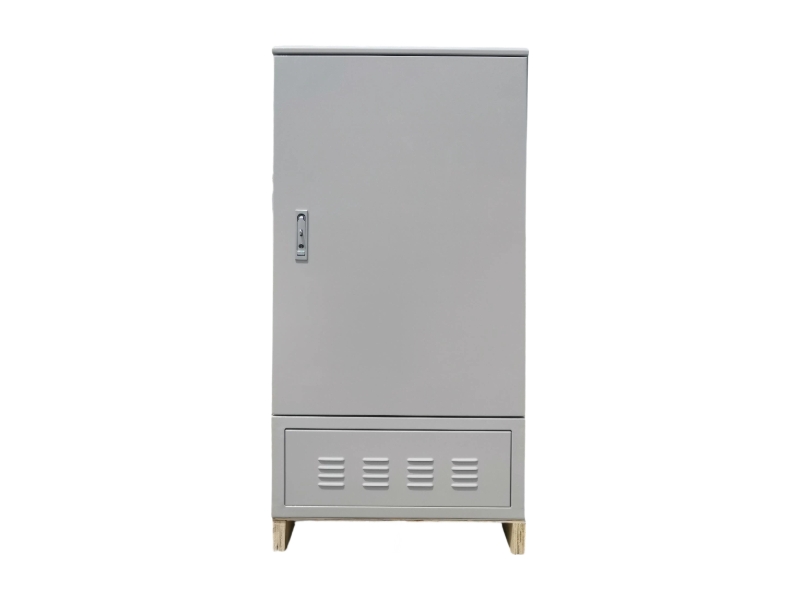

FiberTech High-Performance IP65 Outdoor Fiber Distribution Cabinet

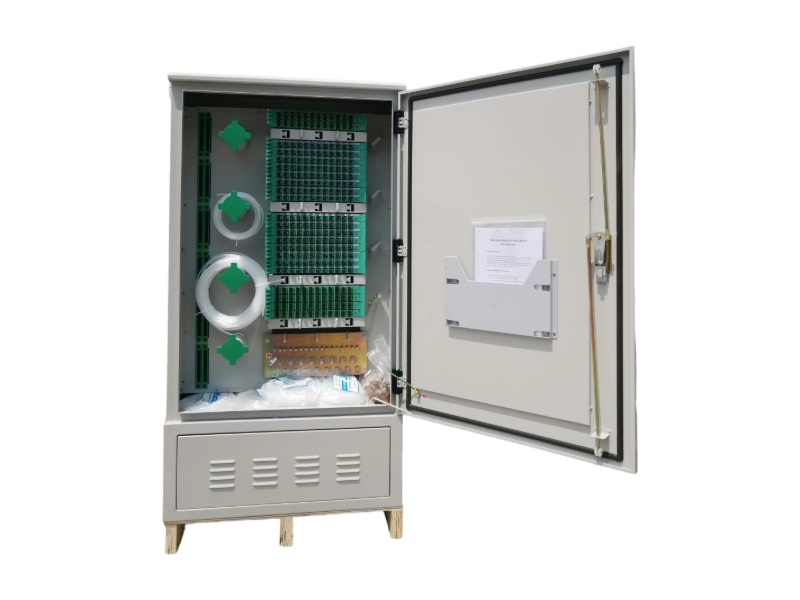

The FiberTech Outdoor Fiber Distribution Cabinet is a rugged, IP65-rated enclosure built from 1.5mm cold-rolled steel to endure extreme climates (-40°C to +60°C). It guarantees quick installation and features built-in splice units , optimal fiber routing , secure grounding , and a patented unbreakable lock, providing highly secure and reliable management for outdoor optical networks.
| Material | High quality cold rolled steel sheet 1.5 mm |
| IP Rating | IP 65 |
| Color | Natural color or Off-white (RAL 7035 White Grey) |

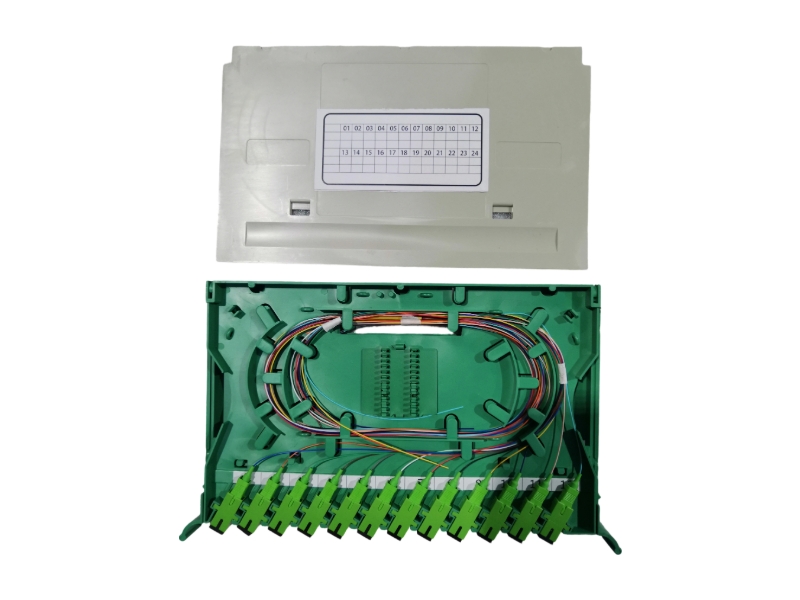

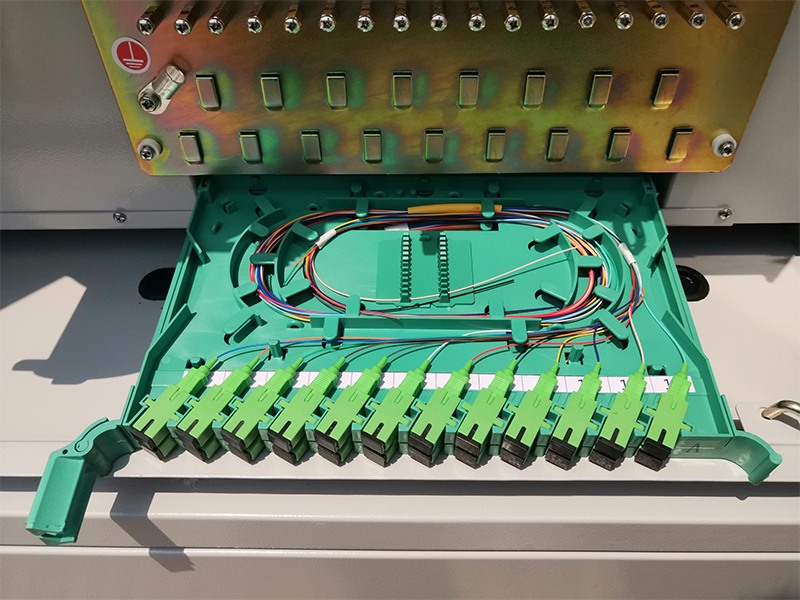

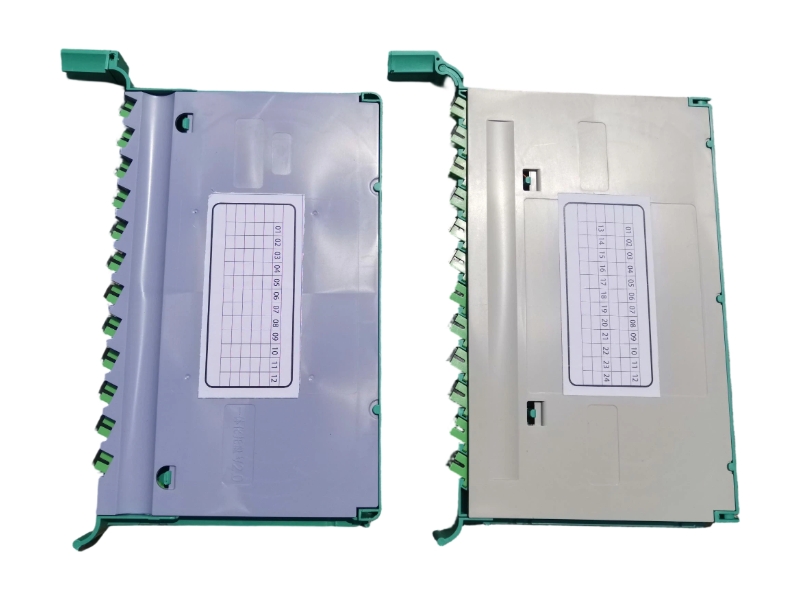

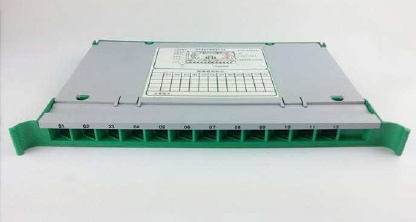

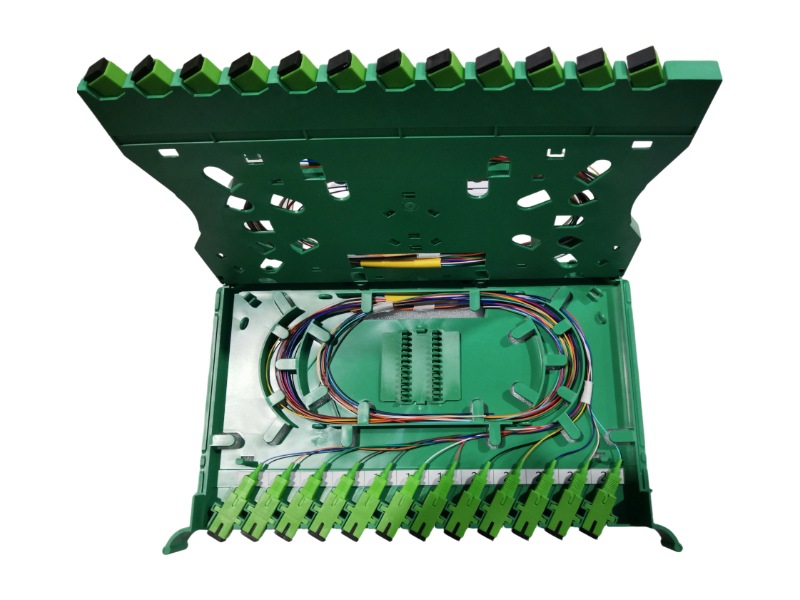

| Cassette (Splice Tray) | Cassette (splices trays) 16 PCs 12 F and 6 PCs 24 F with numbering from 1 to 12 for 12 F splice tray and from 1 to 24 for 24 F splice tray. 12 and 24 splice tray with no Extra Loss in the splice tray. 12 and 24 splice try should have a lock.  |

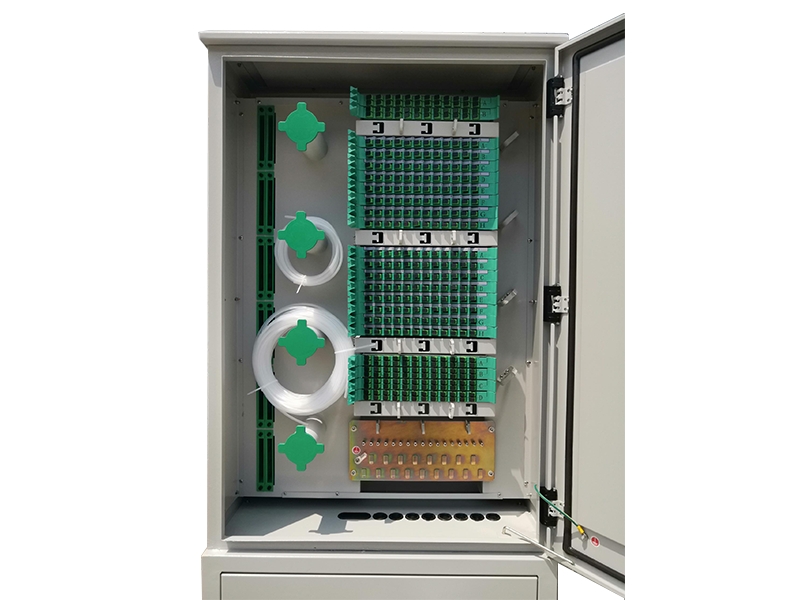

| Horizontal Design & Components | Includes: 2X24 port ODF, 8X12 ports ODF, 8X12 ports ODF, 4X24 ports ODF, and associated Organizers. |

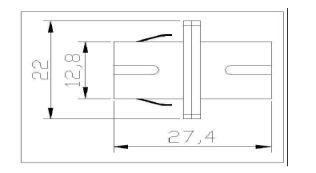

| Adapter | Simplex SC APC Adapters.
 |
| Cable Input | 8 cable entry ports and one Un-Cut port all closed with rubber, and cable entries should be aligned with the fixing tray, the Un-Cut Port oval (70mm * 25mm). |
| Street Cabinet Base | 4 roll black holes in the 4 corners of street cabinet base. 4 roll black 12mm. |
| Name Plate | A fixed stainless steel name plate that contains tender number, manufacturing Year, manufacturer name, and statement of property as following “Property of FiberTech فايبرتك” and serial number for street cabinets contains (Year – XXX). |
| Working Temperature | -40 ℃ ~ + 60 ℃ |
| Curvature Radius | ≥40mm |
| Lateral Pressure-resistance | 500N |
| Resistance | 750N |
| Vertical Organizer | cable organizer (size of 60mm x 60mm) to organize up to 24 buffer, and should be fixed with 2 screws (unmovable). |
| Cabinet Accessories | 5-meter plastic helix. |

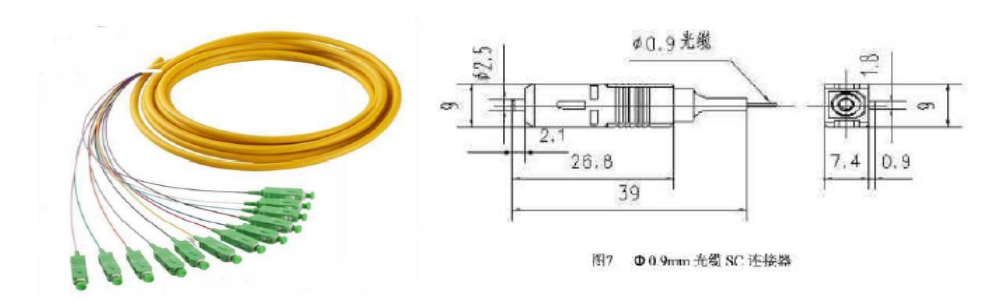

| SC/APC Fiber Pigtail and Connecter | (G657A1): 336 SM SC/APC 0.9mm Pigtail length 1.5m bunchy cable pigtails G657A1 fiber 1.5m PVC colored pigtails group of 12.
 |

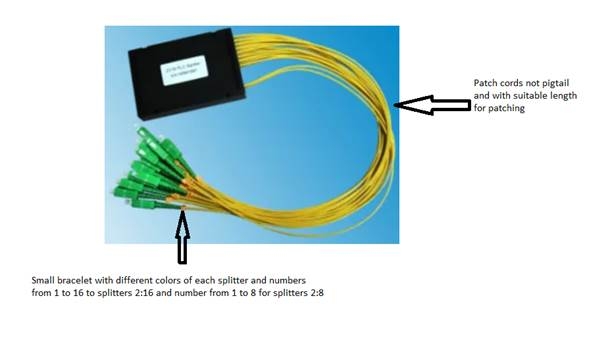

| Splitters | 10 splitters cassettes type that can be installed inside the splitter positions. Splitters are six Splitter 2:16 and four splitters 2:8. The Cassette type splitter in Cabinet, SC/APC, 2.0mm, G657A1 fiber with 2-meter length, PVC, Yellow. (2:8) less than 10.6 dbm , (2:16) less than 13.9 dbm. Splitters patch lead should have a number that identify the cable output number.  |
| Connector Loss | (Including insertion, changeability and durability <= 0.3dB |
| Connector Insert Loss | <=0.2dB |
| Connector Return Loss | APC>=60dB |
| Working Temperature | between -40C and +60C |
| Storage Temperature | between -40C and +60C |
| RH (Relative Humidity) | 95% (at temperature: +40C) |
| Atmospheric Pressure | between 70kpa and 160kpa |
| Isolation Resistance | >=2x10000M/500V (DC) |
| Dielectric Strength | (between frame and protection grounding)>3000V (DC) / 1min no breakdown, no arc |
