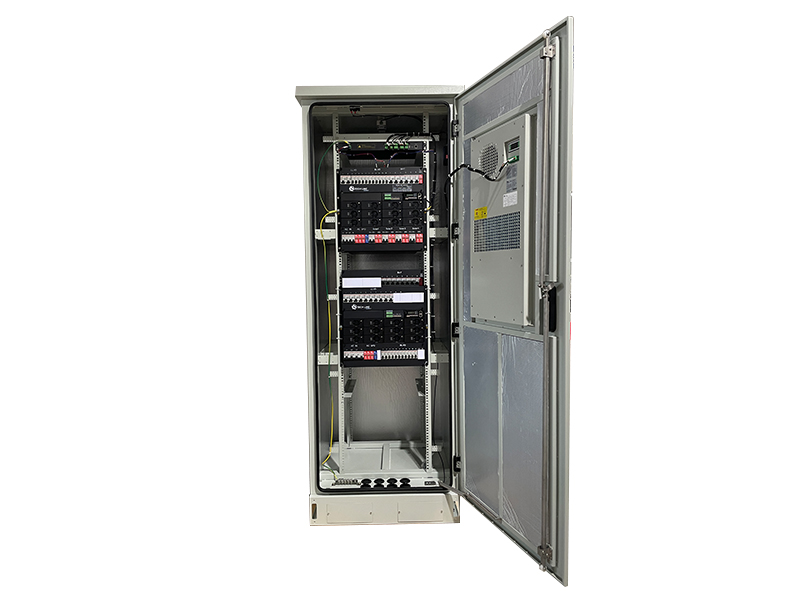

H2200 power system total solution

Name: H2200 power system total solution
Availability: InStock

K&M Stackable Power Distribution Cabinet is a piece of power distribution equipment that integrates multiple electrical components—such as circuit breakers, power modules, and energy storage units—through vertical or modular stacking, designed to enhance space utilization and system integration.

Inquiry now

Key Features

■ Robust Outdoor Structural Design
■ Hybrid Energy and High-Efficiency Power Modules
■ Comprehensive Safety and Power Distribution Protection
■ Intelligent Monitoring and Environmental Management

Applications

■ Telecommunication
■ Railway
■ Broadcasting
■ Enterprise Network

Product Details

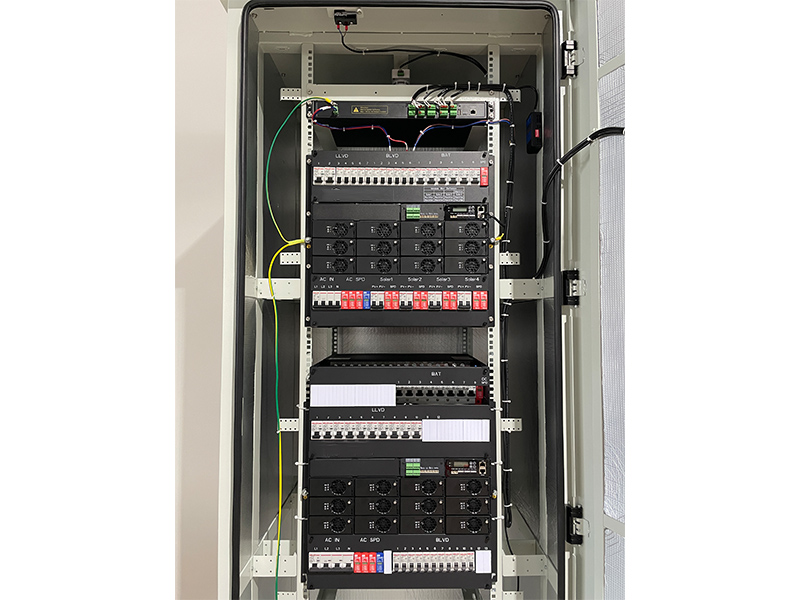

Internal Structure

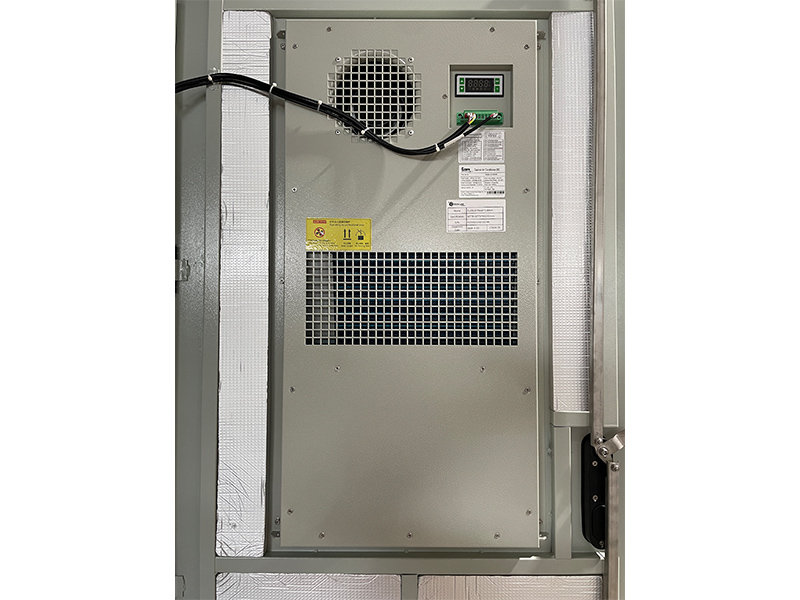

air conditioner

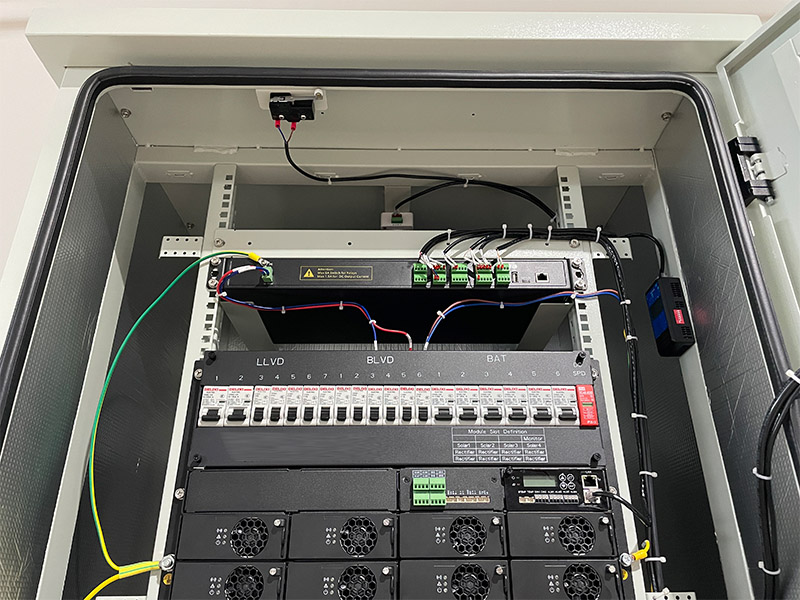

top View

Specifications

Cabinet Dimension (H x W x D)	2200 x 770 x 770 mm
Installation Mode	Floor mounted installation (with 150mm mounting base)
Maintenance Mode	Front maintenance
Cooling System	Outdoor cabinet Air condition (DC 1000W)
AC Input	Three-phase four-wire 380V (compatible with 220V AC single phase)
Solar Input Voltage	100~400VDC, rated value: 240VDC/336VDC
DC Output Voltage	43.2-58 VDC, rated value: 53.5 VDC
Maximum Capacity	Rectifier: 24KW, Solar: 12KW
Operating Temperature	-25°C to +75°C (-40°C Startable)
Operating Humidity	5% - 95% (non-condensing)

Frequently Asked Questions

Q What are the maximum rectifier capacity and solar input capacity of this hybrid power system?

A: The system's maximum rectifier capacity is 24 kW, and its maximum solar input capacity is 12 KW.

Q What are the physical dimensions of the H2200 outdoor cabinet? What maintenance approach does it employ to facilitate on-site operations?

A: The main body dimensions of the H2200 outdoor cabinet are 2200 mm × 770 mm × 770 mm (Height × Width × Depth). In terms of structural design, the unit supports a "pure front maintenance" mode, which greatly facilitates on-site installation and servicing.

Q How well does this power system adapt to extreme temperatures? What equipment is utilized to ensure internal cooling and heat dissipation?

A: The system features an extremely wide operating temperature range of -25°C to +75°C and supports direct startup in extreme cold environments as low as -40°C. To ensure the stable operation of internal electronic components under high-temperature conditions, the cabinet is equipped with a 1000 W DC outdoor air conditioner to provide forced cooling.
