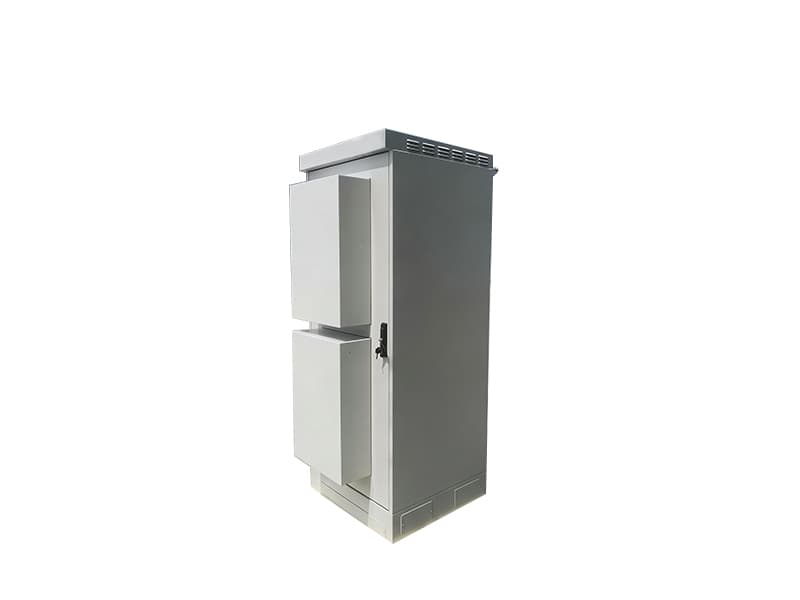

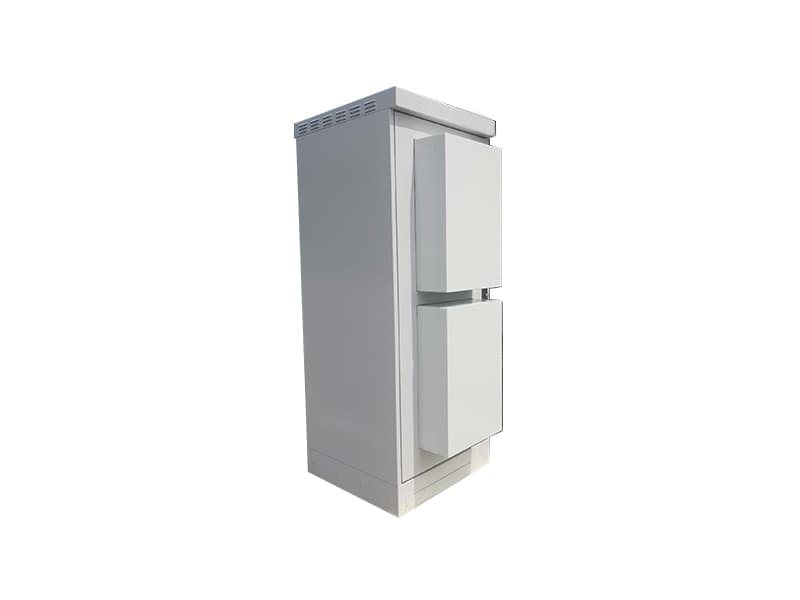

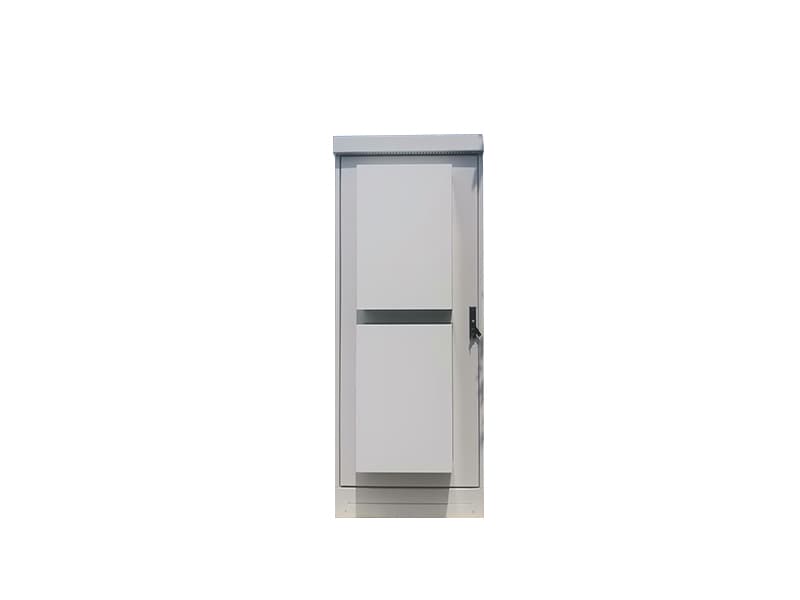

The K&M outdoor integrated power cabinet is a highly integrated IP55 Telecom Power Cabinet Enclosure, specifically designed for high-capacity outdoor locations. Featuring a robust outdoor protection structure, this cabinet is engineered to provide a secure and controlled operating environment for a 15kW 24kW Base Station Power System.
K&M All in One power cabinet provides space for, up to two Nokia AirScale BBU sub racks (6U), user equipment (6U/15kW, 5U/24kW) and either VRLA or Li-ion batteries (16U).

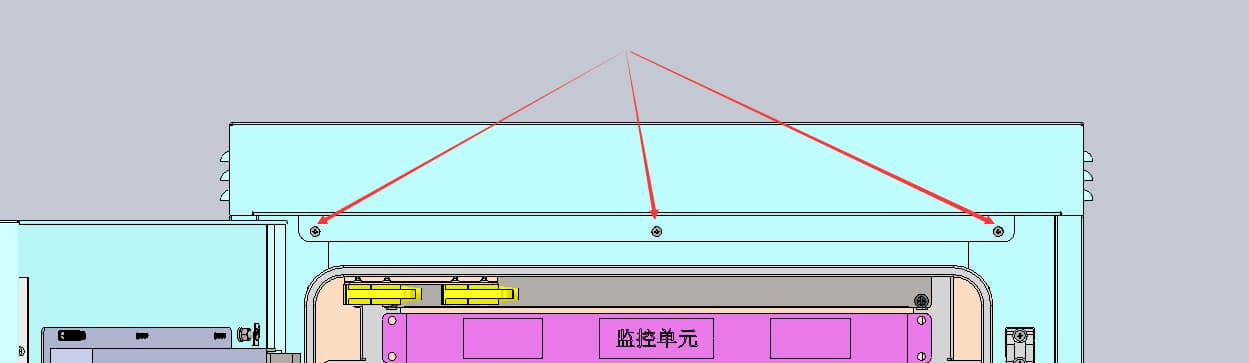

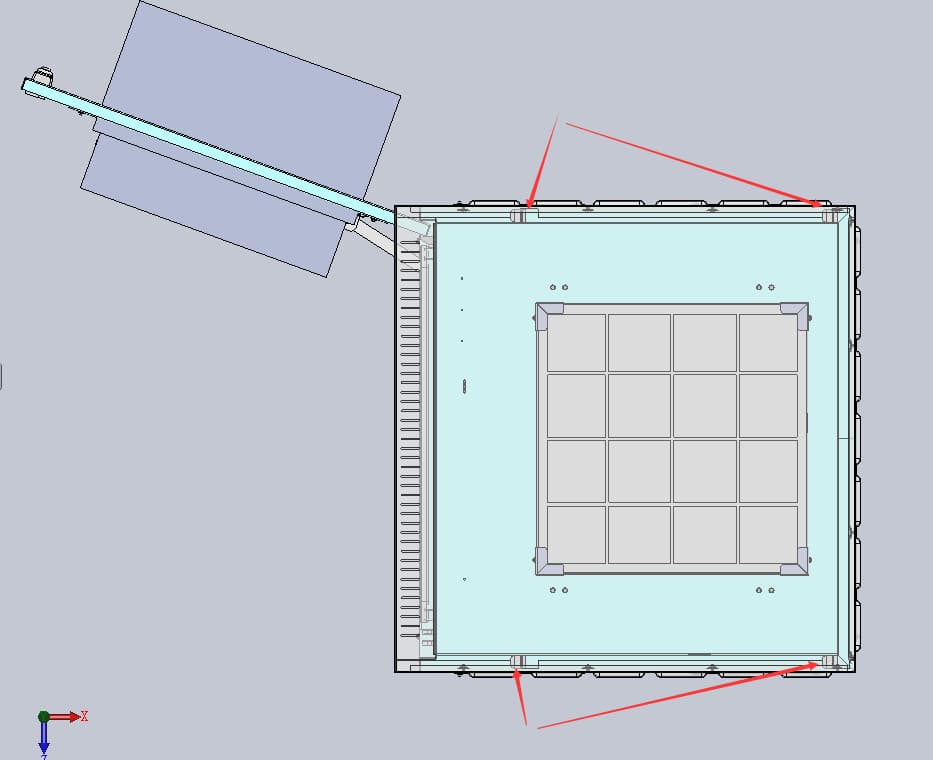

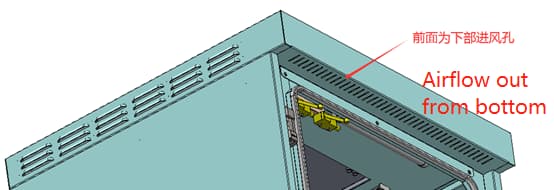

1. The top cover is easy to disassemble structure, the lower front, both sides and the back of the louvered window exhaust, open the door and take out the screws in front of the top cover to remove the top cover.

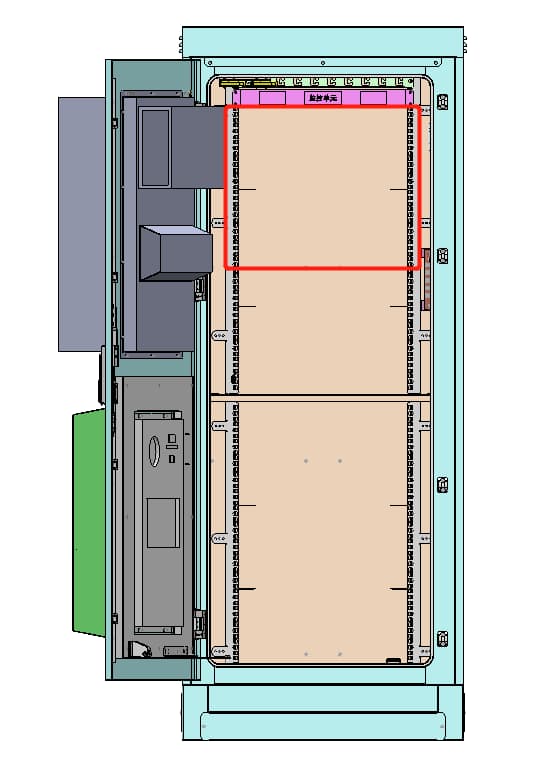

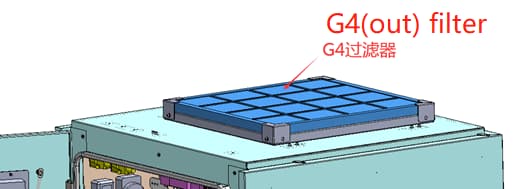

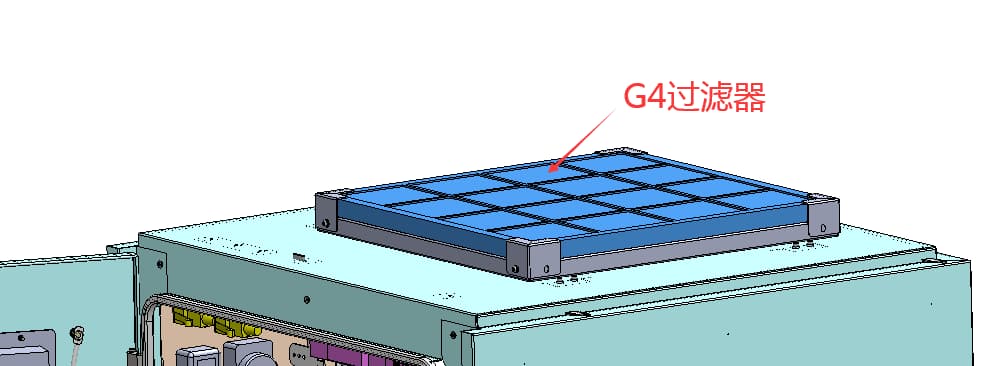

2. Fan filter system open the door, does not affect the normal plugging and unplugging of equipment.

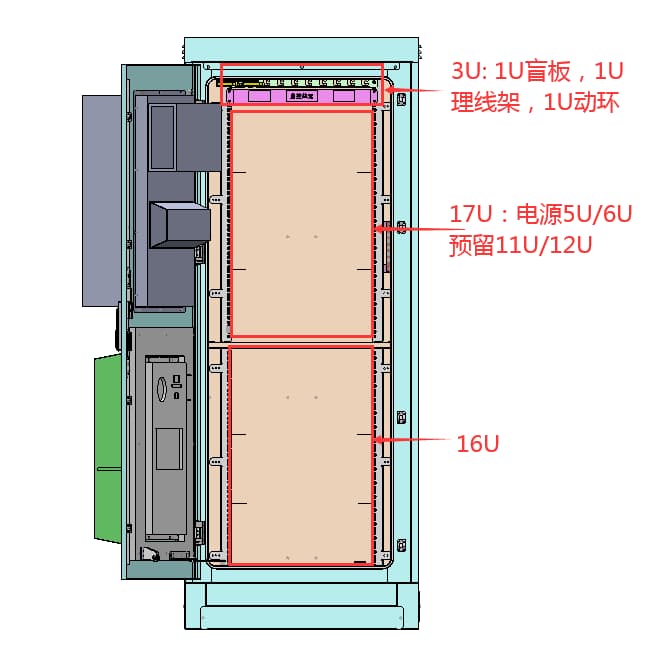

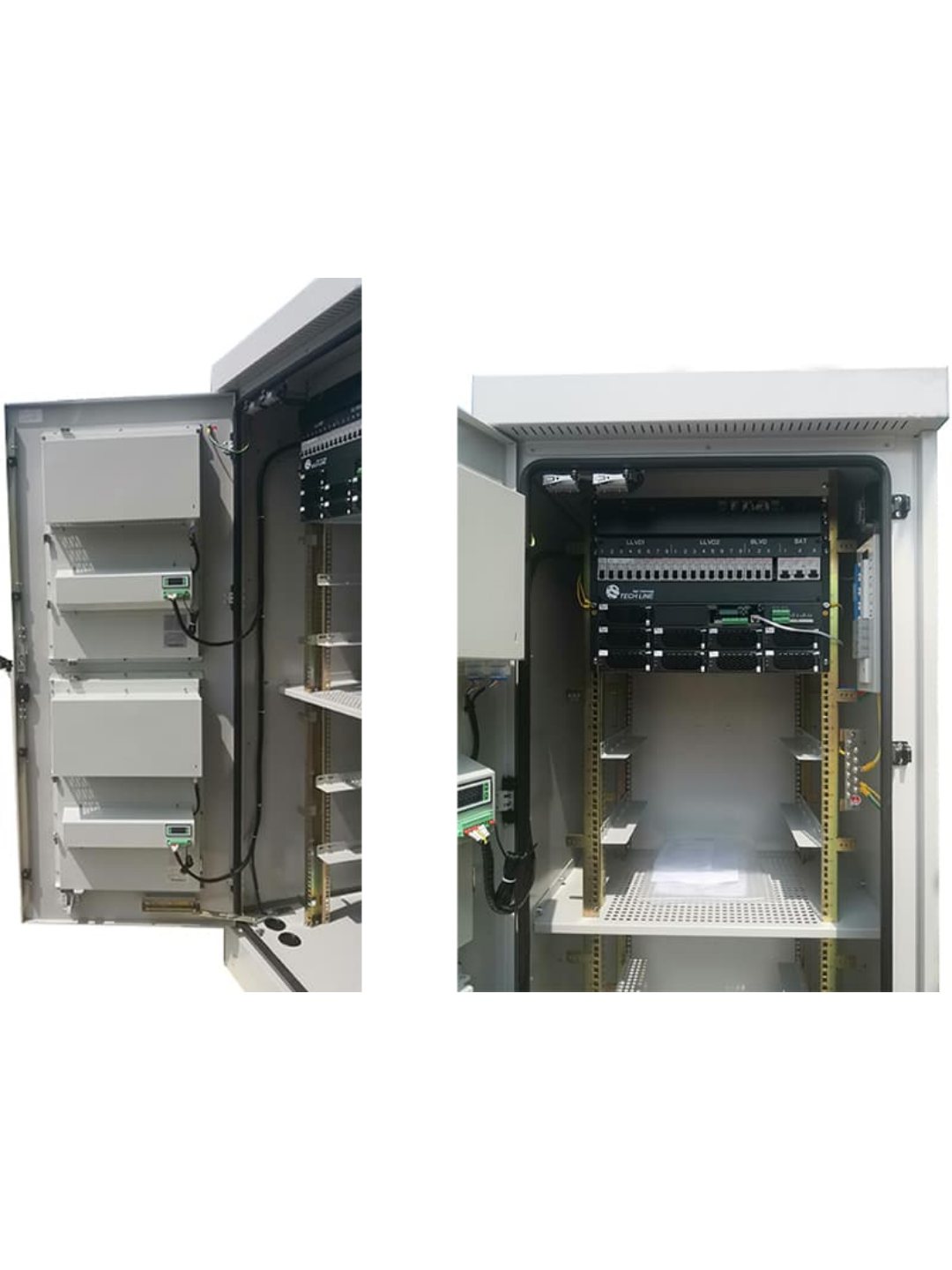

3. The internal space of the cabinet, as follows:

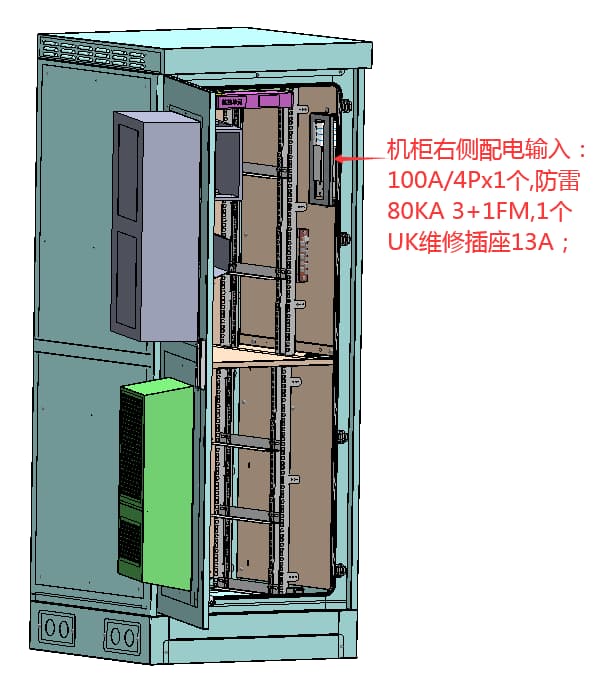

4. AC input power distribution is located on the right side of the upper part of the cabinet.

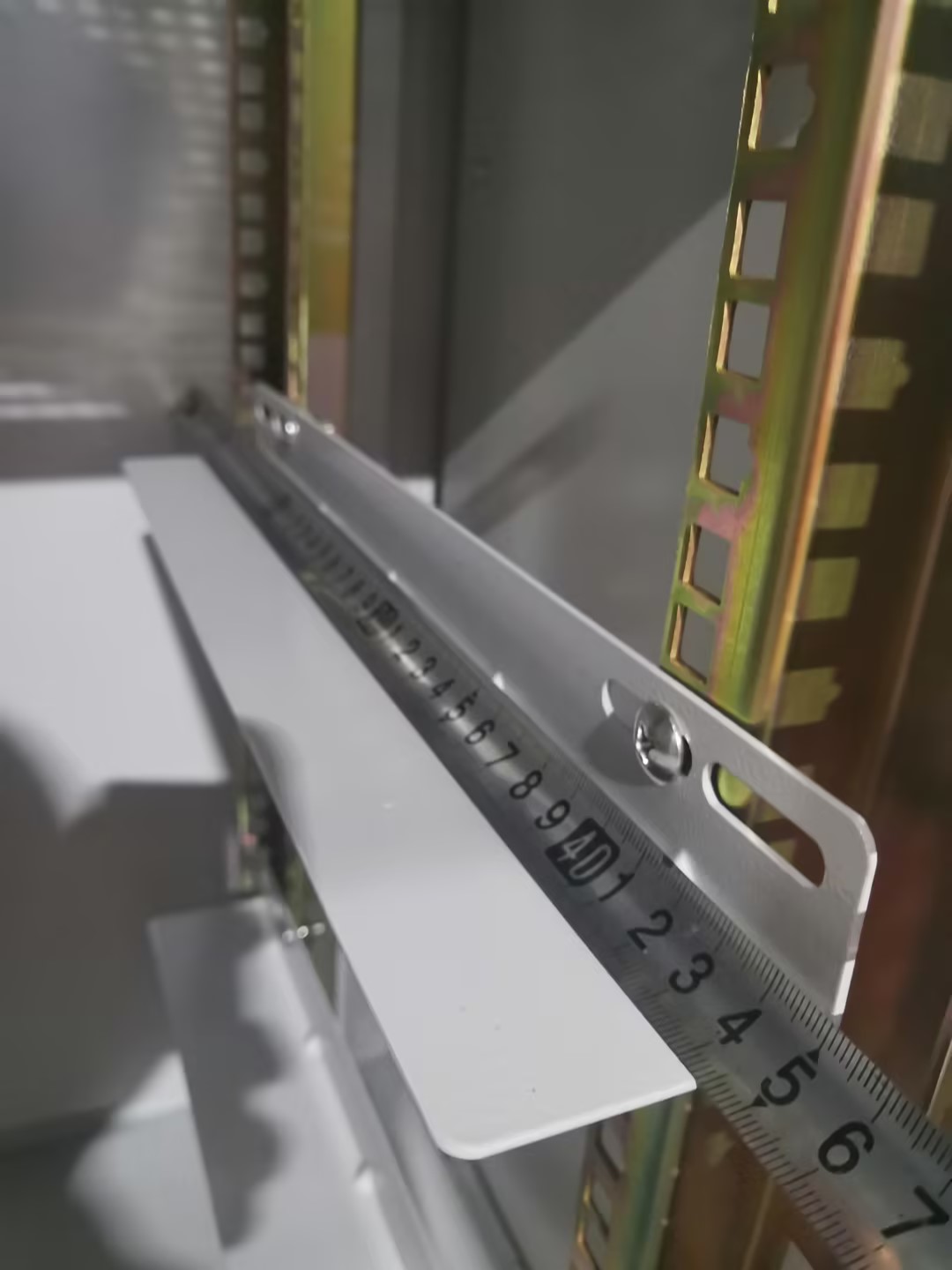

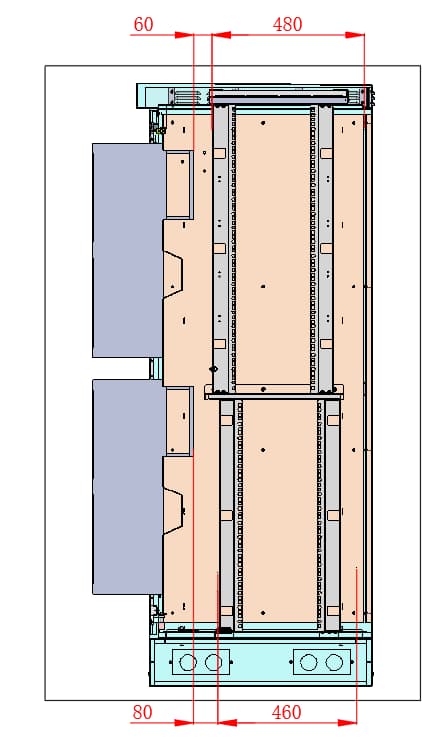

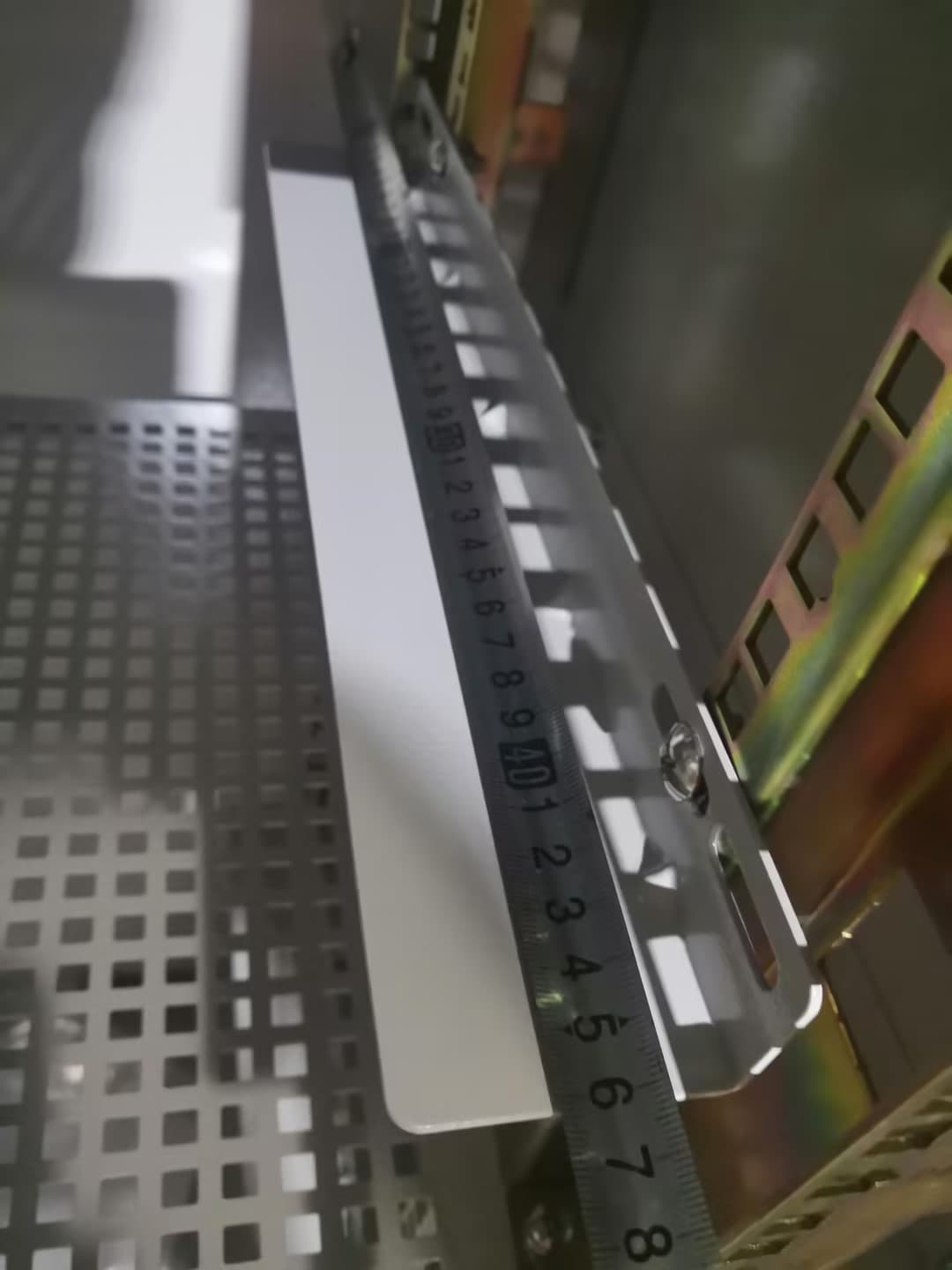

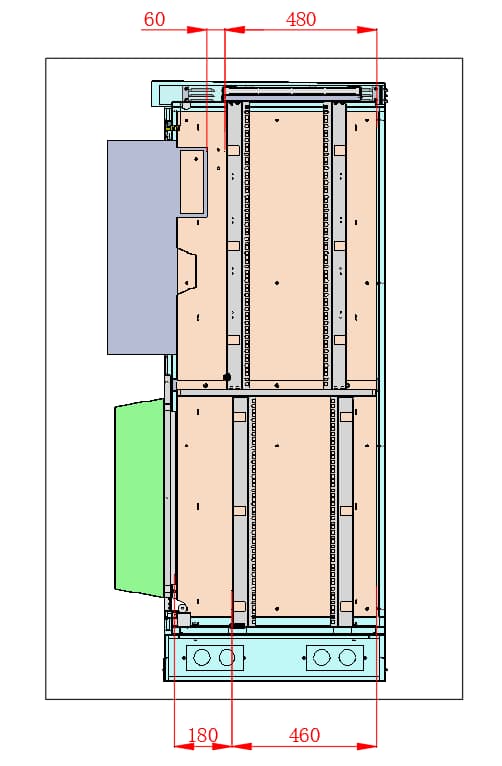

5. The internal dimensions of the column are as follows:

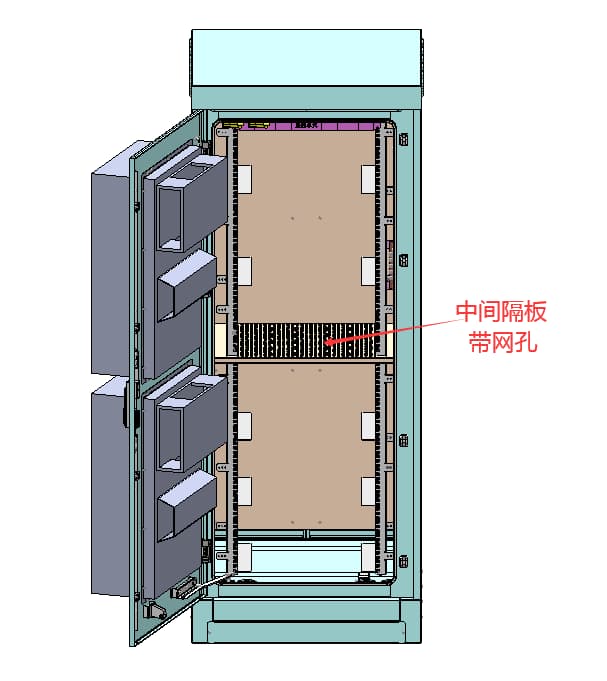

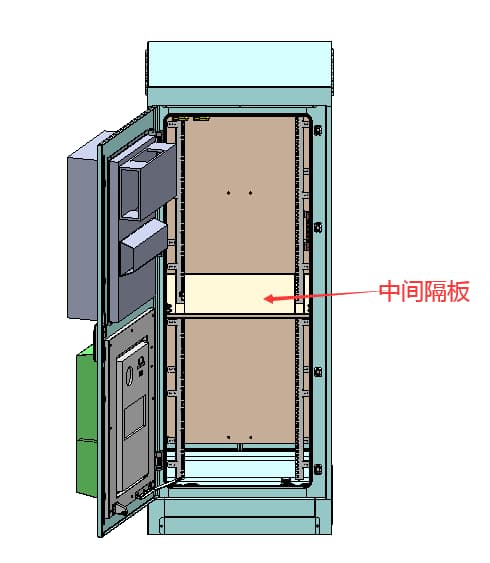

6. The middle plate is as follows:

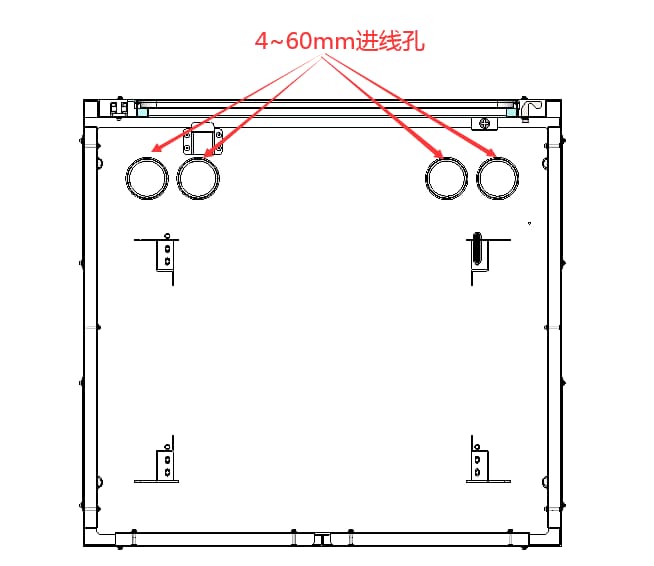

7. Cable entry hole at the bottom of the cabinet 4*￠60.

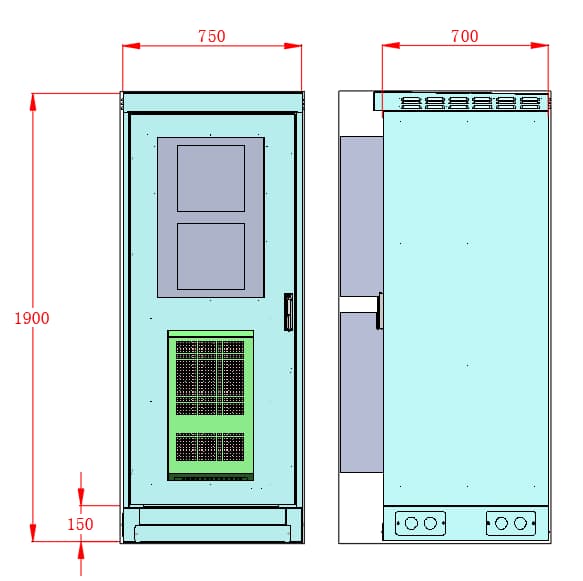

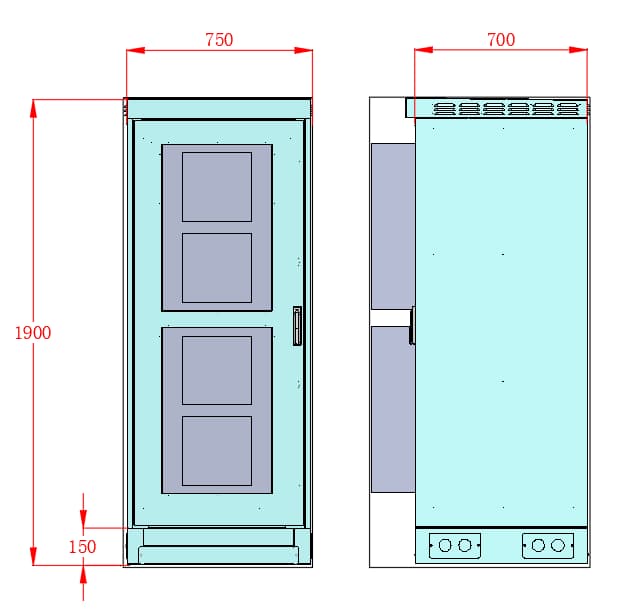

8. Dimensions of the cabinet.
1. The top cover is easy to disassemble structure, the lower front, both sides and the back of the louvered window exhaust, open the door and take out the screws in front of the top cover to remove the top cover.
2. Fan filter system open the door, does not affect the normal plugging and unplugging of equipment.
3. The internal space are as follows:
4. AC input power distribution is located on the right side of the upper part of the cabinet.
5. The internal dimensions of the column are as follows:
6. The middle plate is as follows:
7. Cable entry hole at the bottom of the cabinet 4*￠60.
8. Dimensions of the cabinet.
| Dimension | Dimensions of the cabinet: H2100*D800*W750mm (including base) |
| Weight | ＜250kg |
| Cooling Mode | Equipment compartment: Fan: 2 x 175x69mm Filter: F7 (IN) + G4 (OUT) or H12 (IN) + G4 (OUT) Battery differential compartment: Air conditioner, 500W DC heat dissipation ability |
