1U/2U Rack Mount Pivot Panel 48FO/96FO SCA Opening Left Fiber Optic Patch Panel

Home Products 1. FO Connection Solutions 1.5 Fiber Termination Box

1U/2U Rack Mount Pivot Panel 48FO/96FO SCA Opening Left Fiber Optic Patch Panel

1U/2U Rack Mount Pivot Panel 48FO/96FO SCA Opening Left Fiber Optic Patch Panel

Name: 1U/2U Rack Mount Pivot Panel 48FO/96FO SCA Opening Left Fiber Optic Patch Panel
Availability: InStock

The rotary swing out optical fiber patch panel is used for termination of backbone optical cables as well as connection to network switching equipment of the Local Area Network (LAN). It is mainly applied to complete the fixation splice and cabling management of the equipment room, which supports single mode or multimode fiber optics. Mainly used to achieve the connection, distribution and dispatch between the outside optical cable and the optical transmission equipment, the product provides secure, reliable, flexible fiber optic management, widely used in broadband access network project.

Inquiry now

Product Overview

Mainly used to achieve the connection, distribution and dispatch between the outside optical cable and the optical transmission equipment, the product provides secure, reliable, flexible fiber optic management, widely used in broadband access network project.

Key Features

■ Made of high-quality cold rolled steel sheet and surface electrostatic spraying.
■ Rotary Swing out, convenient operation and space-saving.
■ 19″ and 21″ standard installation.
■ Right and left opening options available.
■ Available in SC, FC or LC type adapters respectively.
■ The max capacity is 48 fiber SC 1U and 96 fiber SC 2U.

Applications

■ Broadband access network projects (FTTX / PON)
■ Termination of backbone optical cables
■ Cabling management in equipment rooms and telecommunication closets
■ Connection to network switching equipment in Local Area Networks (LAN)

Product Gallery

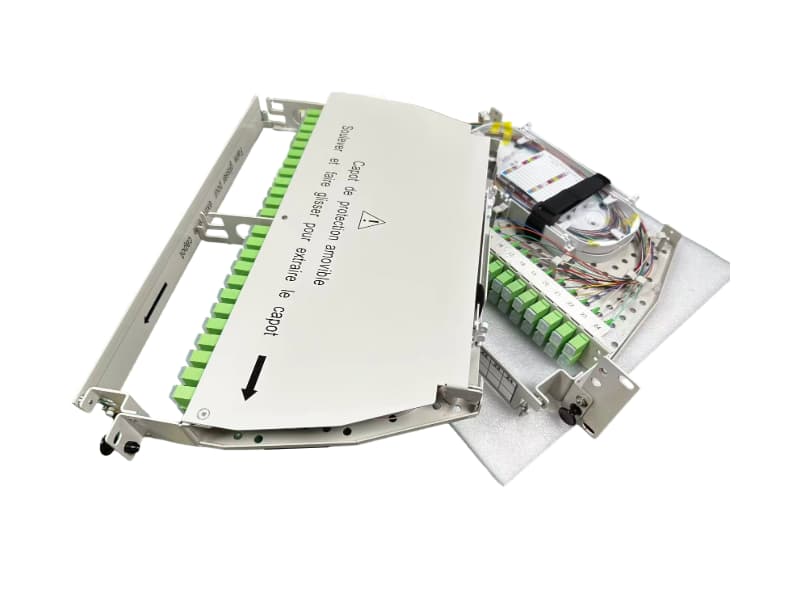

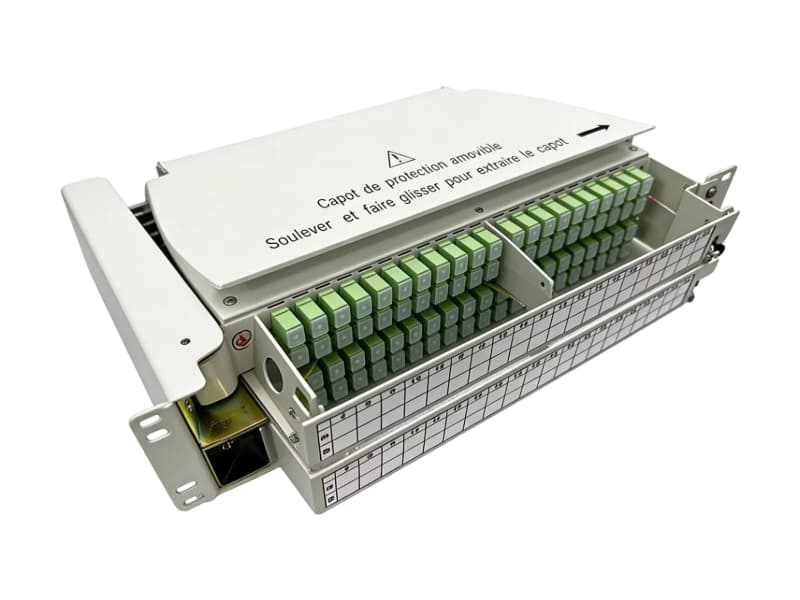

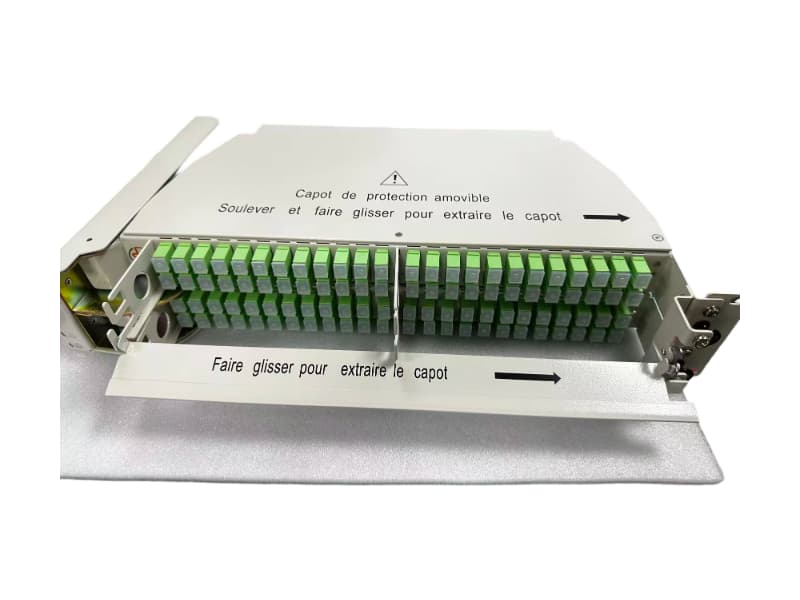

OVERALL VIEW 1

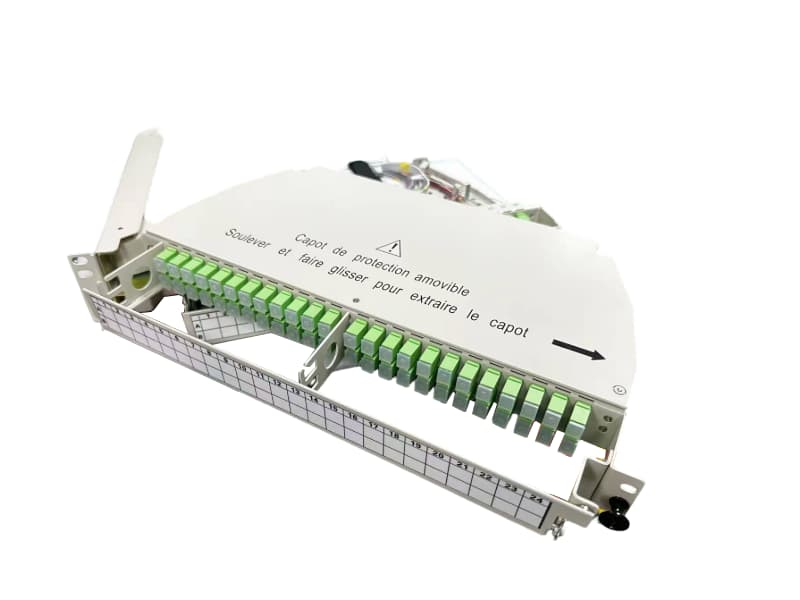

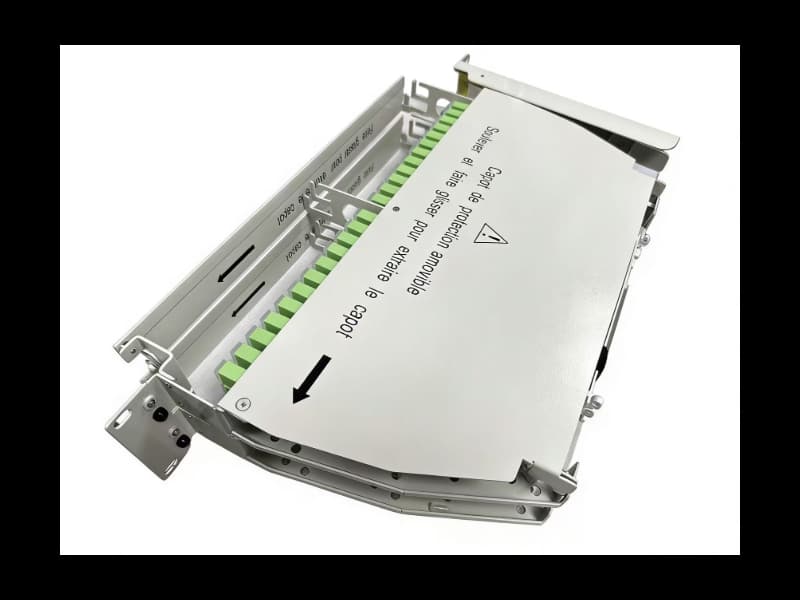

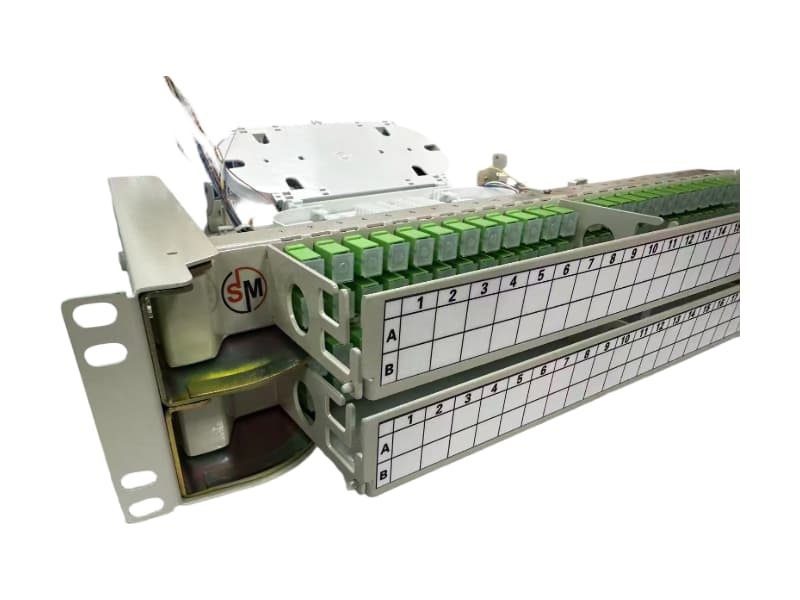

OVERALL VIEW 2

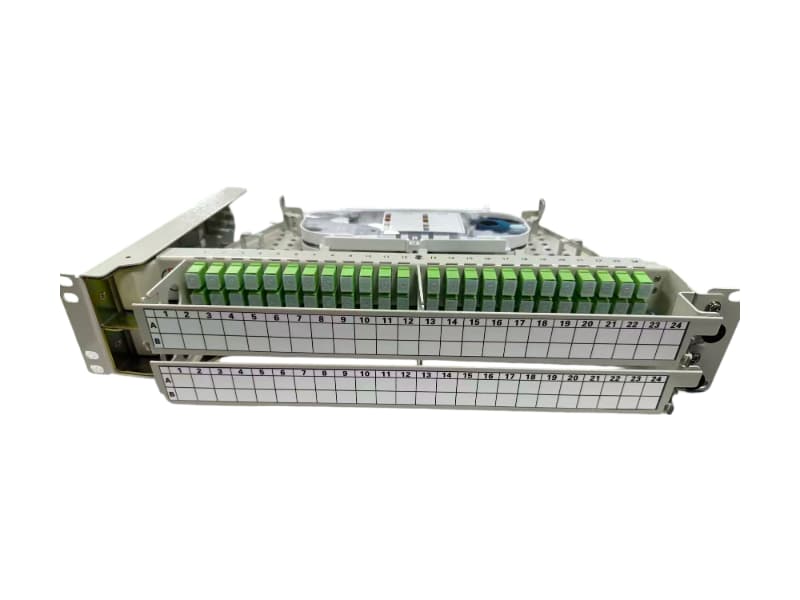

FRONT PANEL DETAIL

REAR PORT DETAIL

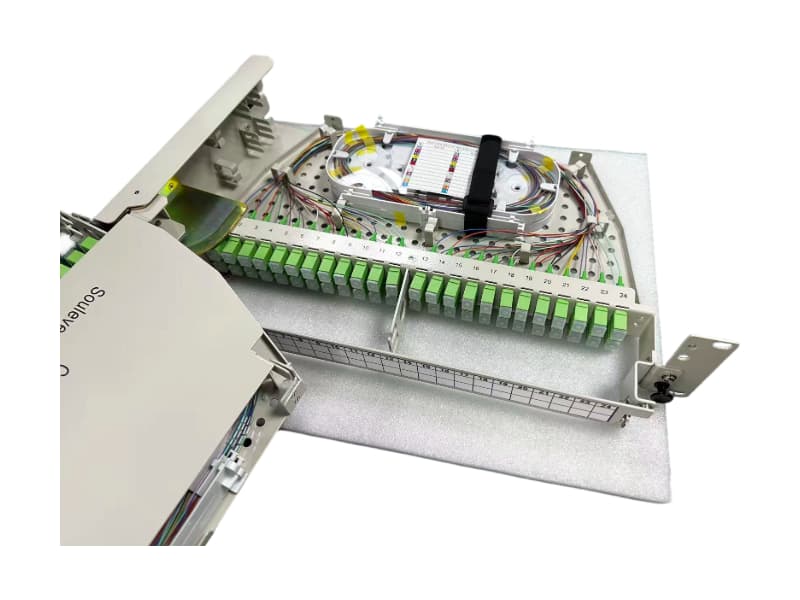

SLIDING TRAY OPEN

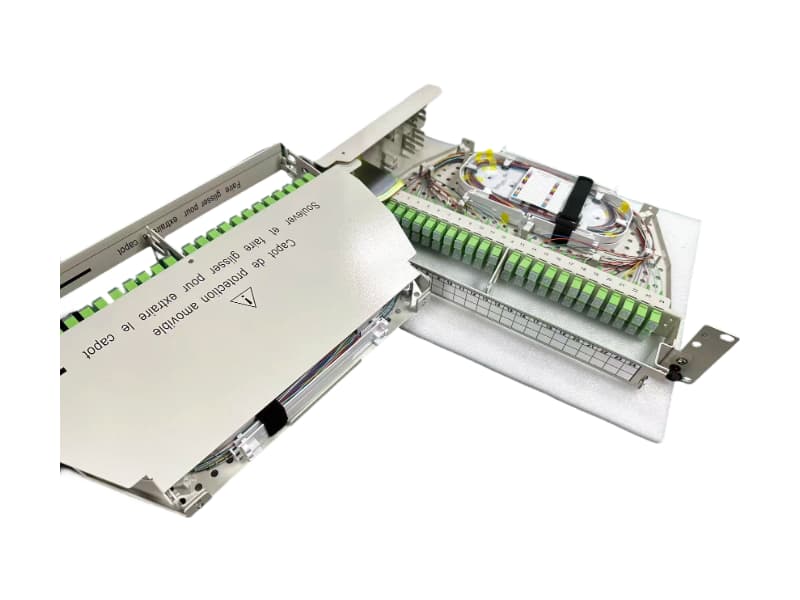

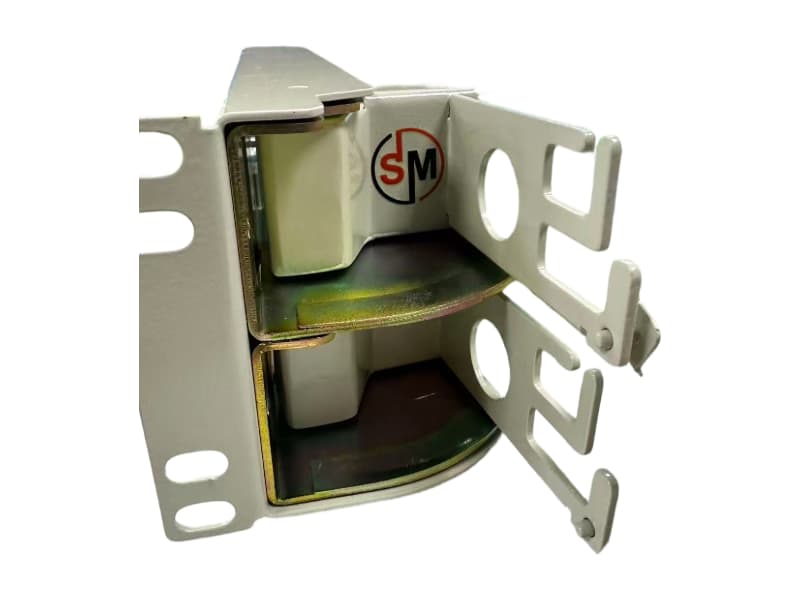

ROTARY SWING OUT

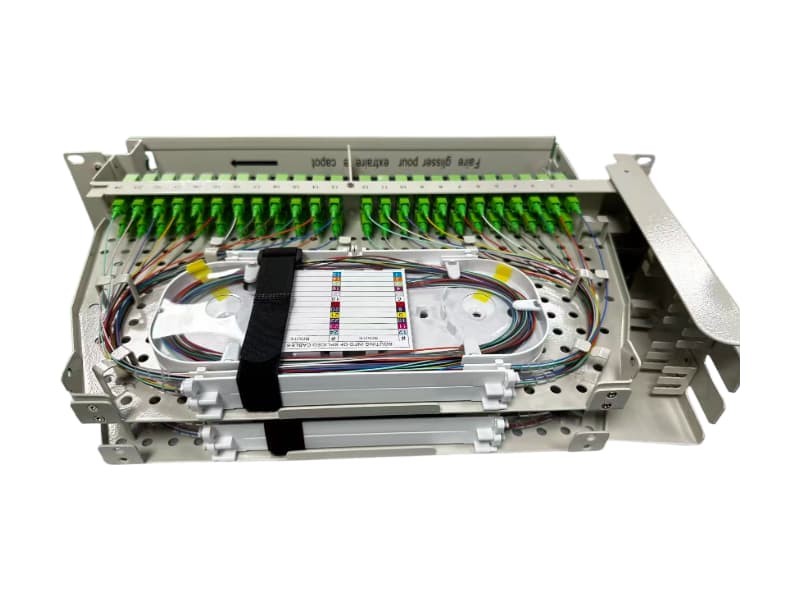

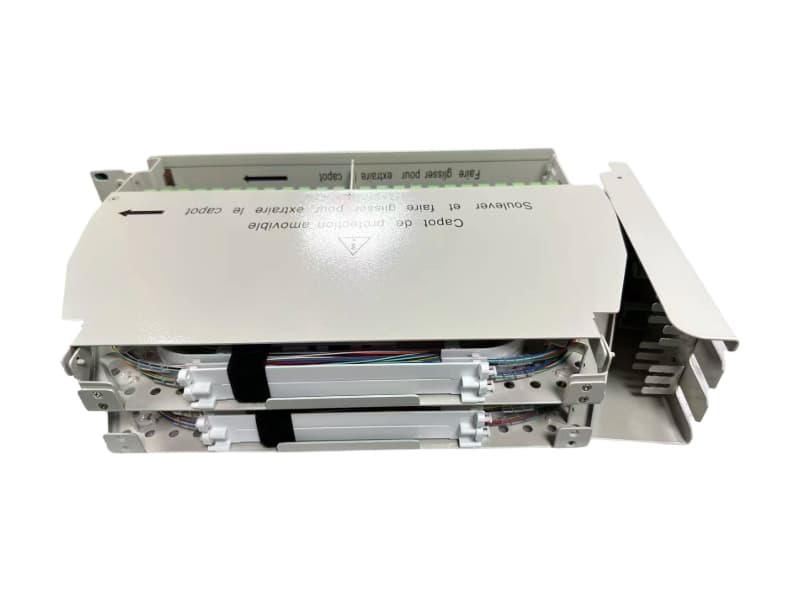

INTERNAL SPLICING

SPLICE TRAY DETAIL

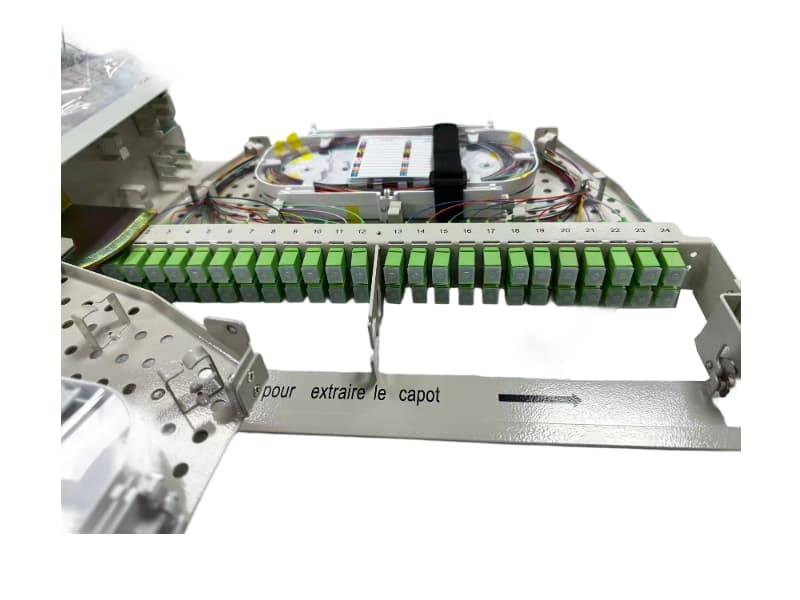

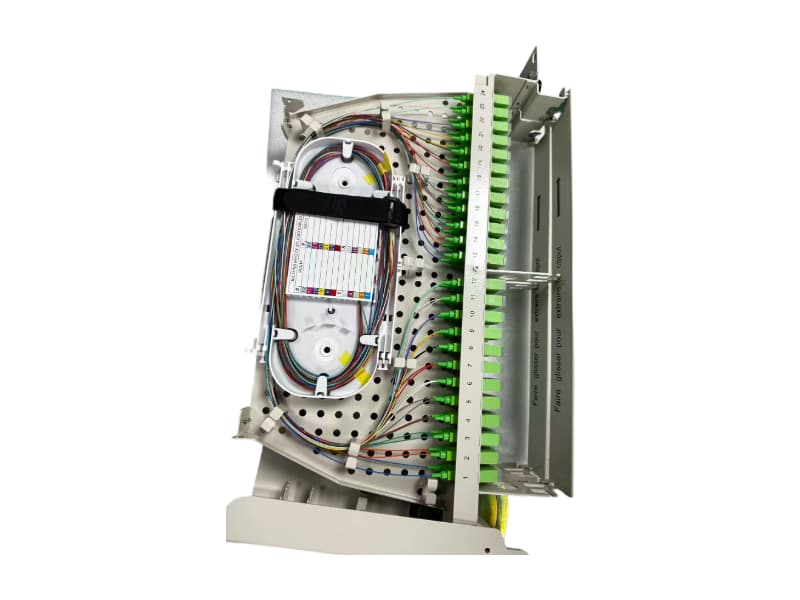

FIBER ROUTING

ACCESSORY KIT

Specifications

Mounting Type	19” and compatible ETSI 21”
Opening Type	Right or Left swing out
Dimension	1U x 482.6 x 268.25mm / 2U x 482.6 x 268.25mm
Housing Color	Painted light grey RAL9002
Operation temperature	-20ºC ～ +60 ºC
Storage temperature	-20ºC ～ +55 ºC
Storage relative humidity	≤75%
Relative humidity	≤85%（+30 ºC）
Atmospheric pressure	70Kpa ～ 106 Kpa

Material List

Name	Thickness T(mm)	Painting Color	Material	Qty
ODF body	T=1.5	Grey	SPCC	1pcs
Top cover	T=1.2	Grey	Aluminum	1pcs
Front door	T=1.5	Grey	SPCC	1pcs
Back door	T=1.5	Grey	SPCC	1pcs
Adaptor panel	T=1.5	Grey	SPCC	1pcs
Bracket	T=2.0	Grey	SPCC	2pcs
Support plate	T=1.5	Grey	SPCC	1pcs
Drawer	T=1.5	Grey	SPCC	1pcs
Front door Screw	-	Grey	SUS	2pcs
Plastic lock	-	-	Plastic	2pcs
Label	-	-	Paper marks/Printed	1pcs

Ordering Information

► 1U Pivot Patch Panel (Max 48 Fibers)

Product Name	Product No.	Qty.	Dimensions (HxWxD)(mm)	Remarks
Pivot patch panel	FGA067000	1	1U x 482.6 x 268.25mm	48-fiber
Splice tray	300982120	2	11.9x225.1x108	24 fibers
Adapter	300226320	48	-	SC/APC SM SX
Pigtail 12 color	291200380	4	1.0m	SC/APC type
Protective sleeve for fiber splicing	RBG-1	48	1.5*45mm	-
Protective sleeve for Stripped Fiber	LBG-φ3.3	1	60cm	-

► 2U Pivot Patch Panel (Max 96 Fibers)

Product Name	Product No.	Qty.	Dimensions (HxWxD)(mm)	Remarks
Pivot patch panel	FGA076000	1	2U x 482.6 x 268.25mm	96-fiber
Splice tray	300982120	4	11.9x225.1x108	24 fibers
Adapter	100170721	96	-	SC/APC SM SX
Pigtail 12 color	301837181	8	1.0m	SC/APC type
Protective sleeve for fiber splicing	RBG-1	96	1.5*45mm	-
Protective sleeve for Stripped Fiber	LBG-φ3.3	1	60cm	-

Frequently Asked Questions

Q What are the advantages of the "Rotary Swing-out" design?

A: The Rotary Swing-out mechanism [cite: 8] allows the panel to pivot left or right [cite: 10], providing convenient operation and significant space-saving benefits within the rack[cite: 8]. It enables technicians to access the internal splice trays and cabling without removing the entire unit, which is critical for efficient maintenance in high-density environments.

Q What is the maximum fiber capacity for the 1U and 2U versions?

A: The 1U Pivot Panel supports a maximum capacity of 48 fiber SC [cite: 12], while the 2U version doubles this capacity to 96 fiber SC[cite: 12]. Both models are designed to manage single mode or multimode fiber optics effectively[cite: 4].

Q What materials are used in the construction of this patch panel?

A: This product is built for durability using high-quality cold rolled steel sheets (SPCC) [cite: 7, 19] with a thickness of 1.5mm for the body and doors[cite: 19]. The surface is finished with electrostatic spraying [cite: 7] in a light grey RAL9002 color[cite: 17]. The top cover is made of aluminum for a lightweight yet sturdy protection[cite: 19].

Q Is this panel compatible with standard server racks?

A: Yes. The equipment is designed for 19″ and compatible ETSI 21″ standard installation[cite: 9, 17]. This makes it a versatile solution for a wide range of network switching equipment rooms and broadband access network projects[cite: 3, 5].
