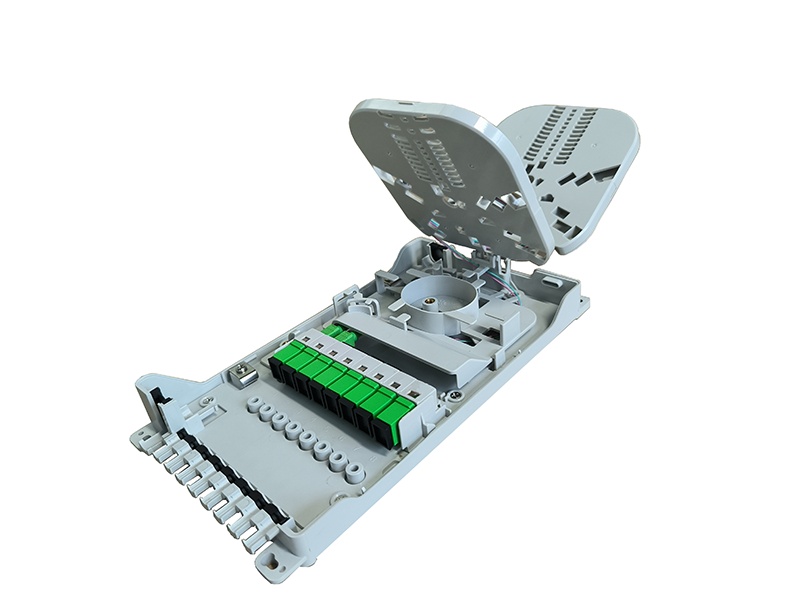

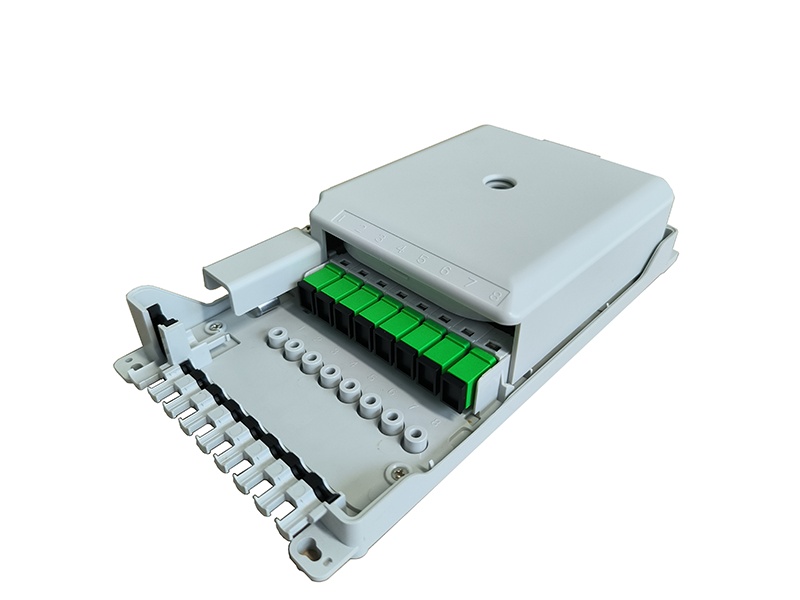

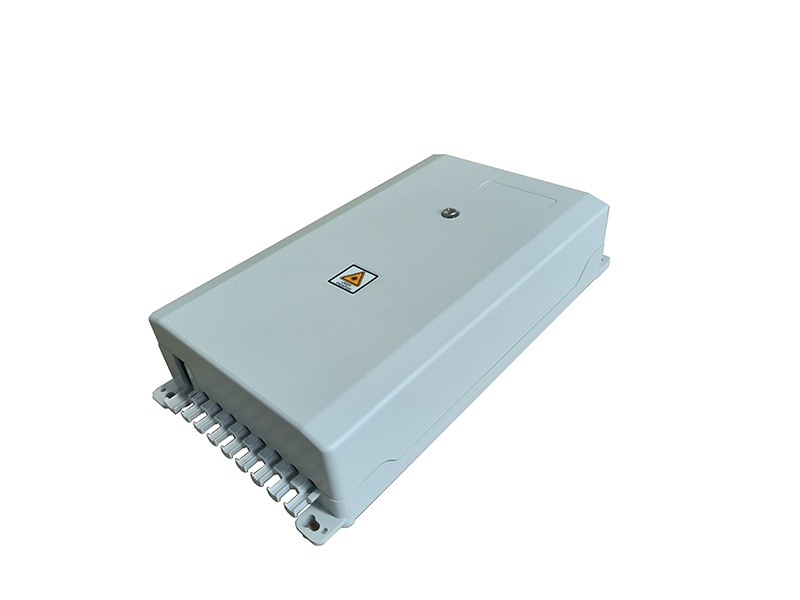

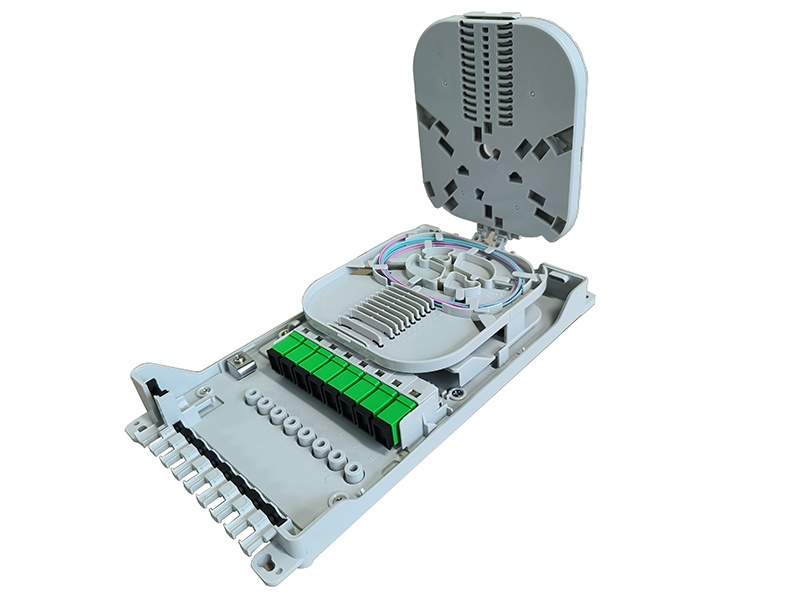

All-in-One Core Fiber Access Terminal Box (FAT) with Flip-Up Splice Tray

All-in-One Core Fiber Access Terminal Box (FAT) with Flip-Up Splice Tray

Name: All-in-One Core Fiber Access Terminal Box (FAT) with Flip-Up Splice Tray
Availability: InStock

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

The 8-Core Fiber Optic Termination Box (GF-8ZT-2) is a termination point designed for connecting feeder cables to drop cables within the FTTx communication network system. This equipment integrates fiber splicing, splitting, and distribution into a single unit, providing robust protection and organized management for FTTx network infrastructure.

Engineered with a total enclosed structure made of high-quality PC+ABS material, the box is wet-proof, water-proof, dust-proof, and anti-aging. With a protection level of IP54, it is built to withstand demanding environments, making it suitable for both indoor and outdoor applications via wall-mounted or pole-mounted installation.

Inquiry now

Key Features

■ Total enclosed structure made of PC+ABS material.
■ Protection level up to IP54 (Wet-proof, water-proof, dust-proof, anti-aging).
■ Integrated functions: Clamping, fiber splicing, fixation, storage, and distribution.
■ Separate paths for cable, pigtails, and patch cords to ensure easy maintenance.
■ Flip-up distribution panel with expression port for feeder cable.
■ Flexible installation: Wall-mounted or pole-mounted (indoor/outdoor).

Specifications

Model: 8 CORE Fiber Optic Termination Box

Working Temperature: -40℃ ～ +85℃

Max Capacity: 8 Fibers

Dimensions: 235*126*52 mm (A*B*C)

■ Insertion loss: ≤0.3dB
■ UPC return loss: ≥50dB / APC return loss: ≥60dB
■ Thunder-proof: Withstand voltage ≥3000V (DC)/min

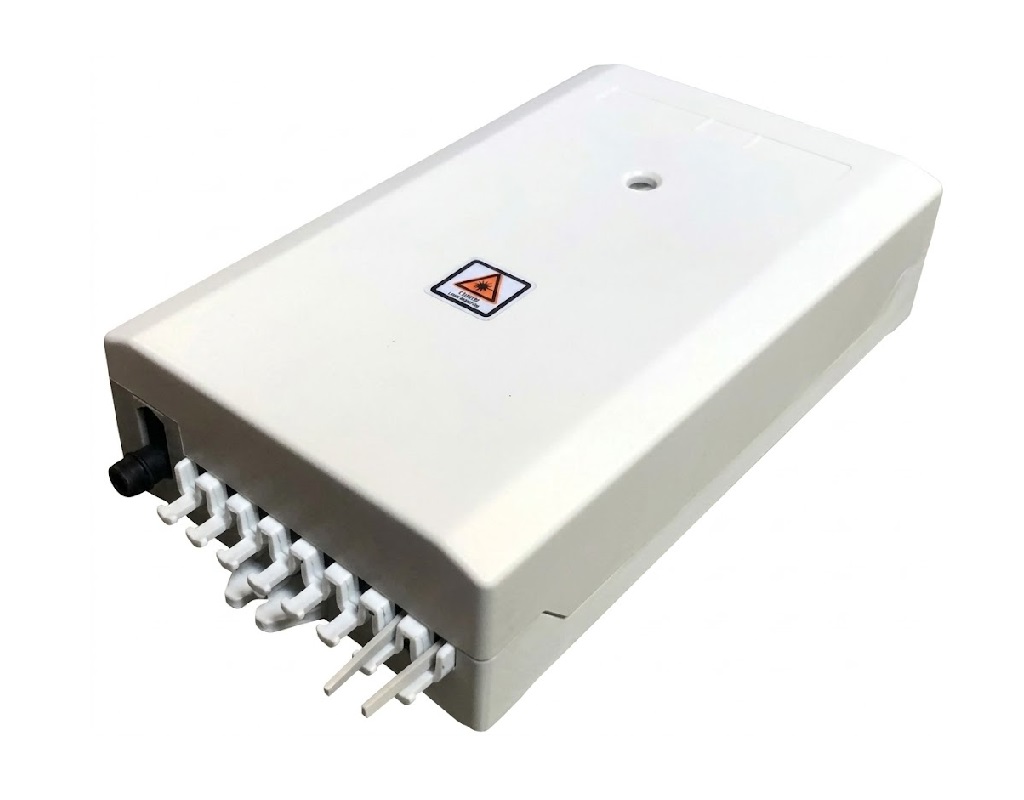

Product Details

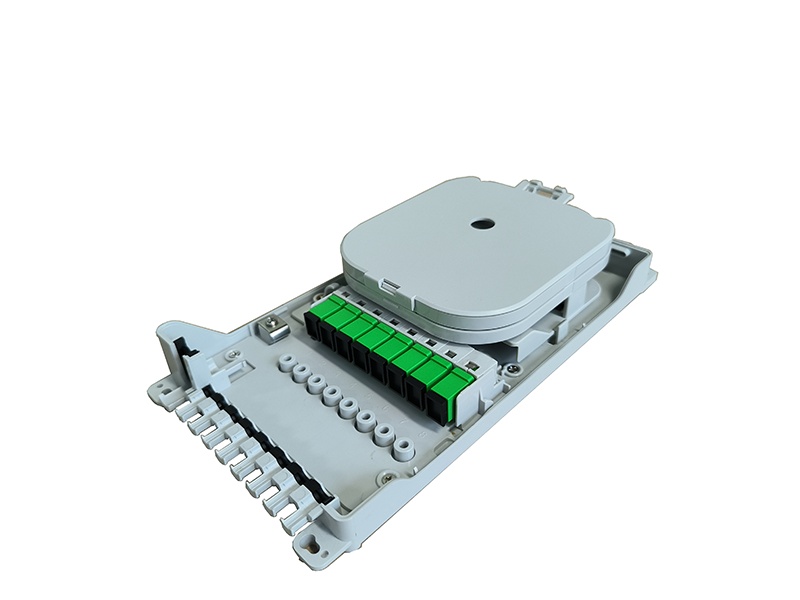

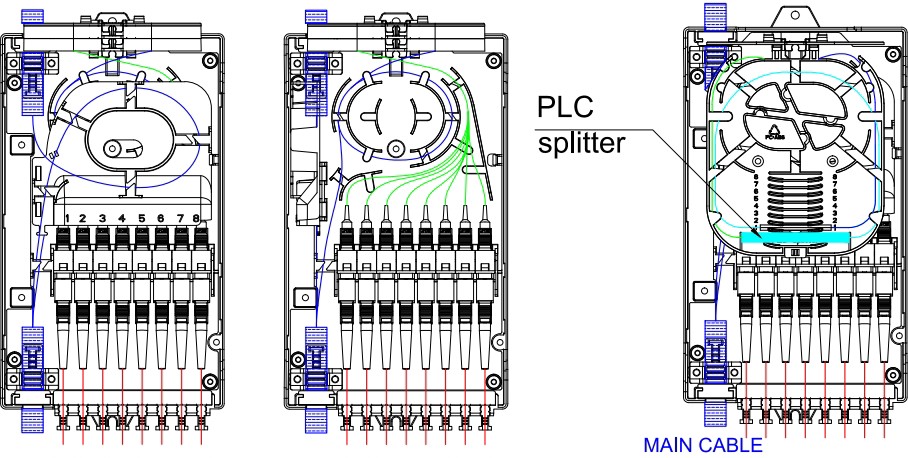

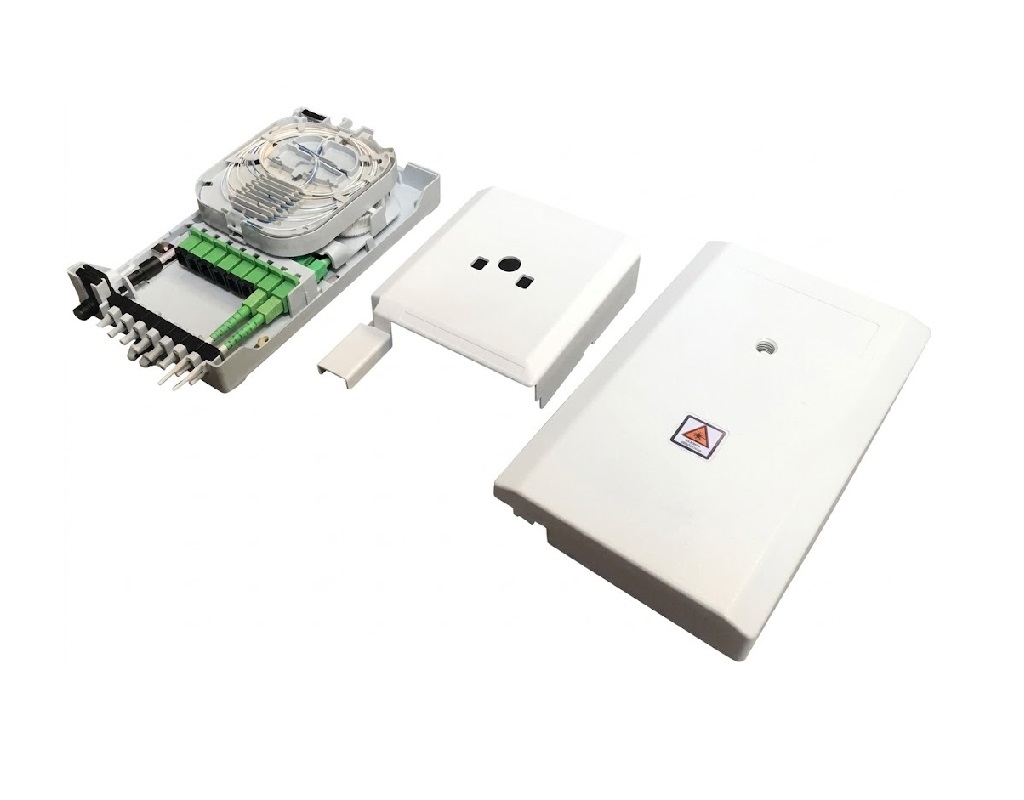

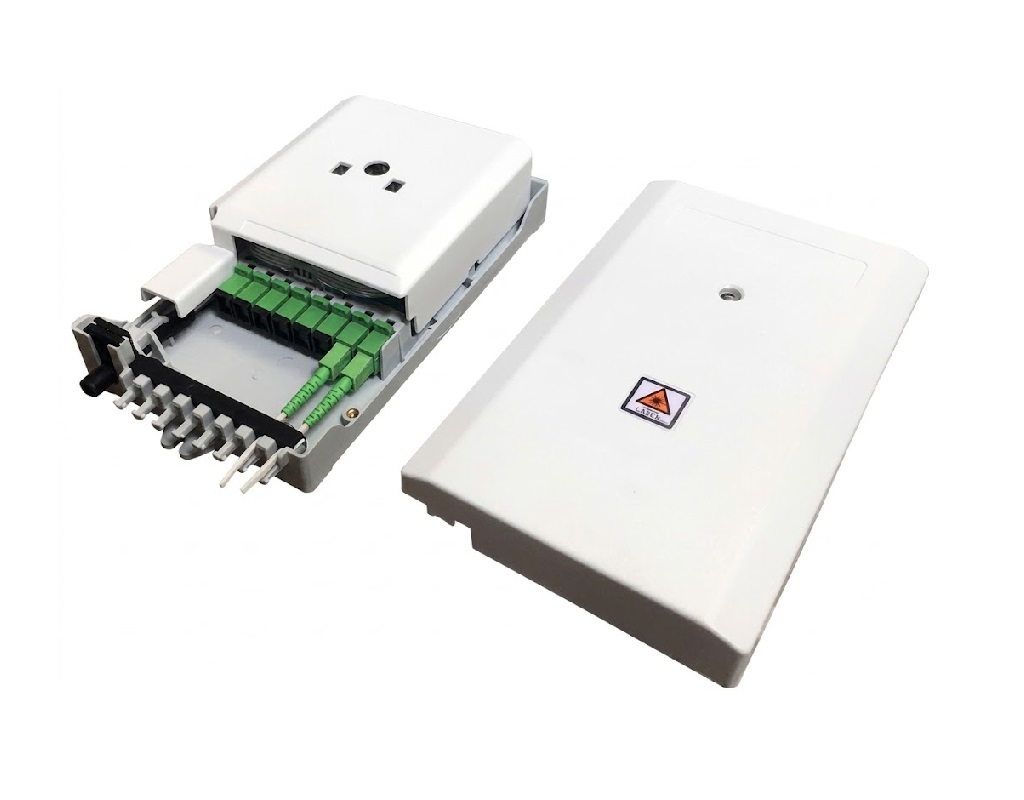

Internal Structure

Dimensions (235x126x52mm)

Cable Routing

Product Cable Ways

Installation

Wall-mounted installation

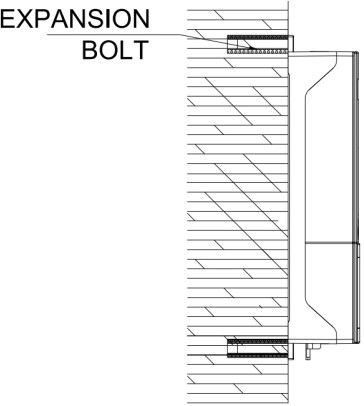

Drill 2 holes over the wall based on the size in table 1，place the expansion bolt Φ7.5*40，place the box to match up the holes and use bolt to fasten。(Pic 3)

Pic 3 Wall mounted installation

Accessories

1. Users' Manual*1

2. Accessories Bag * 1

Technical Specifications

Model	8 CORE (GFS-8ZT-2)
Fiber Capacity	Max 8 fibers
Adapter Type	Cassette type SC / LC / PLC adaptor
Installation Type	Wall-mounted / Pole-mounted (Indoor & Outdoor)
Material	PC + ABS (Wet-proof, Water-proof, Dust-proof)
Protection Level	Up to IP54
Dimensions (A×B×C)	235 x 126 x 52 mm
Optical Performance	Insertion loss ≤ 0.3dB; UPC RL ≥ 50dB; APC RL ≥ 60dB
Environmental Requirements	-40°C to +85°C; Humidity ≤ 85% (+30°C)
Cable Management	Flip-up distribution panel; Expression port for feeder cable

Order Information

Product Name	Ordering Code	Model	Max Capacity	Dimension (mm)	Application
Fiber Optic Termination Box	KM-GFS-8ZT-2	8 Core Termination Box	8 Cores	235 × 126 × 52	Wall-mounted / Pole-mounted

Packaging Information

Standard Packing	1 Set / Small Box
Carton Type	Reinforced Export Carton
Included Accessories	User's Manual, Accessories Bag (Expansion Bolts & Splicing Tools)
Mounting Options	Indoor/Outdoor Wall or Pole Mount

Frequently Asked Questions

Q Is this 8-core termination box suitable for outdoor environments?

A: Yes. The box is constructed from high-quality PC+ABS material and features a total enclosed structure. It provides a protection level up to IP54, making it wet-proof, water-proof, dust-proof, and anti-aging. It is designed for both indoor and outdoor uses.

Q What are the available installation options for this cabinet?

A: This versatile cabinet supports two main installation methods: wall-mounted or pole-mounted. The standard package includes expansion bolts (Φ7.5*40) specifically for secure wall installation.

Q How does the design facilitate easy maintenance for FTTx networks?

A: The equipment features a distribution panel that can be flipped up and utilizes cassette-type SC/LC/PLC adaptor installation. Additionally, cables, pigtails, and patch cords run through their own dedicated paths without disturbing each other, ensuring efficient maintenance and installation.

Q What thunder-proof and electrical safety features are integrated?

A: The box includes a thunder-proof grounding device that is isolated from the cabinet. It maintains an isolation resistance of at least 2 x 10^4 MΩ/500V (DC) and can withstand voltages of no less than 3000V (DC)/min without puncture or flashover.
